Setbacks, FAR and Height Limits: How Building Byelaws Shape Your House in India

The size of your house is not decided by your budget or your architect. It is decided by four numbers in your city's building byelaws: setbacks, ground coverage, floor area ratio (FAR) and maximum height. Together they draw an invisible box on your plot, and the house has to fit inside it.

This guide explains what each number means, where it comes from, what does and does not count towards it, and how to work out which of the four actually limits your plot. If you want the short version for a 30 x 40 site, read what you can build on a small plot first. This post goes one level deeper.

Who sets the rules, and in what order

Building control in India is layered. Each layer can tighten or override the one above it:

1. The National Building Code of India 2016, published by the Bureau of Indian Standards. It is a model code: authoritative on safety, structure and services, but it becomes binding only when a state or city adopts it.
2. The Model Building Bye-Laws 2016, prepared by the Town and Country Planning Organisation for the Ministry of Housing and Urban Affairs (MoHUA PDF). Again a template, offered to states and urban local bodies.
3. State or city development control regulations. These are the rules that actually apply, for example the Tamil Nadu Combined Development and Building Rules 2019 or Mumbai's Development Control and Promotion Regulations 2034.
4. The master plan and zoning of your city, which fixes the land use of your plot and sometimes its own FAR.
5. The approved layout plan of your colony or plotted scheme, which can fix setbacks and building lines plot by plot.

The Model Bye-Laws say this themselves: the provisions of the master plan, zonal plan or development code apply first, and the model norms fill gaps. On setbacks in particular, they defer entirely to the local master plan or development plan. That is why two identical plots in Pune and Chennai can carry very different houses.

Setbacks: the space you must leave open

A setback (also called a margin or open space) is the minimum distance between your building and each boundary of the plot. Setbacks exist for light, ventilation, fire access and privacy, and they are usually different at the front, rear and sides.

Three things typically drive them:

• Plot size. Larger plots usually need larger setbacks. Very small plots often get relaxed side setbacks, or none on one side, because otherwise nothing would fit.
• Road width. The front setback is frequently tied to the width of the road the plot faces. Wider roads, deeper front margins.
• Building height. Once a building crosses the high-rise threshold, setbacks on all sides usually increase with height.

Two traps catch homeowners every year. The first is road widening: if the development plan proposes to widen your road, the front setback is measured from the proposed road line, not today's boundary wall. The second is projections: chajjas and some balconies may be allowed to project into setbacks, but how far varies from city to city, and an enclosed balcony in the setback is a common reason for a refused completion certificate.

Ground coverage: how much of the plot the building may sit on

Ground coverage is the maximum percentage of the plot that the building may cover at ground level. The Model Bye-Laws define the covered area as the ground area covered immediately above the plinth, and list what does not count, including uncovered gardens, pools, platforms round a tree, compound walls, gates, chajjas and staircases that are uncovered and open on at least three sides.

On small plots, setbacks usually bite before ground coverage does. On larger plots it is often the other way round: the setbacks would allow a big footprint, but the coverage limit trims it.

FAR (or FSI): the total floor area you may build

Floor area ratio caps the total floor area of all floors combined, as a multiple of the plot area. The Model Bye-Laws define it as the combined covered area of all floors, excluding areas the regulations specifically exempt, divided by the plot area.

Three points cause most of the confusion:

• FAR and FSI are the same idea. Maharashtra and several southern states say floor space index (FSI). Delhi and the Model Bye-Laws say FAR. The arithmetic is identical. For flat buyers, our post on carpet, built-up and super built-up area explains how FSI connects to the area you are sold.
• Two notations exist. Some rules write FAR as a ratio (1.8), others as a percentage (180). They mean the same thing: total floor area may be 1.8 times the plot area.
• Exemptions change the real answer. Depending on your city, staircases, lift wells, stilt parking, basements used for parking and services, and some balconies may be partly or fully excluded from FAR. These exemptions can add a meaningful amount of usable area, so ask for them explicitly.

Many cities also let you build beyond the base FAR by paying for it or using transferable development rights. The Model Bye-Laws describe purchasable FAR as "an enabling provision", not a right, and suggest it mainly for plots on roads 24 m and wider. Your city's version of premium FSI or TDR will have its own conditions and price.

Height: how tall the house may go

Height limits usually depend on plot size and road width, and sometimes on things that have nothing to do with your plot: the approach path of an airport, which needs an Airports Authority of India height NOC, or a nearby protected monument, which brings in the National Monuments Authority.

The other height line that matters is the high-rise threshold. The Model Bye-Laws treat a building as multi-storeyed or high-rise if it has more than four storeys or exceeds 15 m in height (17.5 m including a stilt floor). Crossing it typically brings fire department approval, larger setbacks and stricter structural review, which is why so many independent houses stop at ground plus three with a stilt.

The national reference table

For plotted residential development, the Model Bye-Laws suggest the following controls (Table 3.3). Treat these as the template many states started from, not as your city's rule.

Notice that the table sets coverage, FAR and height, but not setbacks. Those come from your local plan.

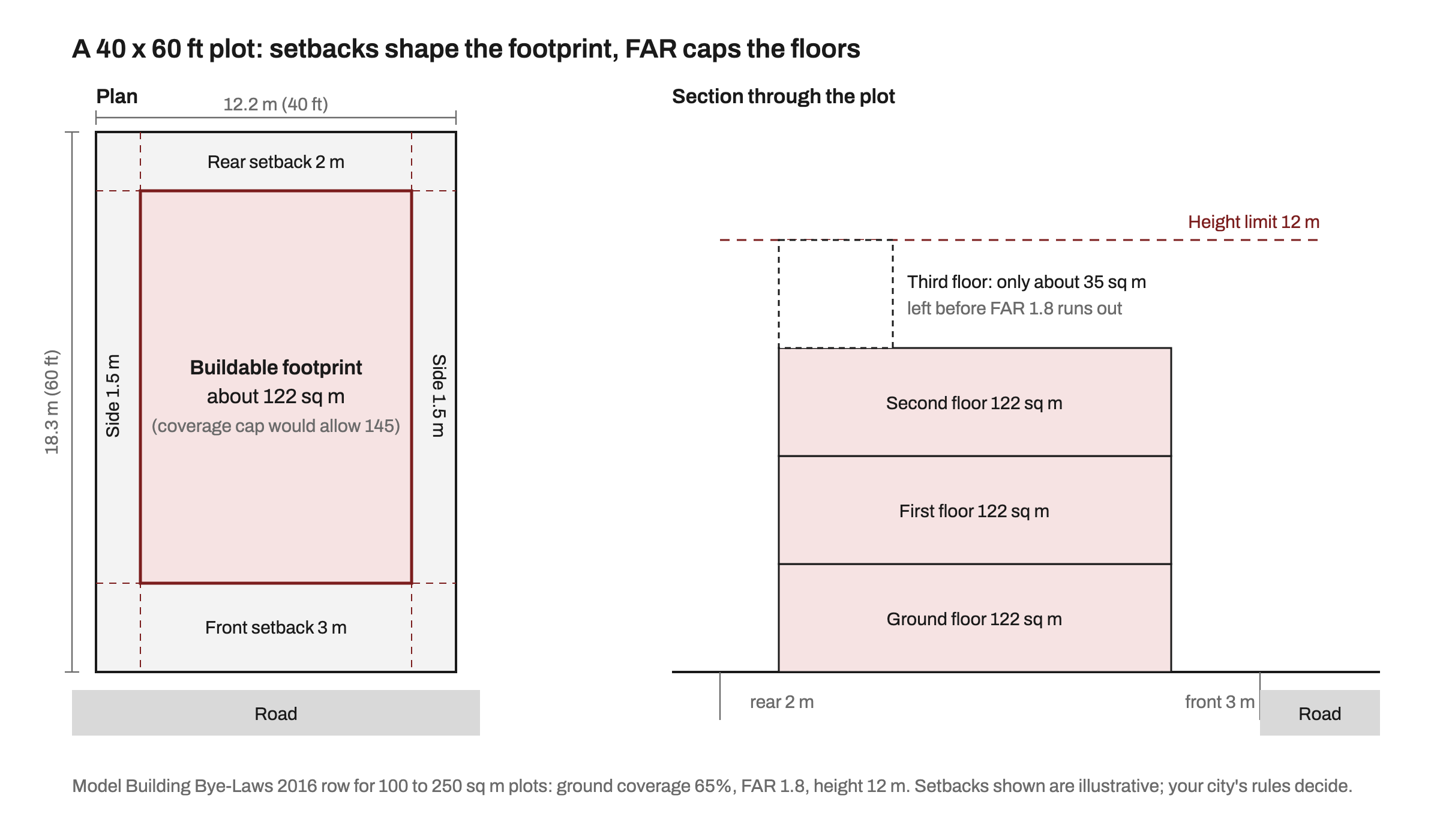

A worked example: a 40 x 60 plot

A 40 x 60 ft plot is 2,400 sq ft, or about 223 sq m, so it falls in the 100 to 250 sq m row of the model table. To show how the numbers interact, assume that row applies, and assume illustrative setbacks of 3 m at the front, 2 m at the rear and 1.5 m on each side. Your city's setbacks will differ.

Step 1: the setback envelope. The plot is about 12.2 m wide and 18.3 m deep. Width left after side setbacks: 12.2 minus 3 is 9.2 m. Depth left after front and rear: 18.3 minus 5 is 13.3 m. Footprint: about 122 sq m (roughly 1,315 sq ft).

Step 2: test ground coverage. 65 per cent of 223 sq m is about 145 sq m. The setbacks already limit you to 122, so setbacks govern the footprint.

Step 3: test FAR. FAR 1.8 on 223 sq m allows about 401 sq m (roughly 4,320 sq ft) across all floors. Three full floors of 122 sq m use 366 sq m, leaving about 35 sq m for a partial fourth floor, before any exemptions for the staircase or a stilt.

Step 4: test height. A 12 m limit fits about four floors at 3 m each, so height is not what stops you here. FAR is, together with the three-dwelling-unit cap if you were planning separate flats on each floor.

Change one number and the answer moves. If the same plot carried an FAR of 1.5, the total would fall to about 334 sq m, which is two full floors and a little over half of a third. This is exactly why you should get the actual figures for your plot before you buy or brief an architect, and why the plot due diligence checks include a zoning and road-width check.

How to find the real numbers for your plot

• Ask for the zoning or planning remarks for your survey or plot number from the planning authority. In Maharashtra this is often called a zone certificate or DP remark; other states have their own names.
• Check the approved layout plan if your plot is in a plotted scheme. Layout-specific building lines and setbacks override the general table.
• Measure the road, and check for proposed widening in the development plan.
• Read the current regulations, with amendments. State rules are amended by notification, so a PDF from three years ago may be out of date.
• Brief an architect who files locally. They know which exemptions the authority actually grants. You can find architects on MOA and check their Council of Architecture registration using our COA guide.

Once you know your buildable area, the MOA home cost calculator turns it into a budget, and our construction cost breakdown explains where the money goes.

Frequently asked questions

Can I build in the setback if my neighbour agrees?

No. Setbacks are statutory open spaces, not a private arrangement between neighbours. A neighbour's consent does not make construction in a setback legal, and it can block your completion or occupancy certificate.

Is FAR the same as FSI?

Yes. Both mean total permitted floor area divided by plot area. Some rules write it as a ratio (1.8), others as a percentage (180).

Does a basement or stilt floor count towards FAR?

It depends on your city. Many rules exclude basements and stilts used only for parking and services, but the conditions vary, so confirm with your authority's current regulations before you design around it.

Why does my plot have unused FAR?

Because another limit governs first. Setbacks, the height limit or a cap on dwelling units often stop a small or narrow plot from using all its FAR. Unused FAR is common, not a sign that something is wrong.

Does height include the parapet and the water tank?

Not always. Many local rules exclude items such as a parapet, a stair cabin or an overhead water tank from the height calculation, but only within set limits, and the limits differ between cities. Check the exact exclusions in your local regulations, especially if your design is close to the high-rise threshold.

Planning a house? Find an architect on MOA who knows your city's rules.

Sources

• Ministry of Housing and Urban Affairs, TCPO: Model Building Bye-Laws 2016 (definitions of covered area and FAR, Table 3.3, high-rise definition, purchasable FAR) (accessed 16 Oct 2026)
• Bureau of Indian Standards: National Building Code of India 2016 (accessed 16 Oct 2026)
• Tamil Nadu Combined Development and Building Rules 2019 (Gazette copy, Coimbatore City Municipal Corporation) (accessed 16 Oct 2026)
• Government of Maharashtra: Development Control and Promotion Regulations 2034 for Greater Mumbai (accessed 16 Oct 2026)
• Airports Authority of India: NOC Application System for height clearance (accessed 16 Oct 2026)
• National Monuments Authority (accessed 16 Oct 2026)
