False Ceiling Design for Bedroom: 5 Designs, a To-Scale Plan and Costs

The false ceiling design that suits most Indian bedrooms is a simple peripheral cove: a gypsum band about 1 ft 6 in wide around the walls, a hidden LED strip on its inner edge, the fan hung from the slab in the open centre, and no downlights over the pillows. In an 11 x 12 ft room with a queen bed, that band needs a drop of only 6 to 9 in, so it works even under a 9 ft slab.

Below: five designs drawn on one room to scale, what to keep above the bed, where the fan, AC and curtains go, safe drops, light levels and cost. Our guide to false ceiling design for a hall with two fans covers fan spacing and gypsum versus POP versus PVC.

About the numbers below: fan clearances come from V-Guard and Atomberg, room heights from the Model Building Bye-Laws 2016, AC clearance from a Daikin manual, light levels from two BIS codes and prices from published rate pages, each linked where used. Band widths, drops and light positions are common practice, labelled as our guidance.

Five false ceiling designs for a bedroom

All five fit the same 11 x 12 ft room with a 1200 mm fan. Atomberg's fan size chart puts a standard 100 to 150 sq ft bedroom in the 1200 mm band, and asks for 2 to 3 ft between the blade tips and the nearest wall, beam or ceiling fixture. We treat the edge of a dropped band like a beam, so in every design below the blade tips stay about 2 ft clear of it.

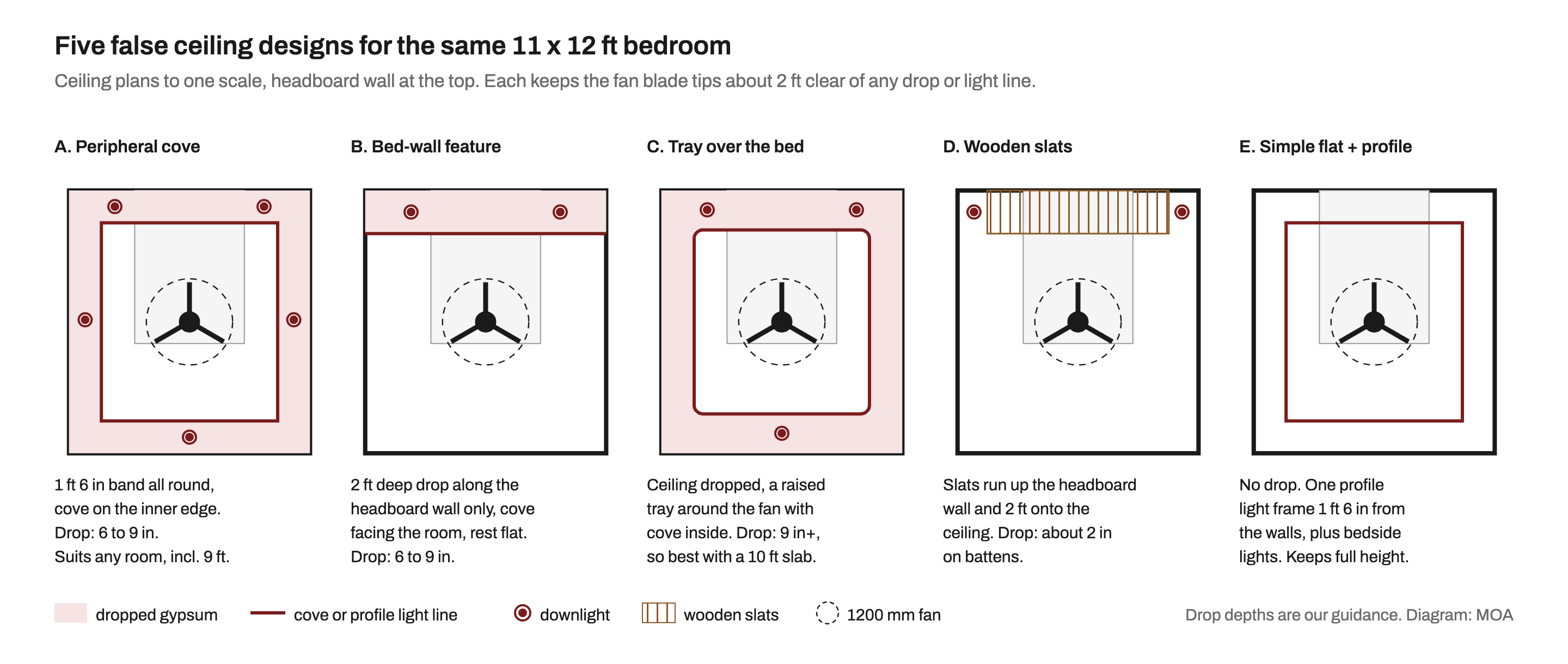

Five common bedroom false ceiling designs drawn on one 11 x 12 ft room at the same scale. Drop depths are our guidance. Diagram: MOA

1. Peripheral cove: the simple bedroom design

A 1 ft 6 in band drops around the walls and the centre stays at slab height. The cove gives the soft light you want at night, downlights sit in the band near the walls, and the fan hangs in the open centre, so you lose no fan height. The safest choice for a low room.

Design render of a bedroom with a white peripheral false ceiling band lit by a warm cove on its inner edge, small square downlights set in the band, a white five-blade ceiling fan in the plain centre, a low wooden bed with bright checked bedding, carved patterned wall panels and a wooden wardrobe. — Design render: a peripheral cove band holds the downlights at the edges, and the fan hangs in the plain centre over the bed. Studio ArkAi, Panchkula. Image: Studio ArkAi on MOA

Studio ArkAi's Suncity Panchkula apartment (2025) on MOA shows the type in a design render.

2. Bed-wall feature

Only the headboard wall gets a drop, about 2 ft deep, with its cove facing the room and downlights over the side tables. The rest stays flat. It frames the bed with about a third of the gypsum of a full band, and the fan stays at the room centre.

3. Tray over the bed

The whole ceiling drops except a raised, cove-lit tray around the fan. It suits a master bedroom with a 10 ft slab. Size the tray from the fan: a 1200 mm fan plus 2 ft of clearance on each side needs a tray about 8 ft across, which in an 11 ft room leaves a lower margin of roughly 1 ft 6 in on each side.

Design render of a bedroom seen from the foot of the bed: a raised rounded-rectangle tray in the ceiling edged with a warm LED cove, a white three-blade fan hanging inside the tray, downlights in the lower ceiling around it washing the walls, and an arched wood-panelled bed wall with a backlit edge behind a queen bed. — Design render: a tray over the bed with the fan inside it, downlights kept near the walls and the bed wall lit from its own edge. Image: Spl Interiors on Unsplash, Unsplash License

4. Wooden slats from the bed wall

Slats or veneer run up the headboard wall and about 2 ft onto the ceiling. On battens they drop only about 2 in, so they suit a low room. Keep the wood at least 2 ft from the blade tips, and use pendants or wall lights at the bedside rather than cutting downlights into the slats over the pillows.

Design render of a bedroom where vertical wood panelling behind the bed continues across the ceiling as a wooden panel framed by thin linear lights, with a dark five-blade fan fixed in the wood, two slim pendant lights hanging beside the headboard and tall glass doors with sheer curtains. — Design render: wood from the bed wall runs onto the ceiling, linear lights frame it, and pendants light the bedside instead of downlights over the pillows. Image: Salman Saqib on Unsplash, Unsplash License

5. Simple flat ceiling with a profile light

No drop: one aluminium profile light frame about 1 ft 6 in from the walls, plus bedside lights. It keeps every inch of height and costs least, which suits a rented flat or a low slab.

What to avoid above the bed

In a living room you look across the ceiling. In bed you look straight up at it. India's interior lighting code, IS 3646 (Part 1):1992, notes that indoors, discomfort glare from lamps and fittings is more of a problem than glare that impairs sight, and its glare check assumes a viewer who sees ceiling fittings at an angle of 45° to 85° from straight down. A person lying in bed sees a fitting overhead at no angle at all. So, as our guidance:

No downlights over the pillows. Keep the zone from the headboard to about the middle of the bed free of fittings. Put reading light over the side tables, or use pendants or wall lights switched from the bed.
No heavy fixtures over the headboard. A chandelier or heavy pendant over someone's head is a risk on a board ceiling. Saint-Gobain Gyproc's ceiling lighting guide advises hanging chandeliers from the ceiling beams, not the gypsum board. If you want one, fix it to the structure above and keep it away from the bed head.
No light directly above the fan. Turning blades in front of a light flicker, which is hard to sleep under. The cove is fine; a downlight behind the blades is not.

Where the fan goes over the bed

Fix the fan before you draw anything else. V-Guard's fan guidance asks for at least 2.4 m from the fan to the floor and 0.3 m between the blades and the ceiling or a projecting beam. Atomberg asks for 2 to 3 ft from the blade tips to the nearest wall, beam or fixture, and its installation guide says the mounting hook should be anchored to the main ceiling, not just the false ceiling layer.

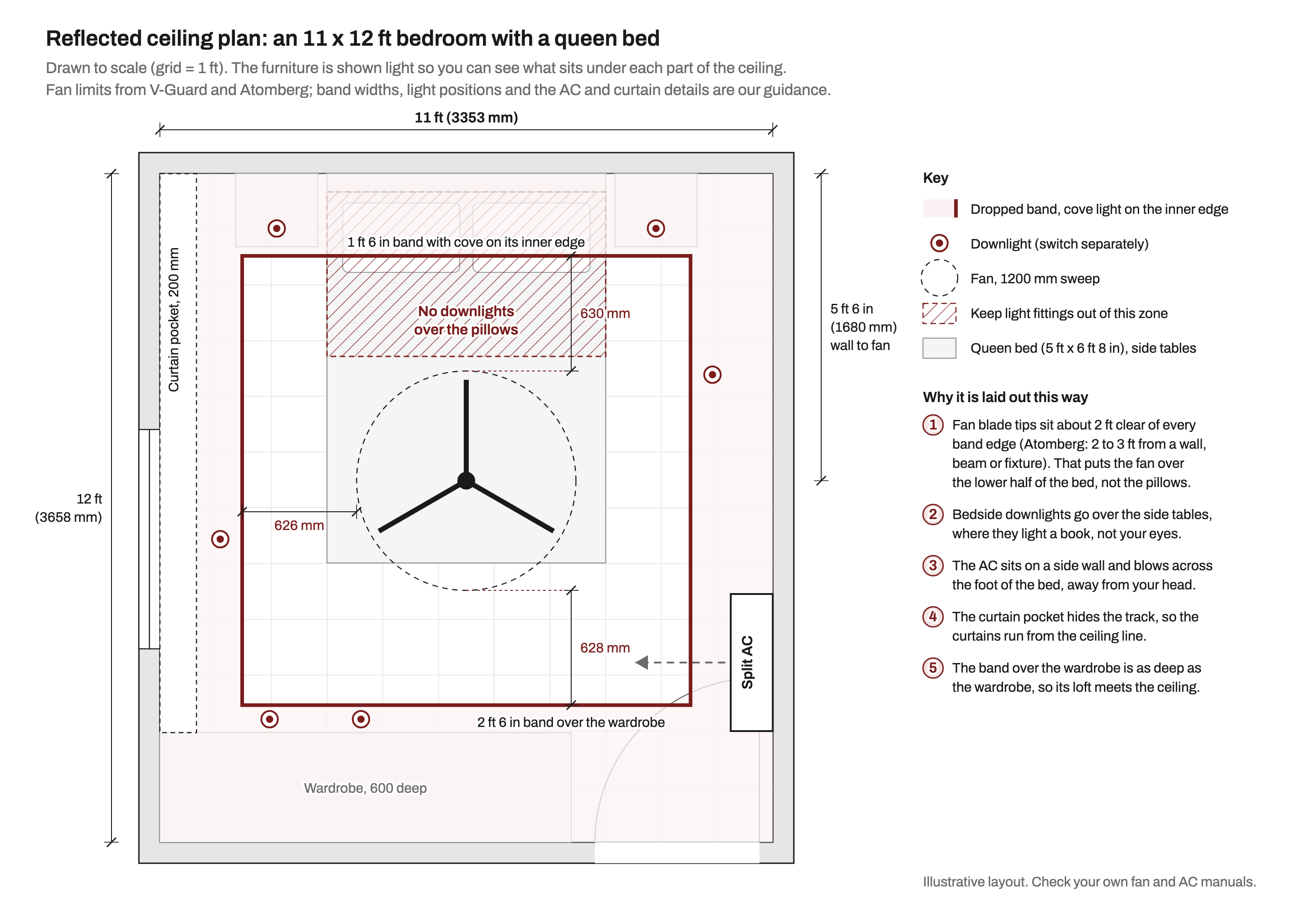

To-scale reflected ceiling plan of an 11 by 12 ft bedroom. A queen bed, 5 ft by 6 ft 8 in, is centred on the top wall between two side tables, with a wardrobe 600 mm deep along the bottom wall. A 1 ft 6 in gypsum band with a cove light runs round the room, widening to 2 ft 6 in over the wardrobe, with a 200 mm curtain pocket along the window wall. A 1200 mm fan hangs 5 ft 6 in from the headboard wall, its blade tips about 630 mm clear of each band edge. Downlights sit over the side tables and near the walls, a hatched zone over the pillows has none, and a split AC on the side wall blows across the foot of the bed. — An 11 x 12 ft bedroom with a queen bed, drawn to scale. Fan limits from V-Guard and Atomberg; band widths, light, AC and curtain positions are our guidance. Diagram: MOA

The queen bed sits centred on the 11 ft wall, leaving 3 ft each side for side tables. The band is 1 ft 6 in on three walls and 2 ft 6 in over the wardrobe, so its loft meets the ceiling. The only spot that keeps a 1200 mm fan's tips about 2 ft from every band is about 5 ft 6 in from the headboard wall, on the centre line: over the lower half of the bed, which keeps the strongest air off your face (our guidance).

For another room size, repeat the check: blade radius (600 mm for a 1200 mm fan) plus 2 ft from every band edge.

AC and curtain pelmet in the false ceiling

Split AC

Put the indoor unit on a side wall so the air crosses the foot of the bed, not your head, as our bedroom trends for 2027 guide also suggests. If the unit sits under a band, the band's underside is the ceiling it must clear. Daikin's installation manual for its FTYN wall-mounted split asks for 30 mm or more from the ceiling and 50 mm or more from walls on both sides; your model's manual may differ. Fix the AC point, the copper pipe route and the drain before the ceiling is closed. A cassette or ducted unit needs a deeper ceiling void, so check the maker's figure first.

Curtain pelmet or pocket

A curtain pocket is a slot in the band along the window wall that hides the track, so curtains hang from the ceiling line and the room looks taller. About 150 mm suits one track and about 200 mm two (sheer plus blackout), as our guidance. The Bureau of Indian Standards' National Lighting Code (SP 72:2010) suggests wiring points for pelmet lighting in a home's main living areas; the same applies in a bedroom, so add a point if you want a strip there.

Design render of a Mumbai bedroom with a rounded rectangular raised tray lit by a warm cove, a white ceiling fan in the tray, two glass pendant lights hanging beside the bed, a slim linear light along the wardrobe side, and full-height grey curtains hung from the ceiling line at a corner window. — Design render, Mumbai: pendants at the bedside, the fan in a cove-lit tray and curtains running from the ceiling line. Image: Home Makers Interior on Unsplash, Unsplash License

How much to drop in a 9 ft or 10 ft bedroom

The Model Building Bye-Laws 2016 (clause 4.3.1.1) set 2.75 m, about 9 ft, as the minimum height of a habitable room, measured to the bottom of the slab. For air-conditioned rooms they allow at least 2.4 m measured to the lowest point of the AC duct or the false ceiling. So in an AC bedroom a false ceiling may come down to 2.4 m. Clause 2.12.1(h) also lets you put up a false ceiling at the permissible clear height without a building permit, as long as it cannot be used as a loft. States and cities adopt their own versions, so check yours.

The fan sets a tighter limit than the bye-laws. Hung from the slab with its blades 300 mm below it, a fan in a 10 ft (3048 mm) room sits at 2748 mm, and in a 9 ft (2743 mm) room at 2443 mm, only 43 mm above V-Guard's 2.4 m minimum.

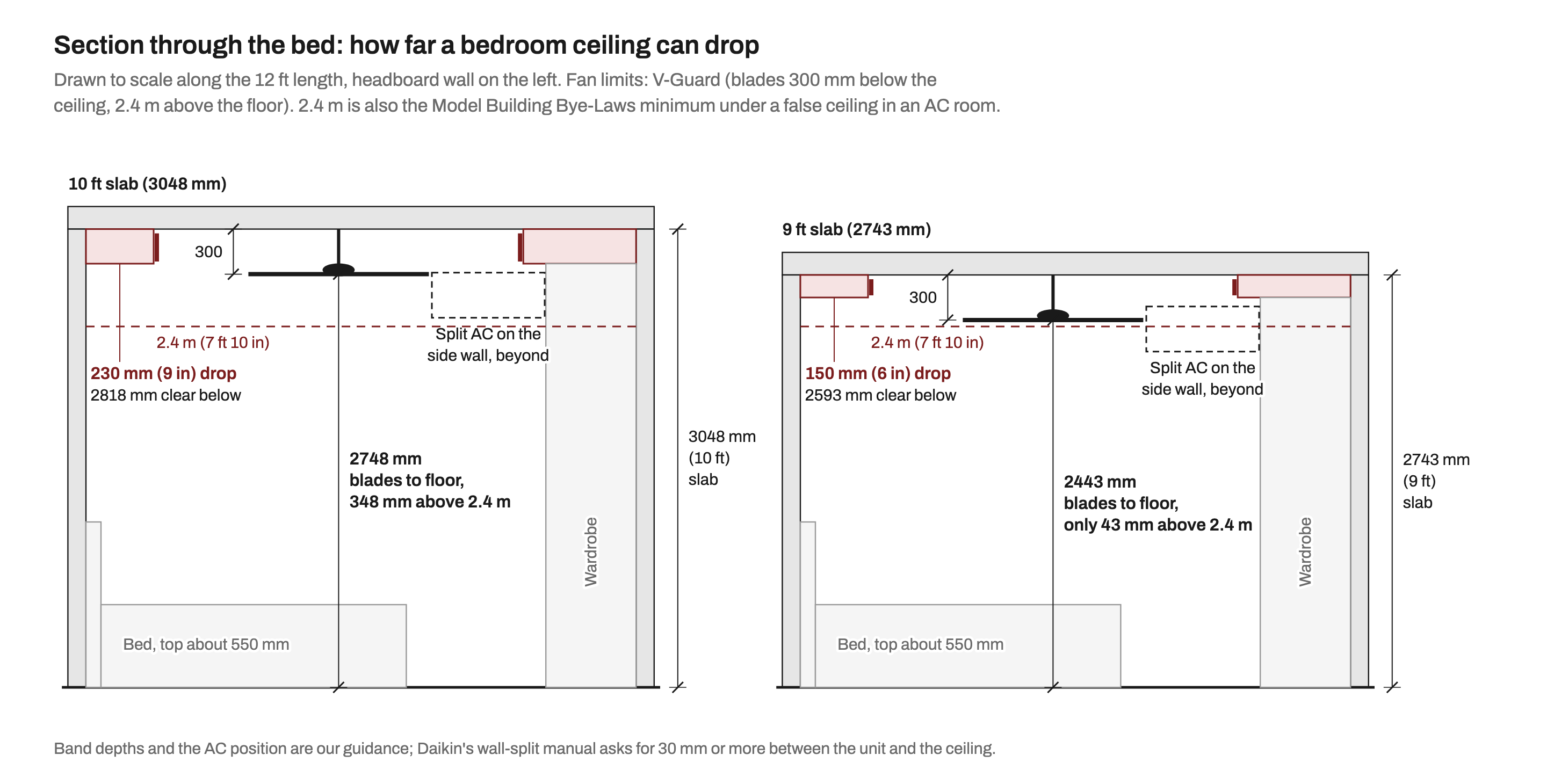

To-scale sections along a 12 ft bedroom with a 10 ft slab and a 9 ft slab. In each a fan hangs from the slab over the bed with its blades 300 mm below the slab, at 2748 mm above the floor for the 10 ft slab and 2443 mm for the 9 ft slab. A gypsum band drops 230 mm (9 in) in the 10 ft room and 150 mm (6 in) in the 9 ft room, at the headboard wall and over a full-height wardrobe at the foot. A dashed line marks 2.4 m, and a split AC is shown on the side wall just below the band. — Why a 9 ft bedroom can take only a shallow band: the fan stays at slab level and the 2.4 m line sets the limit. Fan limits from V-Guard, the 2.4 m AC-room figure from the Model Building Bye-Laws; band depths are our guidance. Diagram: MOA

10 ft slab: a band of 8 to 9 in leaves about 9 ft 3 in under it. A tray design works here (our guidance).
9 ft slab: keep the band to about 6 in, keep the fan at slab level in the open centre, and use a fan with no downrod. Atomberg's chart suggests skipping the downrod for 8 to 9 ft ceilings. A fan hung under even a 6 in drop would fall below 2.4 m.

Bedroom lighting levels

Homes are not in IS 3646's table, but hotel bedrooms are, at 30, 50 and 100 lux (low, recommended and high), with supplementary local lighting at the bed head and writing table. The National Lighting Code says uniform light is seldom needed or even desirable in homes: low-key general lighting plus supplementary lighting is usually enough. For bedrooms it asks for light switches near the bed head and a high level of light at the dressing table. BIS now lists both codes as withdrawn, and we could not open the newer editions, so treat these figures as a reference, not a rule.

So plan three layers, each on its own switch (our guidance):

Ambient: the cove or profile, on a dimmer. Low is fine.
Bedside: a reading light per side, switched from the pillow.
Task: brighter light at the dressing mirror and inside the wardrobe.

For colour temperature, our lighting trends for 2027 post suggests 2700 to 3000 K for bedrooms.

False ceiling design for a small bedroom

For a 9 x 10 ft room (90 sq ft), Atomberg's chart puts small bedrooms of 50 to 100 sq ft in the 900 mm fan band. Centred in a 9 ft width, a 900 mm fan's tips sit about 3 ft from the walls, so a band of 1 ft keeps the 2 ft clearance and a band of 1 ft 6 in does not. So for a small bedroom with a fan: a 1 ft cove band or a flat profile ceiling, light colours, no tray (our guidance).

False ceiling design for a master bedroom

A 12 x 14 ft master bedroom (168 sq ft) falls in Atomberg's 1400 mm band (150 to 225 sq ft). The longer blades need more room: with a 1 ft 6 in band, the fan centre must be at least about 5 ft 10 in from every wall. In a 12 ft width that still fits at the centre line. A tray over the bed or a bed-wall feature both work if the slab is 10 ft. For where the bed goes, our vastu for bedrooms post covers the traditional view.

Bedroom false ceiling price

Market range: about ₹60 to ₹185 per sq ft of ceiling built. NoBroker's Pune 3BHK cost guide (7 May 2026) gives ₹70 to ₹110 for a basic and ₹110 to ₹185 for a premium false ceiling; Design Cafe's 3BHK cost guide (16 Sep 2026) gives ₹60 to ₹120 for POP and ₹75 to ₹180 for gypsum. Neither says whether GST, cove strips or light fittings are included, so ask.

Rates are per sq ft of ceiling built, so the design decides the bill:

Room and design	Ceiling built	At ₹60 to ₹185 per sq ft
11 x 12 ft, peripheral cove (1 ft 6 in band, 2 ft 6 in over the wardrobe)	68 sq ft	₹4,080 to ₹12,580
11 x 12 ft, full drop with a tray	about 132 sq ft	₹7,920 to ₹24,420
9 x 10 ft small bedroom, 1 ft band	34 sq ft	₹2,040 to ₹6,290

Lights and wiring come on top. For a whole-home budget, try MOA's free home cost calculator, and see interior design cost room by room for what per-sq-ft rates usually include.

FAQ

Which false ceiling design is best for a bedroom?

For most flats, a peripheral cove with the fan in the open centre and bedside lights instead of downlights over the pillows. It needs only a 6 to 9 in drop.

Can I have a false ceiling in a bedroom with a fan?

Yes. Hang the fan from the slab, not the gypsum, as Atomberg advises, and keep the blade tips about 2 ft from any band edge. In a 9 ft room keep the fan in the open centre so its blades stay above 2.4 m.

What is the minimum height for a bedroom false ceiling?

The Model Building Bye-Laws 2016 allow 2.4 m to the false ceiling in an air-conditioned room. Under a fan you need more, because the blades must stay 2.4 m above the floor and 0.3 m below the ceiling.

How much does a false ceiling cost for a small bedroom?

At the published ₹60 to ₹185 per sq ft, a 1 ft band in a 9 x 10 ft room comes to about ₹2,000 to ₹6,300 before lights, wiring and any GST.

A ceiling plan drawn before work starts saves breaking the ceiling later. Find interior designers on MOA and filter the directory by your city.

Sources

Atomberg: Ceiling Fan Size Chart: The Complete Guide for Indian Homes, last updated 12 Aug 2026 (accessed 21 Oct 2026), atomberg.com
Atomberg: How to Install a Ceiling Fan (accessed 21 Oct 2026), atomberg.com
V-Guard: Windle Pro PS ceiling fan, product page FAQ on installation clearances (accessed 21 Oct 2026), vguard.com
Ministry of Housing and Urban Affairs, TCPO: Model Building Bye-Laws 2016, clauses 2.12.1(h) and 4.3.1.1 (accessed 21 Oct 2026), mohua.gov.in
Daikin: Installation manual, FTYN-L / RYN-L wall-mounted split air conditioner, indoor unit clearances (accessed 21 Oct 2026), daikinmea.com
Bureau of Indian Standards: IS 3646 (Part 1):1992, Code of practice for interior illumination, clause 4.4 and Table 1 (hotel bedrooms), via Public.Resource.Org (accessed 21 Oct 2026), law.resource.org
Bureau of Indian Standards: SP 72:2010, National Lighting Code, section on residential lighting, via Public.Resource.Org (accessed 21 Oct 2026), law.resource.org
Saint-Gobain Gyproc India: Lighting up the Ceiling (accessed 21 Oct 2026), gyproc.in
NoBroker: 3 BHK Interior Design Cost in Pune, 7 May 2026 (accessed 21 Oct 2026), nobroker.in
Design Cafe: 3BHK Interior Design Cost, 16 Sep 2026 (accessed 21 Oct 2026), designcafe.com
