Mandir Design for Home: Wall-mounted and Floor Units for Flats

The best mandir design for a home in a flat is a unit sized to how your family prays. A wall-mounted unit about 600 mm wide and 300 mm deep, with its lamp ledge near 1,000 mm, suits standing prayer; a floor-standing unit about 1.8 m tall with drawers below suits small flats that need storage; and a low unit with its ledge near 450 mm suits families who sit on the floor for pooja.

Ready-made units listed online on 21 October 2026 ran from ₹7,999 for a small sheesham wall unit to ₹58,999 for a tall sheesham floor unit, with Corian and marble mandirs going well beyond that.

This post is about the mandir unit itself: its type, size, height, materials, lamp safety, lighting and price. For layouts such as niches and fold-down units, see our pooja room design guide for apartments. For direction, see Vastu for the pooja room. Doors have their own guide in this series, on pooja room door designs with prices.

Mandir design for home: pick the unit by how you pray

Start with one question: does your family stand, sit on a chair or sit on the floor for pooja? That sets the ledge height, which decides the unit type.

Unit type	Suits	Typical size (our guidance)	A published example
Wall-mounted	Standing prayer, 1BHK and 2BHK flats with no spare floor	450 to 600 mm wide, 250 to 300 mm deep	Sheesham, 18 x 11 x 22 in, two drawers: ₹7,999
Floor-standing	Standing or chair prayer, storage underneath	600 to 900 mm wide, 400 to 450 mm deep, 1.5 to 1.9 m tall	Engineered wood, 24 x 14 x 57 in, LED jaali: ₹14,999
Corner	A dead corner in the living or dining room	450 to 600 mm along each wall	NoBroker gives ₹8,000 to ₹20,000 for a wall-mounted corner unit
Sitting-height	Floor pooja on an asan, elders who prefer to sit	700 to 900 mm wide, about 850 mm tall	Sheesham with doors, 31 x 17 x 33 in: ₹19,999

The examples are from Wooden Street product pages and the corner figure from NoBroker Interiors' 2026 corner pooja guide, which adds that installation of ₹3,000 to ₹8,000 may be charged separately.

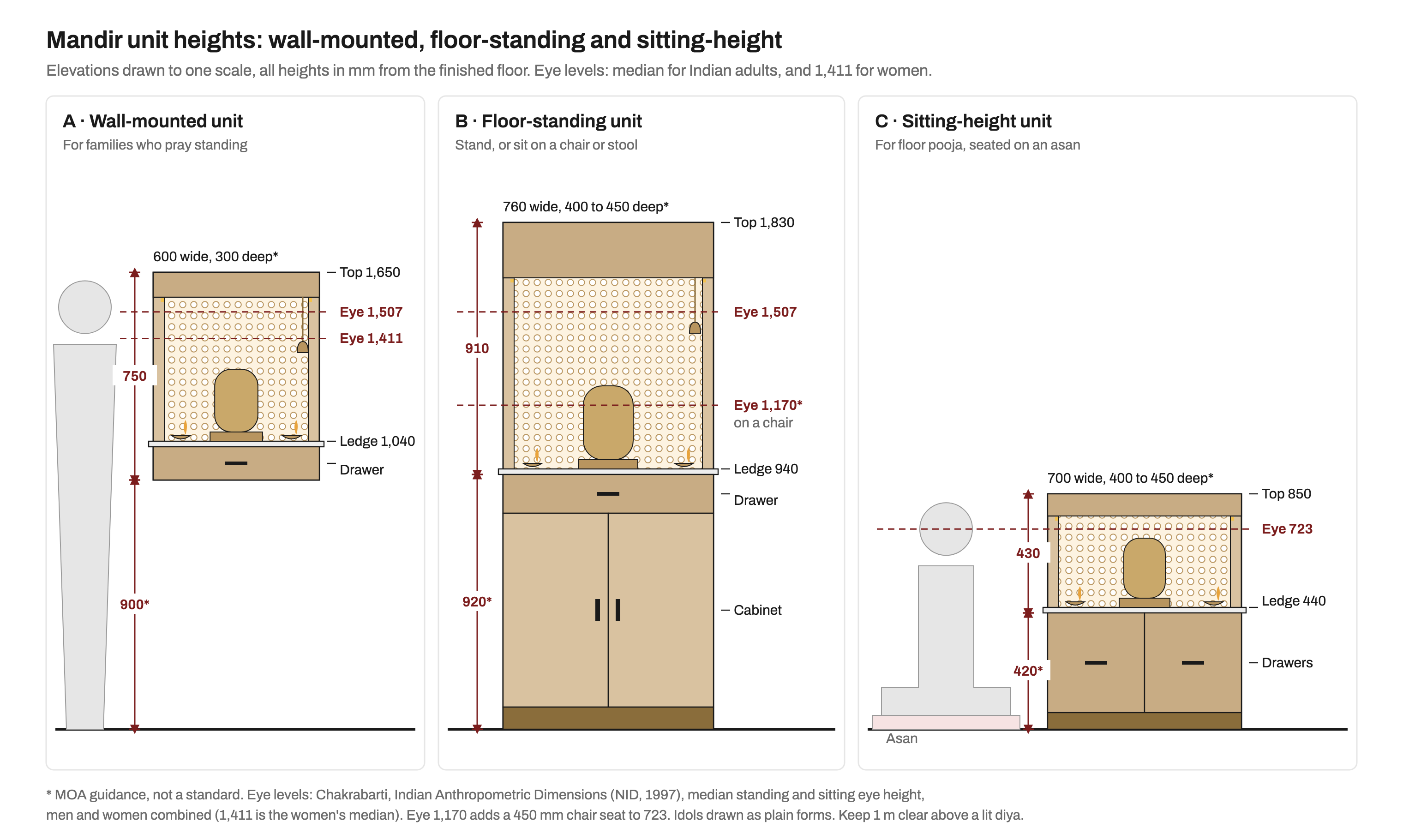

Sizes and heights that work in a flat

Where the idol should sit

The most useful number is where your eyes are. NID's Indian anthropometric data, published by IIT Guwahati's ergonomics lab, puts the median standing eye height at 1,507 mm for Indian men and women combined, 1,529 mm for men and 1,411 mm for women. Seated, the median eye height is 723 mm above the seat (IIT Guwahati, sitting datasheet). Sitting cross-legged on the floor, the floor is the seat, so your eyes are roughly 700 to 750 mm up.

Guides disagree on how high the idol should be. Our apartments guide quotes Houzz India's 32 to 36 inches from floor to the base of the mandir, which puts a 250 mm idol at chest height when you stand. NoBroker's guide says the idol should sit at eye level or slightly above. Both work; pick one deliberately. Our guidance: for a family that mostly stands, a ledge at 1,000 to 1,100 mm keeps the idol a little below eye level, where you look at it without craning. If you prefer eye level, raise the ledge to about 1,250 mm, and remember that children, elders and anyone seated will then look up.

Wall-mounted mandir design (a pooja unit for a flat)

A wall unit is a box with a canopy, a back panel, a ledge and a drawer. Wooden Street's sheesham wall unit is 18 by 11 by 22 inches (46 by 28 by 56 cm) with two drawers, and its listing recommends brick or concrete walls, noting that drywall needs additional anchoring. That matters in new flats, where some partitions are gypsum or AAC block.

Our guidance for a custom unit: 600 mm wide, 300 mm deep and 750 mm tall, hung with its base at about 900 mm. Brass idols are heavy, so ask the carpenter for a French cleat or concealed brackets screwed into masonry rather than two hooks.

Floor-standing mandir with storage

In a small flat, a floor unit earns its space by storing things. Wooden Street's engineered wood unit is 24 by 14 by 57 inches with open shelves for idols, a closed cabinet and a drawer; its sheesham unit with a marble base is 30 by 17.2 by 72 inches, with two cabinet doors and three drawers. Our guidance: a ledge between 900 and 950 mm serves both someone standing and an elder on a chair, whose eyes sit near 1,170 mm on a 450 mm seat.

A mandir built into a TV or crockery unit is a floor unit with neighbours. Give it its own compartment with a stone base, and keep the TV, glassware and anything electrical out of the space above the lamp.

Mandir design for home sitting (floor pooja)

Families who sit for pooja need a low unit, not a wall unit hung lower. Wooden Street's floor-rested sheesham mandir with carved doors is 31.4 by 17.4 by 33 inches, which shows the proportions: wide and low. Our guidance: a ledge at 400 to 450 mm, drawers below, and a clear floor about 900 mm deep in front for an asan, the aarti plate and a bell stand.

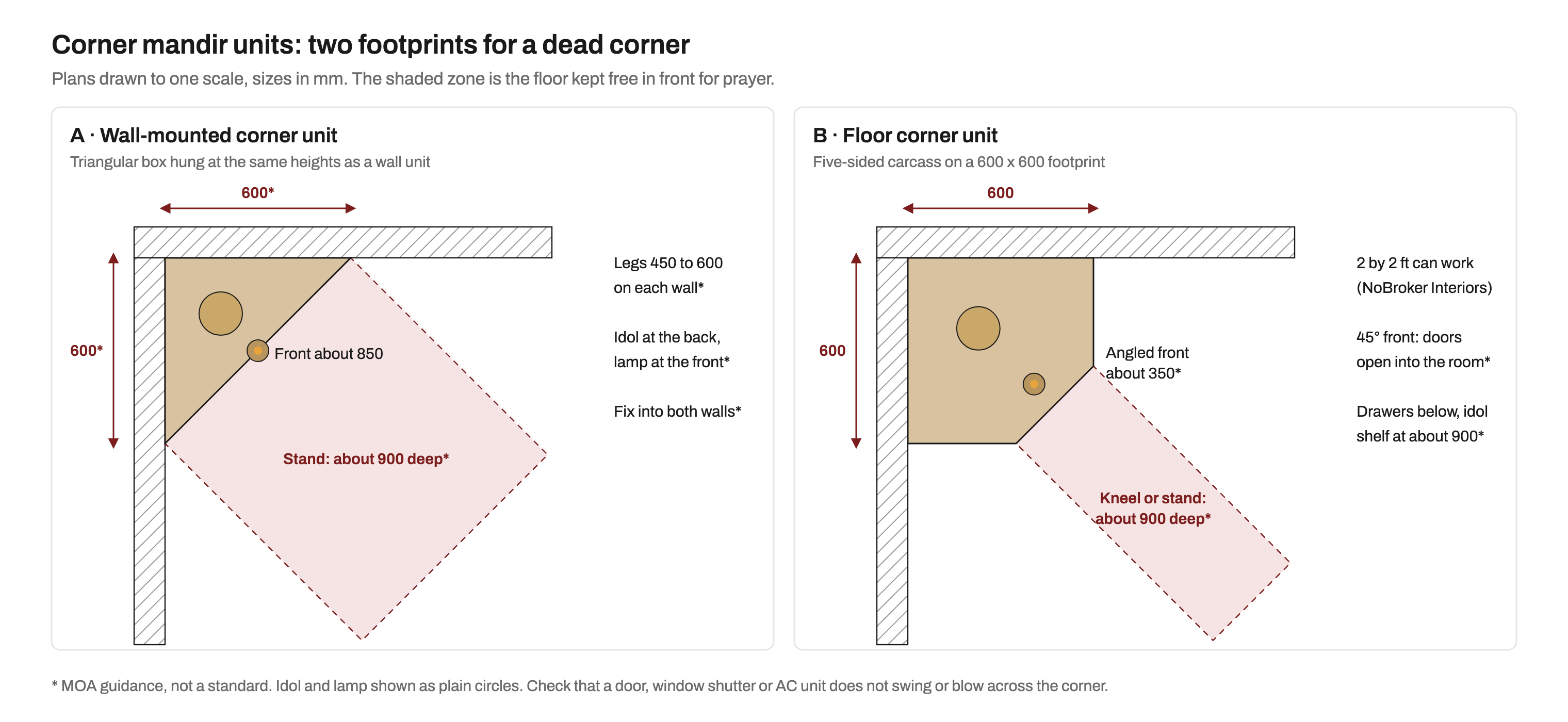

Corner mandir for a small space

NoBroker's guide says a wall-mounted corner unit needs as little as 18 to 30 inches of wall across both corner walls, and that a floor unit can work in a 2 by 2 ft footprint. A triangular unit with 600 mm legs has a front face of about 850 mm, which is enough for one idol and two lamps.

What goes inside: drawer, ledge, bell and diya

A good unit holds the whole ritual, not just the idol:

• Drawer for samagri. Wicks, oil, camphor, agarbatti, kumkum and matches. A drawer about 120 mm high is enough; line it with a washable tray for oil. Keep matches and camphor here, never on the ledge.
• A stone top under the lamps. Marble, granite or quartz takes heat and oil better than veneer or laminate.
• Bell hook. Under the canopy, at one side, so a swinging bell never reaches the flame.
• Space for the aarti plate. A pull-out tray or a lip on the ledge gives a working surface without crowding the idol.

Materials: wooden, marble, Corian and MDF jaali

Material	Where it works	Heat and oil
Solid wood (sheesham, teak)	Frames, carved fronts, whole units	Burns and stains; needs a stone top under every lamp
Plywood with veneer or laminate	Most custom units	Edges swell if oil or water gets in; seal and edge-band well
MDF jaali	Back panels, backlit screens, doors	Keep it out of the flame zone; it is wood fibre
Marble	Ledges, bases, whole mandirs	Takes heat well; oil can stain light stone, so seal it
Corian (solid surface)	Seamless white units, backlit panels	Heat resistant, not heatproof: use a trivet or plate

Two details from the sources. Wooden Street's solid wood units use sheesham for the body but engineered wood for drawers and back panels, so "wooden mandir" rarely means solid wood throughout; ask. And DuPont's Corian care bulletin says the material is heat resistant but that direct heat should be minimised, and tells owners to use heat trivets or hot pads under hot objects. For a Corian mandir, that means a brass or stone plate under every diya. For marble, our guide to natural stone for houses compares Makrana and other stones.

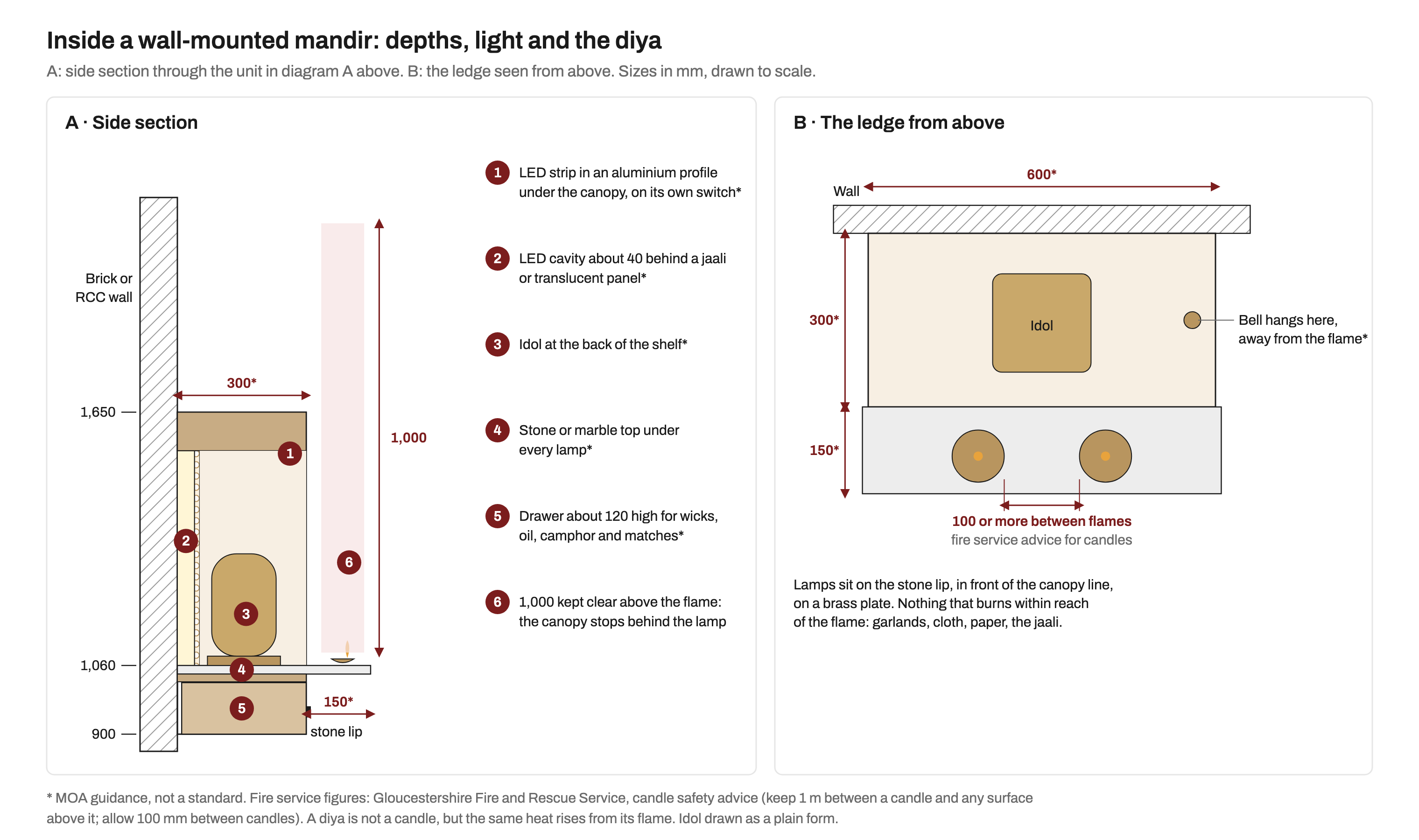

Diya and oil lamp safety in a wooden mandir

A mandir is a box with an open flame in it. Gloucestershire Fire and Rescue Service advises not putting candles under shelves, keeping at least 1 m between a candle and any surface above it, and allowing 100 mm between candles. A diya is not a candle, but its heat rises the same way, and in a wall unit like the one drawn above, the canopy is only about 500 mm over the ledge.

Our guidance for meeting that 1 m in a real unit:

• Bring the lamp forward. Let the stone top project about 150 mm beyond the canopy and put the diya on that lip, so nothing sits directly above it.
• Or line the space above. If the diya must sit inside, line the underside of the canopy with brass sheet or stone, and keep the LED strip and any MDF jaali away from it.
• Two lamps, 100 mm apart. Most families light a pair; leave the gap the fire service gives for candles.
• No cloth near the flame. Garlands, chunri and paper pictures burn fast; keep them to the sides.

For side clearances, incense smoke and ventilation, see the safety section of our apartments pooja room guide.

Lighting and backlit panels

Light makes a small mandir read from across the room. Wooden Street's engineered wood unit puts an LED behind an acrylic jaali with its own switch at the base, and IndiaMART sellers list backlit Corian mandirs, one at ₹1,100 per sq ft for 12 mm board.

Our guidance:

• A strip in an aluminium profile under the front of the canopy lights the idol's face.
• A 40 to 50 mm cavity behind a translucent or jaali panel spreads light evenly without hot spots.
• Put the driver where an electrician can reach it, not sealed inside the back panel, and give the unit its own switch.
• Keep every LED strip out of the space above the lamps.

For colour temperature, our lighting trends guide covers warm, hidden light in Indian homes.

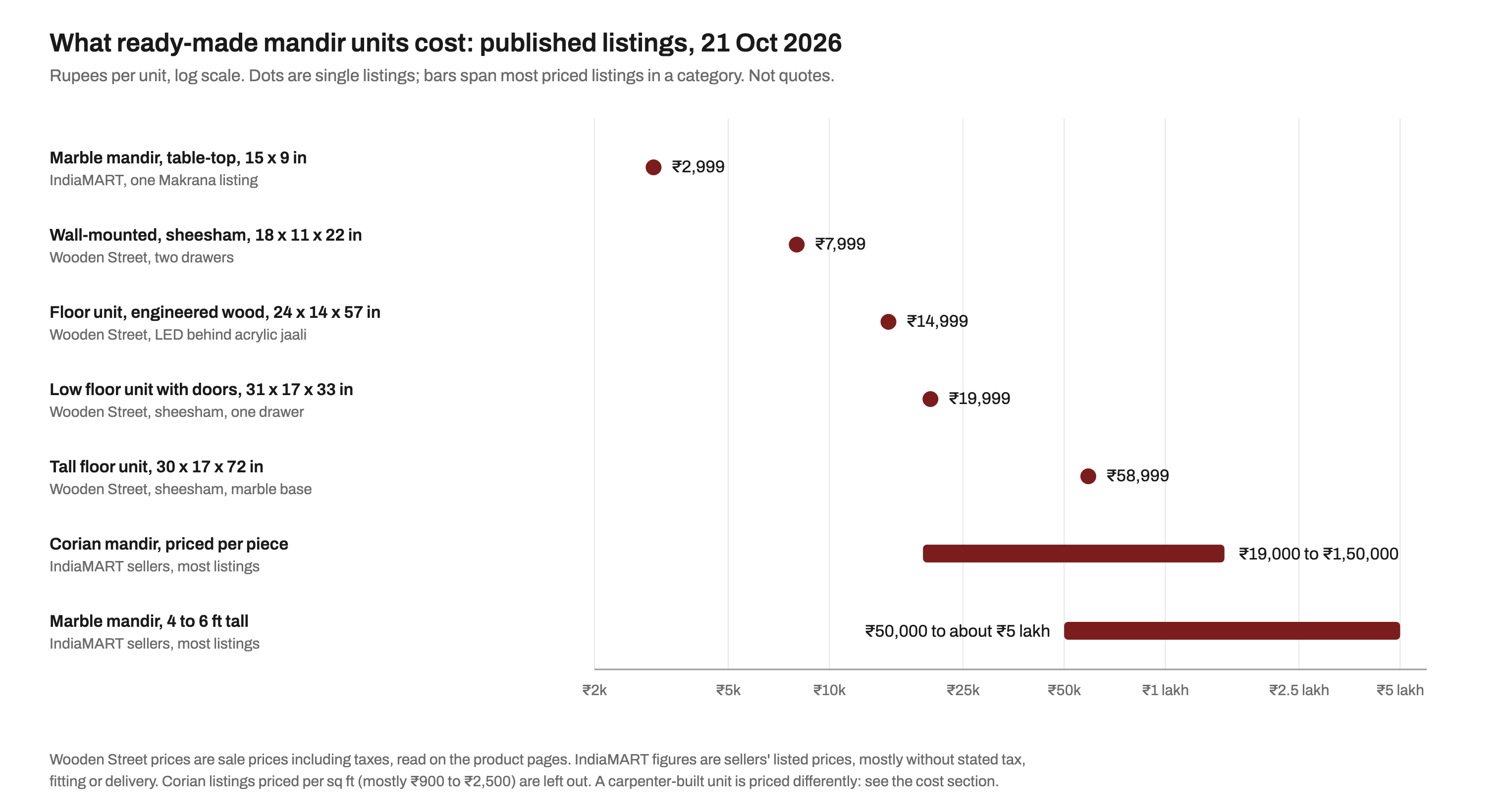

Mandir design price: what published listings show

Unit	Published price	Source
Sheesham wall unit, 18 x 11 x 22 in, two drawers	₹7,999 (MRP ₹18,999)	Wooden Street
Engineered wood floor unit, 24 x 14 x 57 in, LED jaali	₹14,999	Wooden Street
Sheesham floor-rested unit, 31.4 x 17.4 x 33 in, doors and drawer	₹19,999	Wooden Street
Sheesham floor unit with marble base, 30 x 17.2 x 72 in	₹58,999	Wooden Street
Corian mandir, per piece	Mostly ₹19,000 to ₹1,50,000	IndiaMART listings
Corian mandir, per sq ft	Mostly ₹900 to ₹2,500	IndiaMART listings
Marble mandir, 4 to 6 ft tall	Mostly ₹50,000 to about ₹5 lakh	IndiaMART listings

Wooden Street's prices are sale prices that include taxes; its Vidyut, Bhagwati and Daivik pages list MRPs about twice as high. IndiaMART figures are sellers' listed prices for Corian mandirs and marble temples, a market range that rarely says what tax, delivery or fitting is included.

A carpenter-built unit is priced as part of your carpentry. Our room-by-room interior design cost guide shows how that is charged, and MOA's free home cost calculator gives a whole-home estimate.

Before you order: a checklist for small flats

1. Decide standing, chair or floor, and set the ledge height from that.
2. Check the wall: brick or RCC for a wall unit, anchors for anything else.
3. Insist on a stone top under the lamps and a clear 1 m above them.
4. Keep 900 mm of clear floor in front for prayer.

FAQ

What is the best mandir design for a small flat?

A wall-mounted unit about 600 mm wide and 300 mm deep, or a corner unit, because neither takes floor space. Choose a floor unit only if you need its storage.

What is the right height for a wall-mounted mandir?

Our guidance is a lamp ledge at 1,000 to 1,100 mm for standing prayer, which keeps the idol a little below the median Indian standing eye height of 1,507 mm. For floor pooja, use a low unit with its ledge at about 400 to 450 mm.

Is a wooden mandir safe with a diya?

Yes, if the diya sits on a stone or brass plate, with no shelf, cloth or LED strip directly above it. A UK fire service advises 1 m clear above a candle flame; bring the lamp forward onto a stone lip to achieve that.

What is the price of a mandir for home?

Listings read on 21 Oct 2026 showed ₹7,999 for a small sheesham wall unit, ₹14,999 to ₹58,999 for floor units, mostly ₹19,000 to ₹1,50,000 for Corian, and ₹50,000 upward for 4 to 6 ft marble mandirs.

Corian or marble mandir: which is better?

Corian is seamless and can be backlit, but needs a plate under every lamp. Marble takes heat better but is heavy and costs more. Many units pair a wooden body with a marble ledge.

Planning a mandir with the rest of your flat? Find an interior designer on MOA and filter the directory by your city.

Sources

• IIT Guwahati, Shakshat Virtual Lab: Static anthropometry, standing heights, reference datasheet, data from D. Chakrabarti, Indian Anthropometric Dimensions for Ergonomic Design Practice, NID, 1997 (accessed 21 Oct 2026)
• IIT Guwahati, Shakshat Virtual Lab: Sitting anthropometry, reference datasheet (accessed 21 Oct 2026)
• Gloucestershire Fire and Rescue Service: Candles (accessed 21 Oct 2026)
• DuPont: Corian Solid Surface Care and Maintenance, technical bulletin K-26840-NA (accessed 21 Oct 2026)
• NoBroker Interiors: Corner Pooja Room Design Ideas for Indian Homes in 2026 (25 June 2026) (accessed 21 Oct 2026)
• Wooden Street: Itiha wall-mounted pooja mandir (accessed 21 Oct 2026)
• Wooden Street: Vidyut home temple with LED (accessed 21 Oct 2026)
• Wooden Street: Bhagwati home temple (accessed 21 Oct 2026)
• Wooden Street: Daivik sheesham home temple (accessed 21 Oct 2026)
• IndiaMART: Corian Mandir listings (accessed 21 Oct 2026)
• IndiaMART: Marble Temples listings (accessed 21 Oct 2026)

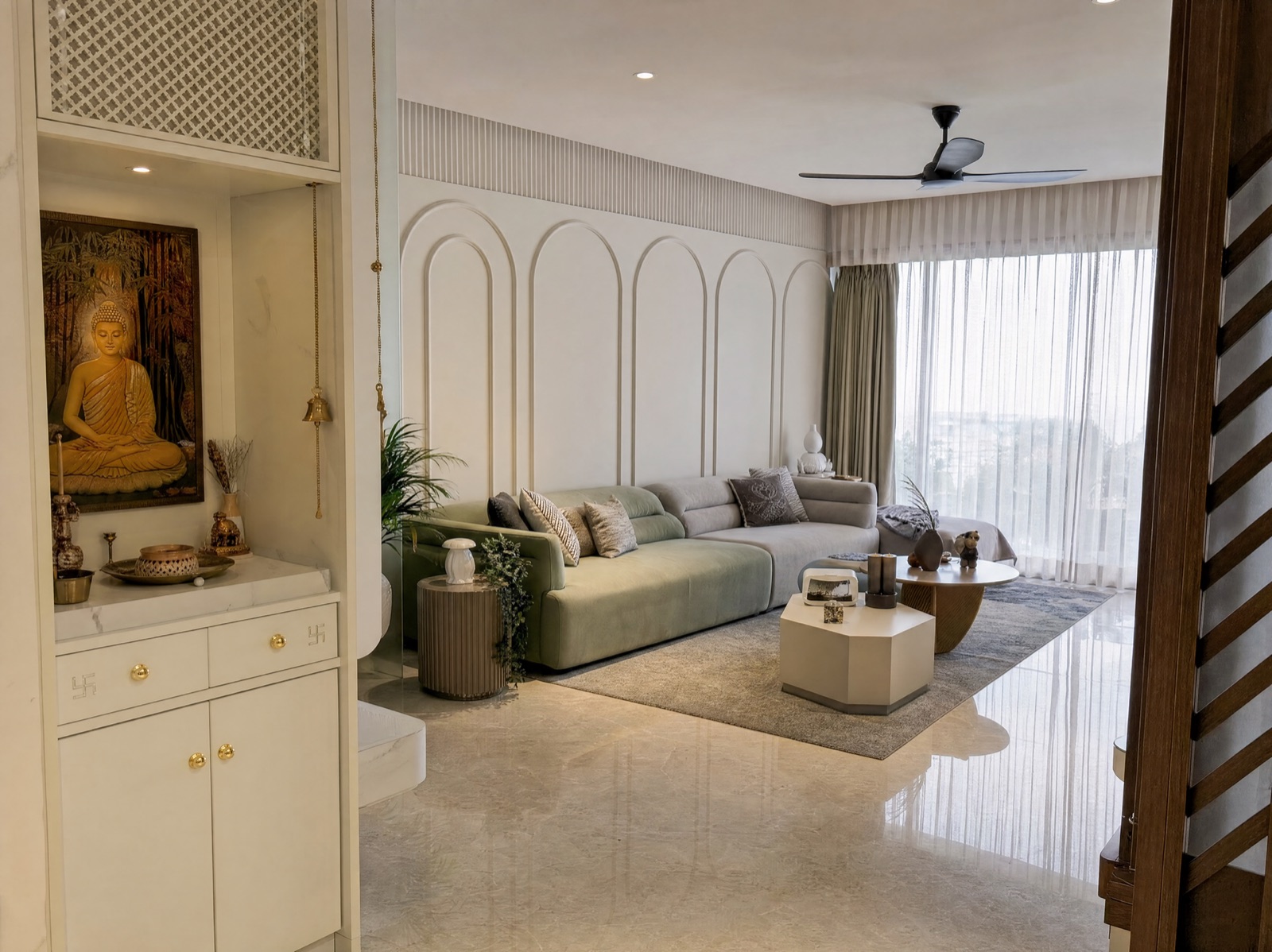

• Wikimedia Commons: Living Room with Pooja Niche, Kolkata, by Estate Lookup Interiors, CC0 (accessed 21 Oct 2026)

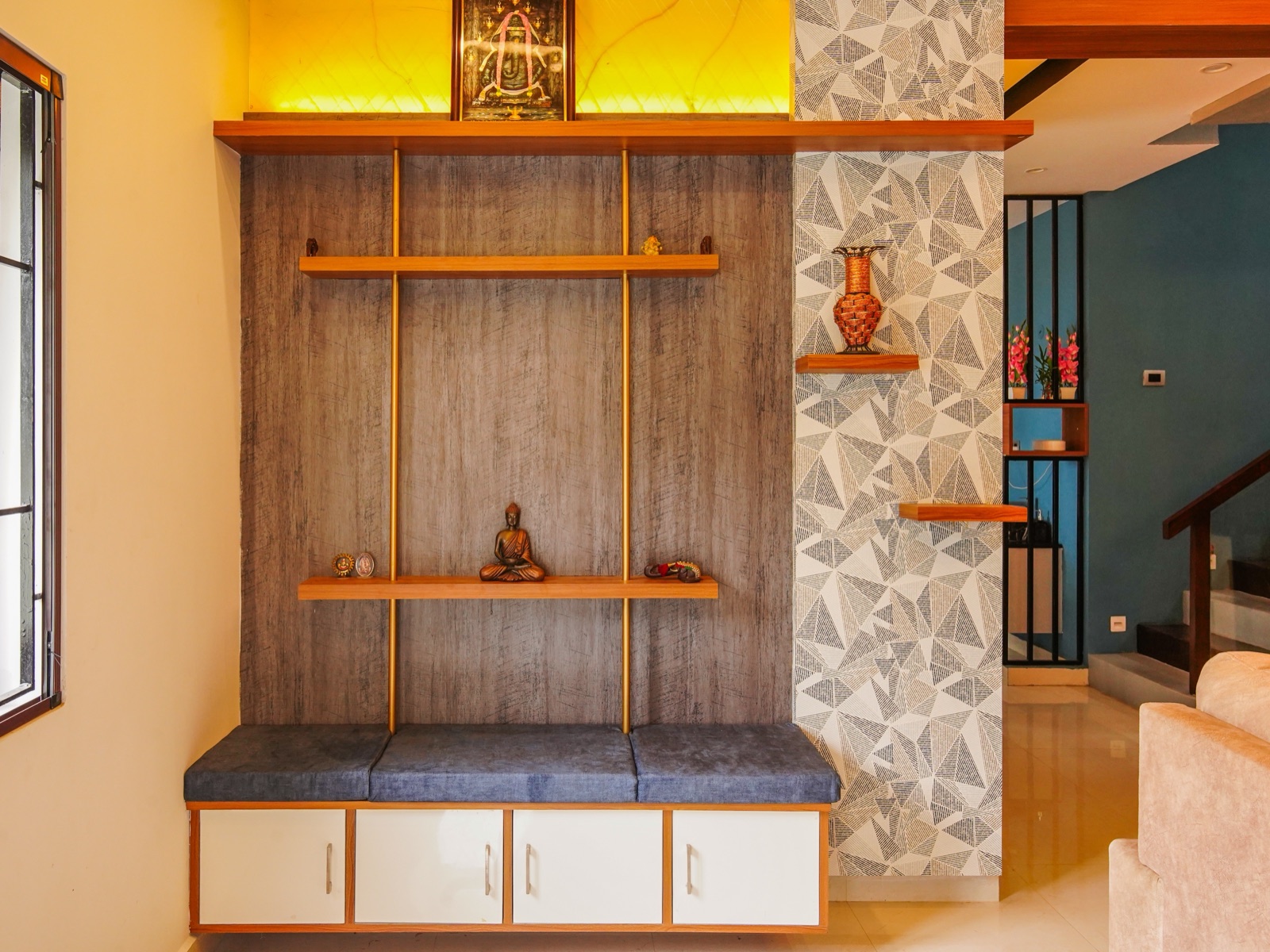

• MOA: Mr. Senthilnathan Residence by Latha Architects, project details and image (accessed 21 Oct 2026)
