Hall Design for Small Houses, Indian Style: Plans for 10x12 to 12x15 ft Halls

Good hall design for a small Indian house starts with one decision: keep a clear path about 1 m wide from the main door to the kitchen and bedrooms, and put everything else beside it, not across it. Then choose furniture that changes job through the day, such as a diwan that becomes a guest bed, nesting tables and a fold-down table, so a 10 x 12 to 12 x 15 ft hall can be sitting room, dining room, puja corner, study and spare bedroom at once.

About the numbers below: furniture sizes and prices are from IKEA India, read on 29 October 2026, including taxes (delivery and assembly extra). Room and window rules are from the Model Building Bye-Laws 2016, fan sizes from Atomberg and Bajaj, painting rates from Asian Paints and false-ceiling rates from Design Cafe. Paint and ceiling figures are market ranges, not quotes. Anything marked "our guidance" is common practice, not a standard.

Our coming guides cover the rest of the room: Indian-style living room design, sofa sizes for small living rooms, TV units for small halls and low-cost interior ideas. If your family follows Vastu, Vastu for the living room covers seating direction; this post is about layout.

What a hall does in a small Indian house

In a 1BHK or 2BHK flat, or a compact independent house, the hall is the entrance, the dining room, often the puja corner, the children's study, the guest bedroom when relatives stay, and the corridor everyone crosses to reach the kitchen and bedrooms. It works when these jobs take turns instead of competing, so plan it twice: once for the day and once for the evening.

Start with the path: main door to kitchen and bedrooms

Before choosing furniture, mark where people walk: main door to kitchen, main door to each bedroom, kitchen to table. Our guidance is to pull these lines into one band about 1 m wide along a wall, and never let it run between the seats and their table. Keep the main door's swing clear, and let whoever carries hot food reach the table without passing between the sofa and the TV.

The 1 m figure has a basis: the Model Building Bye-Laws 2016 set 1.00 m as the minimum passage or corridor width in dwelling-unit residential buildings (clause 4.24.7, page 61). That sits in the fire-exit rules for larger buildings, not a rule for your hall, but it lets two people pass. Our other guides treat 900 mm as the least to accept.

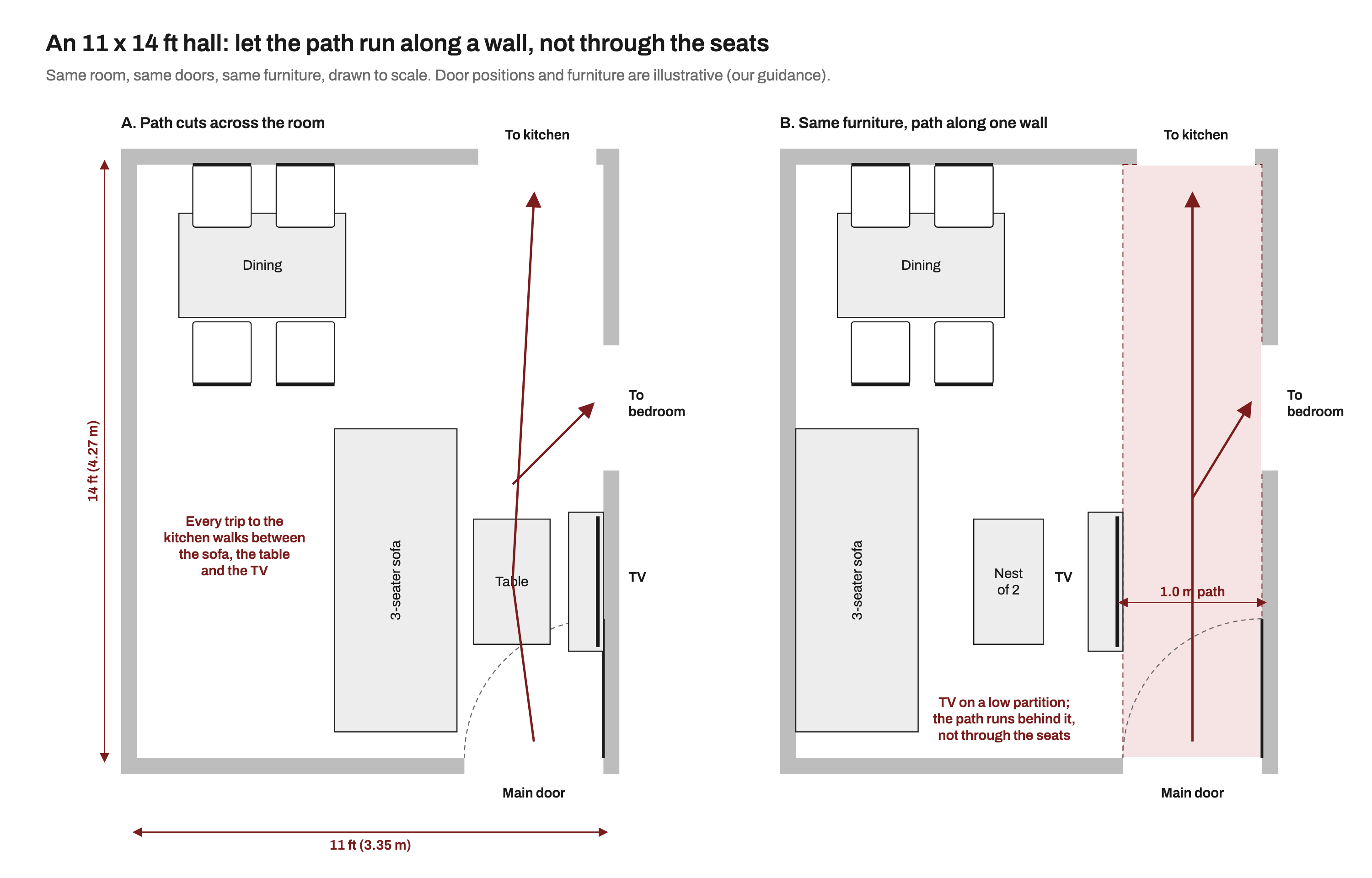

Two to-scale plans of the same 11 by 14 ft hall with the main door at bottom right, the kitchen opening at top right and a bedroom opening on the right wall. In plan A a three-seater sofa floats in the middle facing a TV on the right wall with a table between them, so arrows from the main door to the kitchen and bedroom pass between the sofa, the table and the TV, and the door swing hits the table. In plan B the sofa moves to the left wall, a nest of tables sits in front of it and the TV stands on a low partition facing the sofa, leaving a 1 m path along the right wall that reaches the kitchen and bedroom without crossing the seats. A dining table for four sits at the kitchen end in both plans. — The same 11 x 14 ft hall and the same furniture, arranged two ways: move the seating off the line from the main door to the kitchen and the room feels larger. Illustrative layout, our guidance. Diagram: MOA

Hall design for small house: three common sizes

A 10 x 12 ft hall is about 11.1 sq m, which already clears the bye-law minimum for a habitable room of 9.5 sq m and 2.4 m width where there is only one room (clause 4.3.2, page 52). "Small" here is about how many jobs the room does.

Hall size	Area	Typical home	What fits beside a 1 m path (our guidance)
10 x 12 ft	120 sq ft	1BHK or compact 2BHK flat	A diwan, nest of tables, fold-down table for two, wall-hung puja and shoe cabinet
11 x 14 ft	154 sq ft	2BHK flat	A three-seater or diwan, nest of tables, dining for four at the kitchen end
12 x 15 ft	180 sq ft	Independent house or larger 2BHK	A diwan, two moodhas, dining for six, a full storage wall with puja

Hall design for small space: a 10 x 12 ft hall in a flat

With a 1 m path on one side, a 10 ft hall leaves about 2 m for living: one long seat and a small table. Make the long seat a diwan with drawers rather than a sofa. IKEA India's HEMNES day-bed frame with three drawers is 209 x 91 cm, its base pulls out into a 160 x 200 cm double bed, and each drawer takes 20 kg (IKEA India). It seats three by day and sleeps a guest at night, with the bedding in its drawers.

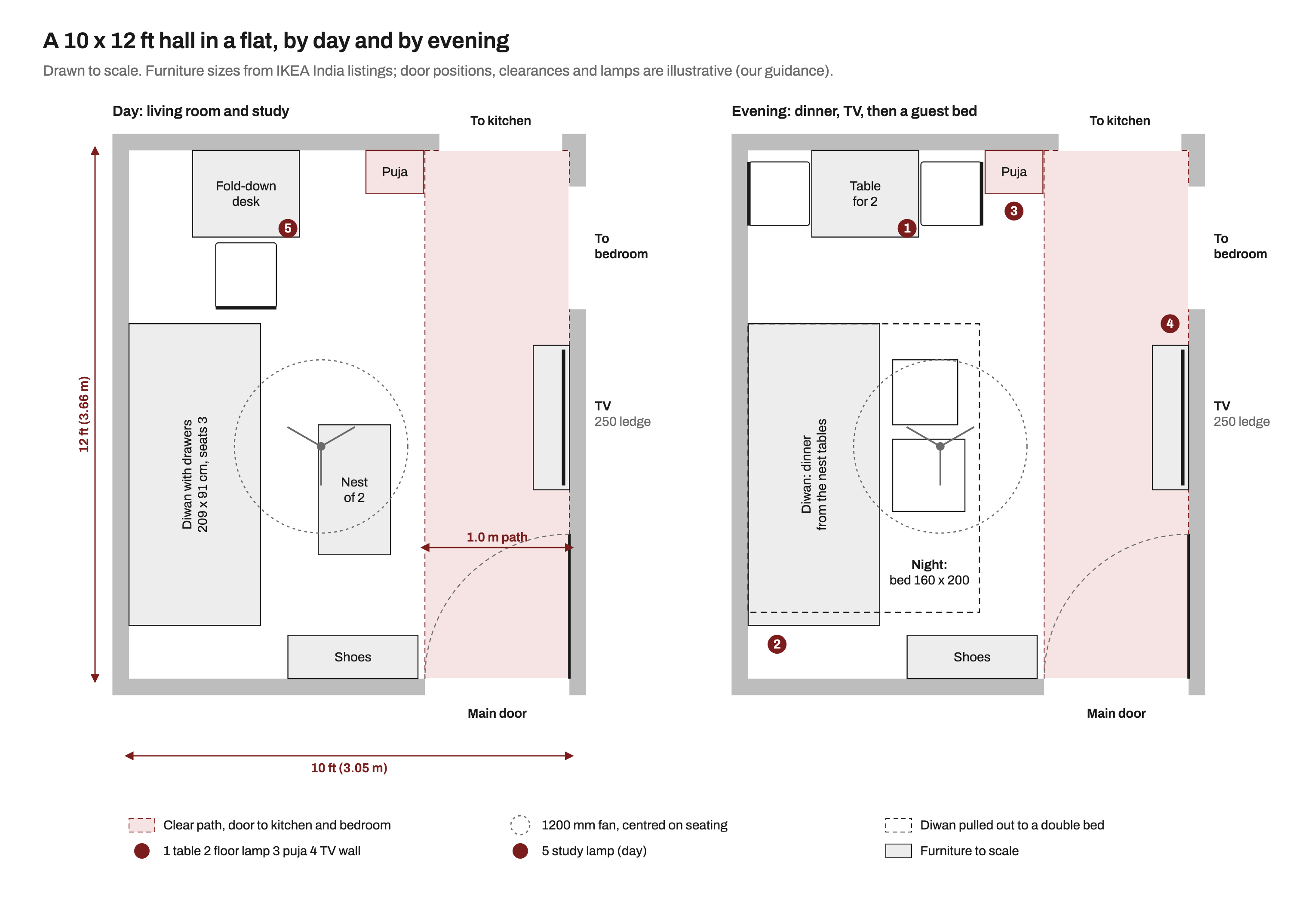

Two to-scale plans of the same 10 by 12 ft hall in a flat. A 1 m clear path runs along the right wall from the main door at the bottom to the kitchen opening at the top, passing a bedroom opening and a wall-mounted TV on a 250 mm ledge. On the left wall is a 209 by 91 cm diwan with drawers, with a nest of two tables in front, a 1200 mm fan above the seating, a shoe cabinet by the door and a wall-hung puja cabinet on the top wall. By day a fold-down table on the top wall is a study desk with one chair and a study lamp. In the evening it seats two for dinner with folding chairs at each end, the nest tables are split in front of the diwan, and a floor lamp, puja light, TV wall light and table light are on; at night the diwan pulls out to a 160 by 200 cm bed, shown dashed. — One 10 x 12 ft hall used three ways: a sitting room and study by day, dinner and TV in the evening, and a guest bed at night, with a 1 m path from the door to the kitchen kept clear throughout. Furniture sizes from IKEA India; layout and lamps illustrative. Diagram: MOA

The other pieces earn their place the same way:

A fold-down table. IKEA's NORBERG wall-mounted drop-leaf table is 74 x 60 cm and seats two; IKEA says to fix its top at about 74 cm and that it "must be securely anchored" (IKEA India). Up, it is a homework desk; at night it folds flat. A carpenter can make a wider one for four if the wall takes the anchors.
Folding chairs. IKEA's GUNDE has a 45 cm seat and is tested for 100 kg (IKEA India). Two hang on hooks until dinner.
A nest of tables. The VITTSJÖ pair takes 90 x 50 cm nested, 50 cm high, with a 10 kg limit (IKEA India). Split, they serve a meal on the diwan; together, they free the floor.
A wall-hung puja cabinet and a shallow shoe cabinet, tight to the wall so the path stays 1 m.

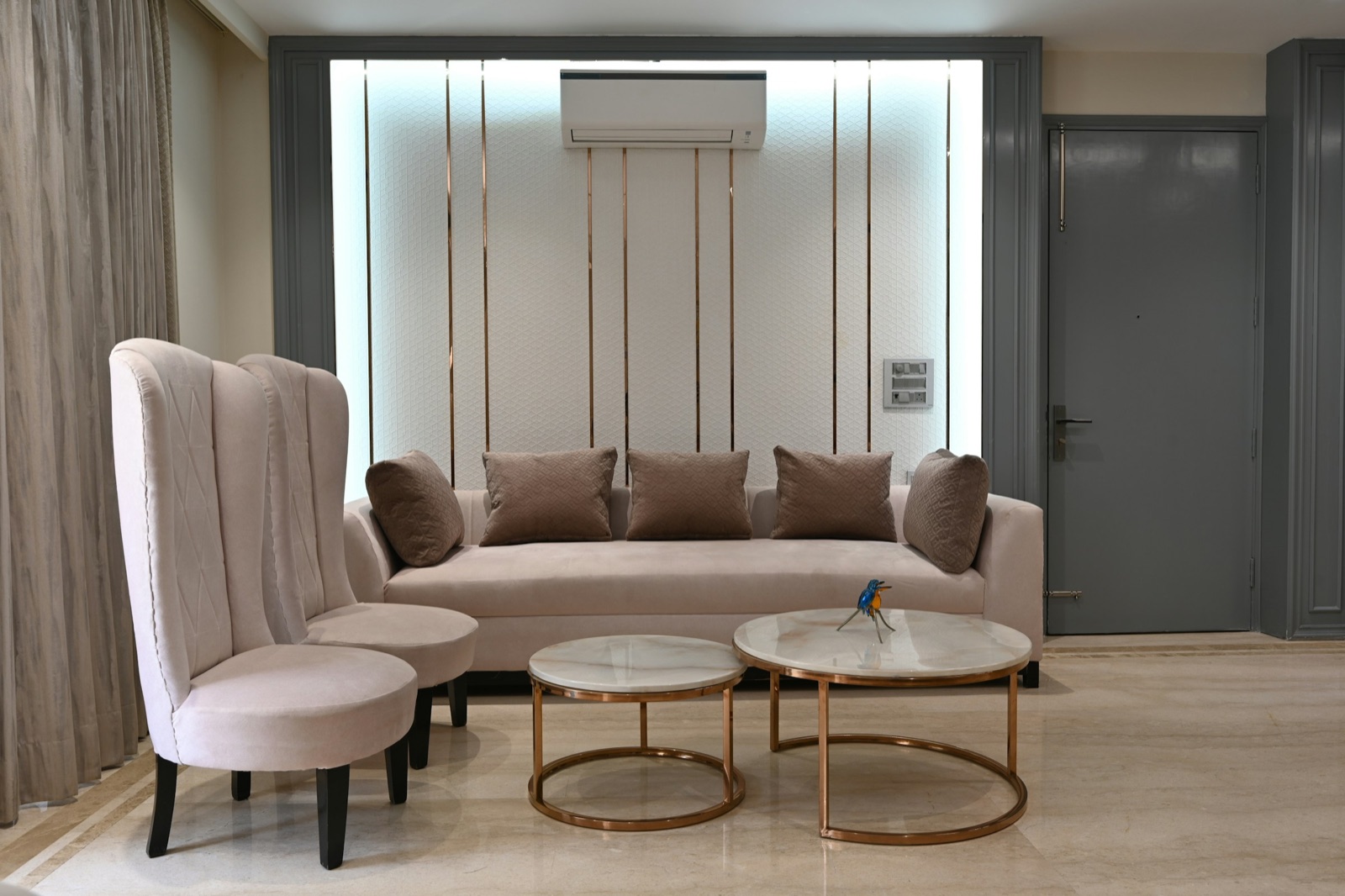

A pale pink three-seater sofa with brown cushions against a backlit panelled wall with copper strips and a split AC above, two tall high-backed armchairs on the left, and a pair of round marble-topped nesting tables with copper bases in front. A grey main door with a long handle is on the right and a marble floor runs throughout. — Two round nesting tables in a New Delhi home: one becomes a side table when guests come, and both slide together to clear the floor beside the main door. Image: Pyx Photography on Unsplash, Unsplash License

An 11 x 14 ft hall in a 2BHK flat

One extra foot of width leaves about 2.35 m after the path: a seat on one long wall, a nest of tables and a low partition or console between seating and path. Use the extra length for a table for four at the kitchen end, so food never crosses the sitting area, as in the diagram above.

Hall design for medium family: a 12 x 15 ft hall for four to six

Here the room splits into a dining and study end near the kitchen and a sitting and guest end near the door, with the path along one side and a storage wall for books, crockery and the puja. Our guidance for that wall: 300 to 400 mm deep, closed below, a few open shelves above, and a shelf at child height for school books.

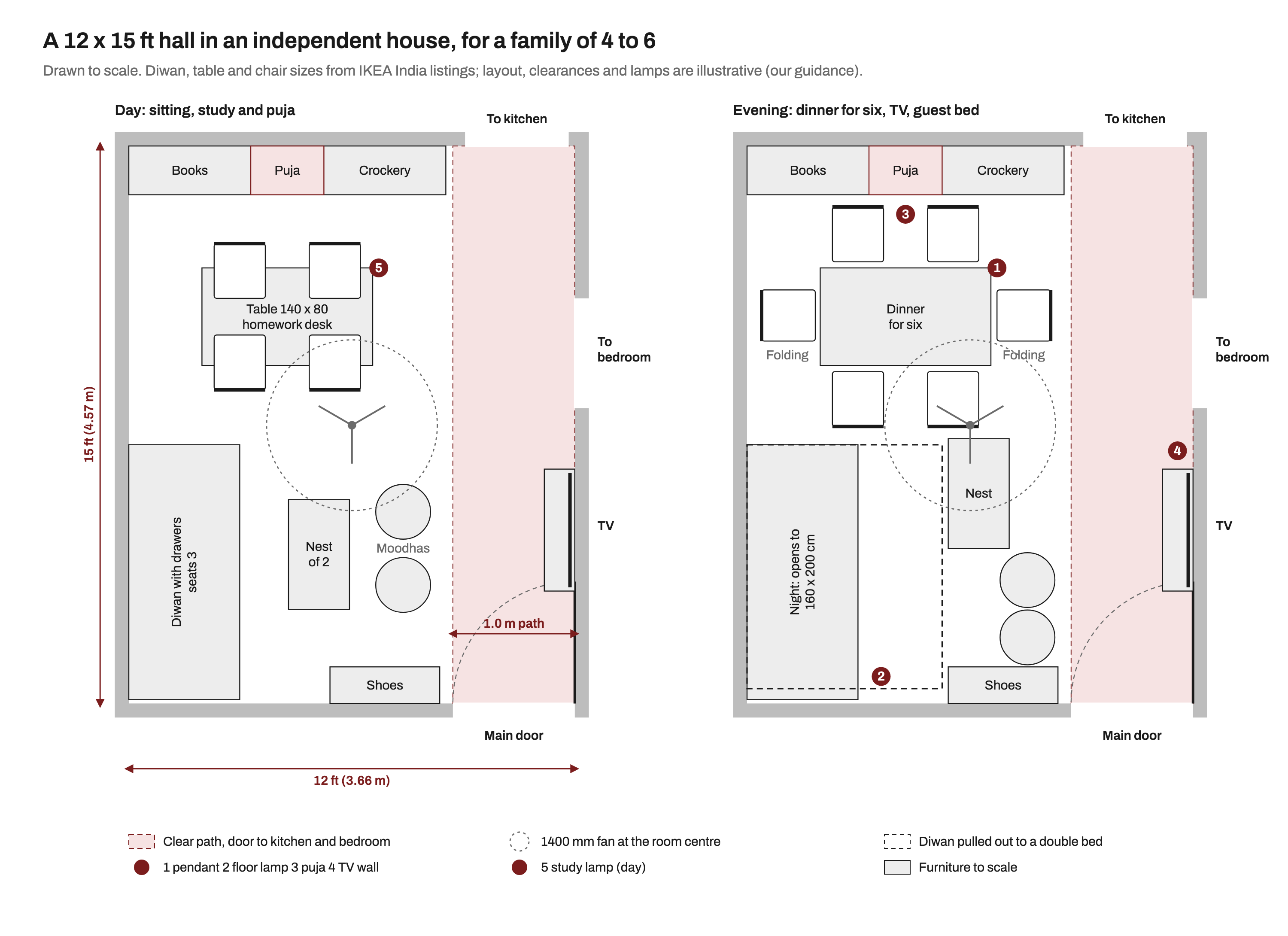

Two to-scale plans of a 12 by 15 ft hall in an independent house. A 1 m clear path runs along the right wall from the main door at the bottom to the kitchen opening at the top, passing a bedroom opening and a wall-mounted TV. A 400 mm deep storage wall on the top wall holds books, a puja unit with doors and crockery. Below it a 140 by 80 cm table with four chairs is a homework desk by day with a study lamp, and in the evening seats six with two folding chairs at the ends under a pendant. A diwan with drawers on the left wall faces a nest of two tables and two moodhas by day; at night it opens to a 160 by 200 cm bed, shown dashed. A 1400 mm fan sits at the centre of the room and a shoe cabinet stands by the main door. — A 12 x 15 ft hall for a family of four to six: the kitchen end works as study and dining, the door end as sitting room and guest room, and the path never crosses either. Sizes from IKEA India listings; layout and lamps illustrative. Diagram: MOA

Where a family of four to six sits (our guidance): by day, three on the diwan, two on moodhas and one at the table with homework; at dinner, six round a 140 x 80 cm table, two of them on folding chairs at the ends; overnight, the diwan opens to a double bed and the nest of tables and moodhas go to the wall.

The dining, the puja and the study corner

Dining. Put the table at the kitchen end. It shortens every trip with hot food, and the table doubles as the study desk in the afternoon.

Puja corner. Our guidance: doors or a jaali shutter, its own light and switch, away from the shoe cabinet and out of the path so nobody brushes past a lamp. Our pooja room design guide for apartments has sizes and layouts.

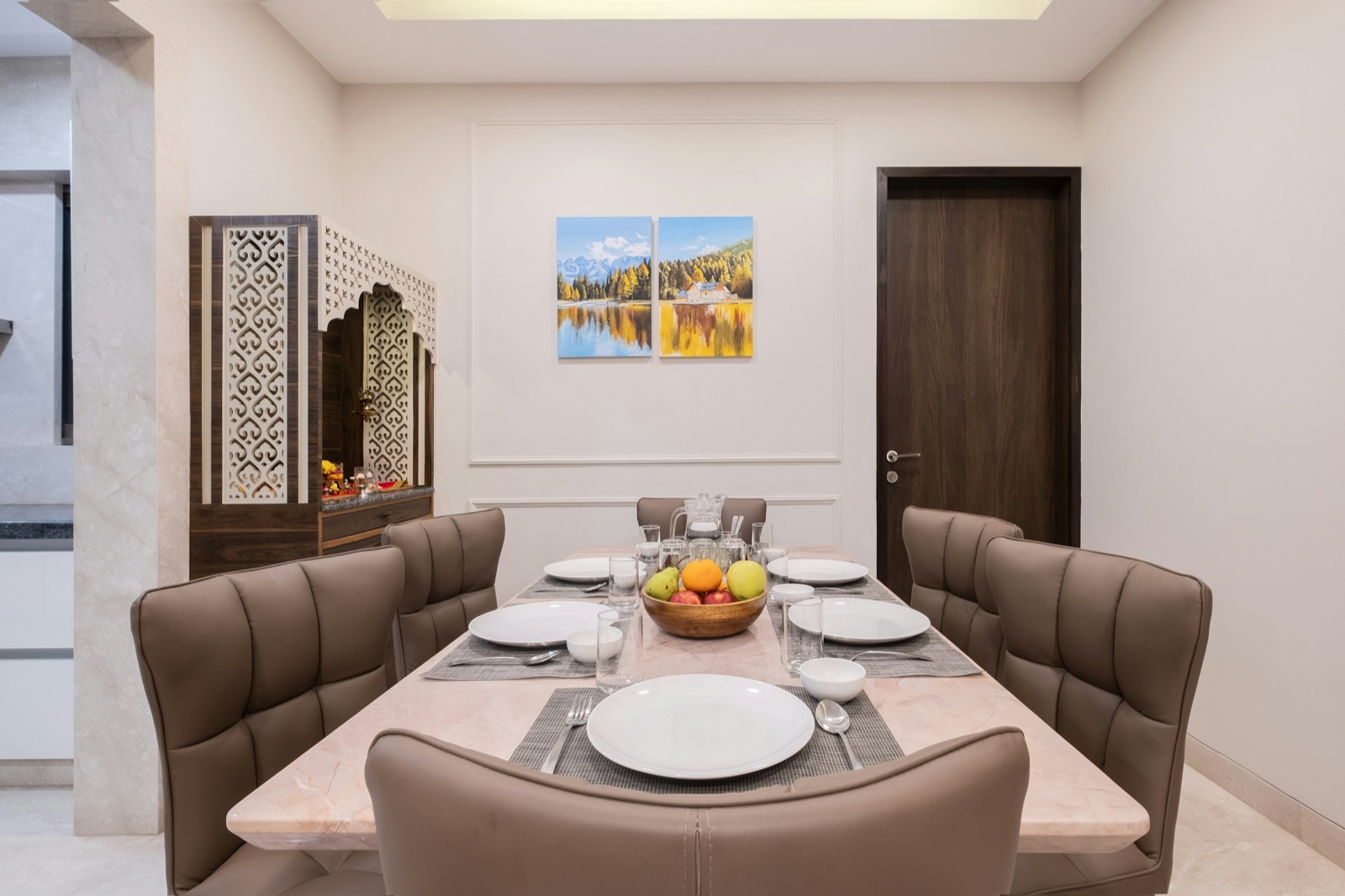

A dining table for six with a pale stone top and brown upholstered chairs, set with plates, glasses and a bowl of fruit. To its left stands a wooden puja unit with white jaali shutters and an arched jaali frame, lit inside, beside the kitchen; a panelled wall with a two-part landscape painting and a dark wooden bedroom door are behind. — In this Pune home the dining end of the hall also holds the puja: a unit with jaali shutters stands beside the table, out of the walkway. Image: Anisha Deb on Unsplash, Unsplash License

Children's study. By day the table becomes a desk with a task lamp and books on the storage wall. Our view: a child studying in the hall is a child someone can see, which many parents prefer.

Ventilation and fans for a small hall

A hall that is also the dining room collects cooking smells and heat, so air matters as much as furniture.

Window area. The bye-laws set the openings of a habitable room, excluding doors, at no less than one-tenth of the floor area in a dry hot climate, one-sixth in a wet hot one, one-eighth in an intermediate one and one-twelfth in a cold one, counting only the openable part of a window (clause 4.30.1.1, pages 66 and 67). For a 10 x 12 ft hall that is 12 sq ft in a dry hot climate and 20 sq ft in a wet hot one; for 12 x 15 ft, 18 and 30 sq ft (our arithmetic).
A line for the breeze. Keep the line from the hall window to the kitchen window or balcony door free of tall furniture; the path band often lines up with it (our guidance).
Fan size. Bajaj gives a 1200 mm sweep for 100 to 150 sq ft and 1400 mm from 150 sq ft (Bajaj); Atomberg gives 1400 mm for 150 to 225 sq ft and two fans above 225 sq ft (Atomberg). So 1200 mm for 10 x 12 ft, and 1400 mm for 11 x 14 and 12 x 15 ft.
Fan height. Both makers put blades 8 to 9 ft above the floor, and Atomberg asks for 2 to 3 ft from blade tip to wall. A 1200 mm fan centred in a 10 ft hall leaves about 3 ft each side (our arithmetic).

The bye-laws set 2.75 m, about 9 ft, as the minimum floor-to-ceiling height for habitable rooms (clause 4.3.1.1, page 51). At that height the fan hangs on a short rod, and a false-ceiling band should stop short of the fan rather than lower it (our guidance).

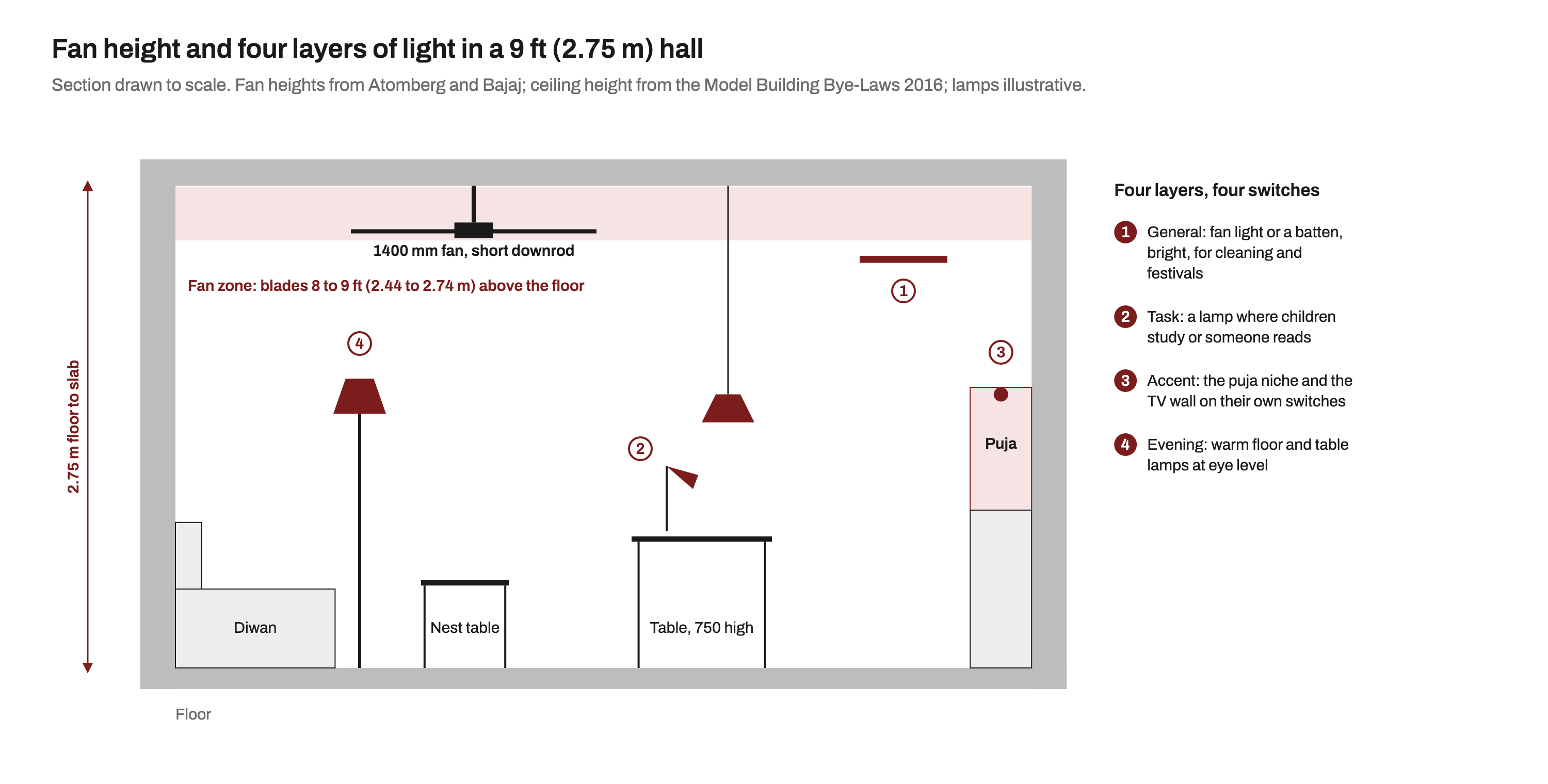

To-scale section through a hall 2.75 m from floor to slab. A band near the ceiling marks the fan zone, with blades 8 to 9 ft, or 2.44 to 2.74 m, above the floor, and a 1400 mm fan on a short downrod sits in it. Below are a diwan, a nest table, a 750 mm high table with a study lamp and a pendant above, and a puja niche with its own light on the right wall. Four numbered light layers are marked: 1 a general batten near the ceiling, 2 the task lamp on the table, 3 the puja niche light, and 4 a warm floor lamp beside the diwan. A key reads: four layers, four switches. — In a hall with the bye-law minimum of 2.75 m to the slab, the fan hangs on a short rod and the lighting does the rest in four layers, each on its own switch. Fan heights from Atomberg and Bajaj; lamps illustrative. Diagram: MOA

Lighting layers for a hall that changes through the day

One tube light cannot serve homework, dinner, a puja and a film. Our guidance is four layers, each on its own switch:

General: a batten or the fan light, bright, for cleaning, festivals and guests.
Task: a lamp at the table where children study or someone reads.
Accent: a small light in the puja unit and one on the TV wall.
Evening: warm lamps at eye level, a floor lamp by the diwan and a pendant over the table.

Place switches with the furniture plan, before the electrician comes, so the diwan lamp switches on by the diwan. For fittings and colour temperatures, see lighting trends for 2027.

Hall design simple: five rules

One clear path, about 1 m, along a wall.
One long seat that is also a bed.
Tables that nest or fold.
One storage wall instead of many cabinets.
Four lighting switches, not one.

Indian style here comes from use more than decoration: a diwan, moodhas, a puja with a jaali shutter, washable cotton cushions.

Hall interior design price: what a small hall costs

We found no published per-sq-ft rate for a complete hall, so here are the pieces in this post:

Item	Source and date	Price
HEMNES day-bed with three drawers and two 80 x 200 cm mattresses	IKEA India, 29 Oct 2026	₹53,970 (frame alone ₹39,990)
NORBERG wall-mounted drop-leaf table	IKEA India, 29 Oct 2026	₹6,990, wall fixings extra
VITTSJÖ nest of tables, set of two	IKEA India, 29 Oct 2026	₹6,990
GUNDE folding chair	IKEA India, 29 Oct 2026	₹950 each

That multi-use set for a 10 x 12 ft hall comes to ₹69,850 with two folding chairs, including taxes, before delivery and assembly (our arithmetic).

Market ranges, paint and ceiling: Asian Paints puts interior painting at ₹12 to ₹45 per sq ft of paintable area, and does not say whether GST is included (Asian Paints). A 10 x 12 ft hall with a 9 ft ceiling has about 500 sq ft of wall and ceiling before doors and windows, so roughly ₹6,000 to ₹22,500; a 12 x 15 ft hall about 670 sq ft, roughly ₹8,000 to ₹30,000 (our arithmetic). Design Cafe's false-ceiling planning ranges, published 10 September 2026, are ₹78 per sq ft for gypsum, ₹75 to ₹120 for POP and ₹70 to ₹160 for PVC, without saying whether labour or GST is included; lights and wiring are often extra (Design Cafe). Gypsum over a 120 sq ft hall comes to about ₹9,360 at that rate. Get three local quotes.

Built-in carpentry is priced by quote; our interior design cost guide, room by room explains those quotes, and MOA's free home cost calculator helps with the wider budget.

FAQ

How do I design a small hall in an Indian house?

Mark a 1 m path from the main door to the kitchen and bedrooms along one wall, then fit a diwan with storage, a nest of tables, a table at the kitchen end and one storage wall that includes the puja.

Which fan is right for a 10 x 12 ft hall?

A 1200 mm sweep, which Bajaj and Atomberg give for 100 to 150 sq ft, with blades 8 to 9 ft above the floor. From about 150 sq ft, such as 11 x 14 or 12 x 15 ft, use 1400 mm.

Where should a family of five or six sit in a small hall?

In a 12 x 15 ft hall: three on a diwan, two on moodhas and one at the table by day, and six round a 140 x 80 cm table at dinner.

What is the minimum size of a hall?

The Model Building Bye-Laws 2016 set 9.5 sq m and 2.4 m width for a habitable room where there is only one, and 2.75 m floor to ceiling. Check your city's own bye-laws.

Planning a small hall that has to do everything? Find an interior designer on MOA, filter by your city, and look at the small homes they have finished: interior designers on MOA.

Sources

Ministry of Housing and Urban Affairs, TCPO: Model Building Bye-Laws 2016, clauses 4.3.1.1, 4.3.2, 4.24.7 and 4.30.1.1, mohua.gov.in (accessed 29 Oct 2026)
Atomberg: Ceiling Fan Size Chart, The Complete Guide for Indian Homes (2026), updated 12 Aug 2026, atomberg.com (accessed 29 Oct 2026)
Bajaj Electricals: BLDC Ceiling Fan Buying Guide, bajajelectricals.com (accessed 29 Oct 2026)
IKEA India: HEMNES day-bed frame with 3 drawers, ikea.com/in (accessed 29 Oct 2026)
IKEA India: HEMNES day-bed with 3 drawers and 2 mattresses, ikea.com/in (accessed 29 Oct 2026)
IKEA India: NORBERG wall-mounted drop-leaf table, ikea.com/in (accessed 29 Oct 2026)
IKEA India: VITTSJÖ nest of tables, set of 2, ikea.com/in (accessed 29 Oct 2026)
IKEA India: GUNDE folding chair, ikea.com/in (accessed 29 Oct 2026)
Asian Paints: Painting Cost Per Sq Ft in India, asianpaints.com (accessed 29 Oct 2026)
Design Cafe: How Much Does a False Ceiling Cost in 2026?, by Sreya Dasgupta, 10 Sep 2026, designcafe.com (accessed 29 Oct 2026)
Unsplash: photographs by Anisha Deb and Pyx Photography, used under the Unsplash License (accessed 29 Oct 2026)
