Showcase Design for Hall and Wall Shelves for the Living Room

A good showcase design for a hall keeps the pieces you want to look at behind glass and the things you use on open shelves: a glass showcase about 350 mm deep for idols, trophies and brass, starting about 850 mm off the floor, and open wall shelves about 250 mm deep for books and family photos, with gaps of 250 to 330 mm. Then fix each shelf to suit the wall: a plug rated for 55 kg in brick is rated for 15 kg in AAC block, and gypsum needs plywood backing or a cavity anchor.

About the numbers below: loads, sizes and prices come from makers' and retailers' pages (IKEA India, fischer, Hilti, Häfele) opened on 29 October 2026 and linked where used. Sizes no maker publishes are marked "our guidance". The price lines at the end are a market range, not a quote.

This post covers display and open storage. Glass types, TV height and wall panels are in our coming posts on crockery unit design, TV unit design for the living room and wall panel design.

Showcase design for hall: glass showcase or open shelves?

Most Indian living rooms need both. The choice turns on dust, weight and how often you touch what is on the shelf.

	Glass showcase	Open wall shelves	Niche in the wall
Best for	Idols, brass, silver, trophies, glassware	Books, photo frames, plants, everyday pieces	One or two sculptural pieces
Dust	Kept out by doors	Weekly dusting (our guidance)	As open shelves
Weight	Glass shelves hold less (see the chart below)	Depends on the bracket and the wall	Sits in the wall, so light pieces only on thin partitions
Depth	About 350 mm (our guidance)	200 to 280 mm (our guidance)	Whatever the wall allows

What Indian families display, and where it goes

Idols and the family lamp. Behind glass at eye level, with no flame inside a closed showcase. Our Vastu guide for the living room covers which wall practitioners prefer, if that matters to you.
Trophies and certificates. Tall and light: give them the tallest bay, about 350 mm clear (our guidance).
Brass, copper and silver. Heavy for their size and quick to tarnish: behind glass, on a wooden shelf rather than a glass one, and low.
Books. Open shelves, upright, with bookends.
Photos and souvenirs. Picture ledges or one open shelf.

Showcase design for hall with TV

The elevation below is a 3.6 m wall, drawn to scale: a full-height glass showcase, the TV over a floating console, and four open shelves.

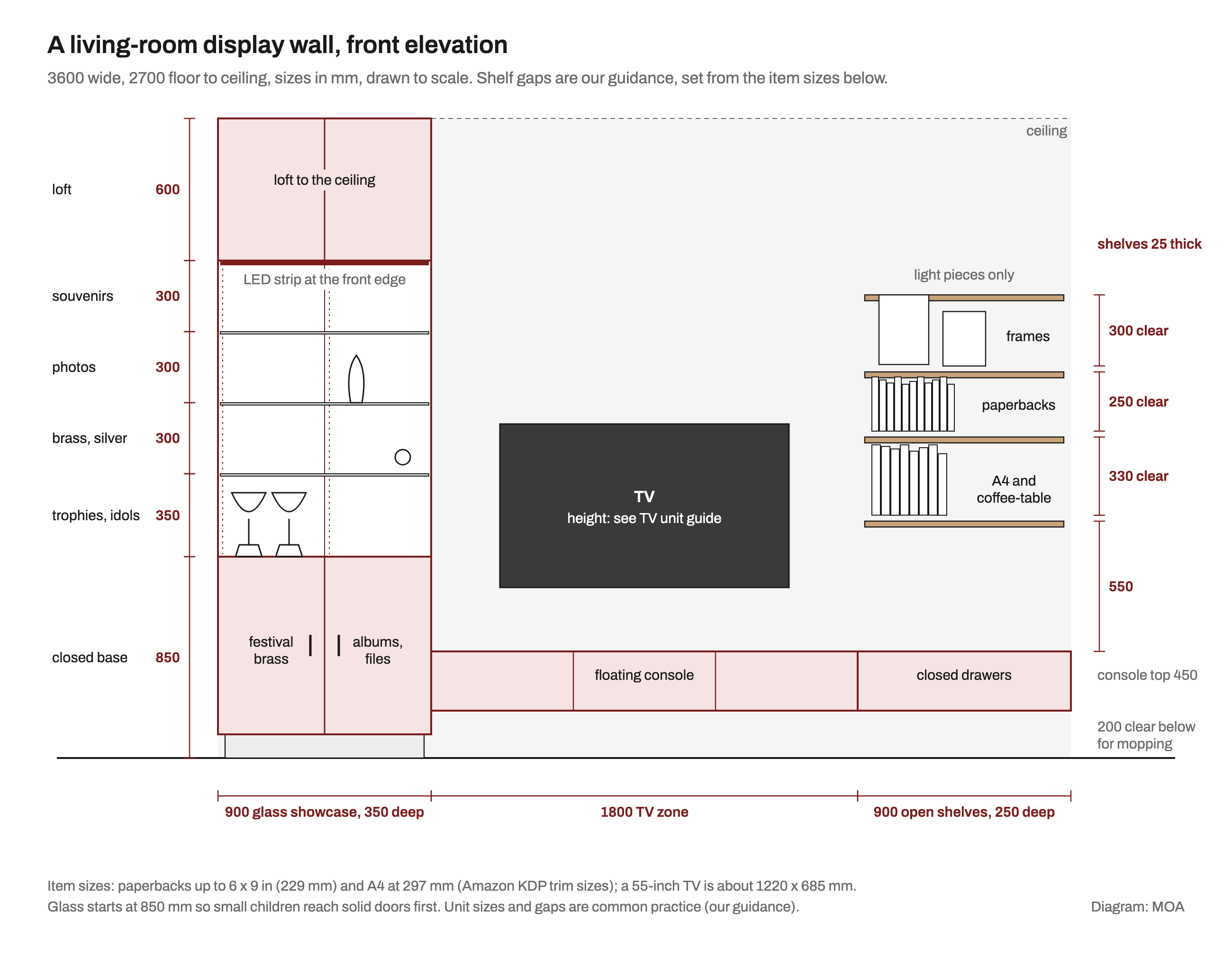

Scaled front elevation of a 3600 mm wide living-room display wall: on the left a 900 mm glass showcase with an 850 mm closed base, glass shelves spaced 350, 300, 300 and 300 mm for trophies and idols, brass and silver, photos and souvenirs, an LED strip and a 600 mm loft to the ceiling; in the middle a TV over a floating console with 200 mm clear below; on the right four 250 mm deep floating shelves with 330, 250 and 300 mm clear gaps for A4 books, paperbacks and photo frames — One way to lay out a display wall: glass for the pieces that gather dust, open shelves for books and frames, and gaps set from what each shelf holds. Diagram: MOA

Glass from 850 mm up. The base is solid, so small children meet a closed door, not glass, as in our coming crockery unit post.
Bays of 300 to 350 mm. Trophies and idols in the tallest bay, brass and photos above, and a 600 mm loft up to the ceiling so no dust collects on top.
Open shelves start above the console. The lowest is 550 mm above the console top, so the TV area stays clear and the console top stays free for a lamp or a speaker.

For how the whole wall is trending, see Living Room Trends 2027.

Wall shelves design for living room: depth and spacing

How deep should wall shelves be?

For books, 250 to 280 mm is enough: IKEA's BILLY bookcase, made for books, is 28 cm deep. Picture ledges can be much shallower; IKEA's MOSSLANDA is 12 cm deep and recommended for pictures up to 45 cm high. Deeper shelves are not simply better: they hold less on hidden supports (see below) and collect clutter at the back.

Shelf spacing for books and photos

Set the gaps from what goes on them. The most common paperback size in Amazon KDP's list is 6 × 9 inches, about 229 mm tall, and the largest sizes run to A4, 297 mm (Amazon KDP). From that, our guidance:

250 mm clear for novels and paperbacks
330 mm clear for A4 files, cookbooks and coffee-table books
300 mm clear for photo frames and most show pieces

Ask for adjustable shelves where you can. BILLY comes with one fixed and four adjustable shelves (IKEA India), so the gaps can follow what you own.

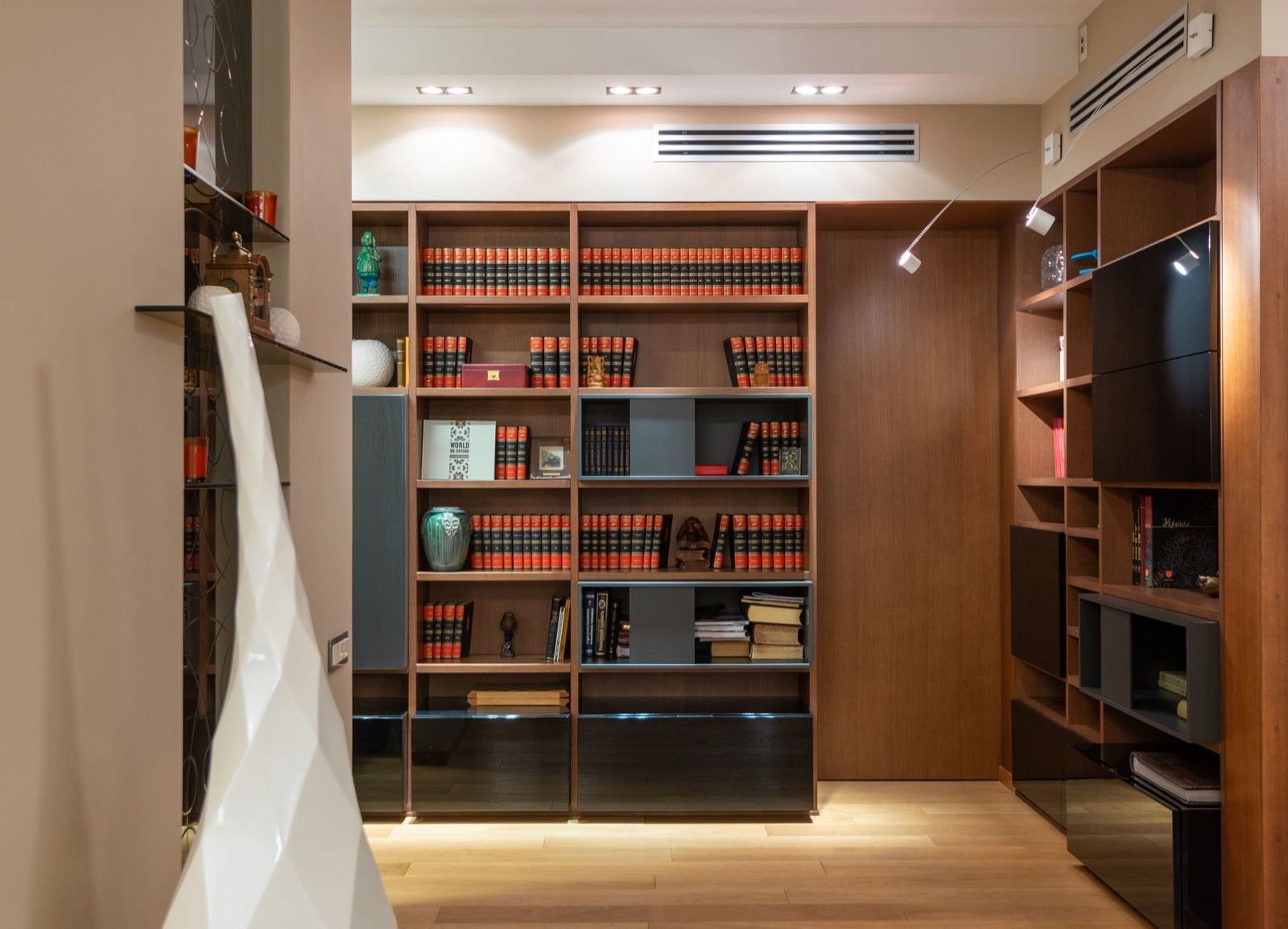

Built-in walnut bookcase wall with rows of matching hardbound volumes, a few ceramic pieces, grey open boxes and black glass-front cabinets at the base, lit by ceiling downlights and small adjustable wall-mounted reading lamps — A full bookcase wall: matching rows read as one surface, closed cabinets at the base hold what should not be on show, and small adjustable lamps light the spines. Image: Max Vakhtbovych on Pexels, Pexels License

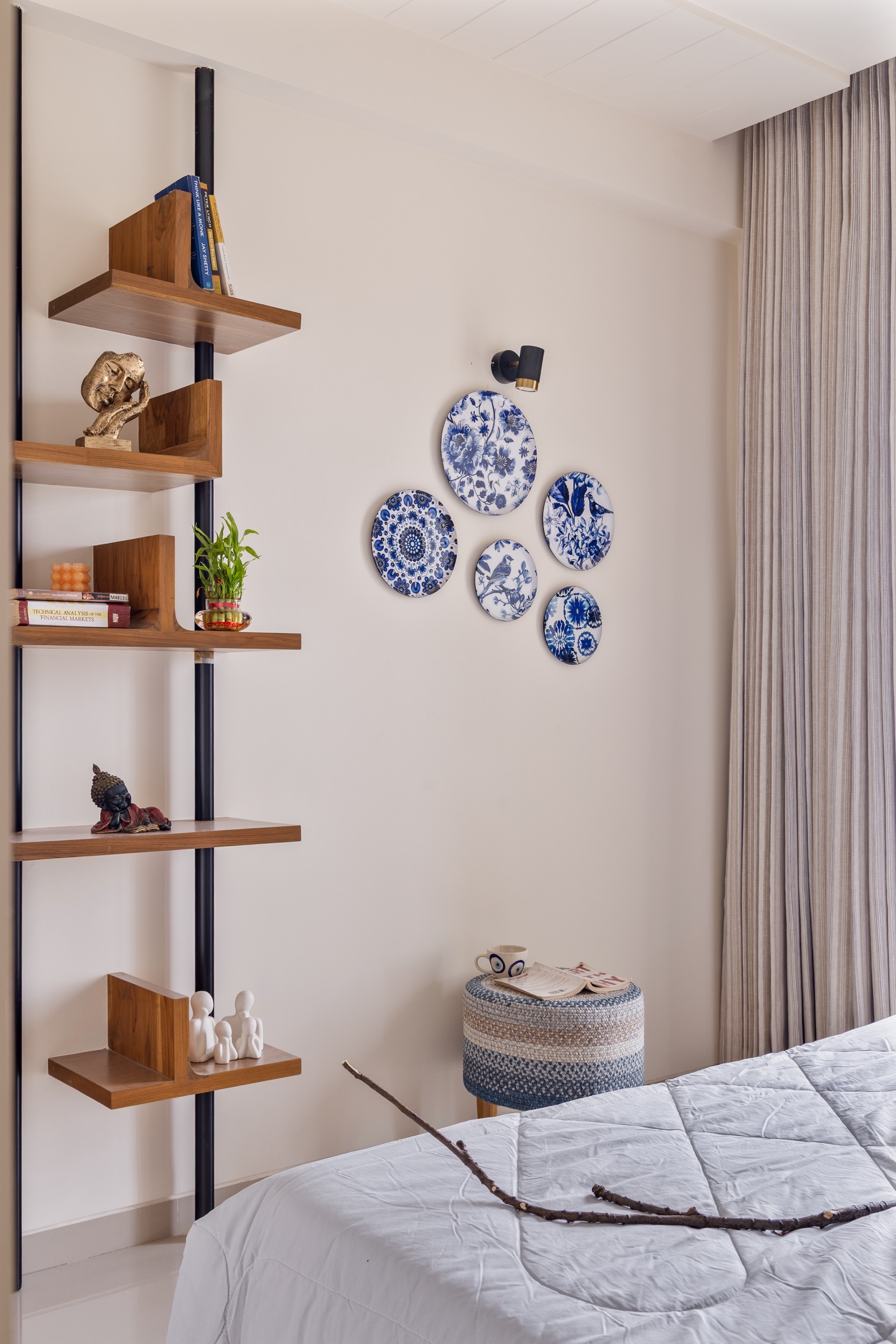

Walnut-finish wall shelves of different depths, some with an upright bookend side, mounted on two black vertical poles in a cream-walled bedroom in Vadodara, holding a few books, a brass face sculpture, a small plant, a reclining Buddha figurine and white figurines, beside a cluster of blue-and-white decorative plates on the wall — Wall shelves on vertical poles in the Vedaa residence in Vadodara: each shelf carries a few pieces, with books kept upright by built-in bookends. Image: skyscraper studio on MOA

The shelves in the Vedaa residence by skyscraper studio show what makes open shelves work: a few pieces per shelf and plenty of wall between them.

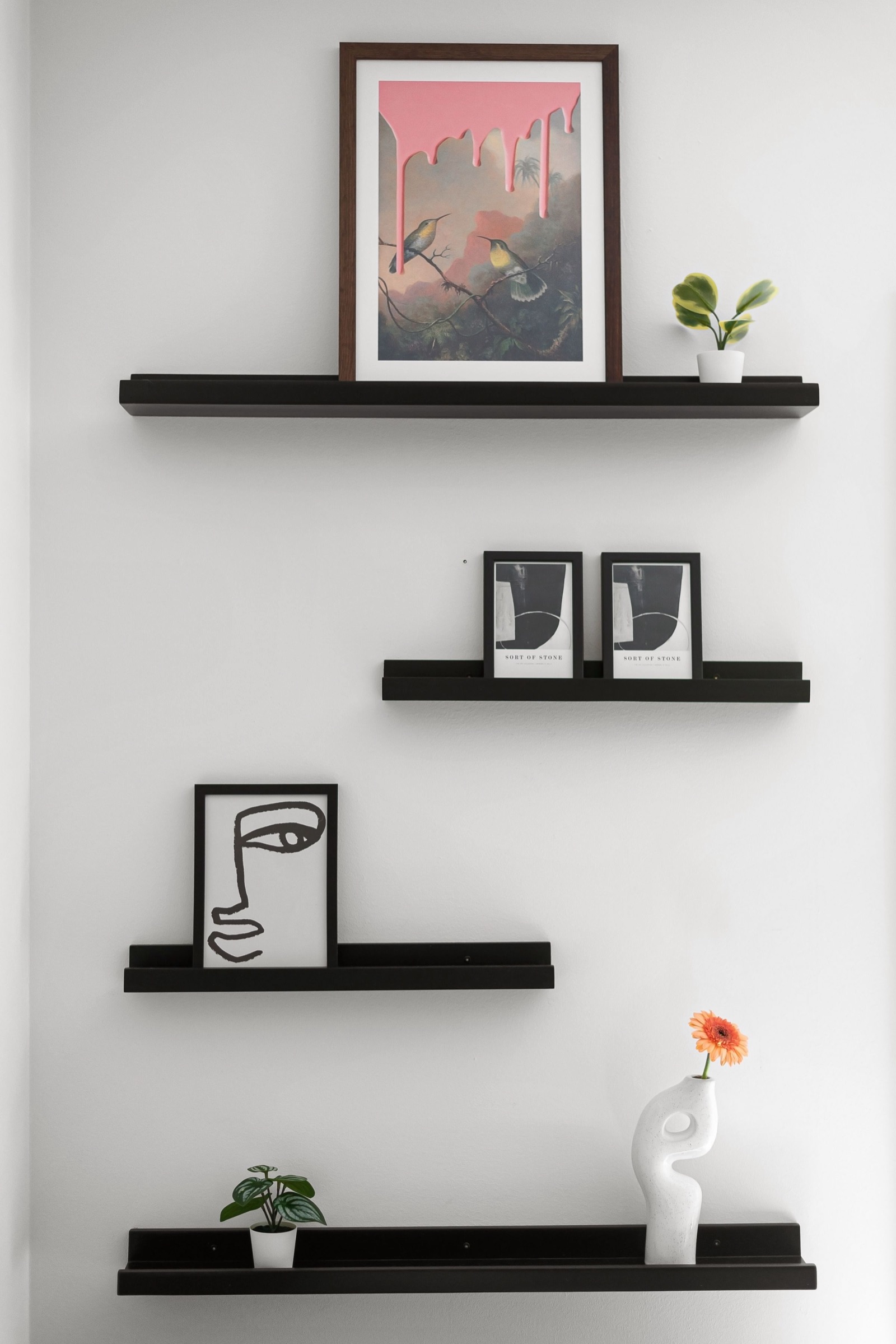

Four slim black picture ledges staggered on a plain white wall, holding a framed bird print, two small framed prints, a line-drawing print, small potted plants and a white sculptural vase with an orange flower — Picture ledges suit frames, photos and light pieces, not books or brass. Image: Alex Tyson on Pexels, Pexels License

How much can a wall shelf hold?

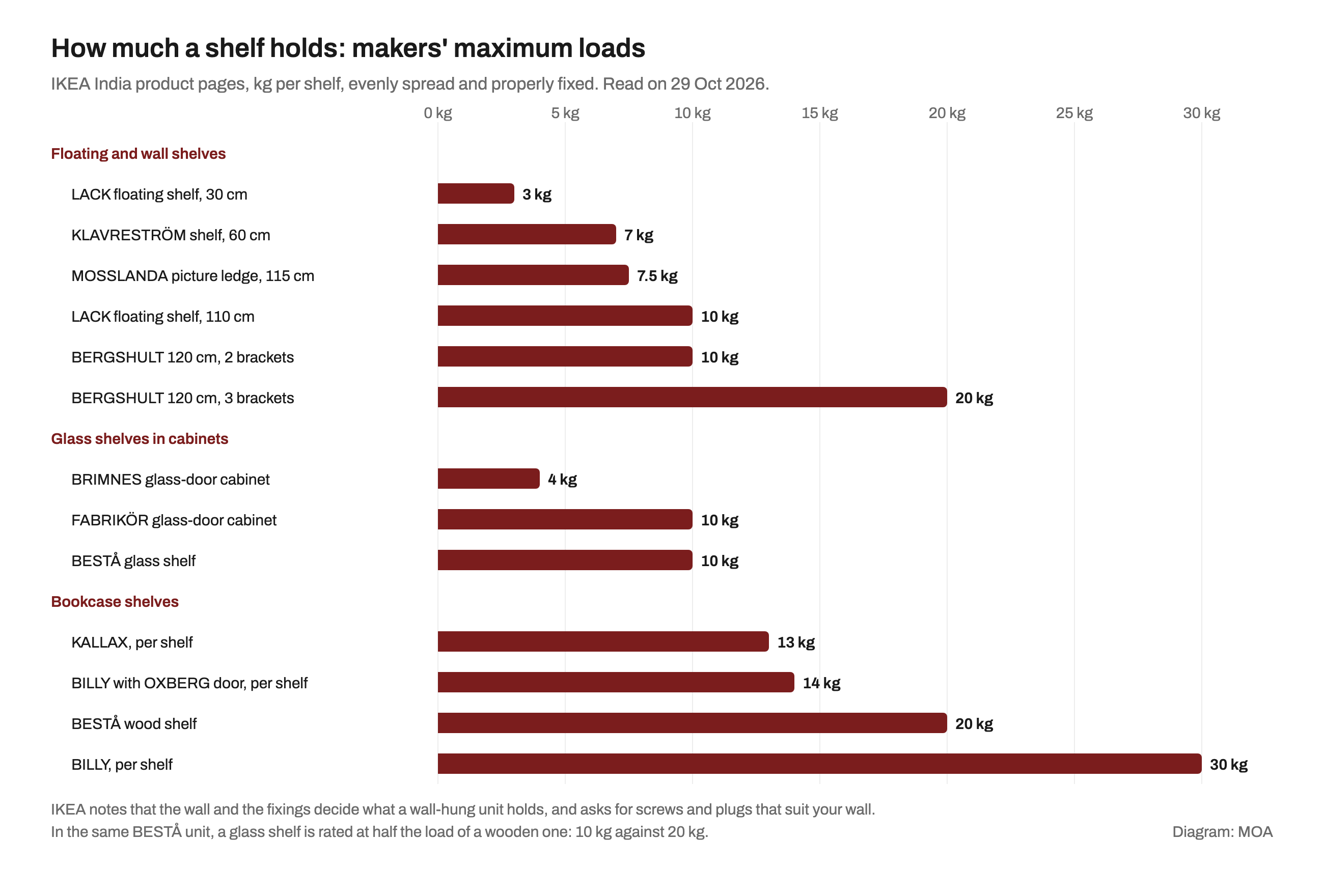

Bar chart of maximum loads per shelf from IKEA India product pages: LACK 30 cm floating shelf 3 kg, KLAVRESTROM 60 cm shelf 7 kg, MOSSLANDA 115 cm picture ledge 7.5 kg, LACK 110 cm floating shelf 10 kg, BERGSHULT 120 cm shelf 10 kg on two brackets and 20 kg on three, glass shelves in BRIMNES 4 kg, FABRIKOR 10 kg and BESTA 10 kg, and bookcase shelves in KALLAX 13 kg, BILLY with OXBERG door 14 kg, BESTA wood shelf 20 kg and BILLY 30 kg — Makers' maximum loads per shelf, read on IKEA India on 29 October 2026: floating shelves and glass shelves hold far less than a bookcase shelf. Diagram: MOA

Less than most people think. IKEA rates its 110 cm LACK floating shelf for 10 kg and its 30 cm LACK for 3 kg, "depending on type of wall and fastening" (IKEA India). A 120 cm BERGSHULT shelf holds 20 kg on three brackets but 10 kg on two, and IKEA defines that maximum as the weight "before the shelf is risking to slant" (IKEA India). Heavy books and brass belong on a bookcase shelf like BILLY's, rated at 30 kg, or on a shelf with an extra bracket.

Glass holds less than wood. In the same BESTÅ unit, IKEA rates a glass shelf at 10 kg and a wooden one at 20 kg (IKEA India), and the glass shelves in its BRIMNES glass-door cabinet at 4 kg each (IKEA India). Put brass on wood.

Floating shelves and hidden brackets

A floating shelf hides its bracket inside the shelf. IKEA's LACK uses hidden suspension brackets that come in the box, with wall screws sold separately (IKEA India). For a carpenter-made shelf, Häfele's concealed supports for wood or masonry walls need a shelf at least 24 mm thick and supports no more than 700 mm apart, and their rating falls as the shelf gets deeper: 200 kg per m² of shelf at 200 mm deep, 140 at 250 mm and 80 at 300 mm, evenly spread (Häfele UK catalogue).

On a 1,200 mm shelf that is about 42 kg at 250 mm deep but 29 kg at 300 mm (our arithmetic). The further the load sits from the wall, the harder it pulls on the top fixings.

Fixing shelves into brick, AAC and gypsum walls

IKEA's warning on its wall shelves is short: to stop the shelf falling, it "must be securely anchored. Use suitable screws and plugs for your home. If you are uncertain, seek professional advice" (IKEA India). Suitable depends on the wall, and most Indian flats now mix three kinds. Our post comparing red brick, AAC, fly ash and concrete block explains how to tell them apart.

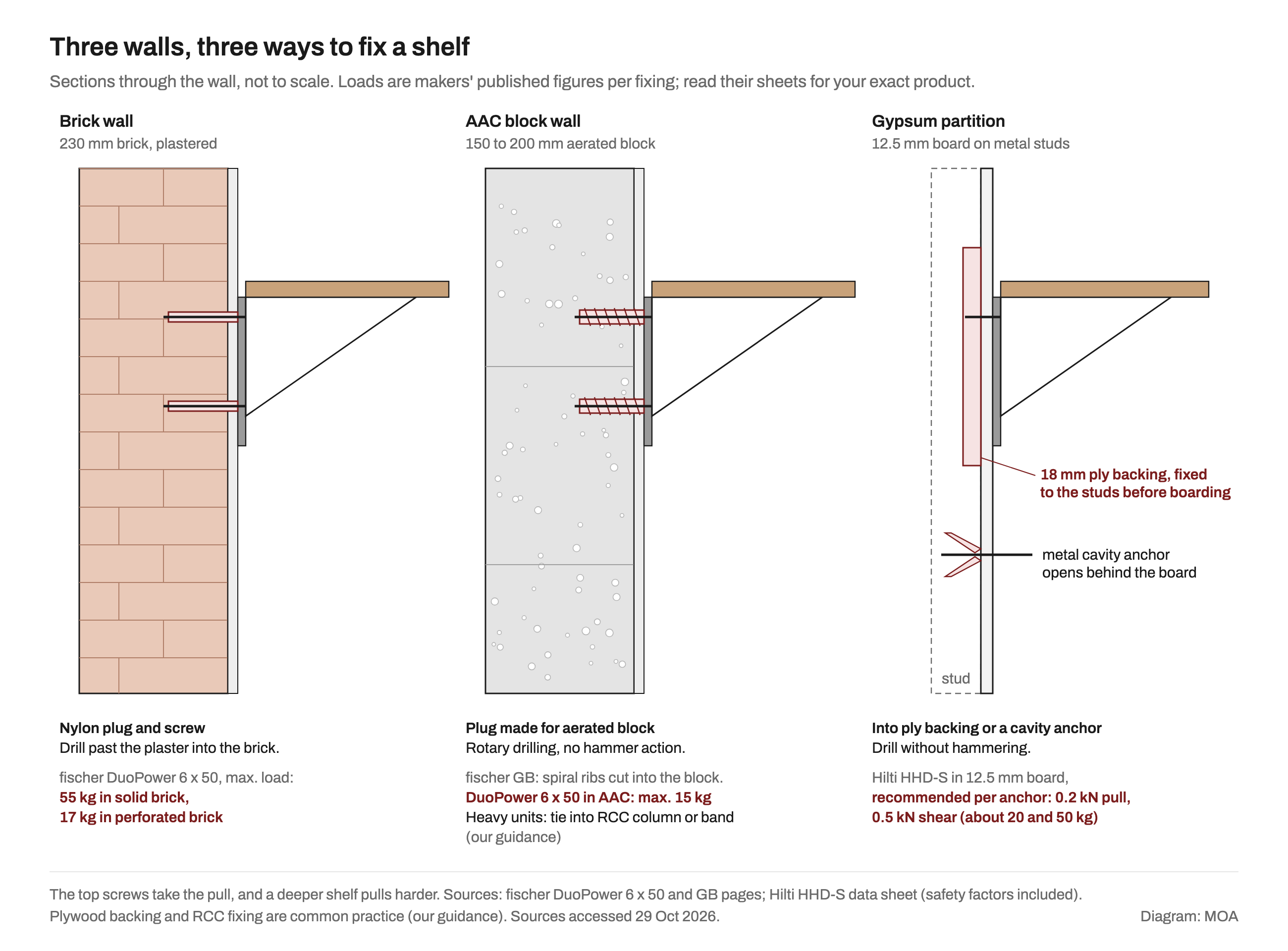

Three wall sections side by side: a plastered brick wall with nylon plugs and screws holding a shelf bracket, rated by fischer at 55 kg per plug in solid brick and 17 kg in perforated brick; an AAC block wall with spiral-ribbed plugs set by rotary drilling, with a 15 kg rating for a standard plug in AAC; and a gypsum partition with an 18 mm plywood backing fixed to the studs and a metal cavity anchor opening behind the board, rated by Hilti at 0.2 kN pull and 0.5 kN shear per anchor — The wall decides the fixing: plugs in brick, plugs made for aerated block in AAC, and plywood backing or cavity anchors in a gypsum partition. Diagram: MOA

Brick. An ordinary nylon plug and screw works. fischer lists the maximum load for one DuoPower 6 × 50 plug at 55 kg in solid brick but 17 kg in vertically perforated brick (fischer), so check which brick you have before loading a shelf.
AAC block. The same plug is rated at 15 kg in aerated concrete (fischer). fischer also makes a plug for aerated block, the GB, whose spiral ribs cut into the soft block, and asks for rotary drilling (fischer). For a heavy showcase on an AAC wall, our guidance is to fix into the RCC column or band where you can.
Gypsum partition. Hilti's HHD-S cavity anchor has a recommended load of 0.2 kN in pull and 0.5 kN in shear per anchor in 12.5 mm gypsum board, roughly 20 and 50 kg, with safety factors included, and is set by drilling without hammering (Hilti data sheet). The better answer is to plan the wall: ask the contractor for 18 mm plywood backing between the studs where shelves will go, before the boards go up (our guidance).

The same goes for wall-hung cabinets: IKEA says the maximum load of a wall-hung EKET cabinet "depends on the wall material" (IKEA India).

Showcase design with glass: dust and light

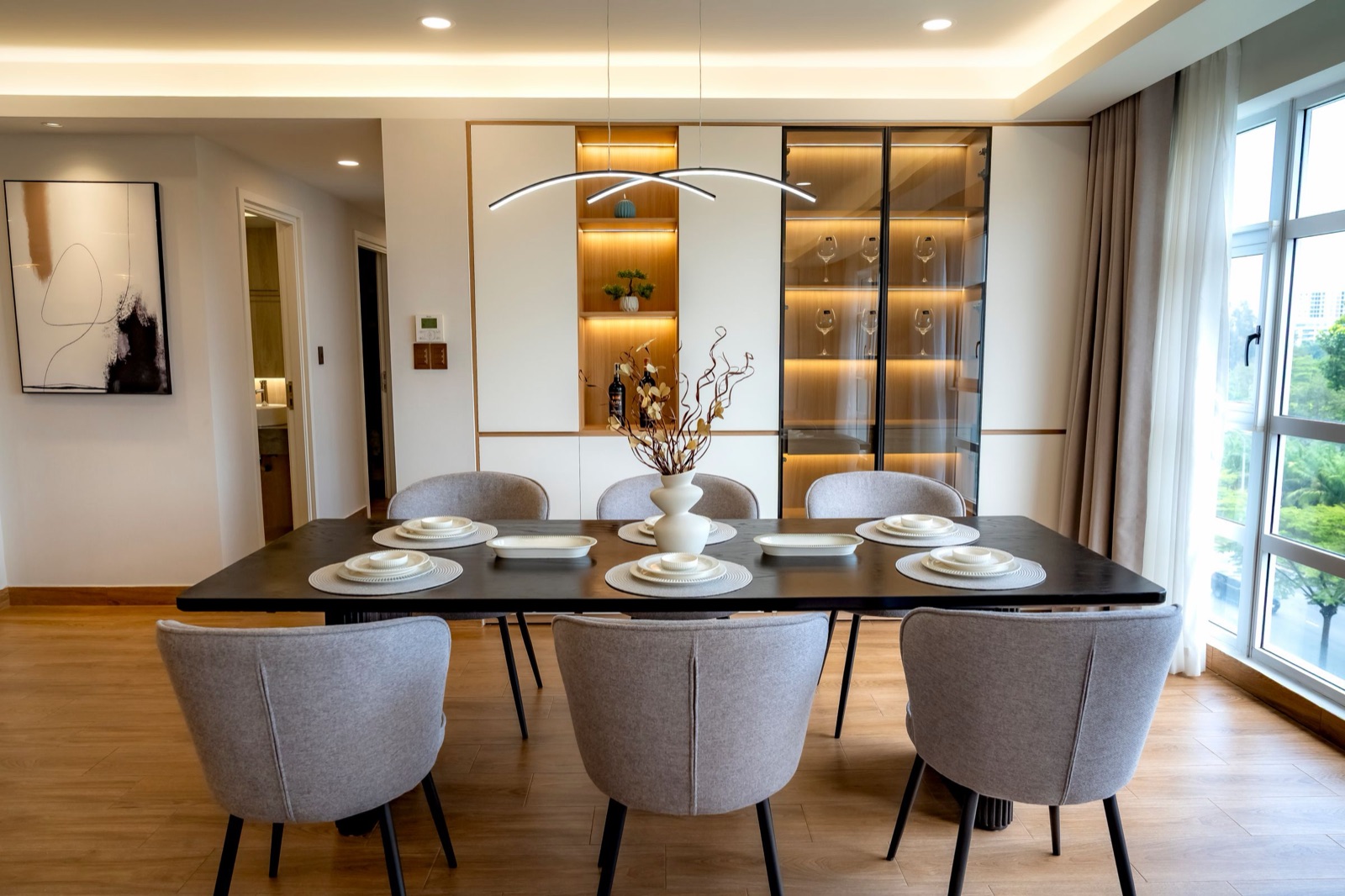

Dining room with a full-height white built-in unit: a tall glass-door showcase with warm LED light along each shelf displaying wine glasses, beside a lit open niche of walnut shelves, behind a dark dining table set for six with grey upholstered chairs — A built-in glass showcase lit along every shelf: the light makes the glassware the subject, and the doors keep the dust off. Image: Quang Nguyen Vinh on Pexels, Pexels License

Glass doors are the reason to choose a showcase: brass and silver stay cleaner, and you dust the glass, not twenty pieces. For glass types, and why showcase glass should be toughened, see our coming crockery unit post.

For light, our guidance:

Run an LED strip in a profile along the front edge of each shelf or the top of each bay, so light falls on the pieces rather than into your eyes.
Keep the driver outside the closed glass box, somewhere you can reach it.
Choose one warm white for the whole wall, so the showcase does not glow a different colour from the room.

Showcase design in wall

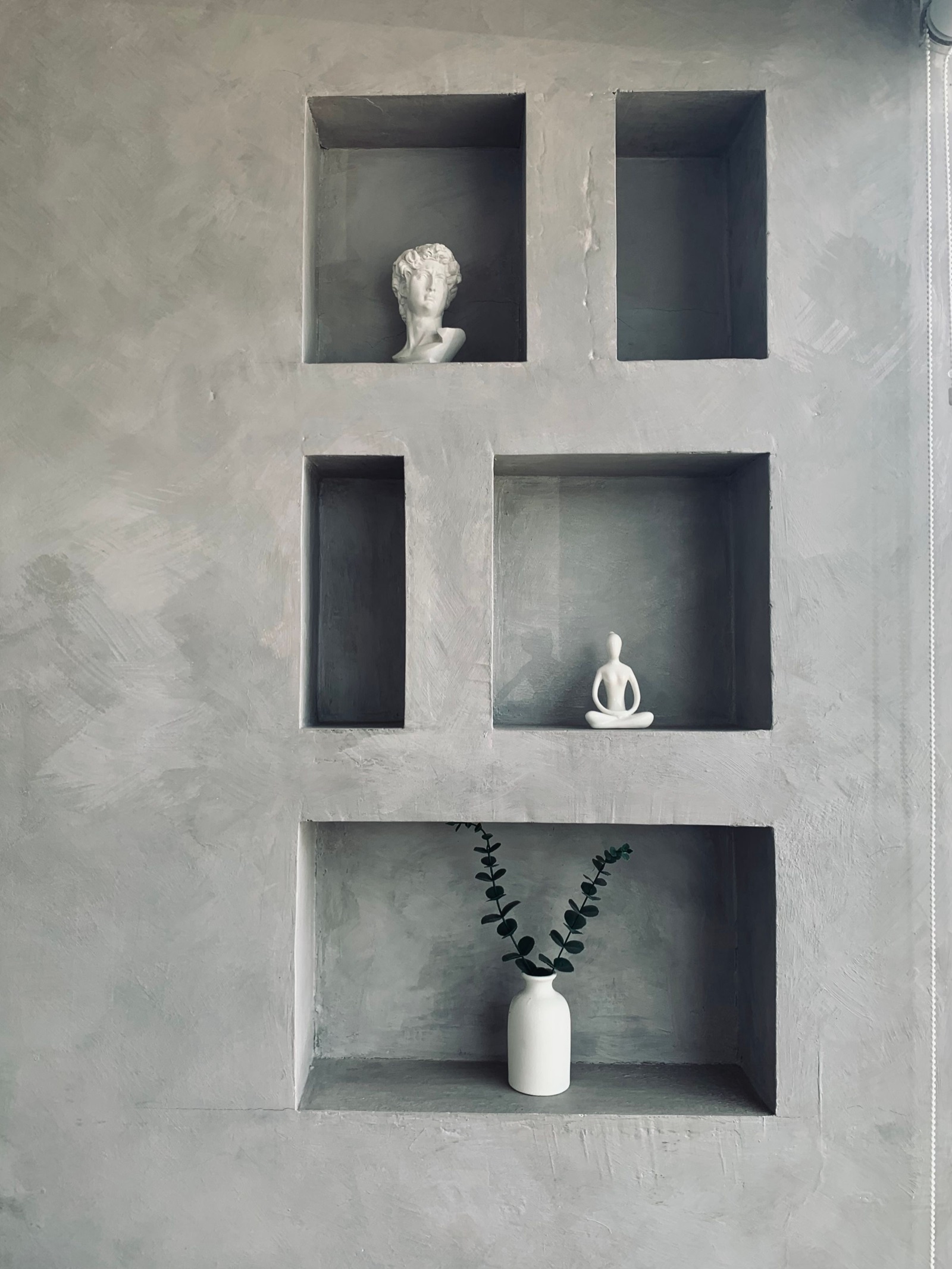

Five rectangular niches of different sizes recessed into a grey plaster wall, holding a white bust, a small white seated figurine and a white vase with eucalyptus stems — A showcase in the wall: recessed niches need depth, so plan them when the wall is built. Image: AnnRoth 20 on Pexels, Pexels License

A recessed niche is the quietest showcase. It needs depth, so build it into a new partition or a wall built out with a false layer. Our guidance: never cut a niche into a load-bearing or RCC wall without an engineer's approval, and keep light pieces only in niches in thin partitions.

Child safety and anchoring

Tall shelves and showcases tip over when children climb them. In the United States, the Consumer Product Safety Commission counted 217 tip-over deaths from 2013 to July 2023, 71 per cent of them children, and estimates 17,800 injuries a year (CPSC). We found no comparable Indian figure. Its advice applies anywhere: anchor bookcases to the wall and store heavier items on lower shelves.

IKEA carries a tipping-hazard warning on BILLY, KALLAX and the glass-door cabinets in the price table: each "must be securely anchored" (IKEA India).
Leave space at the top to fix it. IKEA reminds buyers of BILLY that they need room between the top of the unit and the ceiling to anchor it, and asks for at least 5 cm above an EKET wall cabinet to hang it on its rail (IKEA India).

Small showcase design for hall and small rooms

In a 1BHK or compact 2BHK hall, wall-hung units leave the floor clear (our guidance):

A shallow wall cabinet with a glass door, like IKEA India's MOSSJÖN at 36 × 18 × 102 cm, or EKET at 35 × 25 × 35 cm (IKEA India).
Picture ledges instead of shelves on a narrow wall, at about 12 cm deep.
One long shelf above the TV console instead of a tall unit beside it.

Showcase and wall shelf design price

Ready-made pieces from IKEA India, read on 29 October 2026. IKEA states its prices include all taxes; delivery and fixing are extra.

Piece	Size	Listed price
BURHULT shelf with SIBBHULT brackets	59 × 20 cm	₹399
LACK floating shelf	30 × 26 cm	₹599
MOSSLANDA picture ledge	115 cm	₹999
LACK floating shelf	110 × 26 cm	₹1,690
BERGSHULT shelf with PERSHULT brackets	120 × 30 cm	₹2,890
EKET wall cabinet with glass door	35 × 25 × 35 cm	₹4,300
BILLY bookcase	80 × 28 × 202 cm	₹8,990
MOSSJÖN wall cabinet, glass door	36 × 18 × 102 cm	₹8,990
BILLY bookcase with OXBERG glass door	40 × 30 × 202 cm	₹10,490
BRIMNES glass-door cabinet	80 × 35 × 190 cm	₹15,990
BESTÅ storage with glass doors	60 × 42 × 193 cm	₹26,500

Other retailers on the same day: Wooden Street says its wall shelf range has 16 designs from ₹399 to ₹8,999, with sheesham pieces at ₹1,499 to ₹8,999 (Wooden Street). Urban Ladder listed solid wood wall shelves at ₹2,499 to ₹6,499 after discount, against list prices of ₹4,999 to ₹11,999 (Urban Ladder), and bookshelves and display units at ₹3,999 to ₹34,999 after discount (Urban Ladder). Neither listing page says whether GST is included.

Market range, 29 October 2026: about ₹400 to ₹9,000 for a single wall shelf (IKEA India, Wooden Street, Urban Ladder), about ₹4,300 to ₹9,000 for a small wall-hung glass cabinet (IKEA India), and about ₹10,500 to ₹26,500 for a ready-made glass showcase or bookcase with glass doors (IKEA India), plus delivery and fixing. We found no published per sq ft rate for a built-in showcase, so get a written quote naming the board, finish, glass type and thickness, shelf supports, lighting and whether GST and installation are included.

For the whole room, see our room-by-room interior design cost guide or MOA's free home cost calculator.

FAQ

Which showcase design is best for a hall?

For most Indian flats, a glass showcase about 350 mm deep for idols, brass and trophies beside the TV, plus a few open shelves for books and photos.

How deep should wall shelves be?

About 250 to 280 mm for books, and 120 to 200 mm for photo frames and small pieces (our guidance). On hidden supports, shallower shelves hold more: Häfele's rating drops from 200 kg per m² at 200 mm deep to 80 kg per m² at 300 mm.

How much weight can a floating shelf hold?

Ready-made floating shelves at IKEA India are rated for 3 kg (30 cm LACK) to 10 kg (110 cm LACK), properly fixed into a suitable wall. Heavy books and brass need bracketed shelves or a bookcase.

What is the price of a showcase for a hall?

About ₹10,500 to ₹26,500 ready-made at IKEA India (29 October 2026), and ₹400 to ₹9,000 for a single wall shelf. Built-in showcases are priced by quote.

Planning a display wall or a whole living room? Find interior designers on MOA, filter the directory by your city, and see their work before you call.

Sources

IKEA India: product pages for LACK wall shelf 110 cm and 30 cm, BERGSHULT/PERSHULT wall shelf, BURHULT/SIBBHULT, KLAVRESTRÖM, MOSSLANDA picture ledge, BILLY bookcase, BILLY/OXBERG bookcase with glass door, KALLAX, BRIMNES and FABRIKÖR glass-door cabinets, BESTÅ storage combination with glass doors, EKET wall cabinet with glass door, MOSSJÖN wall cabinet with glass door (loads, sizes, anchoring notes, prices) (accessed 29 Oct 2026)
fischer: DuoPower 6 x 50, product page (maximum loads by base material) (accessed 29 Oct 2026)
fischer: Aircrete anchor GB, product page (accessed 29 Oct 2026)
Hilti: HHD-S light duty metal anchors, data sheet, updated December 2017 (accessed 29 Oct 2026)
Häfele UK: Technical catalogue 2022, section 7 page 161, concealed shelf supports (accessed 29 Oct 2026)
Amazon KDP: Set trim size, bleed and margins (paperback trim sizes) (accessed 29 Oct 2026)
U.S. Consumer Product Safety Commission: Ahead of Sunday's Game, CPSC Reminds Families to Tackle the Deadly Hazard of TV and Furniture Tip-Overs, 8 Feb 2024 (accessed 29 Oct 2026)
Wooden Street: Wall shelves (accessed 29 Oct 2026)
Urban Ladder: Wall shelves, and Display units (accessed 29 Oct 2026)
