Small Bedroom Design with Wardrobe: Plans for 9x10 and 10x11 ft Rooms

The best bedroom design for a small room with a wardrobe treats the room as one system: the wardrobe runs full height on the one wall that holds nothing else, the bed is a size smaller than you first think (a double in a 9 × 10 ft room, a queen at 10 × 11 ft), and its headboard goes on a wall with no door. Wall shelves replace bedside tables, surface-mounted lights replace the false ceiling, and one pale colour on walls and shutters makes the room feel larger than it measures.

This guide is about the whole room. For wardrobe depths and shutters, see our wardrobe design guide.

How small is a small bedroom?

A 9 × 10 ft room is 90 sq ft, about 8.4 sq m. A 10 × 11 ft room is 110 sq ft, about 10.2 sq m. Between them they cover most second bedrooms in Indian 2BHK flats.

The Model Building Bye-Laws 2016 from the Ministry of Housing and Urban Affairs (clause 4.3.2) set 9.5 sq m for a home's main habitable room and 7.5 sq m, at least 2.1 m wide, for a second one. So a 9 × 10 room qualifies as a second bedroom, and 10 × 11 clears the main-room minimum. The same bye-laws set a minimum room height of 2.75 m (clause 4.3.1) and ask that windows and other openings, doors excluded, add up to at least one tenth of the floor area (clause 4.30.1.2). Your state's bye-laws may differ.

Bed design for a small room: double or queen?

Choose the bed before anything else, because it takes half the floor. Duroflex lists the Indian double at 75 × 48 in (190 × 120 cm), the queen at 78 × 60 in (198 × 152 cm) and the king at 78 × 72 in (198 × 183 cm). It describes 10 × 10 ft as the minimum room for a queen.

• 9 × 10 ft: a double. The frame is about 135 × 200 cm (our guidance; measure the one you buy). A queen frame here leaves about 54 cm between bed and wardrobe, too little to open a shutter and stand.
• 10 × 11 ft: a queen, centred enough to leave a gap on both sides.
• Scale of everything else: a slim headboard, a bed on a plinth or short legs, and no loose almirah or dresser. Fitted units use the full wall.

For storage under the mattress, our coming post on storage beds compares box and hydraulic designs.

Where the bed can go: door and window first

In a small room the door and window decide the plan. Three rules, all our guidance:

1. Headboard on a wall with no door, so nobody walks in at the pillow end and the door opens onto the foot of the bed.
2. Wardrobe on the wall that has nothing else, clear of the door's swing and the window.
3. Keep one route of 60 cm or more from the door to the window and the wardrobe. In a 9 × 10 room the other side of the bed can sit against the wall.

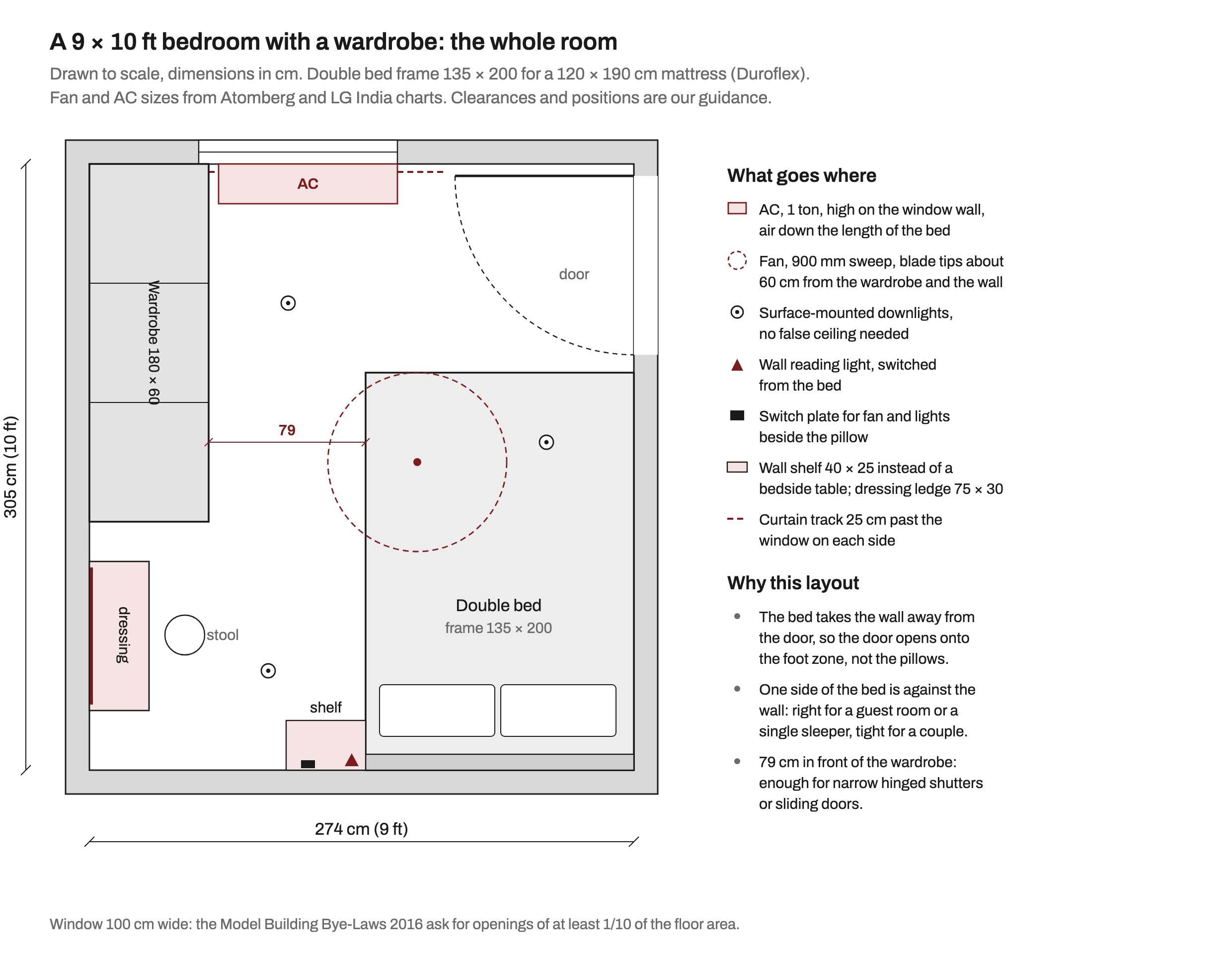

9 × 10 ft bedroom plan

The door is in a side wall and opens against the window wall, so its swing ends before the foot of the bed. The double bed sits against the far side wall with its headboard on the end wall, which leaves 79 cm in front of a 180 cm wardrobe. Below the wardrobe there is room for a 75 cm dressing ledge, and a wall shelf with a reading light serves the open side of the bed.

The catch: one side of the bed is against the wall. That suits a guest room or a single sleeper; our coming guide to master bedrooms for couples starts at 12 × 12 ft.

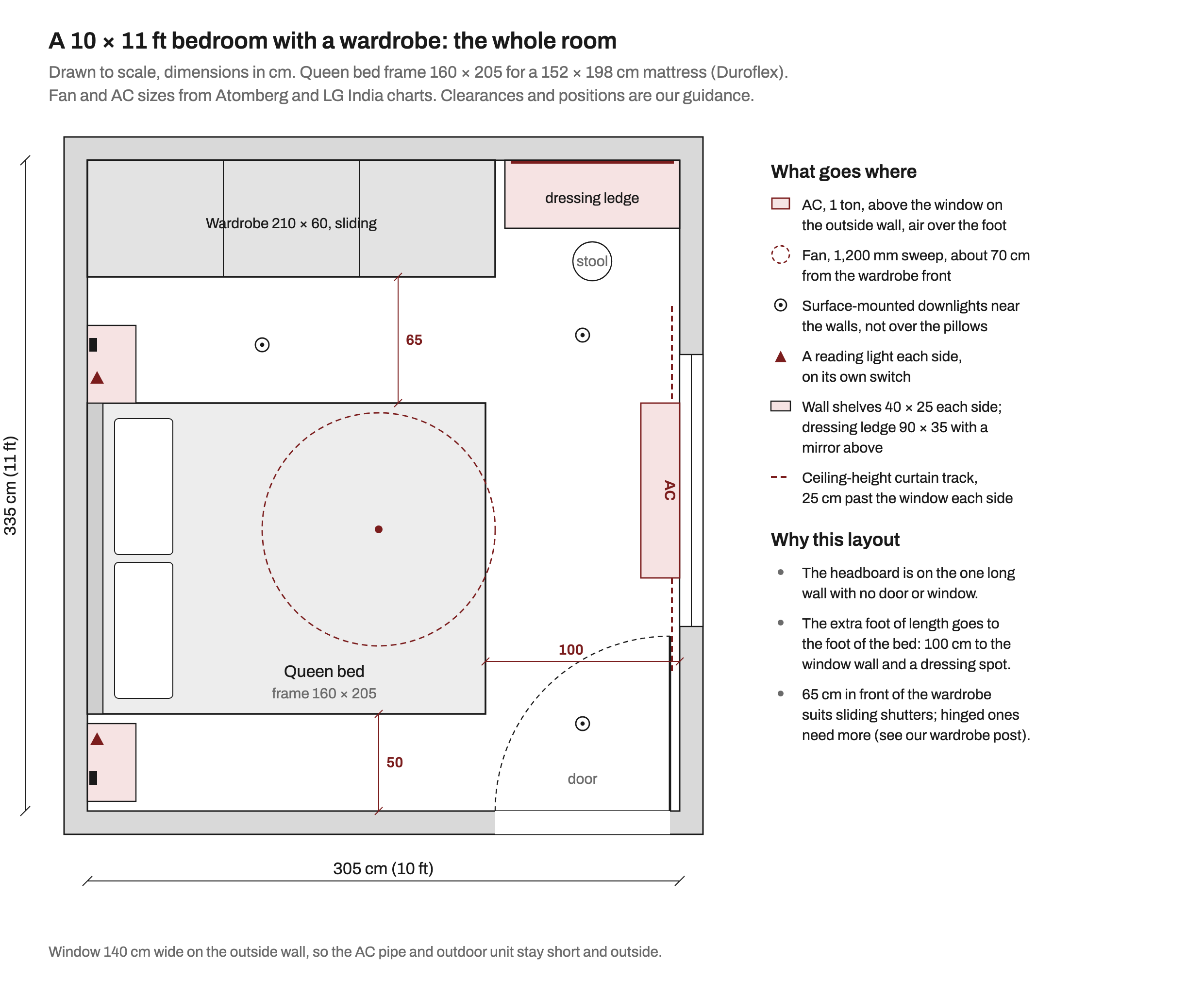

10 × 11 ft bedroom plan

The headboard takes the one long wall with no door or window. A 210 cm sliding wardrobe runs along the next wall, with 65 cm in front of it, and a 90 cm dressing ledge fills the rest of that wall. Each side of the queen bed gets a wall shelf and its own reading light. The extra foot of length goes to the foot of the bed: 100 cm to the window wall, enough to walk and draw the curtains.

When the window is on the bed wall

Many flats put the only window where the headboard wants to go. Centre the bed on it or between two windows and keep the headboard below the sill. Where there is a window on each side of the bed, cushioned window seats with drawers below can take the place of bedside tables.

Small bedroom design ideas to make the room feel larger

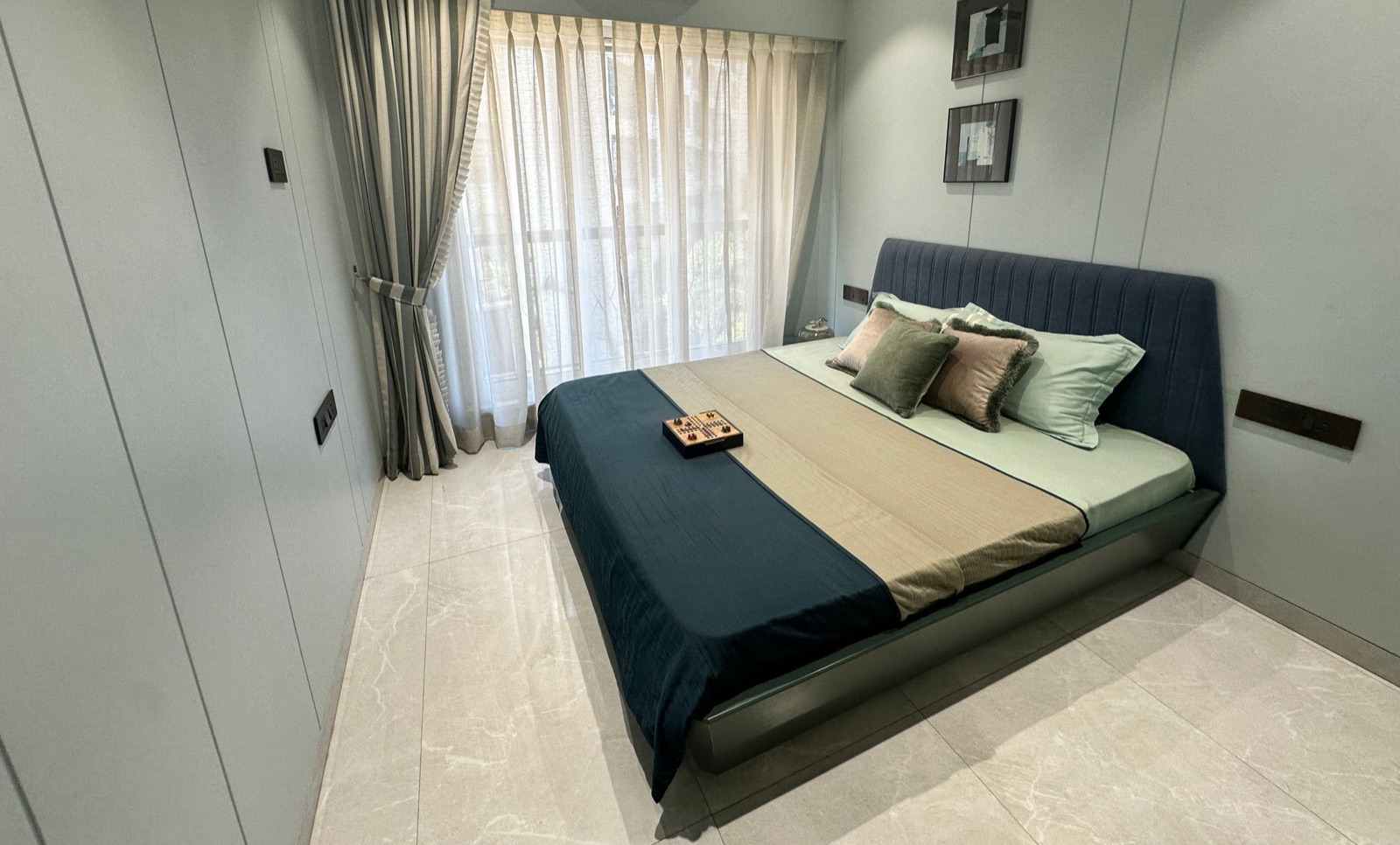

One colour, walls and shutters

Asian Paints suggests "colour drenching" for small rooms: one colour on walls, skirting, window frames and doors, with furniture chosen to match. It recommends lighter neutrals such as pale blue, pale green, light brown and lavender, and suggests a light sky blue or lilac ceiling instead of plain white for a sense of depth. For a small bedroom, that means wardrobe shutters in the wall colour, so a wall of storage reads as wall.

Light, mirrors and curtains

• Mirrors: Asian Paints advises placing mirrors "opposite windows or near light sources" to spread daylight. One full-height mirror beside the window does more than several small ones.
• Curtains: the same guide notes that heavy curtains block sunlight and suggests sheers. Our guidance: a ceiling-height track that runs about 25 cm past the window on each side, sheer plus a blackout layer, in a colour close to the wall.
• Floor: keep it visible, with wall-hung shelves and a rug that stops short of the walls.

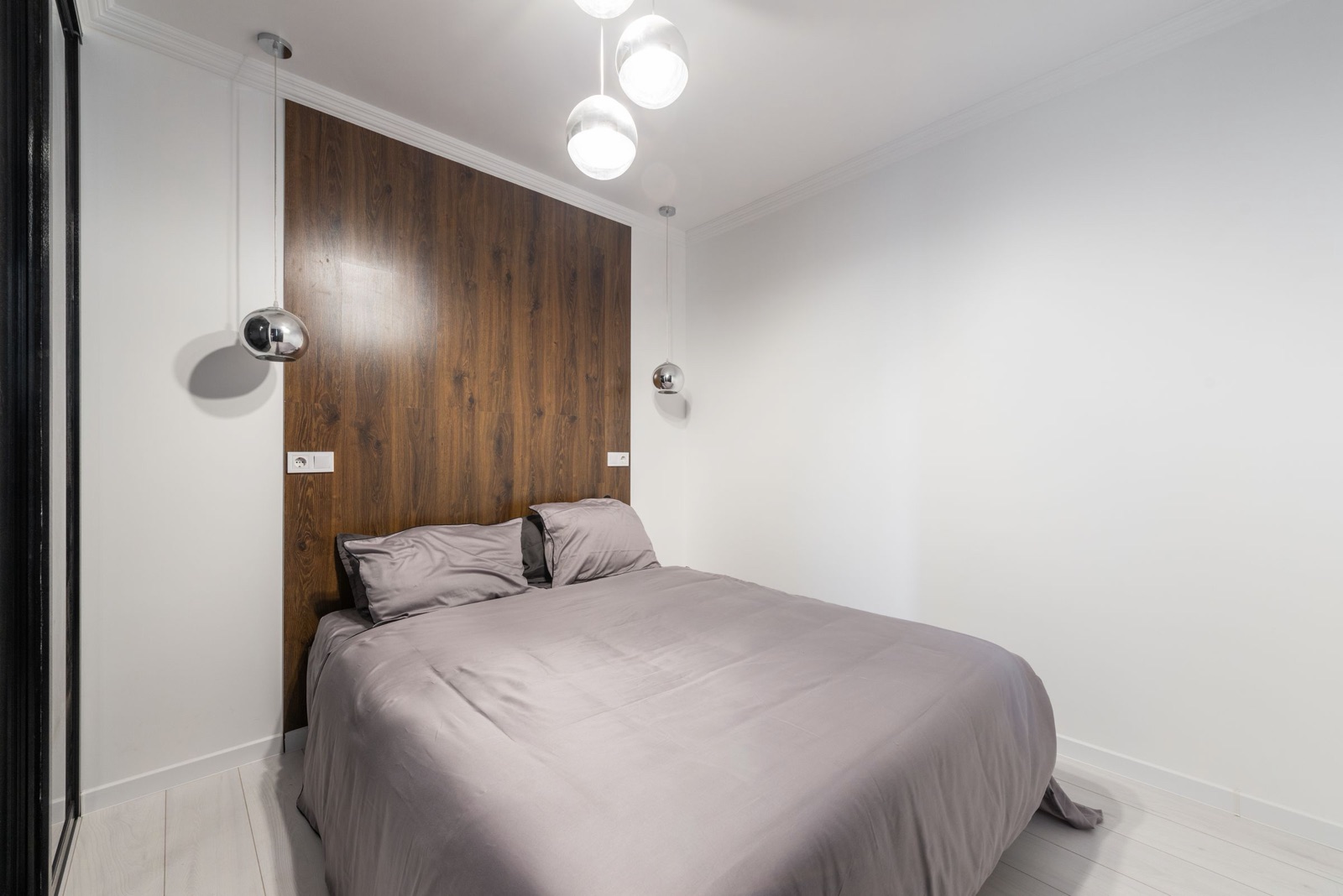

Bedside table alternatives for a small bedroom

Two bedside tables can take 90 cm of floor. Put that function on the wall instead:

• Wall shelves about 40 × 25 cm, just above mattress height.
• A headboard ledge 12 to 15 cm deep across the top of the headboard, for a phone, glasses and a book.
• Wall lights or pendants beside the bed, so no lamp needs a table.
• Sockets and switches in the bed wall at shelf height, so chargers stay off the floor.

These sizes are our guidance. Our coming post on bed back wall design covers headboards and switch heights in detail.

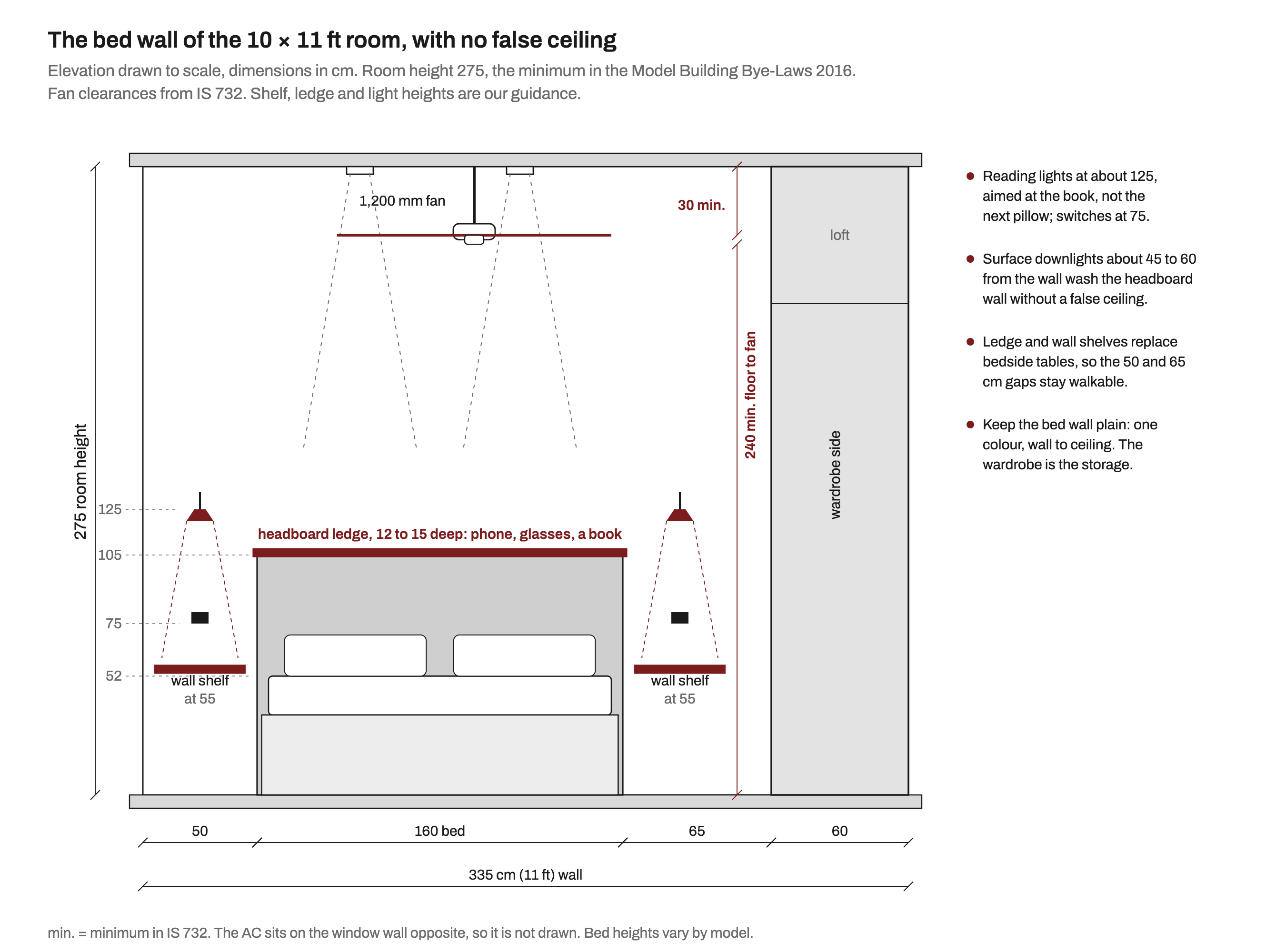

Lighting a small bedroom without a false ceiling

The bye-laws allow an air-conditioned room to drop to 2.4 m under a false ceiling (clause 4.3.1), but in a small room you can light well without one:

• Surface-mounted downlights. These fix straight to the slab. Philips India sells its Slim Surface LED downlight as "Surface-mounted (No false ceiling required)" at ₹615 for 12 W and ₹865 for 18 W, including taxes. Placed 45 to 60 cm from the walls (our guidance), they wash the walls and make the room look wider than one centre light.
• Wall lights at the bed, each on its own switch.
• A warm LED strip on top of the wardrobe loft or under the headboard ledge for night light (our guidance).

Decide every point before the painter starts: wiring usually runs in conduits chased into the walls, so moving a point later means breaking plaster. Our coming post on false ceilings for bedrooms covers the other route.

AC and fan placement in a small bedroom

AC size. LG India's chart gives 1 ton for rooms up to 120 sq ft, which it labels small bedroom and study, and 1.5 ton for 120 to 180 sq ft. It advises one size up for a room with direct sun, on the top floor or in a very hot city. So both our rooms need 1 ton, or 1.5 ton on a sunny top floor in Delhi or Jaipur.

AC position. Put the indoor unit high on an outside wall, usually the window wall, so the pipe to the outdoor unit stays short. In both plans it faces the foot of the bed rather than sitting above the headboard. We found no published mounting height that applies to every model; check your unit's installation manual for its ceiling clearance before the electrician fixes the socket.

Fan size and height. Atomberg's chart gives a 900 mm sweep for 50 to 100 sq ft and 1,200 mm for 100 to 150 sq ft, with the blade tips at least 2 to 3 ft from walls. IS 732, the Indian code of practice for wiring (1989 edition), asks for at least 2.4 m from the floor to the lowest point of the fan and at least 300 mm from the ceiling to the blades. In a 2.75 m room that leaves a window of only about 5 cm, so use the shortest downrod the maker supplies. A tall wardrobe with a loft counts as a wall: in our 9 × 10 plan the fan moves off-centre, towards the bed, to keep about 60 cm from it.

Run the AC at 24°C with the fan on, as our bedroom trends for 2027 explains.

A small dressing spot

You do not need a dressing table. A wall-hung ledge about 75 to 90 cm wide and 30 to 35 cm deep, at desk height, with a mirror above and a stool that tucks under, fits beside the wardrobe in both plans (our guidance). Light the mirror from the sides, not only from above. With no free wall, put the mirror on a wardrobe shutter; our coming post on wardrobes with a mirror and dressing table shows how.

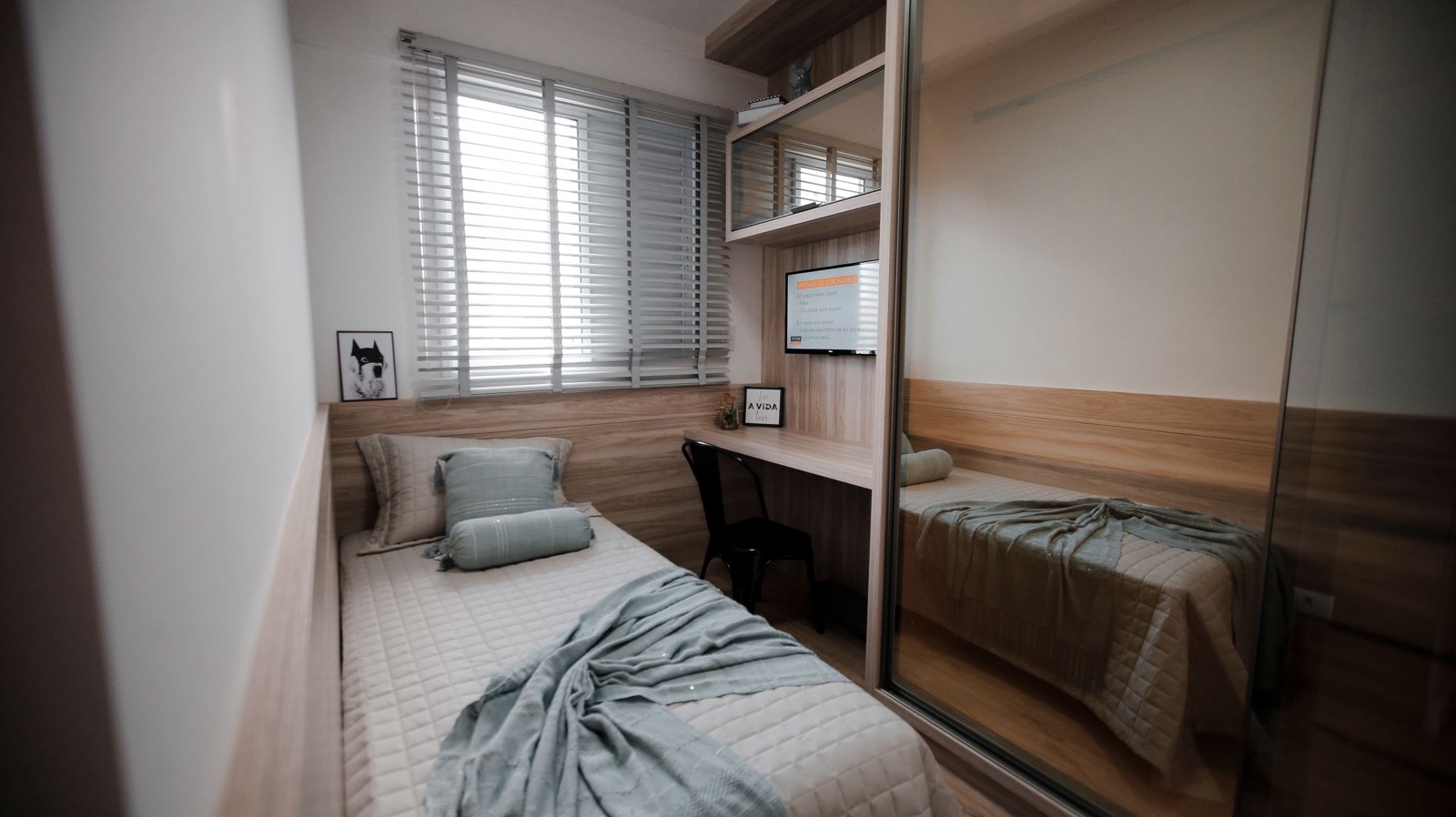

Guest-cum-study: designing the second bedroom

In most 2BHKs the 9 × 10 room is a study on weekdays and a guest room when parents visit. Plan for both:

• A day-bed instead of a double bed. IKEA India's BRIMNES day-bed frame is 87 cm wide and 205 cm long as a sofa and pulls out to 168 cm wide as a double bed, listed at ₹27,990 including taxes. It takes two 80 × 200 cm mattresses, sold separately.
• A desk at the window, or folded into the wardrobe run. Our coming post on study tables for bedrooms gives sizes and positions.
• One wardrobe section kept empty for guests.
• Sockets and a reading light at both the desk and the bed.

For bed direction, our Vastu guide for bedrooms covers it in one place.

Small bedroom interior design cost

Most ideas here save money: wall shelves, surface lights and one paint colour cost less than bedside tables, a false ceiling and panelling. To see a small bedroom inside a whole-flat budget, read our room-by-room interior design cost guide or try MOA's free home cost calculator.

FAQ

What is the best bedroom design for a small room with a wardrobe?

A full-height wardrobe on the one free wall, a modest bed with its headboard on a wall without a door, wall shelves and lights instead of bedside tables, and one pale colour throughout.

Which bed size is best for a 9 × 10 or 10 × 10 ft bedroom?

A double (120 × 190 cm mattress) in 9 × 10 ft, so a wardrobe still fits beside it. Duroflex calls 10 × 10 ft the minimum for a queen (152 × 198 cm); at that size the queen fits, but one side of it will be close to a wall.

How can I make my small bedroom look bigger?

Paint walls and shutters one light colour, hang curtains at ceiling height and wider than the window, put a full-height mirror beside the window, and keep the floor visible.

Where should the AC be placed in a small bedroom?

High on an outside wall, usually the window wall, blowing towards the foot of the bed rather than from above the headboard. LG India's chart gives 1 ton for rooms up to 120 sq ft, one size up for sunny or top-floor rooms.

Is a false ceiling necessary in a small bedroom?

No. Surface-mounted downlights, wall lights at the bed and a strip on the wardrobe loft light it well, and you keep the full height.

Planning a small bedroom? Find interior designers on MOA, filtered by your city.

Sources

• Ministry of Housing and Urban Affairs, TCPO: Model Building Bye-Laws 2016 (PDF), clauses 4.3.1, 4.3.2 and 4.30.1.2 (accessed 29 Oct 2026)
• Bureau of Indian Standards: IS 732:1989, Code of practice for electrical wiring installations (PDF), clause C-8.1 (accessed 29 Oct 2026)
• Duroflex: Queen size bed dimensions in cm (accessed 29 Oct 2026)
• LG India: Which AC capacity do you actually need? (accessed 29 Oct 2026)
• Atomberg: Ceiling fan size chart (accessed 29 Oct 2026)
• Asian Paints: How to use paint to make a small room look bigger (accessed 29 Oct 2026)
• Asian Paints: Ways to bring natural light into your home (accessed 29 Oct 2026)
• Philips India: Philips Slim Surface LED Downlight (accessed 29 Oct 2026)
• IKEA India: BRIMNES day-bed frame with 2 drawers (accessed 29 Oct 2026)
• Design Cafe: 1 BHK interior design cost (accessed 29 Oct 2026)
