Modular Kitchen Layouts: L-Shaped, U-Shaped, Parallel or Straight for Indian Homes
Which modular kitchen layout fits your flat: the room width each one needs, the work triangle, hob and chimney placement for Indian cooking, counter height and materials.
Published on 10/16/20269 min read
About the numbers below: clearances and work-triangle figures are recommendations from the US National Kitchen and Bath Association (NKBA), not Indian law. Legal kitchen minimums come from India's Model Building Bye-Laws 2016, a template each state adapts. Room widths here are worked out from those sources and are minimums.
The right modular kitchen layout is decided by one measurement: the clear width of your kitchen, wall to wall. A straight kitchen needs about 1.67 m, an L-shaped kitchen about the same on each wall, a parallel or U-shaped kitchen about 2.27 m, and an island about 3.2 m. Below that, the aisle gets too tight to cook in, however good the shutters look.
For finishes and styles, see our 2026 kitchen design trends; for pricing per running foot, our room-by-room interior cost guide; and for a whole-flat budget, our 2BHK interior cost guide for Bangalore.
Start with the rule book: minimum kitchen size
The Model Building Bye-Laws 2016 from the Ministry of Housing and Urban Affairs set these kitchen minimums (MoHUA PDF, section 4.4):
- Kitchen with a separate dining area: at least 5.0 sq m, with a minimum width of 1.8 m.
- With a separate store: 4.5 sq m.
- Kitchen also used for dining: at least 7.5 sq m, minimum width 2.1 m.
- Also required: a way to wash utensils (unless a separate pantry provides it), an impermeable floor and a window or ventilator, with window openings 25 per cent larger than for other rooms (section 4.30.1).
Your state's version may differ, but note the width: 1.8 m fits a straight or L-shaped run, not two parallel runs. Our explainer on how building byelaws shape a house covers where these rules come from.
Which layout fits your kitchen
Two numbers decide every layout. Modular base cabinets are 60 cm deep: IKEA India lists its METOD base cabinets at a 60 cm system depth on an 80 cm frame (IKEA India). The NKBA recommends a work aisle of at least 1,067 mm (42 inches) for one cook and 1,219 mm (48 inches) for more, measured between counter fronts, tall units or appliances (NKBA Kitchen Planning Guidelines, guideline 6). Add them up and you get the minimum room width for each layout.
| Layout | Minimum clear width (one cook) | Best for | Watch out for |
|---|---|---|---|
| Straight (single wall) | about 167 cm (60 + 107) | Narrow kitchens, studio and 1BHK flats, open kitchens along one living-room wall | Limited counter; walking distance grows with length |
| L-shaped | about 167 cm on each wall | Kitchens with two usable walls | The corner: plan a carousel or blind-corner unit, or it becomes dead space |
| Parallel (galley) | about 227 cm (60 + 107 + 60); about 242 cm for two cooks | Long, narrow kitchens with a door or balcony at one end | If the room is a through-route, family traffic cuts across the cook |
| U-shaped | about 227 cm between the outer walls | Larger, closed kitchens where storage matters most | Two corners to fit out, and only one way in and out |
| Island or peninsula | about 319 cm (60 + 107 + 61 + 91) | Open kitchens in larger flats and villas | Needs space on all sides; a hob on the island is hard to vent |
The island figure uses the NKBA's 610 mm depth for a preparation counter as the island top and its 914 mm minimum walkway on the far side. A peninsula, joined to one wall, saves the walkway at one end, so it can fit where a full island will not.
The straight kitchen
One wall, one run, and the easiest fit in a 1.8 m kitchen. Keep the sink between the fridge and the hob so washing and chopping sit mid-run. The NKBA asks for at least 610 mm of counter on one side of the sink and 457 mm on the other (guideline 11), and 305 mm and 381 mm either side of the hob (guideline 17). Add those to the widths of your sink, hob and fridge for the shortest run that works.
The L-shaped kitchen
The L gives two counter runs with no aisle between them, so it works in the same narrow width as a straight kitchen. A practical arrangement puts the sink under the window, the hob where the chimney duct can reach an outside wall quickly, and the fridge at the open end of an arm, clear of the corner.
Parallel and U-shaped kitchens
Both need roughly 2.27 m of clear width, or 2.42 m for two cooks, and give the most counter and storage for the floor area. One practical split in a parallel kitchen is wet on one side (sink, purifier) and dry on the other (hob, storage). The NKBA says no major traffic route should cross the work triangle (guideline 5), which matters when a galley leads to the utility balcony.
The work triangle, and where it bends for Indian kitchens
The work triangle joins the fridge, the sink and the hob. The NKBA recommends that the three legs add up to no more than 7.9 m (26 feet), with no single leg shorter than 1.2 m or longer than 2.7 m, each measured from the centre-front of the appliance or sink (guideline 3). A full-height tall unit should not separate two work centres (guideline 4).
Indian kitchens add work the triangle was never designed for:
- Mixer-grinder and prep. The NKBA asks for a continuous counter at least 914 mm wide and 610 mm deep next to the sink as the main prep area (guideline 12). Put the mixer-grinder there, with its own socket, beside the sink rather than the hob.
- Water purifier. It needs a water line, a drain and a socket: fix its spot on the sink wall before tiling.
- Bulk grains and utensils. A tall pantry unit holds them; per guideline 4, put it at the end of a run.
- The wash area. The bye-laws let utensil washing sit in a separate pantry. If your flat has a utility balcony, a second sink there for heavy vessels keeps the kitchen sink free for prep.
Hob and chimney placement for tadka and frying
Tadka and deep frying put oil and smoke in the air, so placing the hob is a ventilation decision.
- Height of the hood. Faber India's installation guide says the gap between stove and chimney should be 26 to 32 inches, roughly 66 to 81 cm. Under 26 inches risks collected oil catching fire; over 36 inches, it may not clear all the smoke (Faber India). Your model's manual takes priority.
- Duct run. Faber advises a duct no longer than 12 feet (about 3.7 m), with as few bends as possible. So put the hob on or near an external wall or shaft.
- Vent outside. The NKBA recommends a ducted system of at least 150 cfm and cites the US code rule that hoods discharge outdoors.

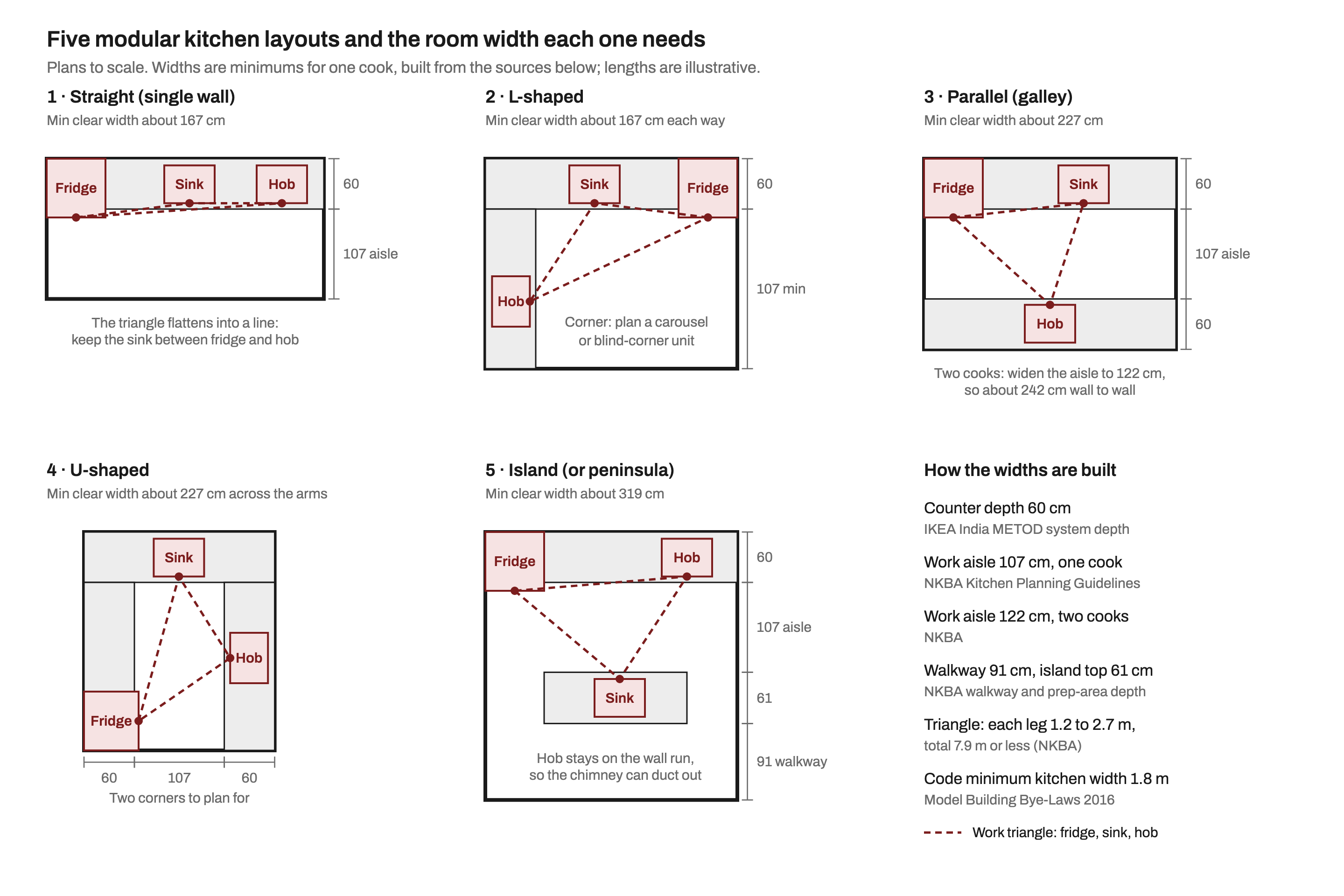

That is why the island in the diagram keeps the hob on the wall run: an island hob needs a ceiling-hung hood and a duct through the false ceiling, which is hard to keep within 12 feet.
Counter height
There is no single correct height. EGGER, a worktop maker, gives a simple rule: measure your elbow height, arm bent at 90 degrees, and subtract 100 mm. An elbow at 100 cm gives a 90 cm counter. EGGER puts the most common height at around 900 mm and worktops at 25 to 40 mm thick (EGGER).
An 80 cm IKEA frame on 8 cm legs is 88 cm before the worktop, so the finished counter lands at roughly 90.5 to 92 cm. If the main cook is shorter or taller, ask for the plinth to be adjusted. The NKBA's accessibility standard also suggests two counter heights, one between 711 and 914 mm and one between 914 and 1,143 mm. A 2025 preprint from VIT's School of Design, studying 45 Indian kitchens used by older adults, found standard 85 to 91 cm counters often unsuitable for them and suggested multi-level counters of 75 to 90 cm, lower for kneading dough (Research Square). It is not peer reviewed, but a lower section for rolling rotis is worth discussing.
Materials for a humid Indian kitchen
Carcass
The carcass lives beside the sink and pressure-cooker steam, so it matters more than the shutter finish. CenturyPly notes that BIS gives IS 710 to boiling-water-proof (BWP) plywood and IS 303 to moisture-resistant (MR) plywood. It lists BWP for kitchen cabinets and under-sink storage and advises against MR in kitchens (CenturyPly). Ask for the IS mark in the quote.
HDHMR (high-density high-moisture-resistant board) is the usual alternative. Greenply calls it moisture-resistant, not waterproof, and says edge-banding or sealing cut edges significantly extends its life in humid conditions (Greenply). Either way, the sink unit is the wettest cabinet, so BWP there is the safe choice.
Countertop
Hot kadhais and tawas come straight off the flame. Caesarstone, a quartz maker, calls its surfaces heat resistant but says a trivet is required for very high temperatures (Caesarstone). With quartz, keep a trivet beside the hob. For granite or other stone, ask the fabricator for that slab's care guidance.
Frequently asked questions
Which kitchen layout is best for a small flat in India?
Under about 2.27 m of clear width, a straight or L-shaped layout. Both need about 1.67 m; parallel and U-shaped kitchens need about 2.27 m to keep the NKBA's 1,067 mm aisle.
Is a parallel kitchen better than an L-shaped kitchen?
A parallel kitchen gives more counter and storage in a long room; an L-shaped kitchen fits narrower rooms and keeps traffic out of the cooking zone. Choose by width first.
What is the standard kitchen platform height in India?
There is no legal standard. Modular systems land at about 90 to 92 cm; EGGER's rule of elbow height minus 100 mm is a good personal check.
How high should the chimney be above the hob?
Faber India recommends 26 to 32 inches, roughly 66 to 81 cm, with a duct no longer than 12 feet.
Which plywood is best for a modular kitchen?
BWP plywood to IS 710, at least for the sink unit. CenturyPly advises against MR grade in kitchens, and HDHMR needs sealed edges.
