Architecture Portfolio for Masters Abroad: What Admissions Panels Want to See
Page and file limits from TU Delft, Stuttgart, Sheffield, UNSW, UVA and Maryland, and what a master's panel wants that a firm does not: research, process, writing and unbuilt work.
Published on 10/16/20269 min read
An architecture portfolio for a master's abroad is not a longer job portfolio. A firm wants to know whether you can deliver drawings next Monday. An admissions panel wants to know how you think, what questions interest you and whether you can grow in a studio, so it looks for research, process, writing and work that was never built. Each school also sets its own page, file and format rules, and those rules change from one intake to the next.
About the numbers below: every page limit, file size and rule comes from the school's own admissions page or guidelines, which we read on 16 October 2026. Schools revise these every cycle, and some pages state no limit at all. Before you export, open the page for your own programme and intake and follow it over anything here. The page plans are MOA guidance, not school rules.
This guide is for Indian B.Arch graduates and final-year students applying to master's programmes in the UK, Germany, the Netherlands, Australia and the US. For how practising architects present built work, see our architecture portfolio examples.
How a master's portfolio differs from a job portfolio
An employer panel convened by the recruiter Bespoke Careers in March 2026 recommended 8 to 15 pages for a portfolio sent to a firm, a file under 5 MB, your contact details on every page and a version tailored to each role (Bespoke Careers). Admissions guidelines ask for something different in almost every row.
| Job portfolio | Master's portfolio | |
|---|---|---|
| The reader asks | Can you do the work we have now? | How do you think, and where could you go in our studios? |
| Length and size | 8 to 15 pages, under 5 MB (employer panel) | Set by each school: up to 30 pages and 20 MB at TU Delft, 10 MB at Stuttgart |
| Office work | Usually the lead | Capped or excluded at some: TU Delft allows no more than 2 professional projects out of 5, and the DAAD scholarship asks for no commercial office work |
| Process | Useful evidence | Often the point: UVA encourages the iterative steps, not just the final product |
| Writing | Short captions | Word-limited text per project, reflection answers or a short critical text |
| Your name | On every page | Not on the cover at Stuttgart, which asks only for your application number |
The last row catches people out: the same PDF cannot go to a firm in Bengaluru and a faculty in Stuttgart. Keep one master file and export a version for each destination.

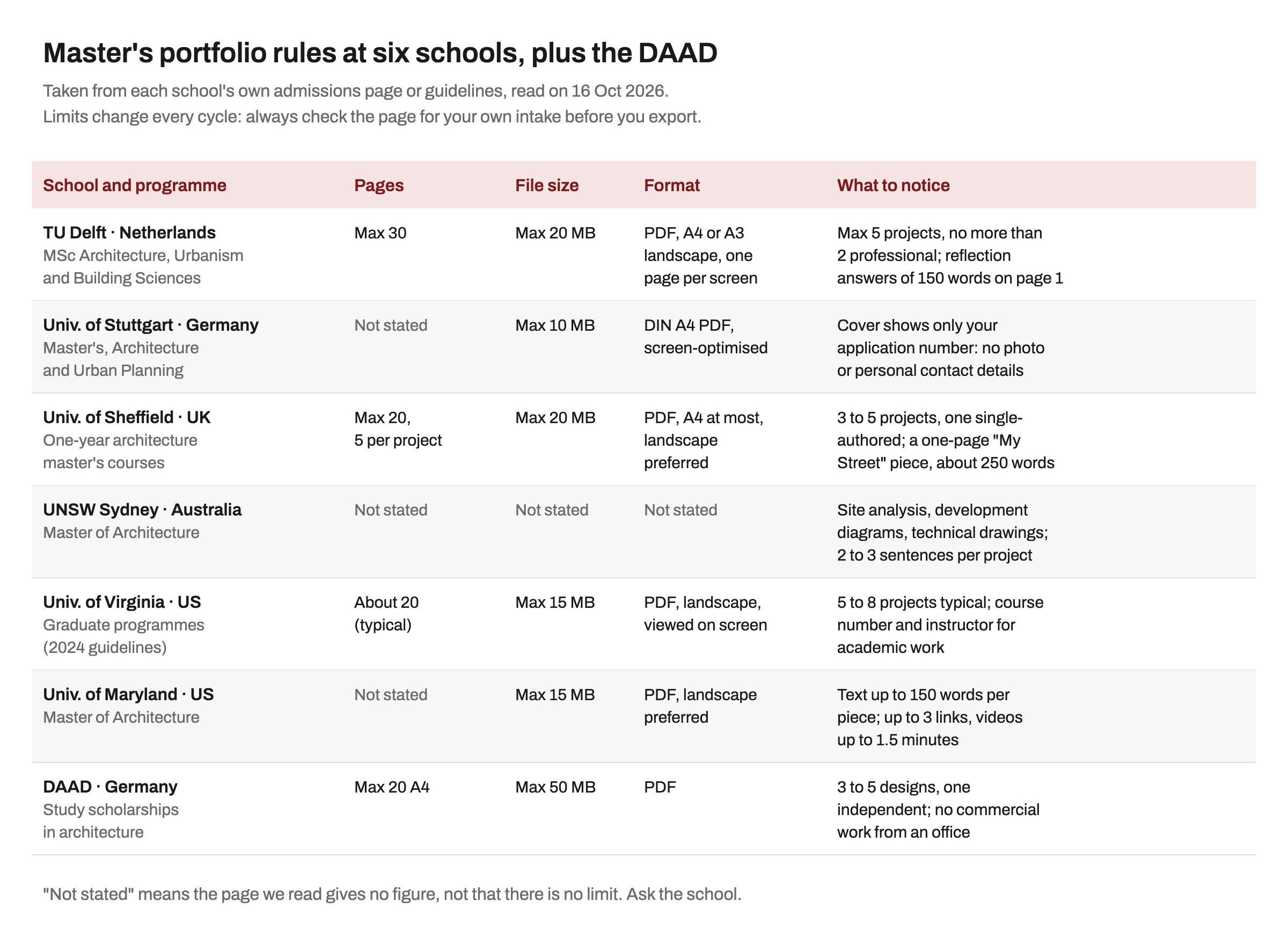

What six schools and the DAAD ask for
We read each school's own page. The table is the summary, and the notes after it explain what matters.
Netherlands: TU Delft
For the MSc Architecture, Urbanism and Building Sciences, TU Delft caps the portfolio at 30 pages and 20 MB, in A4 or A3 landscape, with one page per screen and no booklet spreads. You may show at most five projects, no more than two of them professional, including at least one individual project and your final or most recent one. Each project states your role and exact contribution, the semester and the supervisor's name, and sketches go at the end, on 2 or 3 pages. Answers to the track's reflection questions, each up to 150 words, go on the first page. TU Delft also asks you to disclose collaborators and the use of AI tools, and warns that failing to disclose contributions may be treated as malpractice (TU Delft). The page is headed for the 2027 to 2029 intake, with a 15 January 2027 deadline for non-EU applicants.
Germany: University of Stuttgart and the DAAD
Stuttgart's Faculty of Architecture and Urban Planning calls the portfolio the central selection criterion. Its guidelines, dated 23 April 2026, ask for a screen-optimised DIN A4 PDF of at most 10 MB, in German or English, uploaded online. Links are not accepted. The cover carries only your application and applicant number, and the CV page must leave out your photo and personal contact details. Work in progress, such as an unfinished bachelor's thesis, is acceptable, and group work must be labelled with your individual contribution (University of Stuttgart).
If you are applying for a DAAD study scholarship in architecture, its portfolio has separate rules: at most 20 DIN A4 pages and 50 MB, three to five designs including at least one independent project, and no commercial work from an office, except your own competition entries (DAAD).
UK: University of Sheffield
For its one-year architecture master's courses, Sheffield asks for 3 to 5 projects in at most 20 pages, no more than 5 pages per project, no larger than A4 and no more than 20 MB, with a contents page and an information sheet for each project. It welcomes research projects, summarised by objectives, findings and conclusions. The last page is a "My Street" piece: one page, in any medium, on the street you live on, with about 250 words of critical text (University of Sheffield).
Australia: UNSW Sydney
UNSW's portfolio page for the Master of Architecture gives no page or file limit. It asks for work from different stages of your degree or professional work, covering site analysis, development diagrams, technical drawings that explain how the building stands up, and the final design, with a 2 to 3 sentence explanation of each project (UNSW Sydney).
US: University of Virginia and University of Maryland
UVA's graduate guidelines describe a typical portfolio as about 20 pages or 10 spreads with 5 to 8 projects, in a landscape PDF of at most 15 MB. Every academic piece should carry its course number and instructor. The PDF is labelled 2024, which is a good reminder to confirm it for your intake (UVA School of Architecture). Maryland sets 15 MB, a landscape PDF and at most 150 words of descriptive text per piece, and allows up to three links to animations or video of no more than 1.5 minutes each (University of Maryland).
What admissions panels want to see
Process, not only the final images
UVA asks advanced applicants for a research-based approach and encourages the iterative steps of design development. Maryland suggests that advanced-standing applicants show the design process as well as the product. In practice, that means study models, the sketch where the idea turned, and two or three rejected options with one line on why. If your studios ended in a jury sheet of renders, go back to your sketchbooks: the material exists.
Research, drawn rather than pasted
Your B.Arch thesis is usually your strongest research. Do not paste in the literature study. Turn the findings into one or two drawn pages: a site analysis, a mapping, a comparison of precedents, or the data that shaped the brief. Sheffield accepts research projects on their own, shown as an extract covering the problem, method and findings, with a short summary.
Writing that does work
Several schools cap the words: 150 words at Maryland, 150 per reflection answer at TU Delft, about 250 for Sheffield's street piece. For each project, give the context (college, semester, studio, guide), the question, what you did yourself, and what changed along the way. Have someone outside architecture read it once.
Unbuilt and speculative work
A master's panel does not expect built projects from a recent graduate. Studio projects, an unfinished thesis, competition entries and speculative drawings all count, provided they are labelled as what they are. Short of independent work? Our competitions calendar lists credible open briefs.
Points that matter for Indian applicants
- Office work after your B.Arch. One or two years in practice helps, but the rules differ. Sheffield welcomes work from employment, TU Delft caps professional projects at two, and the DAAD scholarship excludes commercial office work. Where you do show office drawings, state your role exactly. As MOA guidance, ask the firm before you share client drawings outside it. Work from your practical training semester counts as professional work too.
- Group studios and theses. TU Delft, Stuttgart, Sheffield and UVA all ask who did what. Name your part on the page itself.
- Name your guide. TU Delft and Sheffield ask for the supervisor's name, Sheffield their email too. Tell your guide first.
- AI renders. TU Delft asks you to disclose AI tools. Label AI-assisted images everywhere.
- File size. Stuttgart's 10 MB is the tightest limit in our table. Export images at screen resolution and check the size well before the deadline.
- Germany's anonymous cover. Remove your name, photo and phone number from the Stuttgart version, including any footers you added for firms.
A checklist before you upload
- Open the school's portfolio page for your intake and write down the page, file, format and word limits.
- Count projects against the school's cap, including any limit on professional work.
- Label every project: academic or professional, solo or group, semester, guide, and your role.
- Check that each project shows at least one page of process or research, not only renders.
- Fit the words to the limit and read them aloud once.
- Remove or add personal details as that school asks.
- Export, check the file size, and open the PDF on a laptop screen.
Keep the full work online
A capped PDF forces you to cut. An online portfolio can hold every project in full for interviews and for firms later. Maryland allows a few links and Stuttgart accepts none, so treat it as a companion, never a substitute. You can put your projects on MOA for free.
Frequently asked questions
How many pages should an architecture portfolio for a master's be?
It depends on the school. Among those we checked, TU Delft allows up to 30 pages, Sheffield up to 20, UVA describes about 20 as typical, and Stuttgart, UNSW and Maryland state no page limit on the pages we read. Follow the page for your own intake.
Can I include office work in a master's portfolio?
Usually, within limits. TU Delft allows no more than two professional projects, Sheffield welcomes work from employment, and the DAAD scholarship portfolio excludes commercial office work. Always state your role.
What should an architecture portfolio for a master's in Germany include?
At Stuttgart, a DIN A4 PDF of at most 10 MB with an anonymous cover, a site plan for each project, clear descriptions and some self-reflection. Each German university sets its own rules, so check each programme, and the DAAD's separate rules if you apply for its scholarship.
Should I include my B.Arch thesis?
Yes, if it is your strongest work. TU Delft and Sheffield ask for your final or most recent project, and Stuttgart accepts an unfinished bachelor's thesis as work in progress. Show its research and process, not only the final sheets.
Put your full projects on MOA, free: create your profile.
Sources
- TU Delft: MSc Architecture, Urbanism and Building Sciences, admission with a non-Dutch BSc degree (accessed 16 Oct 2026)
- University of Stuttgart, Faculty of Architecture and Urban Planning: Guidelines for Creating a Portfolio for Master's Applications (23 April 2026) (accessed 16 Oct 2026)
- DAAD: Additional information on DAAD study scholarships in the field of architecture (accessed 16 Oct 2026)
- University of Sheffield: Design portfolio guidance for architecture applicants (accessed 16 Oct 2026)
- UNSW Sydney: How to create a postgraduate portfolio, Arts, Design and Architecture (accessed 16 Oct 2026)
- University of Virginia School of Architecture: Graduate Programs Portfolio Guidelines (accessed 16 Oct 2026)
- University of Maryland: Portfolio Requirements, Architecture Degree and Joint Degree Programs (accessed 16 Oct 2026)
- Bespoke Careers: 4 employers share architecture portfolio tips (with real examples) (accessed 16 Oct 2026)
