Building Materials for a House in Punjab and Chandigarh: What to Use and Why

For a house in Punjab or Chandigarh, build the walls in fly ash brick or first-class burnt clay brick, put insulation on the roof as well as the traditional brick-tile terracing, detail the frame for Seismic Zone IV in most cities, and test your water before it goes into concrete. A house here has to keep out June heat and hold in January warmth, and Chandigarh's own brick and concrete buildings show how both can be designed in.

The climate, ground and earthquake facts that decide it

Cold winters matter here too

IMD's 1991 to 2020 normals show how far apart the seasons are. In Amritsar the mean daily minimum in January is 3.8°C and the mean daily maximum in May is 39.4°C. Ludhiana runs from 6.1°C to 39.0°C, and Chandigarh from 7.2°C to 38.6°C. Chandigarh's station has recorded both 0.0°C (January 1973) and 45.1°C (June 2012).

Rain rises towards the hills, from about 689 mm a year in Amritsar through 791 mm in Ludhiana to 1,038 mm in Chandigarh, with 76 to 82% of it falling from June to September. Amritsar averages about 45 foggy days a year, so plaster dries slowly in winter. The Bureau of Energy Efficiency's Eco Niwas Samhita 2018 lists Amritsar, Ludhiana, Jalandhar and Chandigarh in the composite climate zone.

The ground: alluvium, Kandi and salty water

The Central Ground Water Board's Punjab state profile says the state is mainly underlain by thick Quaternary alluvium, which meets the rocks of the Siwalik system in the north-east. Near the hills the ground changes. The Chandigarh Administration describes Kandi (bhabhar) in the north-east of the UT, Sirowal and alluvial plains elsewhere, and a subsurface of boulders, pebbles, gravel, sand, silt, clay and some kankar. Bouldery Kandi ground and deep silt need different foundations, so our guidance is to get a soil investigation first.

Water is the other check. The same CGWB profile reports groundwater salinity above 3,000 µS/cm in parts of Bathinda, Ferozepur, Faridkot, Muktsar and Mansa. IS 456: 2000 limits mixing water to 500 mg/l of chlorides for reinforced concrete and 400 mg/l of sulphates. If your site runs on a borewell, have the water tested before the first pour.

Earthquake and wind

The earthquake code in force, IS 1893 (Part 1): 2016, puts Amritsar, Chandigarh and Ludhiana in Seismic Zone IV (zone factor 0.24), and Patiala and Bhatinda in Zone III (0.16). BIS released a 2025 edition in November 2025, withdrew it by gazette notification on 3 March 2026 and reinstated the 2016 code, as ETV Bharat reported. IS 875 (Part 3): 2015 gives all five cities a basic wind speed of 47 m/s, which matters for parapets, water tanks and solar frames.

The neighbouring plains share much of this climate; see building materials for a house in Delhi NCR and in Lucknow and the UP plains for how the same choices play out there.

Walls: brick, and the ash rule

Fly ash is close at hand

Punjab State Power Corporation's thermal projects page lists its plants at Bathinda, Ropar and Lehra Mohabbat, and the corporation publishes a fly ash stock position for each. Its page for the Guru Gobind Singh Super Thermal Plant describes a coal-fired station near Ropar, 55 km from Chandigarh.

That matters because of MoEFCC's January 2024 amendment, S.O. 05(E). Its new paragraph B(8) says all building construction projects within 300 km of a coal or lignite power plant, including those of "all private agencies", shall use ash bricks, tiles or other ash-based products, provided they cost no more than the CPWD or state PWD Schedule of Rates price. A new paragraph B(10) tells local authorities to provide for ash products in their building bye-laws. The notification does not say whether B(8) binds a family building its own house, so ask your architect and local authority. Either way, fly ash brick is a sound default here, not a fallback.

What to ask the supplier for

• Fly ash lime bricks to IS 12894: 2002: water absorption no more than 20% by mass up to class 12.5 (15% above), efflorescence no worse than "moderate" up to class 12.5, and drying shrinkage within 0.15%.
• Burnt clay bricks to IS 1077: 1992: the same absorption limits, and efflorescence no worse than "slight" above class 12.5. For exposed brick, that higher class is worth paying for. (A paid 2025 edition exists; we quote the 1992 text.)
• AAC blocks as infill on west and south walls, where they cut heat gain. Punjab PWD's schedule carries a 100 mm AAC masonry item.

Cavity walls for exposed brick

For exposed brick and a warmer January, consider a cavity wall. Punjab PWD's schedule has an item for forming a 5 to 7.5 cm cavity with metal ties. By the Eco Niwas Samhita method, a solid 230 mm clay brick wall left exposed outside and plastered inside works out to about 2.4 W/m²K. Two 115 mm leaves with a 50 mm still-air cavity come to about 1.7. These are our illustrative estimates, not test results.

Roof: built for January as well as June

Eco Niwas Samhita caps roof U-value, the heat a square metre lets through per degree, at 1.2 W/m²K. Punjab PWD's standard roof terracing, item 13.13, lays brick tiles over 25 mm of mud plaster, 7.5 cm of mud filling and another 25 mm of mud plaster, on two coats of hot bitumen. Using the code's conductivities for mud phuska and brick tile, that roof comes to about 1.6 W/m²K, against about 3.1 for a bare 150 mm slab. Adding 50 mm of resin-bonded glass wool under the slab, also a Punjab PWD item, brings it to about 0.5.

In June insulation keeps the top floor cooler; on a 4°C January night in Amritsar it keeps the warmth in. Keep the terracing sloped to outlets and the bitumen layer unbroken: 76 to 82% of the year's rain arrives in four months.

Chandigarh's brick and concrete legacy

Chandigarh's Capitol Complex is part of The Architectural Work of Le Corbusier, inscribed as a UNESCO World Heritage property in 2016. UNESCO's statement of value notes that in the Capitol Complex, concern for natural air-conditioning and energy saving led to sunscreens, double-skinned roofs and reflecting pools. The Administration's Capitol Complex page lists its three concrete buildings, the Assembly, the Secretariat and the High Court, and says the Tower of Shadows addresses the city's complex climate.

The lessons scale down to a house: shade the glass and protect the roof. In a Chandigarh sector there is also a rule to check. The Administration publishes Architectural Control Drawings and asks citizens to abide by them, so read your sector's drawing before you choose a facade material. Punjab PWD's schedule prices exposed brickwork with grooved joints as its own item. Our guidance for a fair-faced wall: a low-efflorescence brick, neat joints and a breathable sealer.

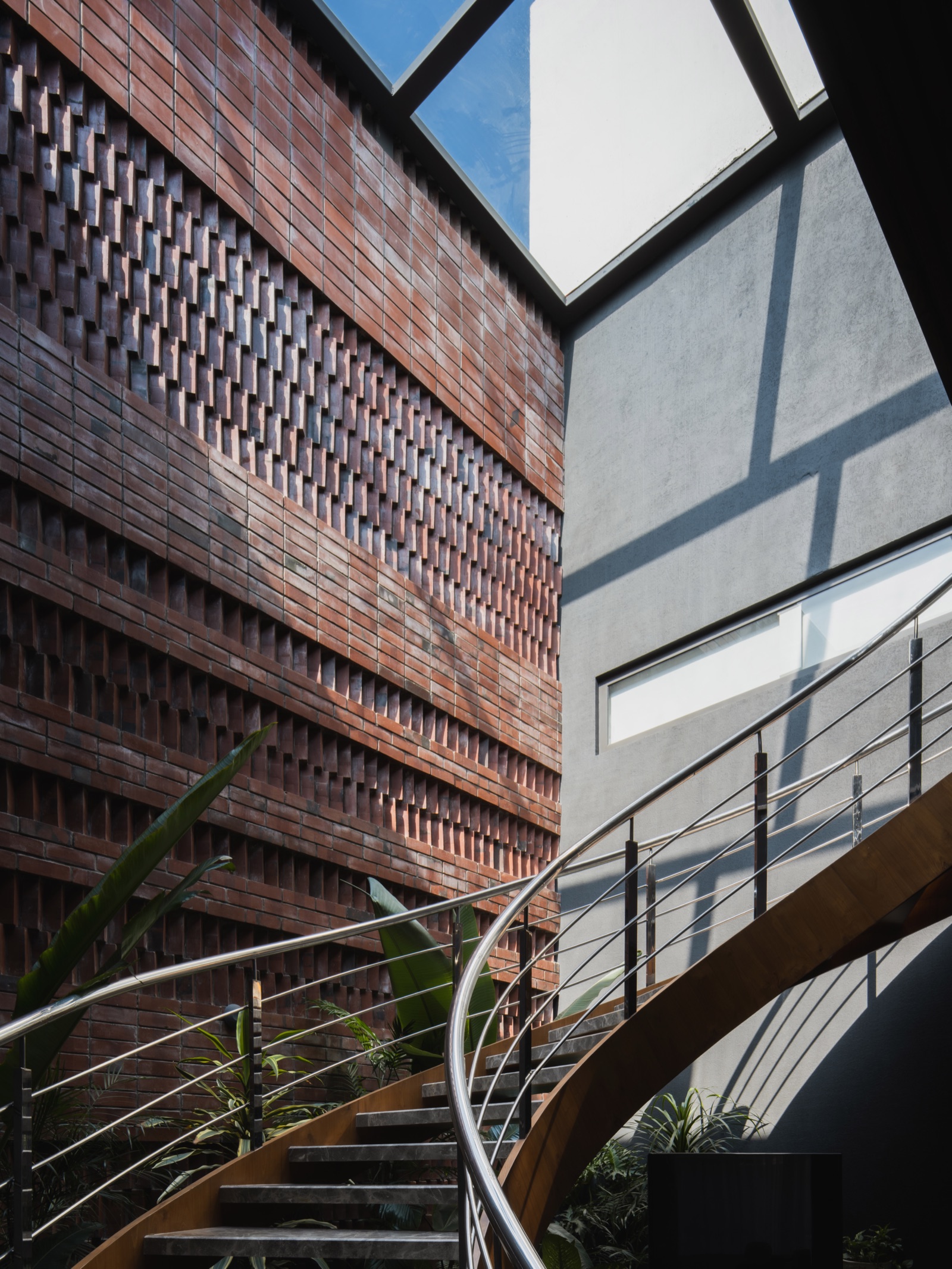

The screen above is at Urban Cave by Varun Garg, just outside Chandigarh in Panchkula.

Floors, plaster and damp

• Floors: Punjab PWD's schedule carries Kota stone flooring and rough red sandstone from Agra as standard items. Kota stone suits verandas, stairs and terraces; vitrified tile or stone inside.
• Plaster: cement plaster is the norm; lime-surkhi and cement-lime plaster items remain in the schedule, useful on older brickwork. Pale finishes on sun-facing walls.
• Damp: lift the plinth, run a damp-proof course under every wall, and let brickwork dry before plastering, which takes longer in foggy months.

Structure: what Zone IV changes

Most new houses here are RCC frames. IS 13920: 2016 says its ductile detailing shall be adopted in RC structures in Zones III, IV and V, with concrete of at least M20. For load-bearing brick, IS 4326: 2013 puts an ordinary house in Zone IV in Category D: horizontal bands at critical levels plus vertical bars at corners, wall junctions and door and window jambs. Patiala and Bhatinda, in Zone III, fall in Category C. Do not copy a Patiala drawing to Ludhiana.

Indicative prices: Punjab PWD CSR-2020

For how these materials compare in general, see red brick, AAC, fly ash or concrete block and our guide to materials by climate and region. To estimate a whole house, try MOA's home cost calculator.

Mistakes to avoid

• Designing only for summer. January nights near 4 to 7°C make roof insulation pay twice.
• Exposed brick from any kiln. Salt bloom shows on a fair-faced wall; ask for the efflorescence result.
• Untested borewell water in concrete, especially in the south-west districts.
• Zone III details in a Zone IV city. Ludhiana, Amritsar and Chandigarh need Category D masonry or ductile RCC detailing.

FAQ

Which brick is best for house construction in Punjab?

Fly ash lime brick to IS 12894 or first-class burnt clay brick to IS 1077 both work in an RCC frame. For exposed brick, choose a higher-class clay brick with a "slight" efflorescence rating.

What is the brick rate in Punjab?

Punjab PWD's CSR-2020 lists first-class bricks at kiln at ₹4,857 per 1,000 before GST for Amritsar, Jalandhar, Ludhiana, Mohali and Chandigarh, and ₹4,095 for Bathinda. These are 2020 base rates for estimates, not dealer prices.

Is fly ash brick compulsory in Punjab?

Since January 2024, building projects within 300 km of a coal or lignite plant, private ones included, must use ash products offered at Schedule of Rates prices. PSPCL's coal plant near Ropar is 55 km from Chandigarh. How this applies to a family house is not spelled out, so check with your architect and local authority.

Which seismic zone is Chandigarh in?

Zone IV, with a zone factor of 0.24, under IS 1893 (Part 1): 2016, the code in force. Ludhiana and Amritsar are also Zone IV; Patiala and Bhatinda are Zone III.

Choosing materials for your plot, sector rules and budget is an architect's job. Find an architect on MOA, or browse architects in Chandigarh and studios in Ludhiana.

Sources

• India Meteorological Department: climatological tables 1991 to 2020 for Amritsar and Ludhiana, city.imd.gov.in (accessed 18 Oct 2026)
• India Meteorological Department, Meteorological Centre Chandigarh: Climatological Table 1991 to 2020, Chandigarh (accessed 18 Oct 2026)
• Bureau of Energy Efficiency: Eco Niwas Samhita 2018, Table 4 and Annexure 5, copy on the UN ESCAP Asia Pacific Energy Portal (accessed 18 Oct 2026)
• Central Ground Water Board: State Profile, Ground Water Scenario of Punjab (accessed 18 Oct 2026)
• Chandigarh Administration: About Chandigarh, geology and climate (accessed 18 Oct 2026)
• Chandigarh Administration: Architectural Control Drawings (accessed 18 Oct 2026)
• Chandigarh Tourism, Chandigarh Administration: Capitol Complex, the UNESCO World Heritage Site (accessed 18 Oct 2026)
• UNESCO World Heritage Centre: The Architectural Work of Le Corbusier, an Outstanding Contribution to the Modern Movement (accessed 18 Oct 2026)
• Bureau of Indian Standards: IS 456: 2000, Plain and Reinforced Concrete, Table 1 (accessed 18 Oct 2026)
• Bureau of Indian Standards: IS 1893 (Part 1): 2016, Criteria for Earthquake Resistant Design of Structures, Annex E (accessed 18 Oct 2026)
• ETV Bharat: A Bold Policy Reversed: The Withdrawal of India's 2025 Seismic Code, 11 March 2026 (accessed 18 Oct 2026)
• Bureau of Indian Standards: IS 875 (Part 3): 2015, Wind Loads, Annex A (accessed 18 Oct 2026)
• Punjab State Power Corporation Limited: Thermal Projects, and Guru Gobind Singh Super Thermal Plant Ropar (accessed 18 Oct 2026)
• Ministry of Environment, Forest and Climate Change: S.O. 05(E), 1 January 2024, amendment to the ash utilisation notification (accessed 18 Oct 2026)
• Bureau of Indian Standards: IS 12894: 2002, Pulverized Fuel Ash-Lime Bricks (accessed 18 Oct 2026)
• Bureau of Indian Standards: IS 1077: 1992, Common Burnt Clay Building Bricks (accessed 18 Oct 2026)
• Bureau of Indian Standards: IS 13920: 2016, Ductile Design and Detailing of RC Structures (accessed 18 Oct 2026)
• Bureau of Indian Standards: IS 4326: 2013, Earthquake Resistant Design and Construction of Buildings, Table 2 (accessed 18 Oct 2026)
• Punjab Public Works Department (B&R): Common Schedule of Rates 2020, fourth edition, and CSR page with A&C slips 1 to 14 (accessed 18 Oct 2026)
• Central Public Works Department: Delhi Schedule of Rates 2023, Vol. 1 (accessed 18 Oct 2026)
