TV Unit Design for Living Room: 6 Ideas, Heights and Viewing Distance

The best TV unit design for a living room puts the centre of the screen at seated eye level, about 1,065 mm (42 inches) off the floor by Samsung's mounting guide, and seats you roughly 1.2 to 1.6 times the screen's diagonal away. Then pick a type that suits the wall: a simple floating console, a full-wall panelled unit, storage with display, a fluted or stone back panel, a corner unit, or one that shares the wall with a pooja bay or a study desk.

Below: the six types with a "best for" line each, then height, viewing distance, console depth, wiring and ventilation. The images are from Indian homes by MOA members.

About the numbers below: mounting height, viewing distance and clearances come from TV makers' published guides (Samsung), a cable operator's set-top box guidance (Bell), RTINGS.com's distance table and IKEA India's product listings, all read on 21 Oct 2026. Sizes marked "our guidance" are common practice in Indian interiors, not a standard. Check your own TV's and set-top box's manuals, which can differ by model.

TV unit design for living room: six types and who each suits

1. Wall-mounted floating TV unit (simple and latest)

The TV hangs on the wall and a low console floats beneath it, with nothing touching the floor. It is the look most people mean by "latest" and "modern simple": one long line of drawers, one quiet wall, and floor you can mop straight through.

Best for: flats with a plain RCC or brick wall, small and mid-size halls, and anyone who wants the room to feel wider than it is.

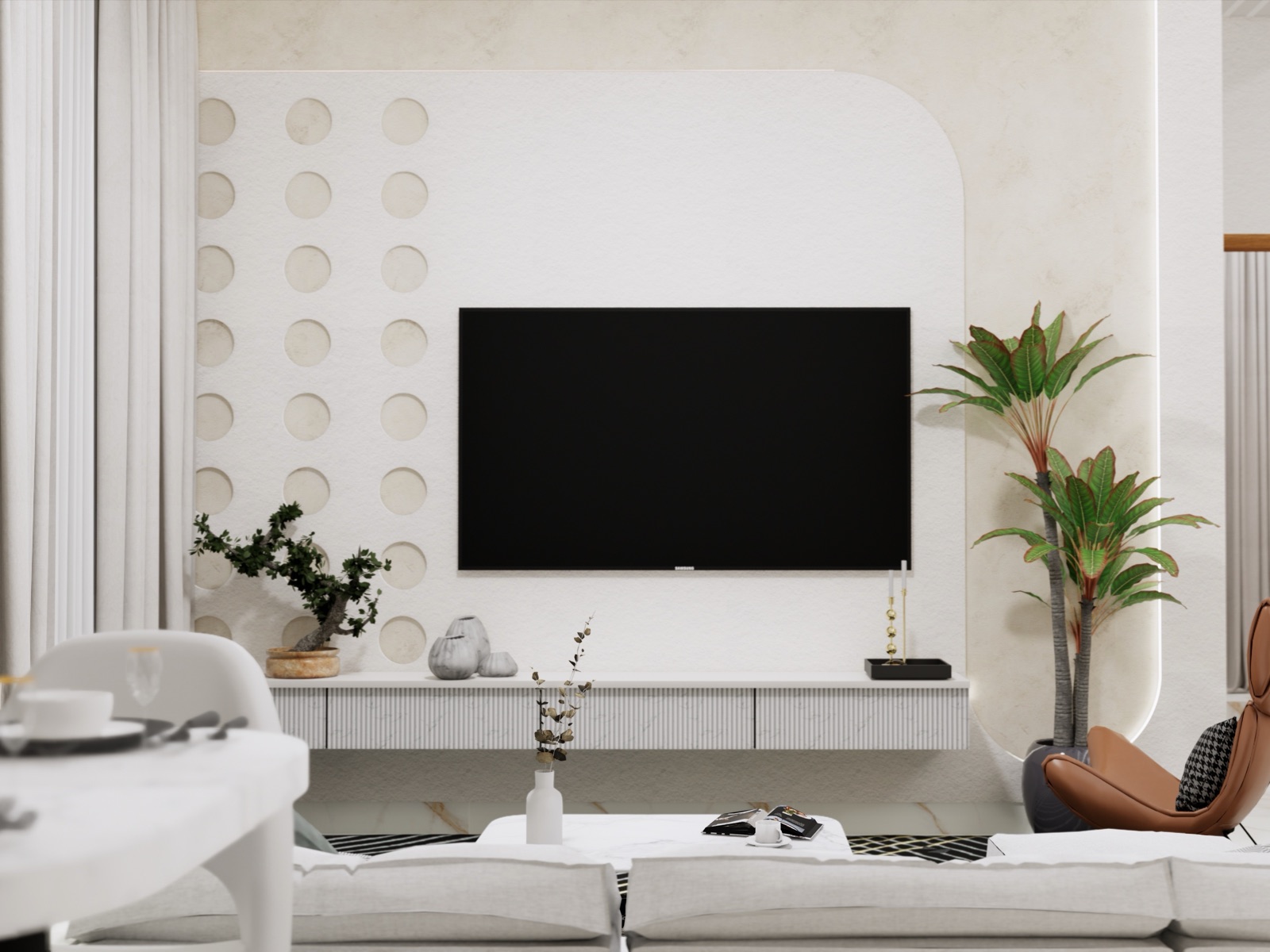

White TV wall with a wall-mounted TV above a long white floating console with ribbed drawer fronts, a panel of circular recesses to the left, a rounded edge with hidden lighting, plants and a white sofa in front — Design render: a white floating console under a wall-mounted TV, with a panel of circular recesses beside the screen, Ashwin Residence concept, Bangalore Rural. Image: Alen on MOA

In the Ashwin Residence concept by Alen, the console's ribbed drawer fronts and a panel of circular recesses give a white wall texture without adding clutter. On a hollow partition, plan the console's fixing before the carpenter starts.

2. Full-wall panelled TV unit

The whole wall, floor to ceiling, becomes the TV unit: panels in laminate, veneer or painted MDF, often with a band of fluting or a change of material where the screen sits.

Best for: halls with a long, uninterrupted wall and a ceiling of 2.7 m or more, where a single feature wall carries the room.

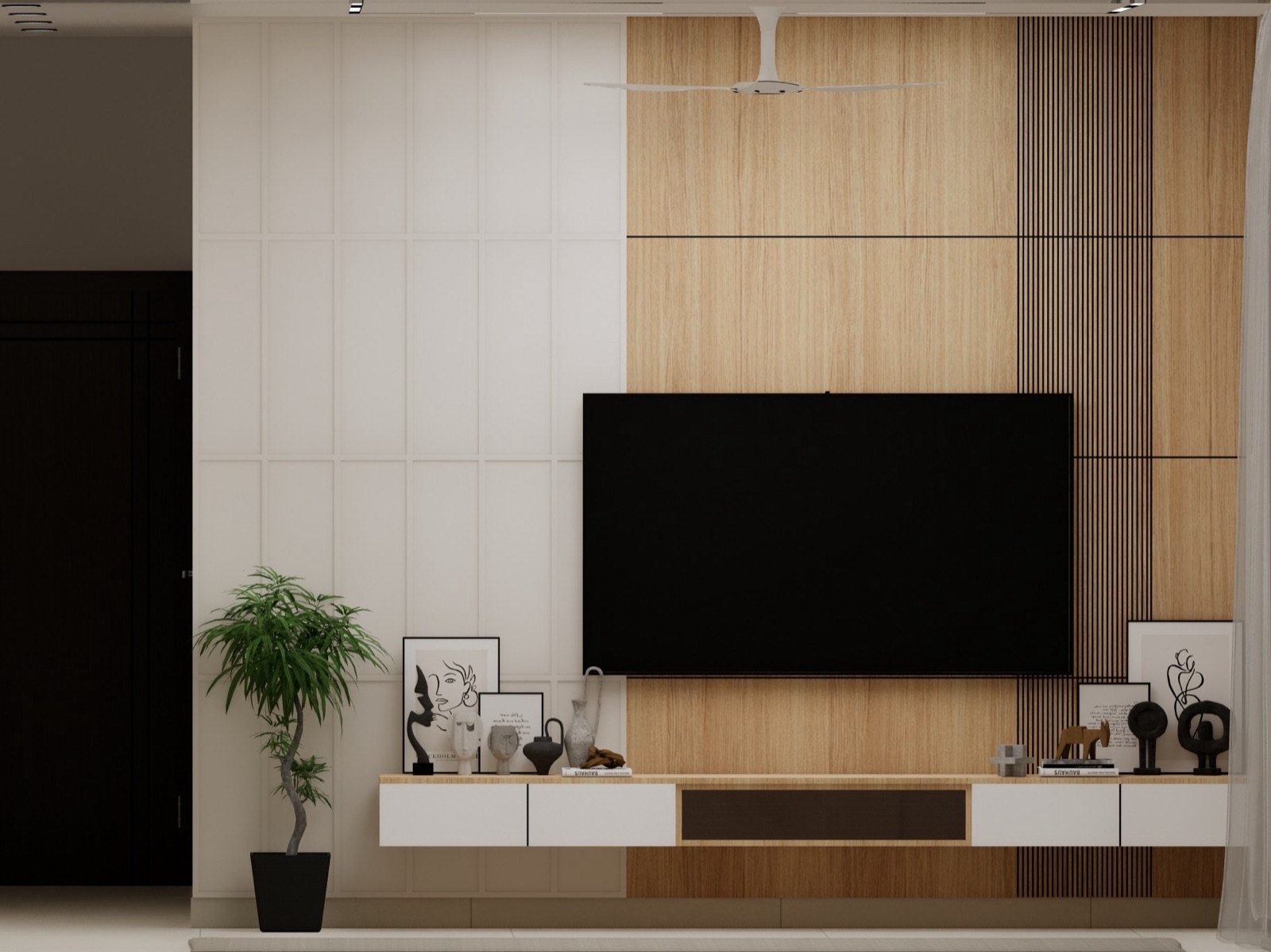

Full-height TV wall with light oak panels, a strip of dark vertical fluting and white grid panelling, a wall-mounted TV over a white and oak floating console styled with framed prints, vases and a plant — Design render: a full-wall panelled TV unit in oak and white with a band of dark fluting, Pratima Residence concept, Bangalore Rural. Image: Alen on MOA

The Pratima Residence concept by Alen splits the wall into white grid panelling, light oak and a narrow strip of dark fluting, so the TV sits on wood without the whole wall going dark. Keep at least one panel removable near the TV so an electrician can reach the conduit later.

3. TV unit with storage and display

Closed drawers at the bottom for the set-top box, remotes and files, and open shelves or a glass cabinet to one side for brass, books and photographs. In many Indian homes the living room has to store things too, so this is a practical default.

Best for: 2BHK and 3BHK flats where the living room also has to hold crockery, festival decor or a collection.

In Nestle 602 by Byoura Design Studio, a Raipur 3BHK, the TV wall carries a floating walnut console, metal-frame open shelves for brass pieces and a tall crockery cabinet with fluted glass doors. The project brief asked for low maintenance and cost-effective design, which is why the wall itself is left as plain paint.

4. TV unit with a fluted or stone back panel (luxury)

For a richer look, the back panel does the work: fluted panels in laminate, veneer or PVC, a slab of marble or a large-format porcelain tile with a marble pattern, often backlit with a concealed LED profile. If you searched for a luxury TV unit, this is the type to look at.

Best for: larger living rooms and double-height halls, where a strong back panel holds its own against the volume.

The 4BHK flat in Surat by Shilpkaar Interiors runs a backlit marble strip up through beige fluted panelling, with a slim marble-topped console on legs below. Real stone is heavy: a full marble wall needs a frame and fixings designed for its weight, and a large slab is hard to cut for sockets after it is up. Our planned post on wall panels (PVC, fluted, wood and WPC) will compare the panel materials in detail.

5. Corner TV unit

The TV sits across a corner on a triangular or L-shaped console, facing the room's diagonal. It frees both long walls for doors, windows or a sofa.

Best for: square living rooms where every long wall has a door, a window or a balcony opening, and for an L-shaped sofa.

6. TV unit with pooja or study combined

When there is only one usable wall, the TV shares it with a mandir or a desk. With a mandir, give it its own bay with doors, at least a hand-span away from the screen, so the idols are never framed by the TV; our guidance is 300 mm or more, and doors you can close while the TV is on. With a study, let the console run on into a desk about 600 mm deep and 750 mm high (common practice, our guidance), with its own socket and task light.

Best for: 1BHK and 2BHK flats where the living room is also the prayer room or the work-from-home corner. Our pooja room design guide for apartments has sizes for the mandir itself.

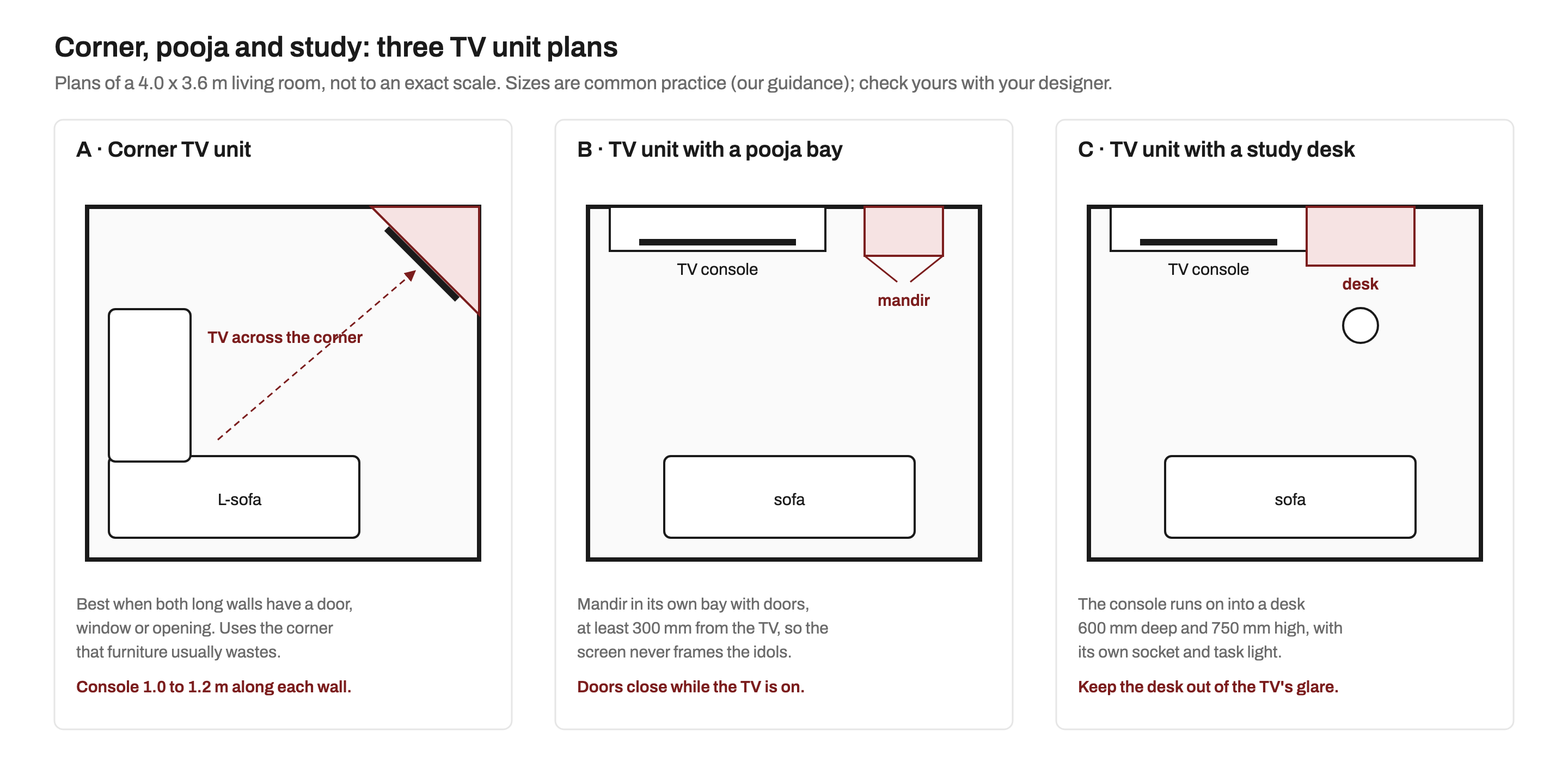

Three living room plans: a TV unit set across a corner facing an L-shaped sofa, a TV console with a separate mandir bay with doors on the same wall, and a TV console that continues into a study desk with a chair — Three plans for a corner TV unit, a TV wall with a separate pooja bay, and a console that turns into a study desk. Diagram: MOA

If you follow Vastu, our post on Vastu for the living room covers which wall practitioners suggest for the TV.

TV unit design for hall: simple, latest and Indian style

Simple. One long floating console, one back panel or a painted wall, and one open shelf is enough for most halls. Keep handles flush or use push-to-open drawers so the line stays clean.

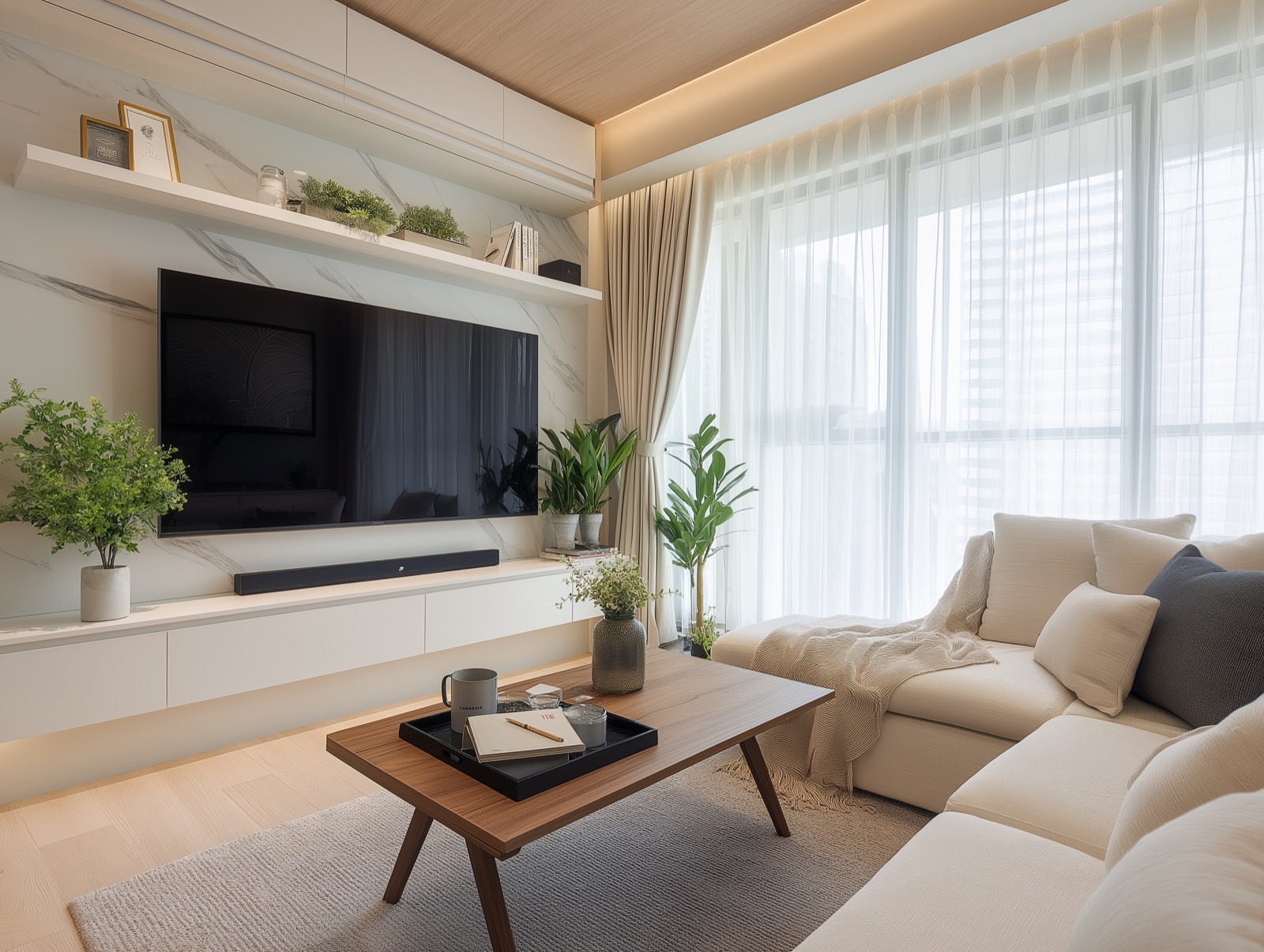

Living room with a wall-mounted TV on a white marble-look wall, a long low white floating console with a soundbar, a white floating shelf above the TV, plants, a wooden coffee table and a cream sectional sofa beside sheer curtains — Design render: a long white floating console, a marble-look back wall and one open shelf above the TV, informal living at Sam's House, Jaipur. Image: 13 Designs Studio on MOA

The informal living room at Sam's House in Jaipur by 13 Designs Studio is a good example: a long white console with a soundbar, a marble-look wall and a single shelf above the screen.

Latest. Our living room trends for 2027 found the TV wall getting quieter: screens built into cabinetry, integrated audio, connections and ventilation planned early, and seating turned towards people rather than the screen. In our view, full-height marble or high-gloss TV walls that dominate the room will date fastest.

Indian style. Cane or jaali shutters on the console (which also let the set-top box breathe), teak or walnut finishes, brass handles, and a niche for a lamp or a bronze.

Small hall. Skip the full-wall panel, use a console 300 to 350 mm deep, and mount the TV rather than standing it. Our planned post on TV units for bedrooms and small halls will go further.

How high should the TV be on the wall?

Centre the screen at the eye level of the people sitting in front of it. Samsung's guide puts that at about 42 inches (1,065 mm) from the floor to the centre of the TV for a 5 ft 6 in adult on a standard sofa, and suggests measuring your own seated eye level if you can. If there is a console under the TV, Samsung suggests keeping the screen 4 to 6 inches (100 to 150 mm) above it.

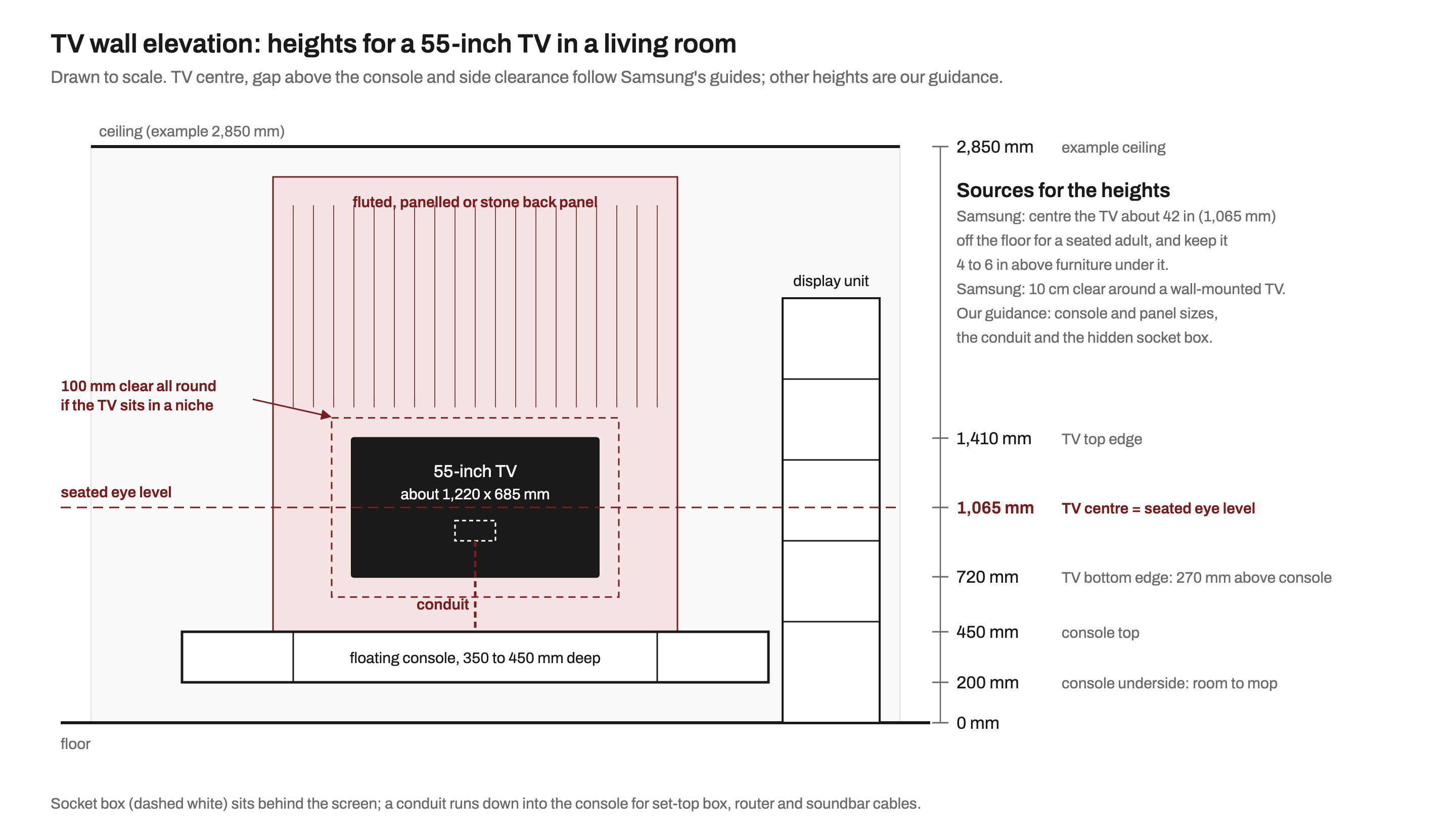

To-scale elevation of a living room TV wall: a floating console from 200 to 450 mm above the floor, a 55-inch TV with its centre at 1,065 mm on the seated eye-level line, a fluted back panel, a display unit to one side, a hidden socket box and a conduit running down into the console — TV wall heights for a 55-inch screen: centre at seated eye level, at least 4 to 6 inches clear above the console, and 100 mm around the set if it sits in a niche. Diagram: MOA

For a 55-inch TV, which is about 1,220 mm wide and 685 mm tall, that puts the bottom edge near 720 mm and the top near 1,410 mm. A console top at 450 mm then leaves about 270 mm clear, comfortably more than Samsung's minimum. On a low Indian sofa or a floor-seating baithak, measure eye level and drop the TV centre to match; the rule is eye level, not a fixed number.

Two placement notes from our guidance: avoid the wall directly opposite a large window, where the glare hits the screen all afternoon, and keep the TV clear of the swing of the main door so nobody walks through the picture.

Viewing distance by screen size

Samsung recommends sitting where the screen fills about 40 degrees of your field of view, which it works out as screen size multiplied by 1.2. RTINGS.com notes that the Society of Motion Picture and Television Engineers (SMPTE) recommends a minimum of 30 degrees for mixed viewing, which is about 1.6 times the diagonal. Sitting anywhere between the two is comfortable.

Screen	40° (cinema)	30° (mixed use)
43-inch	1.31 m (4 ft 4 in)	1.78 m (5 ft 10 in)
50-inch	1.52 m (5 ft)	2.07 m (6 ft 9 in)
55-inch	1.67 m (5 ft 6 in)	2.27 m (7 ft 5 in)
65-inch	1.98 m (6 ft 6 in)	2.69 m (8 ft 10 in)
75-inch	2.28 m (7 ft 6 in)	3.10 m (10 ft 2 in)

Distances are from RTINGS.com's table, measured from your eyes to the screen.

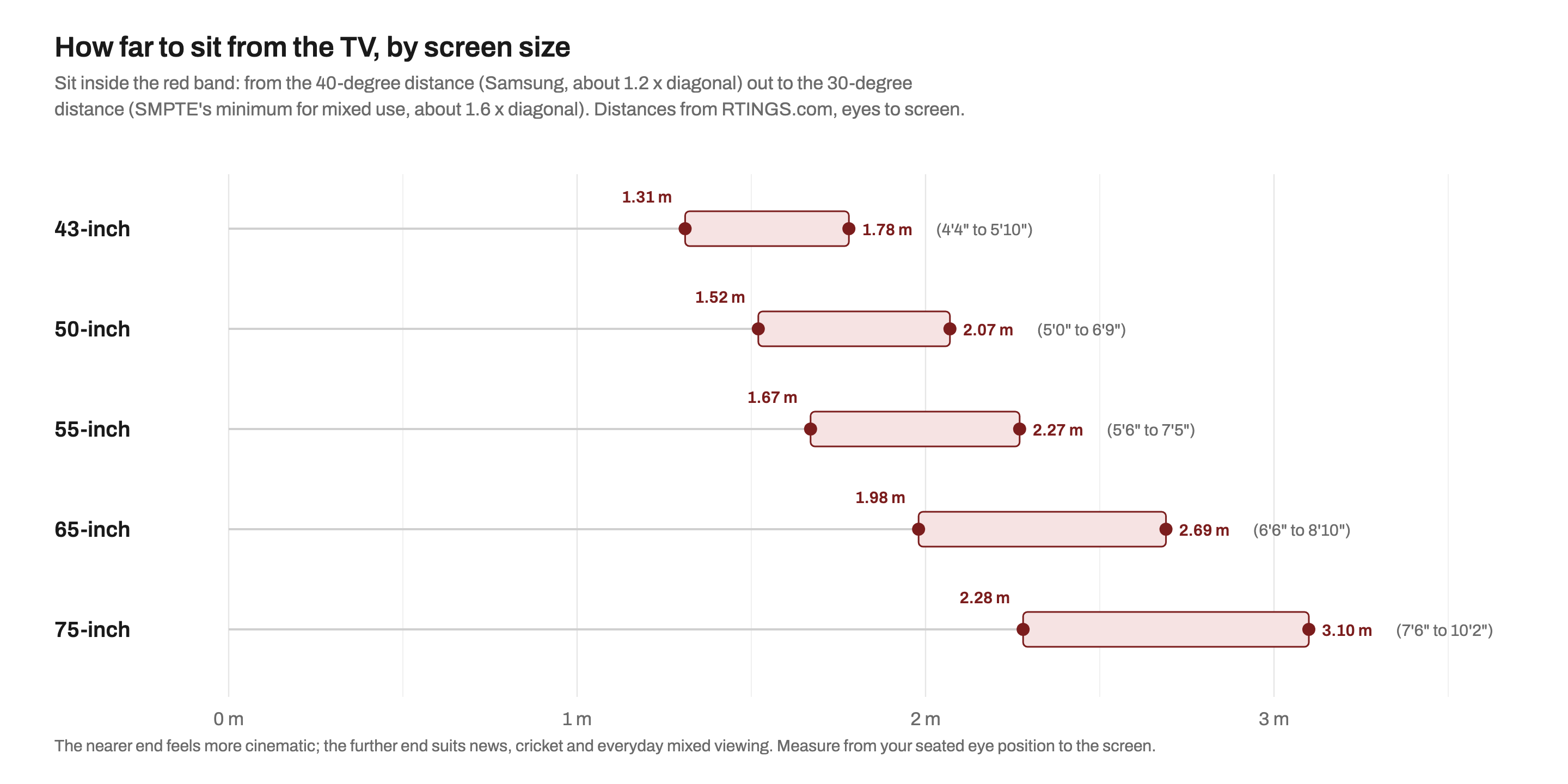

Chart of seating distance bands by TV size: 43-inch 1.31 to 1.78 m, 50-inch 1.52 to 2.07 m, 55-inch 1.67 to 2.27 m, 65-inch 1.98 to 2.69 m and 75-inch 2.28 to 3.10 m — Viewing distance by screen size, between the 40-degree and 30-degree fields of view, using RTINGS.com's figures. Diagram: MOA

Measure before you buy. In a 3.6 m deep hall with the sofa against the far wall, your eyes end up roughly 3 m from the screen (our estimate). By the table, that suits a 75-inch; a 65-inch falls just outside the 30-degree end. Many families still pick a 55 or 65-inch for budget, which is fine: the picture simply feels smaller. A 43-inch at 3 m will feel distant.

Console depth, wiring and ventilation

Console depth

TV benches on IKEA India's TV bench range are listed between 32 cm and 42 cm deep. For a built-in unit, our guidance is 350 to 450 mm when the console holds a set-top box and a router, and 300 to 350 mm for a slim floating console in a small hall. Hang a floating console with about 200 mm clear below it so a mop reaches under.

Wiring

Put the power, HDMI and LAN points in a box behind the screen, where the TV hides them (our guidance).
Run a conduit inside the wall from that box down into the console, before plaster or panelling goes on, so HDMI and soundbar cables never show (our guidance). Samsung's guide recommends in-wall rated cables if you run them through the wall.
Give the console its own sockets for the set-top box, router and soundbar, and a 50 mm gap at the back for cables (our guidance).

Ventilation for the set-top box and TV

Keep the TV's top, bottom and sides at least 10 cm from other objects, per Samsung's wall-mounting page (in Spanish). That matters most when the TV sits in a niche cut into the panel.
Lay the set-top box flat; Samsung says boxes vent heat best horizontally and can overheat standing up.
Leave at least 2 inches (50 mm) of free space above the box and stack nothing on it, as Bell's set-top box guidance puts it. Indian DTH boxes differ, so read your operator's manual too.
Use a cane, slatted or perforated shutter, or an open shelf, so air moves and the remote's signal reaches the box (our guidance).

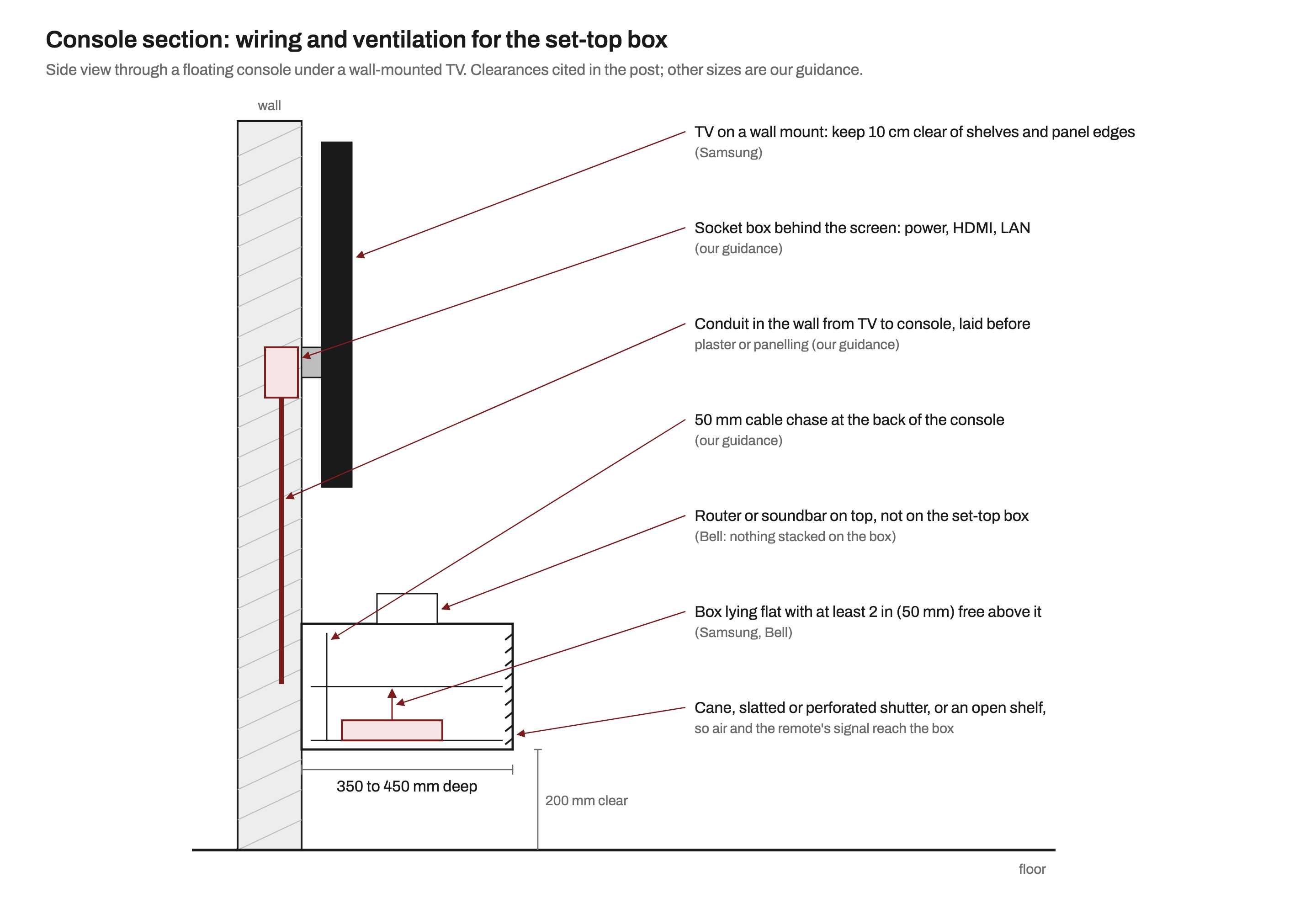

Side section through a floating TV console under a wall-mounted TV, showing a conduit in the wall, a socket box behind the screen, a set-top box lying flat with clear space above it, a cable chase at the back and a slatted shutter at the front — How to wire and ventilate a TV console: conduit in the wall, a cable chase at the back, and a set-top box lying flat behind a shutter that breathes. Diagram: MOA

What does a TV unit cost?

Cost follows the wall area you panel, the core material (plywood, MDF or particle board), the finish (laminate, veneer, PU paint, stone) and the fittings. Our planned post on TV unit cost in India will give sourced rates; until then, our interior design cost guide, room by room explains what per-square-foot quotes include, and MOA's free home cost calculator helps with the wider budget.

FAQ

What is the best TV unit design for a living room?

For most Indian flats, a wall-mounted TV over a floating console with closed drawers and a small open display section. Add panelling or stone only if the wall is long enough to carry it.

At what height should a TV unit be from the floor?

Put the centre of the screen at seated eye level, about 1,065 mm (42 inches) by Samsung's guide. Keep a console top around 400 to 450 mm (our guidance) and the screen at least 100 to 150 mm above it.

What size TV unit do I need for a 55-inch or 65-inch TV?

A 55-inch TV is about 1,220 mm wide and a 65-inch about 1,440 mm. Our guidance is a console at least 300 mm wider than the TV on each side, so roughly 1,800 mm for a 55-inch and 2,000 mm or more for a 65-inch, with the back panel wider still.

How far should the sofa be from the TV?

About 1.2 to 1.6 times the screen diagonal: 1.67 to 2.27 m for a 55-inch and 1.98 to 2.69 m for a 65-inch, measured from your eyes to the screen.

Can I keep the set-top box inside a closed cabinet?

Only if air can move. Keep the box flat, leave 50 mm free above it and use a slatted, cane or perforated shutter, or an open shelf.

Planning a TV wall? Find interior designers on MOA and filter the directory by your city.

Sources

Samsung Australia: Things to Consider Before Wall Mounting your Samsung TV, samsung.com (accessed 21 Oct 2026)
Samsung Gulf: Recommended viewing distance for your TV, samsung.com (accessed 21 Oct 2026)
RTINGS.com: TV Size To Distance Calculator (And The Science Behind It), rtings.com (accessed 21 Oct 2026)
Samsung Latin America: Cómo montar en la pared tu televisor Samsung, samsung.com (accessed 21 Oct 2026)
Samsung Singapore: Can Set-Top Box placed in a vertical position?, samsung.com (accessed 21 Oct 2026)
Bell: General Maintenance of Bell MTS Set-top box, bell.ca (accessed 21 Oct 2026)
IKEA India: TV benches, ikea.com/in (accessed 21 Oct 2026)
