Bathroom Designs for Small Spaces: 5x7, 5x8 and 4x6 ft Layouts for Indian Homes

The best bathroom designs for small spaces in India put the shower at the far end behind a glass panel or curtain, give the WC its own floor trap for the health faucet, keep the basin by the door, and lift everything they can off the floor. A 5 x 7 ft bathroom fits a shower, a western WC and a basin within the clearances in the BIS code for sanitary layouts; a 4 x 6 ft one works best as a wet room with an Indian WC.

About the numbers below: sizes and clearances come from BIS codes and MoHUA's Model Building Bye-Laws 2016, which your city adapts. Product sizes and prices are from makers' pages read on 21 Oct 2026 (MRP including taxes, product only). "Guidance" marks MOA's judgement where no code gives a number.

For styles, colours and fittings see our bathroom trends for 2027; for tiles, tile trends 2027; for placement by direction, Vastu for bathrooms and toilets.

Small bathroom design in India: start with the size you have

The Model Building Bye-Laws 2016 (clause 4.5.2) set a combined bath and WC at no less than 2.8 m² and 1.2 m wide, a bathroom alone at 1.8 m² and a WC alone at 1.1 m². Here is how the three common Indian sizes compare:

Size	Area	What fits well	Against the bye-law
4 x 6 ft (1219 x 1829 mm)	2.23 m² (24 sq ft)	Indian WC, bucket bath, small basin, as one wet room	Enough for a bathroom or a WC alone; under 2.8 m² for both
5 x 7 ft (1524 x 2134 mm)	3.25 m² (35 sq ft)	Shower, western WC and basin, on opposite walls	Clears 2.8 m²
5 x 8 ft (1524 x 2438 mm)	3.72 m² (40 sq ft)	Shower, WC and basin in a row on one wall	Clears 2.8 m²

For comparison, the "typical toilet layout" in IS 2064: 1993 (Fig. 3) fits an Indian WC, a basin and a shower into 2400 x 1200 mm, roughly 8 x 4 ft.

Wet and dry zones in a small bathroom

Arrange the room from the door inwards: dry (basin, storage), then semi-wet (WC and health faucet), then wet (shower). The questions in a small room are how to divide them and how the floor drains.

IS 2064 wants the door at least 700 mm wide, swinging away from the shower and clear of anyone at a fixture, and notes it "may swing outside for small bath rooms". An outward door leaves the floor inside free of its swing (guidance).

Bathroom partition design: glass or curtain?

A fixed glass panel with an opening needs no swing space, which suits a 5 ft wide room (guidance). Jaquar's shower enclosure page notes that toughened safety glass breaks into small, blunt pieces, that framed enclosures seal better than frameless ones, and that its profiles take up 15 mm of uneven wall. IS 2064 lists a shower curtain rod as optional. A curtain suits a 4 x 6 ft room that gets wet anyway (guidance).

Design render of a narrow bathroom with white metro-tile walls and a black and white octagon floor: a floating grey vanity with a wooden top and a vessel basin, a wall-hung WC with a flush plate above it, a single black-framed glass panel and a slim shower panel beyond it under a high window — Design render: one fixed glass panel is enough to keep a small shower's spray off the WC and vanity. Image: Hemant Kanojiya on Unsplash, Unsplash License

Floor slope to the drain, and anti-skid floors

The bye-laws ask for an impervious floor "sloping towards the drain with a suitable grade", never towards another room, and leave the grade to the designer. IS 2064 (clause 7.4) says a sunken bath floor should be no more than 60 to 70 mm below the rest. We found no Indian code that fixes the gradient; as common practice (our guidance), about 1 in 100 across the dry area and steeper, around 1 in 50 to 1 in 60, inside the shower. A linear drain lets the shower floor fall one way. IS 2064 asks for non-skid floors; slip ratings are explained in our tile trends post, and the layers underneath in our waterproofing guide.

Bathroom design for a small rectangular space: 5 x 7 ft with shower

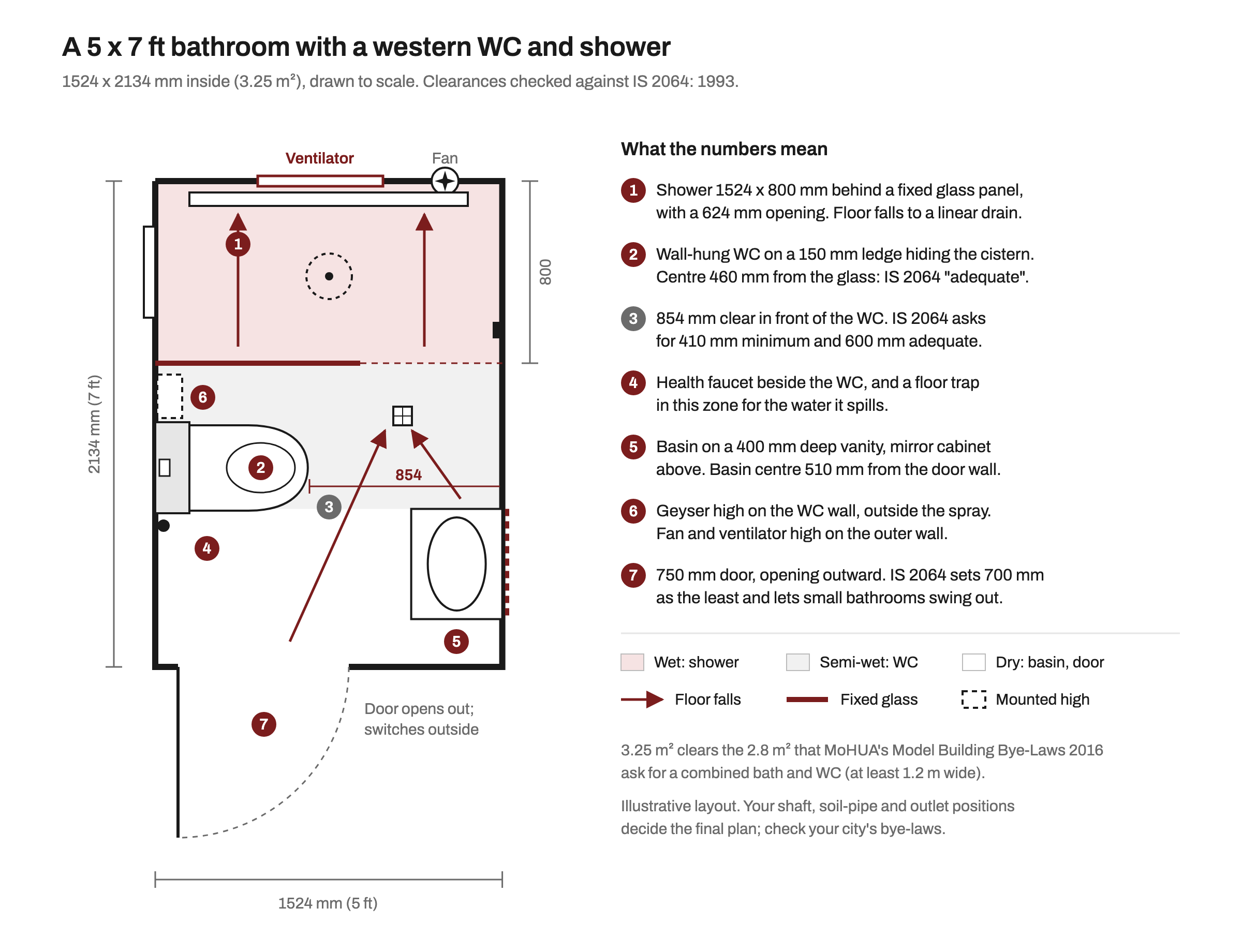

To-scale plan of a 5 x 7 ft (1524 x 2134 mm) bathroom: a shower across the far end behind a fixed glass panel with a linear drain, a wall-hung WC on a cistern ledge on the left wall with a health faucet and floor trap, a basin on a 400 mm deep vanity on the right wall near a 750 mm door that opens outward, and a geyser, fan and ventilator mounted high — A 5 x 7 ft layout that keeps the shower, the WC and the basin in their own zones and meets the clearances in IS 2064. Diagram: MOA

Table 1 of IS 2064 gives two figures for each clearance, a minimum and an "adequate" one. In the plan above:

Shower: 1524 x 800 mm on the outer wall, under the fan and ventilator.
WC: its centre is 460 mm from the glass, the "adequate" side clearance (410 mm minimum). In front, 854 mm stays clear; the code asks for 410 mm minimum and 600 mm adequate to the opposite wall.
Basin: on the opposite wall, past the end of the WC rather than facing it, since the code wants 600 mm minimum between a WC's front edge and a basin directly opposite. Its centre is 510 mm from the door wall (the minimum), and a 400 mm deep vanity leaves 1124 mm in front, above the 900 mm "adequate" figure.

5 x 8 ft: everything on one wall

With an 800 mm shower, a WC centred 460 mm from the glass and IS 2064's 360 mm "adequate" gap from the WC's centre line to the side of a 450 mm basin, the basin's centre lands about 590 mm from the door wall, above the code's 560 mm "adequate" figure (our arithmetic). In 7 ft the same row leaves under 300 mm, which is why the 5 x 7 plan moves the basin across the room. One plumbing wall also means simpler pipework (guidance).

Indian toilet design: a 4 x 6 ft bathroom

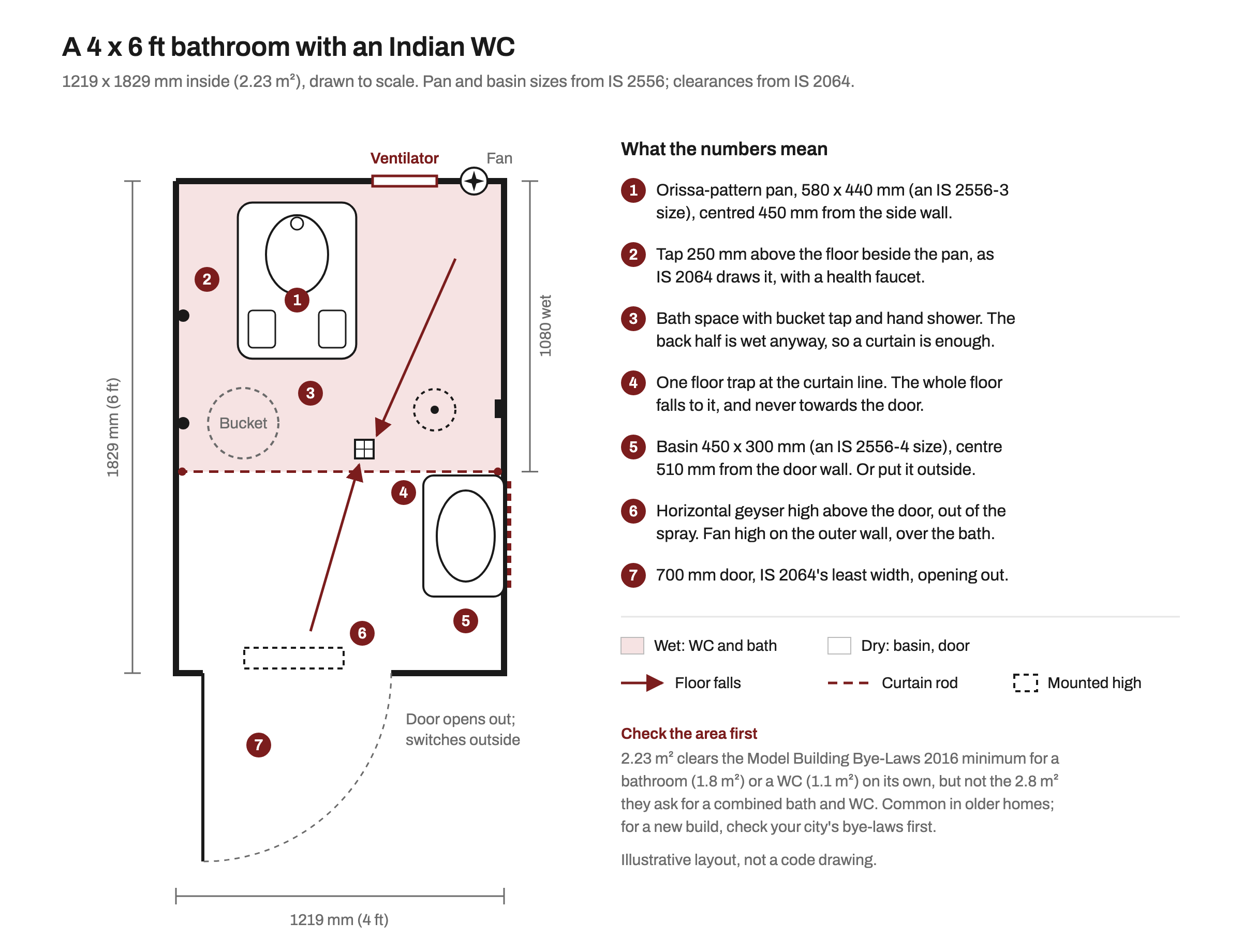

To-scale plan of a 4 x 6 ft (1219 x 1829 mm) bathroom with an Orissa-pattern Indian WC pan at the far end, a tap and health faucet on the side wall, a bucket and hand-shower space, a curtain rod across the middle, one floor trap, a small 450 x 300 mm basin near the 700 mm door and a geyser mounted above the door — In a 4 x 6 ft bathroom the back half gets wet anyway, so plan it as a wet room with a curtain and one floor trap. Diagram: MOA

At 2.23 m², a 4 x 6 ft room is common in older homes but falls short of the 2.8 m² the model bye-laws ask for a combined bath and WC, so check your city's rules before building one new. IS 2556 (Part 3): 2004 lists squatting pans in a long pattern of 580 or 630 mm and an Orissa pattern of 580 x 440 or 630 x 450 mm. IS 2064 draws the Indian WC with a tap 250 mm above the floor beside the pan. Use one floor trap at the curtain line, slope the whole floor to it, and keep the geyser high above the door. If a basin will not fit, put it just outside the door (guidance).

Indian or western WC, and the health faucet

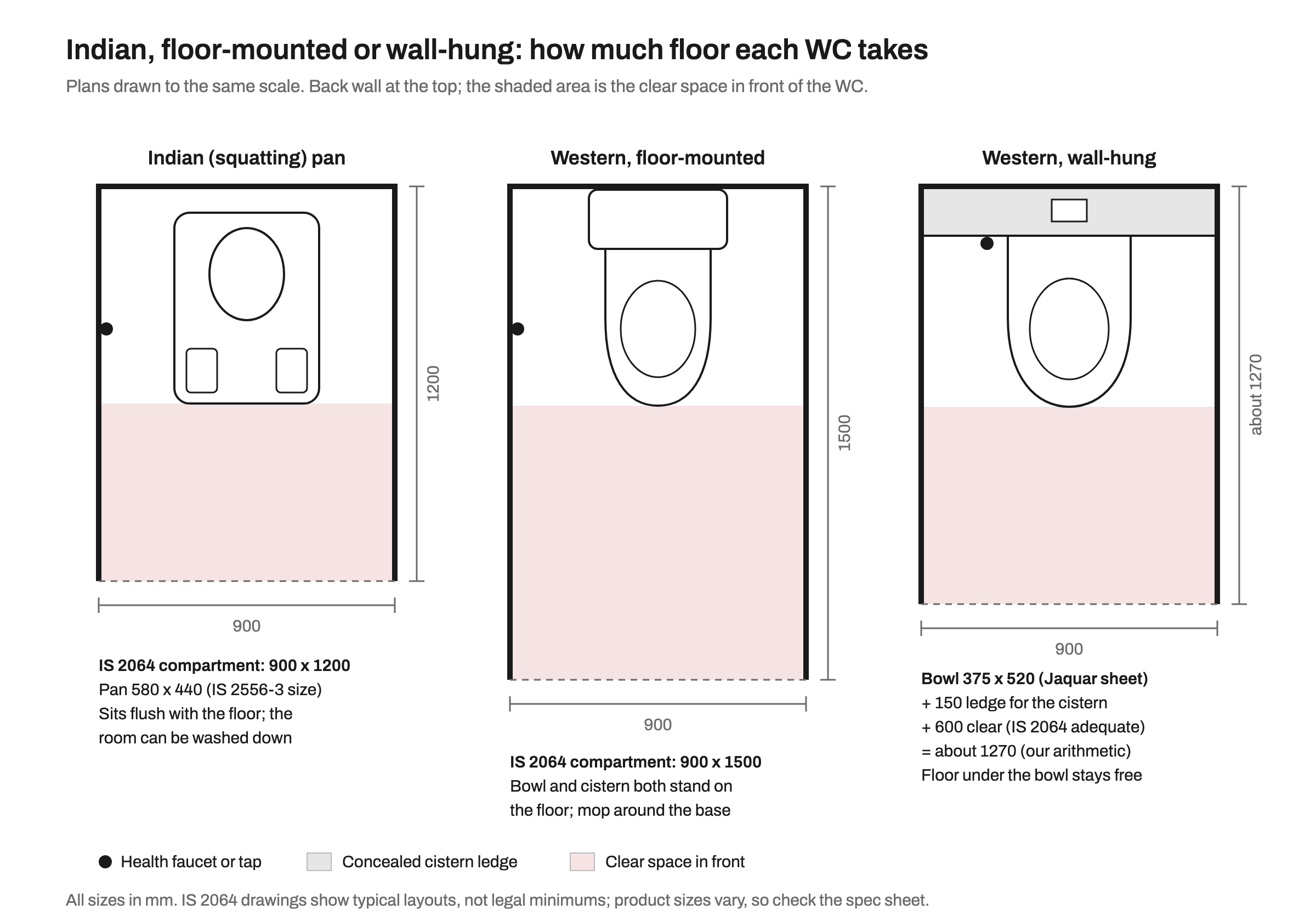

Three plans at the same scale comparing floor space: an Indian squatting pan in a 900 x 1200 mm compartment, a floor-mounted western WC in a 900 x 1500 mm compartment, and a wall-hung WC with a 150 mm cistern ledge needing about 1270 mm — The Indian pan is the most compact. A wall-hung WC saves length over a floor-mounted one and leaves the floor clear to mop. Diagram: MOA

IS 2064 draws an Indian WC compartment at 900 x 1200 mm and a western one at 900 x 1500 mm, so the squatting pan saves about 300 mm of length. The code notes that squatting pans are very common, while western seats suit users with arthritis or similar conditions. Today the WC tap is usually a health faucet beside the seat; Jaquar's basic ALD-CHR-587 hand shower lists at ₹1,275 with a 1 m flexible tube. Water from it is why the WC zone needs its own floor trap.

Wall-hung WC and concealed cistern

A wall-hung WC keeps the floor under it free to mop. Jaquar's rimless wall-hung WC is listed at 375 x 520 x 360 mm and ₹13,100. Its slim concealed cistern with floor frame (₹10,325, flush plate sold separately) has an 80 mm thick tank body, legs adjustable from 0 to 200 mm and a frame tested to 400 kg, per its product sheet. A half-brick wall cannot hide that, so plan a ledge or false wall about 150 mm deep, which doubles as a shelf (guidance).

Design render of a long, narrow bathroom: a wall-hung WC in front of a wood-clad box that hides the cistern, with a flush plate and a health faucet beside it, a terracotta fluted vanity with a wooden top and vessel basin opposite, and a shower at the far end behind glass-block screens — Design render: the wood-clad box hides the concealed cistern and becomes tall storage above it, with the shower kept at the far end. Image: Prydumano Design on Unsplash, Unsplash License

Bathroom design with wash basin: sizes and counter depth

IS 2556 (Part 4): 2004 lists flat-back wash basins of 660 x 460, 630 x 450, 550 x 400 and 450 x 300 mm, and corner (angle-back) basins of 600 x 480 and 400 x 400 mm. For a 4 x 6 ft room, the 450 x 300 or the 400 x 400 corner basin is the realistic pick. IS 2064 asks for at least 510 mm (560 mm adequate) from a basin's centre to a side wall and 760 mm (900 mm adequate) from its front edge to the opposite wall. Its typical drawing puts the rim at 800 to 1000 mm; a counter of 400 to 450 mm deep fits a 5 ft wide room (guidance).

Storage: mirror cabinets and niches

IS 2064 calls a mirror cabinet over the basin "common practice", and asks for a mirror of at least 0.20 m², no side under 450 mm, lower edge at least 1200 mm up. In a small bathroom, use:

a mirror cabinet 100 to 150 mm deep, so it does not crowd the basin (guidance);
a tiled niche in the shower wall instead of a caddy;
the top of a concealed-cistern ledge as a shelf;
a wall-hung vanity with drawers, which keeps the floor clear to mop.

Ventilation and exhaust fan size

The bye-laws ask for a window or ventilator of at least 0.3 m²; our trends post covers shaft sizes. For the fan, the US-based Home Ventilating Institute's consumer guide recommends about 1 CFM per sq ft of floor, at least 50 CFM for bathrooms of 50 sq ft or less, 1.0 sone or less for quiet running, and placing the fan over or near the shower. 50 CFM is about 85 m³/h (our conversion). Indian fans are rated in m³/h: Havells' 150 mm Ventilair DX lists 280 m³/h at 40 dB, MRP ₹2,630. That is ample for a 5 x 7 room on paper; position and make-up air matter more. Mount it high on the outer wall, away from the door, with a gap under the door or a louvre for air to come in (guidance).

Geyser placement and electrical safety

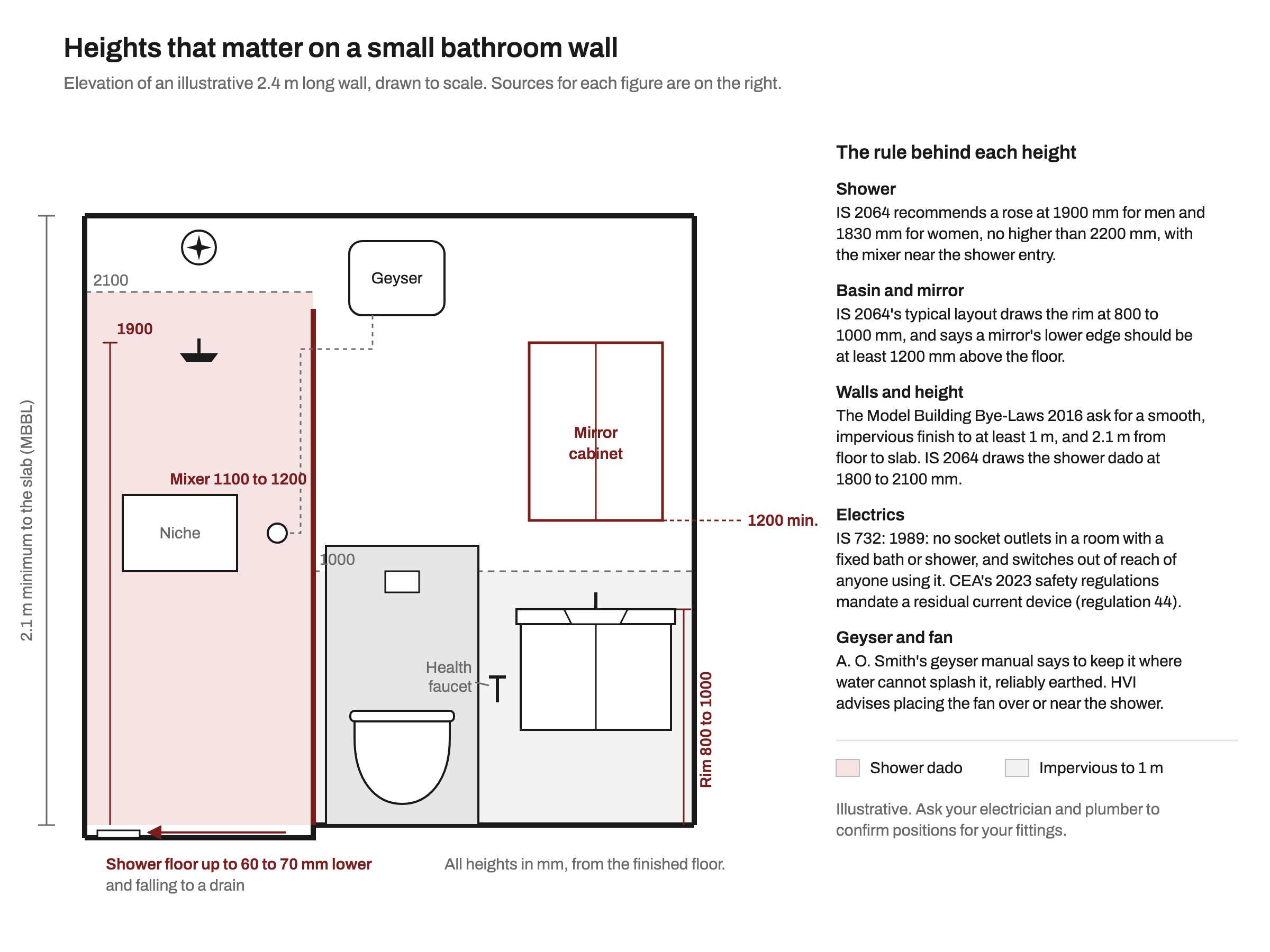

Elevation of a small bathroom wall showing a shower rose at 1900 mm, a mixer at 1100 to 1200 mm, a niche, a geyser and exhaust fan mounted high, a wall-hung WC on a cistern ledge with a health faucet, a floating vanity with its rim between 800 and 1000 mm and a mirror cabinet starting at 1200 mm — The heights that decide whether a small bathroom works, with the IS 2064, bye-law and IS 732 rule behind each. Diagram: MOA

The wiring code, IS 732: 1989 (clause 5.1.6.1; BIS has since revised it), says a room with a fixed bath or shower should have no socket outlets except shaver supply units, switches out of reach of anyone using it, and insulated or enclosed lampholders within 2.5 m of it. A BIS note on residual current devices says regulation 44 of the CEA's 2023 safety regulations mandates an RCD, which trips at a threshold typically of 30 mA.

A. O. Smith's manual for its Elegance Slim Neo geyser says not to install it where water splashes on it, to use an independent socket with no adapters, to earth it reliably (never to the neutral or a water pipe), and never to block its safety valve, which may drip. So:

mount the geyser high, outside the shower spray, where the valve's drip falls on a drained floor;
since many geysers come with a plug and IS 732 rules out sockets in a shower room, ask your electrician about wiring it through a switch outside the door, on an RCD-protected circuit (guidance);
keep light switches outside the bathroom.

What small bathroom fittings cost

Item (example)	MRP, incl. taxes
Wall-hung WC, Jaquar Solo SLS-6953	₹13,100
Concealed cistern with floor frame, Jaquar JCS-WHT-2400FP (no flush plate)	₹10,325
Health faucet, Jaquar ALD-CHR-587	₹1,275
150 mm exhaust fan, Havells Ventilair DX	₹2,630

These are single-brand list prices for the product alone; shops often sell below MRP. We found no official list price for an Indian pan. For a whole-bathroom budget, try MOA's free home cost calculator.

FAQ

Is a 5 x 7 bathroom enough for a shower?

Yes. A 1524 x 800 mm shower at the far end, a WC on one side wall and a basin on the other fit IS 2064's clearances, and 3.25 m² clears the bye-law minimum of 2.8 m².

Which is better for a small bathroom, an Indian or a western toilet?

An Indian pan takes less room (IS 2064 draws 900 x 1200 mm against 900 x 1500 mm) and lets you wash the floor down. A western seat suits elderly users; a wall-hung one narrows the gap.

How do I separate wet and dry areas in a small bathroom without glass?

Use a curtain on a rod, a low kerb or a step-down of no more than 60 to 70 mm (IS 2064), and give the shower its own drain.

What size exhaust fan does a small bathroom need?

HVI suggests at least 50 CFM (about 85 m³/h) for a bathroom of 50 sq ft or less. Havells' 150 mm Ventilair DX, for example, is rated at 280 m³/h; place the fan high, over or near the shower.

Where should the geyser go in a small bathroom?

High on a wall outside the spray, on an RCD-protected circuit. In a 4 x 6 ft room, above the door is often the only dry spot.

Planning a small bathroom? Find an interior designer on MOA and filter by your city, or an architect if walls or drains are moving.

Sources

Ministry of Housing and Urban Affairs (TCPO): Model Building Bye-Laws 2016, clause 4.5, pp. 52 to 53 (accessed 21 Oct 2026)
Bureau of Indian Standards: IS 2064: 1993, Selection, Installation and Maintenance of Sanitary Appliances, clauses 7.2 to 7.7, Table 1, Figs. 2 to 4, via Public.Resource.Org (accessed 21 Oct 2026)
Bureau of Indian Standards: IS 2556 (Part 3): 2004, Squatting Pans, via Public.Resource.Org (accessed 21 Oct 2026)
Bureau of Indian Standards: IS 2556 (Part 4): 2004, Wash Basins, via Public.Resource.Org (accessed 21 Oct 2026)
Bureau of Indian Standards: IS 732: 1989, Code of Practice for Electrical Wiring Installations, clause 5.1.6.1, via Public.Resource.Org (accessed 21 Oct 2026)
Bureau of Indian Standards: Note on IS 12640 (Part 2): 2016, residual current circuit-breakers (accessed 21 Oct 2026)
A. O. Smith India: Elegance Slim Neo 15 L water heater user manual, 13 Sep 2024 (accessed 21 Oct 2026)
Home Ventilating Institute: Bathroom Exhaust Fans: A Consumer Guide (accessed 21 Oct 2026)
Havells: Ventilair DX domestic exhaust fan, 150 mm (accessed 21 Oct 2026)
Jaquar: Rimless wall-hung WC, Solo range; JCS-WHT-2400FP concealed cistern and its product sheet; ALD-CHR-587 hand shower; Shower enclosures (accessed 21 Oct 2026)
