Waterproofing a House in India: Roof, Bathrooms, Basement and Walls by Climate

Most leaks in an Indian house start in a few places: the flat roof and its parapet corners, rainwater outlets, bathroom floors, basements and the joints around windows. The cure is rarely a stronger product. It is a proper fall so water leaves fast, a treatment carried unbroken over every corner and pipe, the right order of work, and a system matched to your city's rain. Here is each part of the house, from the BIS codes, CPWD specifications and IMD normals we read.

Where water gets in

• Roofs: ponding on a flat slab, the slab-to-parapet corner, drain mouths and pipes through the roof. Most roof clauses of IS 3067: 1988 deal with these junctions.
• Bathrooms: the sunken slab, pipe joints buried in the filling, and the floor trap.
• Basements and plinths: ground water under pressure, and damp rising from the soil.
• Walls and sills: cracked plaster, gaps around window frames, and sills that drain toward the wall.

The main systems and what each suits

System	What it is	Suits	Watch for
Brickbat coba	Broken brick in waterproofed mortar forming the slope, between cement slurry coats, topped with plaster and glass fibre cloth (CPWD item 22.7)	Flat RCC roofs that can take the weight	Averages 120 mm thick in CPWD's item; needs a two-week flood test
Cementitious and polymer-modified coatings	Brushed slurry coats, with or without fibre cloth (CPWD items 22.5, 22.6, 22.23A)	Bathrooms, sunken slabs, under tiles	Plain cement coats crack with the slab; polymer-modified ones tolerate more movement (guidance)
Liquid elastomeric coatings (acrylic, PU)	A liquid that cures to a seamless film; CPWD's acrylic item asks for at least 500 microns dry (item 22.22A)	Exposed roofs, repairs, awkward shapes	Dry thickness decides the life; if left exposed, it must be rated for sun (guidance)
Bitumen felt and modified-bitumen membranes (APP, SBS)	Sheets bonded in layers (IS 1346: 1991; CPWD items 22.8 to 22.11)	Large flat roofs, heavy rain	Laid from the lowest point up so laps shed water; needs a protective finish
Crystalline treatments	Admixture (at least 0.80% of cement weight in CPWD item 22.22), slurry or dry shake	Basements, rafts, retaining walls, tanks	CPWD claims self-healing only of cracks up to 0.5 mm; joints still need waterstops
Integral compounds	Admixtures to IS 2645: 2003, at most 3% of cement weight, with a chloride limit	Plaster, screeds, damp-proof course	A help to dense mortar, not a system on its own (guidance)

Judging a product, not a brand: ask which BIS standard it meets (IS 2645 for compounds, IS 1322 for bitumen felts), for a dated test certificate, and for the coverage or dry thickness in the contract.

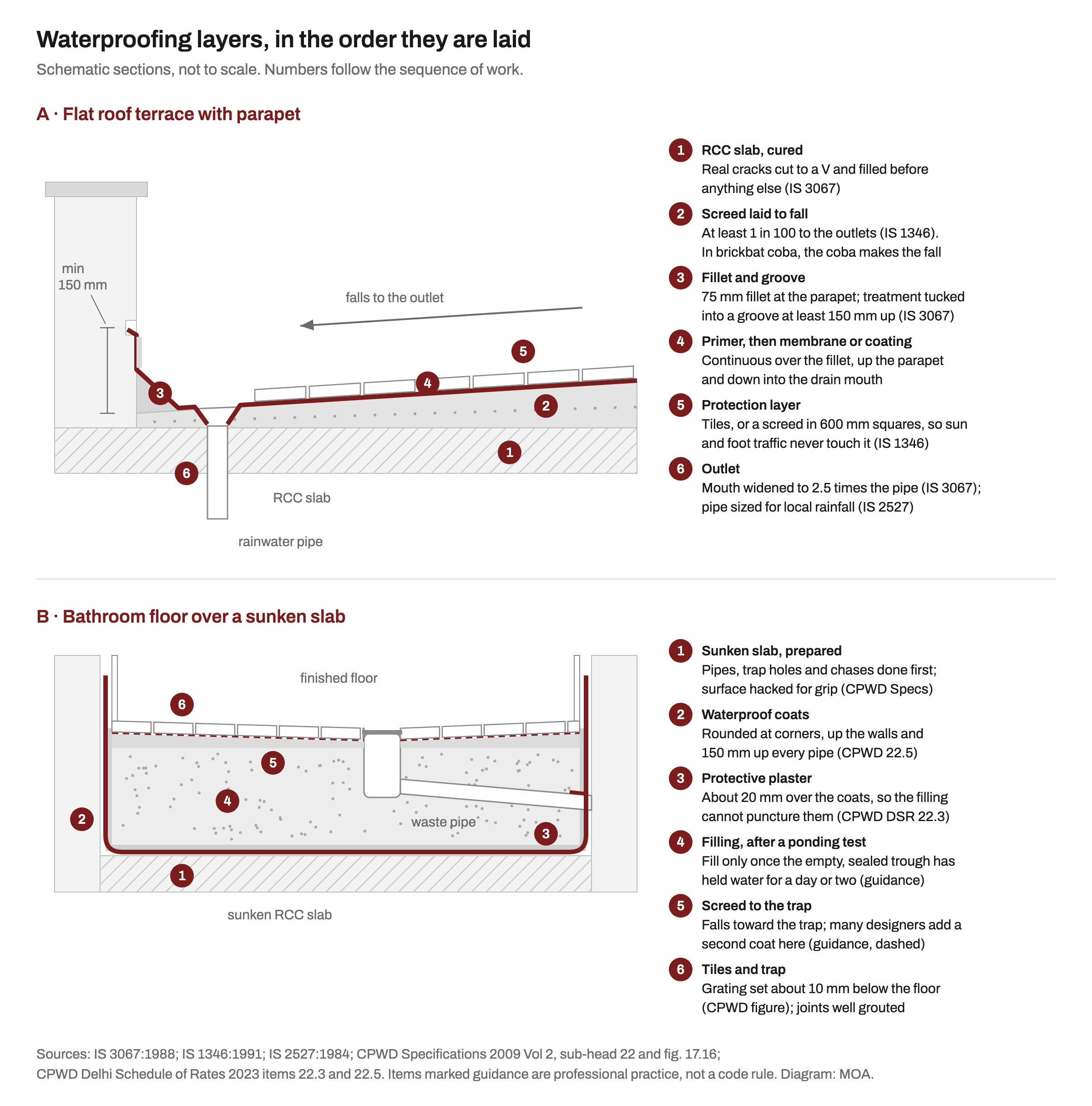

Roofs and terraces: fall, drainage and detail

Fall first. IS 1346 asks for at least 1 in 100 on flat concrete roofs; CPWD's APP membrane specification asks for 1 in 120. For lime concrete terracing, IS 3036: 1992 asks for 1 in 60 and recommends 1 in 40 where rain is heavy. On a 6 m run, 1 in 100 is a 60 mm rise.

Details next. IS 3067 asks for a 75 mm fillet where roof meets parapet, with the treatment tucked into a groove at least 150 mm up (75 mm wide, 65 mm deep) on parapets over 450 mm, or carried over the top of lower ones. Drain mouths are widened to two and a half times the pipe diameter, and pipes through the roof get a concrete fillet.

Outlets sized for your rain. Table 3 of IS 2527: 1984 shows one 100 mm pipe draining 85.4 m² of roof at 50 mm of rain an hour, but only 42.7 m² at 100 mm and 21.3 m² at 200 mm. Ask your engineer which intensity they designed for.

Protect and test. IS 1346 covers a membrane with tiles, or a 45 mm screed marked into 600 mm squares with joints every 3 m. CPWD floods a brickbat coba roof for at least two weeks.

Roof gardens: IS 1346 advises keeping plants in containers as far as possible, so roots cannot reach the roof below.

Bathrooms and wet areas

CPWD's specification sets the sequence for a sunken toilet slab. First the ceiling and wall plaster, pipe chases and trap holes are done, and the slab is hacked for grip while still green. Then the coats go on with rounded corners, up the walls and at least 150 mm up every pipe: two coats of cement slurry with a waterproofing compound in item 22.5, or slurry, 20 mm waterproofed plaster, hot bitumen and a 400 micron PVC sheet in item 22.3. CPWD's typical detail shows a local depression of 250 mm to 325 mm in the slab under the floor trap, with the grating about 10 mm below the floor.

As guidance: pond the sealed trough for a day or two and check the ceiling below before filling; keep pipe joints out of the fill; take the coating higher in the shower; and grout tiles fully.

Basements and the plinth

IS 3067 asks the designer to know the highest and monsoon water table, and to damp-proof a basement when subsoil water is lowest, in the dry season. New basements are treated externally, with at least 600 mm of working space, a lean concrete base slab projecting at least 250 mm beyond the walls, 75 mm fillets at inside corners, and as few construction joints as possible. Existing basements can only be treated from inside.

Above ground, IS 3067 shows a damp-proof course of cement mortar or concrete with an IS 2645 compound. CPWD's schedule also prices crystalline admixture, slurry and dry shake (items 22.22 to 22.24) and PVC waterstops to IS 12200 for construction joints (item 22.4).

External walls, windows and sills

No BIS code we opened covers this, so treat it as guidance. Use dense external plaster with an IS 2645 compound and mesh where masonry meets the RCC frame. Slope sills and chajjas outward with a drip groove beneath, and seal frame-to-wall joints with a flexible sealant. Where a damp wall cannot be reached from outside, CPWD prices an inside-face polymer-modified coating (item 22.23A).

The order of work during construction

1. Plinth and basement: damp-proof course; basement tanking in the dry season, in IS 3067's sequence.
2. Each concrete pour: waterstops at joints; crystalline admixture if specified.
3. Roof: parapets, grooves, fillets and outlets first, then screed to fall, treatment, flood test and protection.
4. Bathrooms: plaster, chases and pipes, then coats, ponding test, filling, screed and tiles.
5. Walls: external plaster, sills and frame sealant before the first monsoon.

See where this sits in our stage-by-stage construction timeline, and check the details appear in your drawing set.

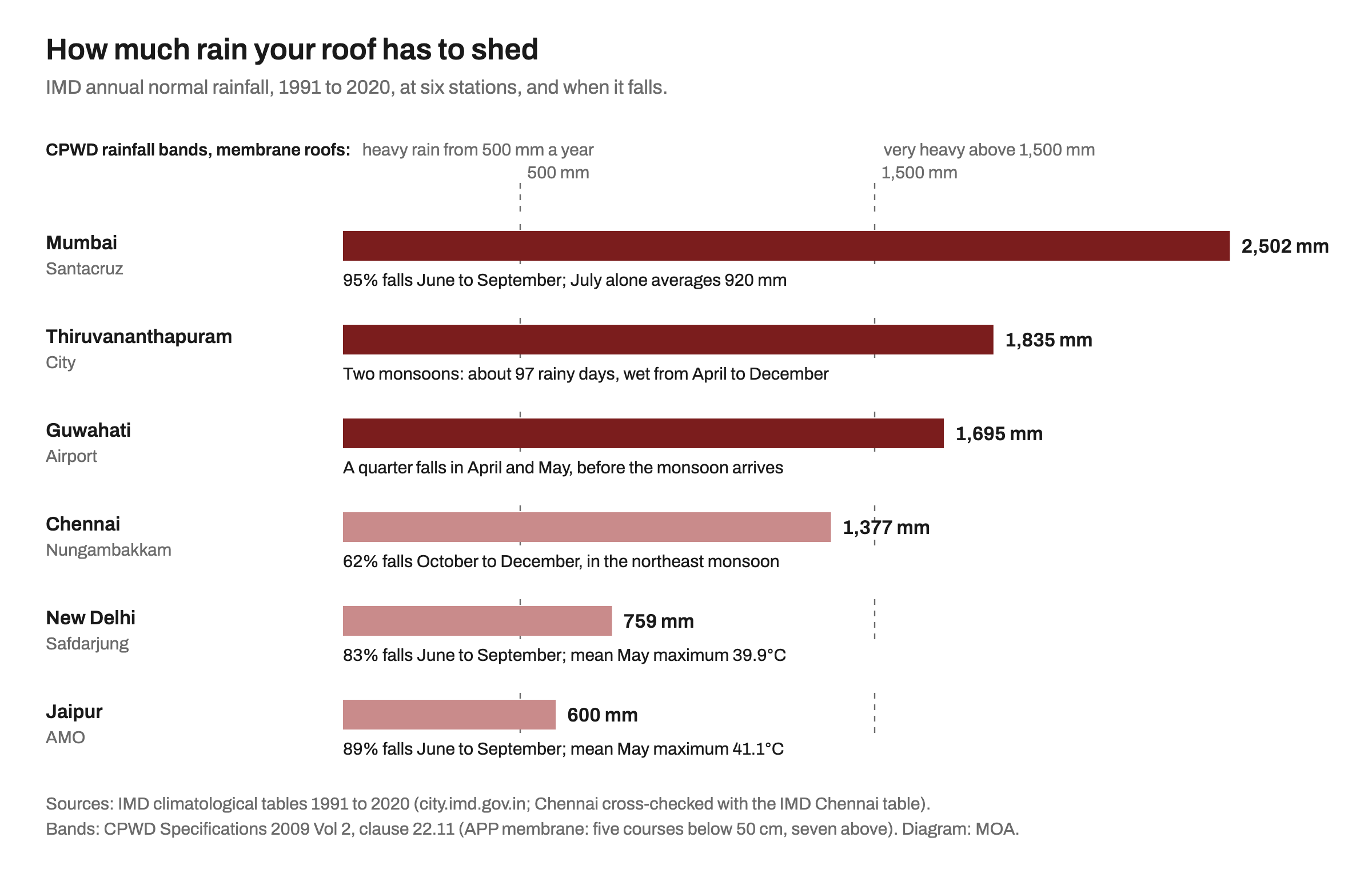

How monsoon intensity changes the choice

Very heavy rain: Mumbai, Thiruvananthapuram, Guwahati. Mumbai's Santacruz station averages 2,502 mm a year, 95% of it from June to September. CPWD's APP specification uses five courses below 50 cm of annual rain, seven at 50 cm and above, and seven with a heavier 2 mm membrane above 150 cm; IS 1346 also steps up to heavier treatments for severe conditions. Add outlets, use steeper falls and finish the roof before June (guidance). Thiruvananthapuram has two monsoons and about 97 rainy days, so curing time is short; Guwahati gets a quarter of its rain in April and May.

Northeast monsoon: Chennai. At Nungambakkam, 62% of the 1,377 mm falls from October to December, so plan roof work for the first half of the year (guidance).

Heat with moderate rain: Delhi, Jaipur. Delhi averages 759 mm and Jaipur 600 mm, but mean May maximums are 39.9°C and 41.1°C. Protect membranes from sun with tiles or screed, or use a reflective coating; CPWD's acrylic item specifies a solar reflectance index of 105. IS 2115: 1980 describes mud phuska as an insulating finish for hot, dry regions without heavy rain, but says it may need a waterproof layer beneath and a slope of at least 1 in 40.

Indicative rates: CPWD Delhi Schedule of Rates 2023

Mistakes to avoid

• A flat slab with no fall. No coating survives standing water for long.
• Stopping at the corner instead of turning up into a parapet groove.
• Waterproofing before plumbing, or burying pipe joints in the bathroom fill.
• Tiling over an untested roof or bathroom.
• Basement work in the monsoon. IS 3067 says dry season.

Frequently asked questions

Which waterproofing is best for a terrace?

No single product. A membrane or liquid coating over a screed to fall, under tiles or a screed, suits most RCC terraces; CPWD adds courses for heavier rain. The fall, parapet detail and outlets matter more than the brand.

Is brickbat coba still a good choice?

It is still a CPWD item and gives slope and waterproofing together. At 120 mm average it is heavy, so check the slab design, and it needs a two-week flood test.

How much does roof waterproofing cost per sq ft?

CPWD's 2023 Delhi rates run from about ₹48/sq ft for four-course bitumen felt to about ₹157/sq ft for brickbat coba. Local prices differ.

Can waterproofing be done in the monsoon?

Best avoided. IS 1346 wants the surface completely dry before bitumen work, and IS 3067 puts basement damp-proofing in the dry season.

The right system depends on your site, slab and city. Find an architect on MOA to detail it, and budget the build with the MOA cost calculator or our state-wise cost breakdown.

Sources

• BIS: IS 3067: 1988, damp-proofing and waterproofing design details (accessed 17 Oct 2026)
• BIS: IS 1346: 1991, waterproofing of roofs with bitumen felts (accessed 17 Oct 2026)
• BIS: IS 2645: 2003, integral waterproofing compounds (accessed 17 Oct 2026)
• BIS: IS 2527: 1984, rainwater gutters and downpipes (accessed 17 Oct 2026)
• BIS: IS 3036: 1992, lime concrete roof finish (accessed 17 Oct 2026)
• BIS: IS 2115: 1980, mud phuska roof finish (accessed 17 Oct 2026)
• CPWD: Delhi Schedule of Rates 2023, Vol. 2 (accessed 17 Oct 2026)
• CPWD: CPWD Specifications 2009, Vol. 2 (accessed 17 Oct 2026)
• IMD: climatological tables 1991 to 2020 for Mumbai Santacruz, Thiruvananthapuram, Guwahati, Chennai Nungambakkam, New Delhi Safdarjung and Jaipur (accessed 17 Oct 2026)
