Balcony Design for Flats: Small Balconies, Grills and Glass

Good balcony design for a home, especially a flat, starts with three decisions: where people sit, where water goes and how high the railing is. On a typical 3 to 5 ft deep balcony, put seating against the house wall, keep the doorway clear, raise pots off the floor so water runs to the outlet, and make sure the railing stands 1.0 to 1.2 m above the finished floor, the range the Model Building Bye-Laws set.

Below, we plan a 4 x 10 ft balcony step by step, with prices we could source. For the vastu view, read our vastu guide to balconies, terraces and gardens.

About the numbers below: railing heights come from the Model Building Bye-Laws 2016 and the Kerala Municipality Building Rules, loads from IS 875. Furniture and deck tile prices are IKEA India's listed prices. Grill, glass railing and sliding window figures are a market range: the middle half of seller asking prices on IndiaMART's category pages, plus one maker's installed price, all read on 21 Oct 2026. Sellers do not say consistently whether GST or fixing is included, so use them as a starting point for quotes. "Our guidance" means common practice, not a standard.

Balcony design for small spaces: plan the 4 x 10 ft balcony first

The Model Building Bye-Laws 2016 define a balcony as a horizontal projection, cantilevered or otherwise, with a parapet, handrail or balustrade, used as a passage or sit-out (MBBL 2016, definition 13). In group housing they allow balconies 1.2 m wide, up to 3.5 sq m per bedroom and no more than three per flat, as projections that do not count towards FAR (section 4.21(c)(iii)). That is why so many flat balconies are about 4 ft deep.

At that depth, split the balcony into three zones (our guidance):

Sit zone at one end, with seating against the house wall rather than the railing.
Clear zone in front of the door, as wide as the opening.
Wet zone at the far end, for pots, the outlet and a tap.

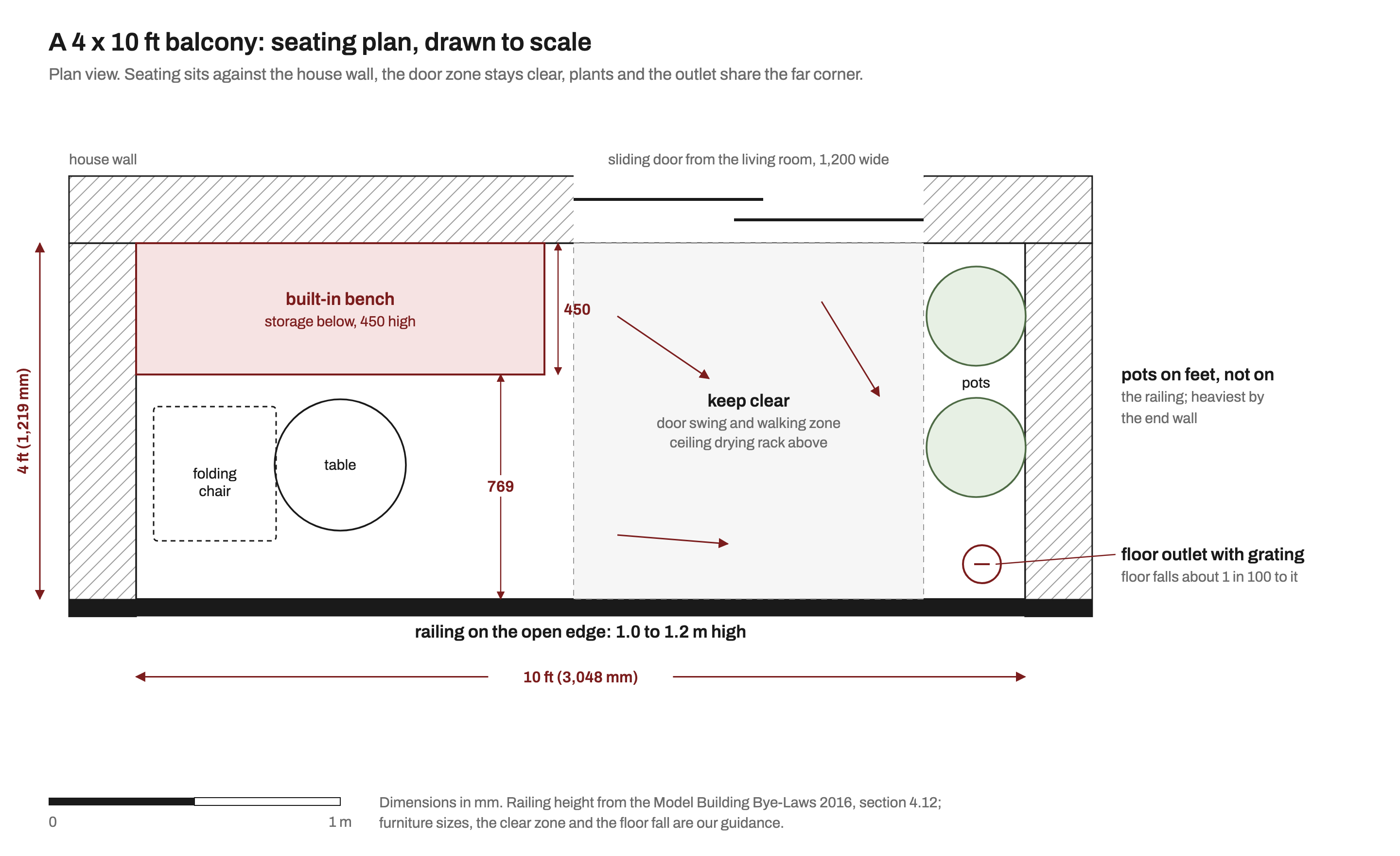

To-scale plan of a 4 by 10 ft flat balcony: a 450 mm deep built-in bench with storage along the house wall, a round folding table and a folding chair in front of it, a 1,200 mm sliding door with a clear walking zone in front, two plant pots at the far end, and a floor outlet in the corner with the floor sloping towards it — One way to seat two or three people on a 4 x 10 ft balcony: the bench backs onto the house wall, the door zone stays clear and the floor falls to an outlet in the corner. Railing height from the Model Building Bye-Laws 2016; the rest is our guidance. Diagram: MOA

A 450 mm deep bench leaves 769 mm to the railing, enough for a small table or a folding chair.

Balcony seating: foldable, built-in or a swing

Foldable furniture suits a balcony you also use for drying clothes or plants. IKEA India lists the TÄRNÖ foldable outdoor chair at ₹1,950, the FEJAN foldable chair at ₹1,450, the TORPARÖ 50 cm balcony table at ₹1,990 and the ASKHOLMEN wall-mounted folding table (70 x 44 cm) at ₹2,990 (IKEA India outdoor furniture, read 21 Oct 2026).

A built-in bench gives the most seats per foot and hides storage. Build it in masonry or treated plywood with a stone or tiled top, about 450 mm high and 400 to 450 mm deep, raised so water runs underneath (our guidance). A ready-made alternative is a storage box used as a bench: IKEA's NÄMMARÖ indoor/outdoor storage box measures 80 x 40 x 45 cm and is listed at ₹6,990.

A balcony swing or hanging chair needs the most care. We found no Indian maker's fixing instruction we could open, so this is our guidance:

Hang it only from the RCC slab, never from a false ceiling, with a hook and anchor whose rated load is well above the chair plus the heaviest user.
Ask the builder whether the slab is post-tensioned before drilling.
Fix the hook close to the house wall so the seat cannot swing into the railing. On a 4 ft balcony, a chair on its own stand is often the safer choice.

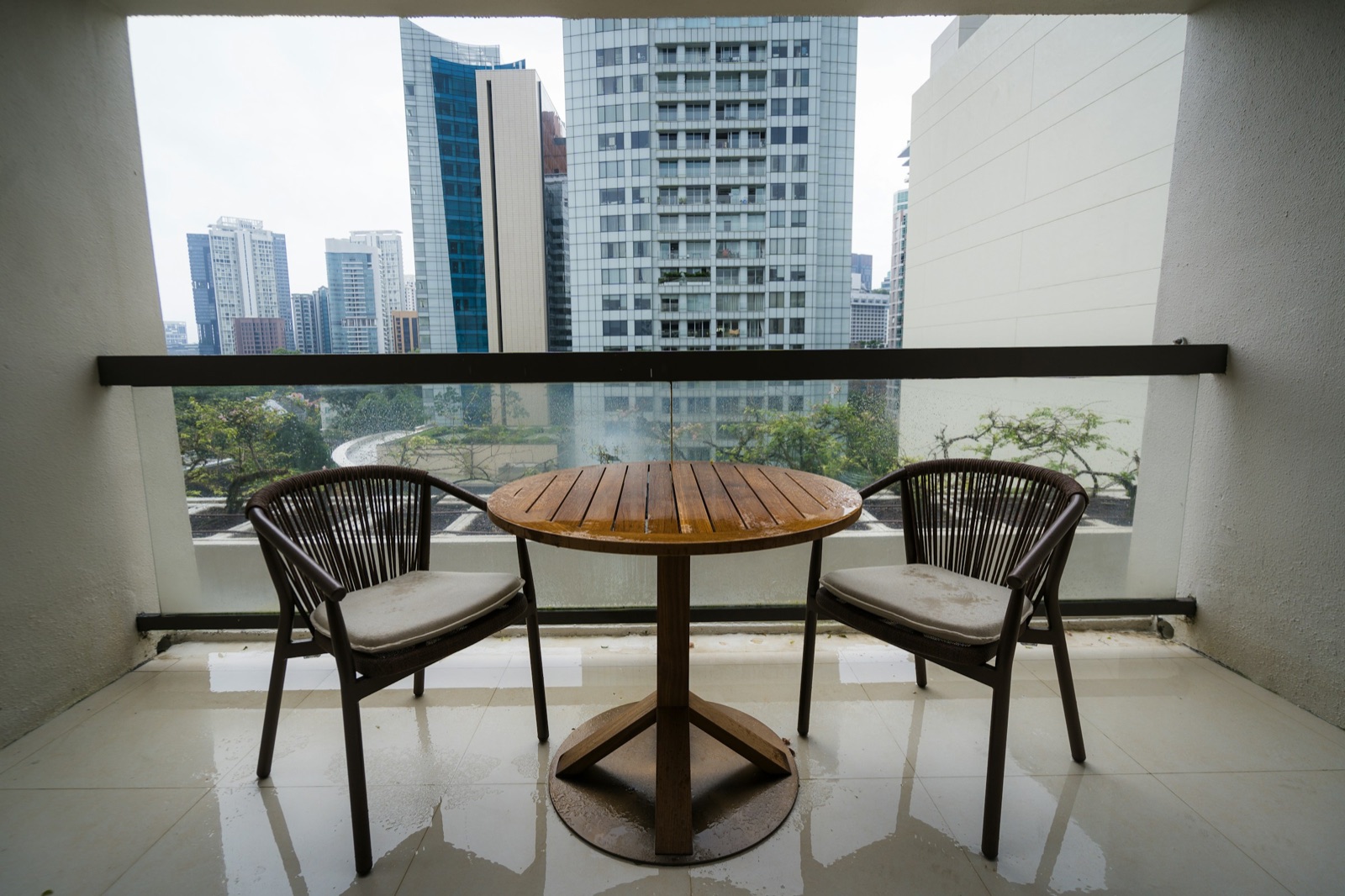

A narrow high-rise balcony with a pale tiled floor, a solid parapet topped by a glass panel and a dark handrail, and a small round wooden bistro table between two woven outdoor chairs with cushions, looking out over city towers — Two chairs and a small round table are often all a narrow balcony needs; the solid parapet with glass above keeps the guard at full height. Image: Frugal Flyer on Unsplash, Unsplash License

Balcony design with plants: weight, drainage and waterproofing

Wet soil is heavy. IS 875 (Part 2) designs balconies in dwellings for an imposed load of 3.0 kN per sq m, about 306 kg per sq m, plus 1.5 kN per metre run at the outer edge (IS 875 Part 2, Table 1). Moist earth weighs 1,600 to 2,000 kg per cubic metre (IS 875 Part 1, Table 1), so a 300 mm deep soil bed weighs 480 to 600 kg per sq m before the planter, the plant or the water.

As practical guidance:

Use pots and raised troughs, not soil beds laid on the balcony floor.
Keep the heaviest pots near the house wall, where a cantilevered slab is supported, not at the free edge.
Never hang planters outside the railing, or stand them where a child could climb them.
Stand pots on feet so water reaches the outlet.

IS 1742 asks for rain-water leaders from roofs and terraces to be screened with gratings to keep leaves and debris out (IS 1742, clause 6.2.3.1). Fit one, keep soil out of it and clear it before the monsoon. If you retile, keep the floor falling towards the outlet (about 1 in 100 is common practice) and carry the waterproofing up the walls; our waterproofing guide covers the products and the climate differences.

Balcony flooring: anti-skid tiles and deck tiles

Choose a matt, textured tile that the maker sells for outdoor or wet areas, not a glossy living-room tile (our guidance).

Interlocking deck tiles click together over the old floor and lift out for cleaning. IKEA India lists RUNNEN acacia decking at ₹2,950 and ALTAPPEN light grey decking at ₹1,250, each for a 0.81 sq m (9 sq ft) pack, with RUNNEN edging strips at ₹299 (IKEA India outdoor flooring, read 21 Oct 2026). A 4 x 10 ft balcony needs five packs: about ₹14,750 in acacia or ₹6,250 in ALTAPPEN. Leave the outlet uncovered.

Balcony railing and grill design: safety first

The Model Building Bye-Laws 2016 say that parapet walls and handrails on the edges of roof terraces, balconies and verandahs shall be not less than 1.0 m and not more than 1.2 m high from the finished floor level (MBBL 2016, section 4.12, page 55). States adapt them: Kerala's municipal rules, for example, ask high-rise buildings (more than four floors or 15 m) for parapets or guard rails at least 1.20 m high on any slab or balcony with a drop of 2 m or more, firmly fixed to the walls and slabs (Kerala Municipality Building Rules, Chapter XVII, rule 113).

The same rule says metal grills should not use continuous horizontal members, to prevent climbing, and glass guard rails must be of glass reinforced against breaking. For staircases in high-rise buildings, it limits gaps between balusters to 10 cm (rule 112). We found no rule we could open that sets a baluster gap for flat balconies, so our guidance is to keep every gap, including the one above the floor, to 100 mm or less. We could not open the National Building Code (SP 7) text for this post, so check it with your architect.

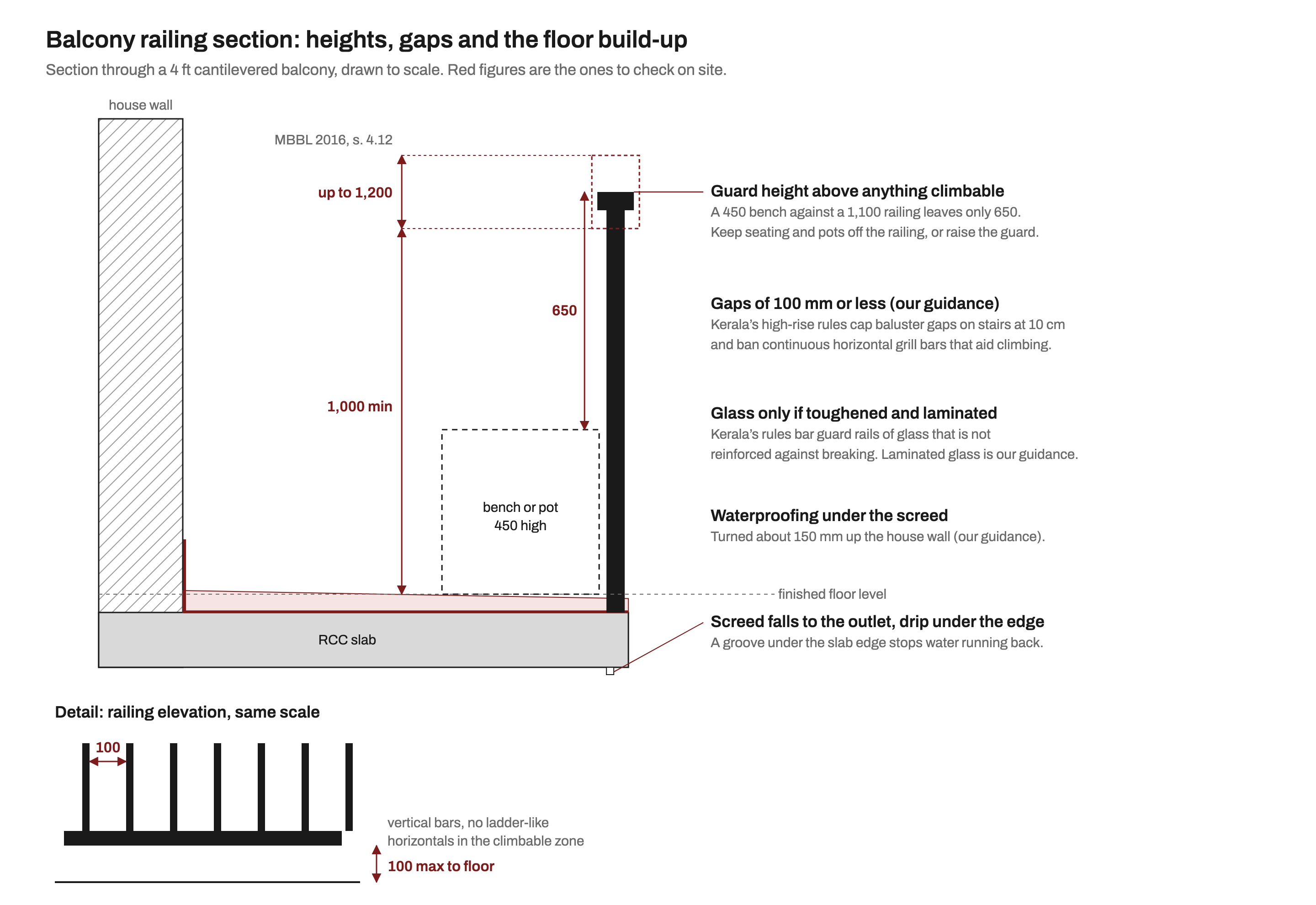

Scaled section through a 4 ft cantilevered balcony showing the railing height band of 1,000 to 1,200 mm above finished floor, a dashed 450 mm high bench against the railing that leaves only 650 mm of guard above it, waterproofing under the screed turned up the house wall, a drip groove under the slab edge, and a detail of vertical balusters at 100 mm gaps with no more than 100 mm to the floor — Railing height comes from the Model Building Bye-Laws 2016; the gap sizes, glass and waterproofing details are our guidance, informed by Kerala's high-rise building rules. Diagram: MOA

Watch for climbable furniture: a 450 mm bench or pot against a 1,100 mm railing leaves only 650 mm of guard above it. Keep seating against the house wall, or raise the guard where something must sit at the edge. For strength, IS 875 (Part 2) designs balcony parapets and balustrades in private dwellings for a horizontal load of 0.35 kN per metre run (Table 3); ask a fabricator how new posts are anchored.

Balcony grill design: MS grills and invisible grills

Mild steel (MS) grills are usually priced by weight. On IndiaMART's iron window grill page, the middle half of per-kg listings ran from about ₹105 to ₹130 per kg (12 listings, read 21 Oct 2026). Ask for vertical bars, a powder or enamel coat, and a lockable panel for escape and cleaning (our guidance).

Invisible grills are stainless steel cables strung across the opening above the railing. Chirag Nettings, a Vasai maker, describes 316L stainless steel cables of 2.5 to 3 mm with 2 to 4 inch gaps, priced at about ₹150 per sq ft with installation and a five-year warranty (MGS Architecture). Across 27 IndiaMART listings priced per sq ft, the middle half ran from about ₹100 to ₹210 per sq ft. They keep the view open but do not replace the railing below them.

Balcony glass design and price

Glass railings make a narrow balcony feel wider. Ask for toughened laminated glass, so the panel stays in place if it cracks, set in a top rail or a channel the fabricator can show you (our guidance; Kerala's rules bar unreinforced glass). On IndiaMART's stainless steel glass railing page, the middle half of per-foot listings ran from about ₹800 to ₹1,700 per running foot (16 listings).

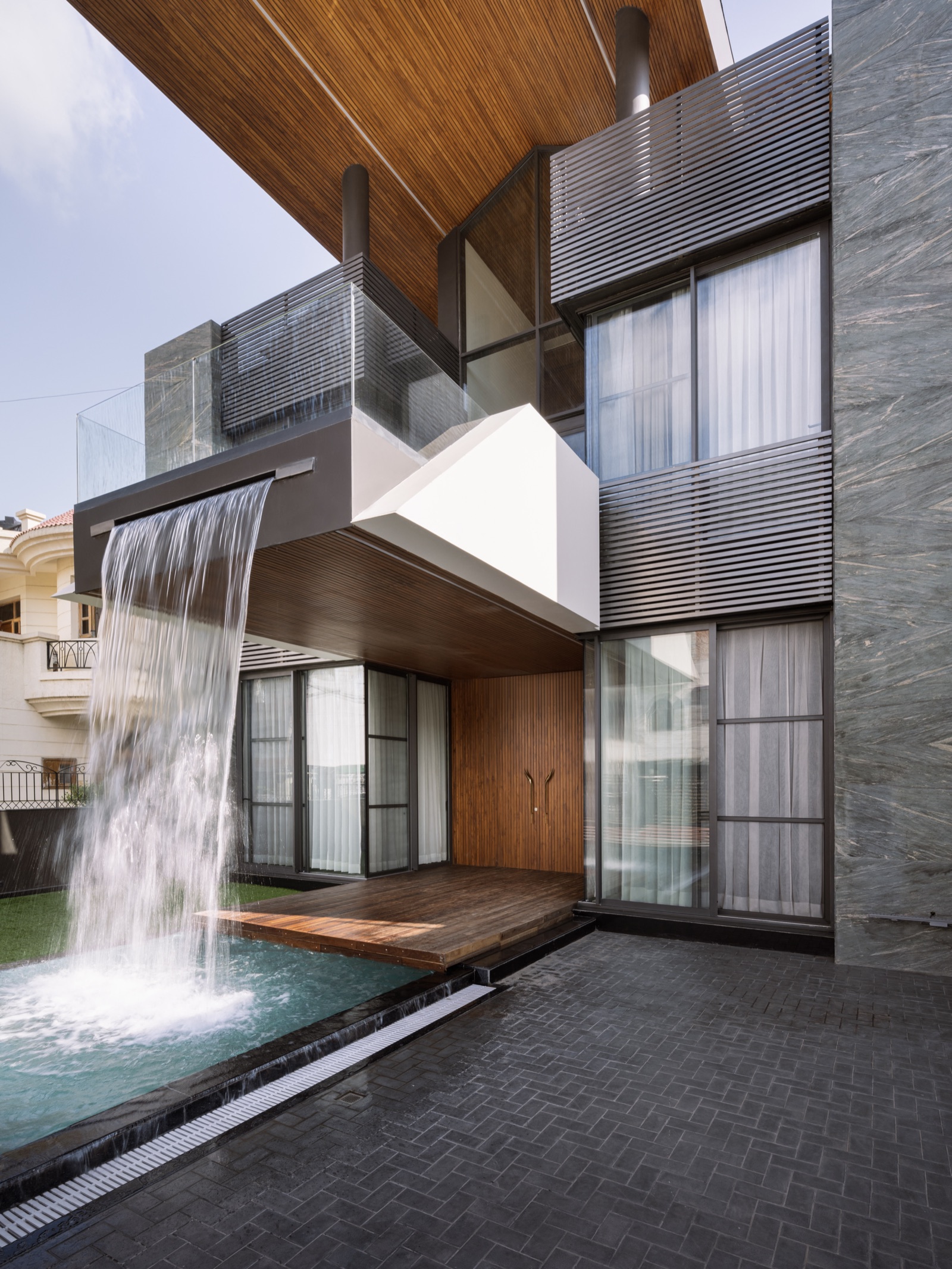

A cantilevered first-floor balcony with a frameless glass balustrade and charcoal horizontal louvres projects over a deck, with a sheet of water falling from its edge into a pool below and a timber-slatted soffit overhead — A frameless glass balustrade on a cantilevered balcony of a Panchkula house, with louvred screens for privacy and shade. Image: Varun Garg Architects on MOA

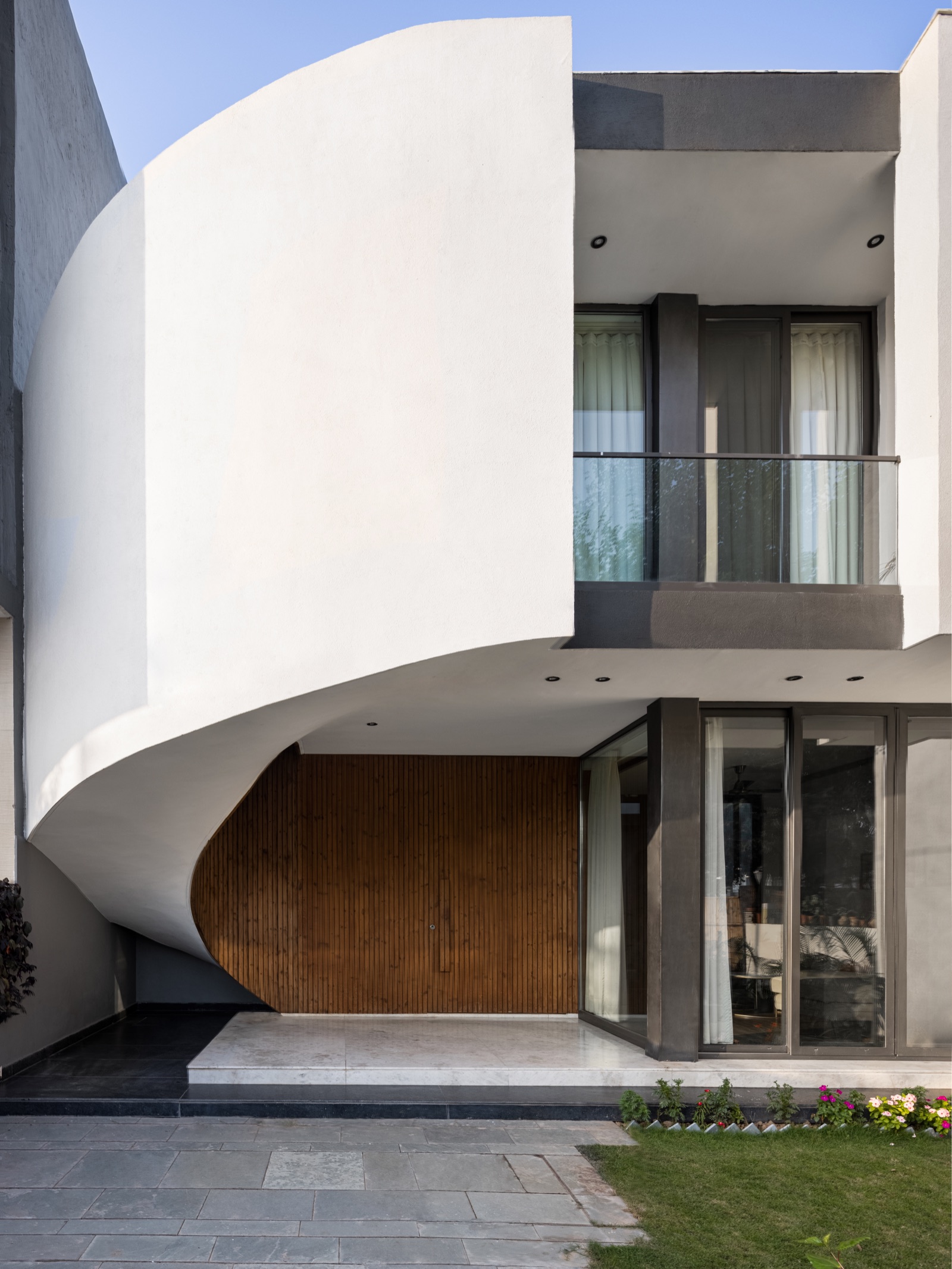

A white house front with a shallow upper-floor balcony fronted by a clear glass panel railing with a slim steel top rail, set in a charcoal frame beside a sweeping curved white wall, with recessed ceiling lights above — A shallow French-style balcony in a Panchkula house: clear glass below a slim steel handrail keeps the view open from inside. Image: Varun Garg Architects on MOA

Closed balcony design: check before you enclose

Enclosing a balcony with sliding glass keeps out dust, rain and pigeons, but it changes the facade, and the bye-laws allow balconies as projections not counted towards FAR. In July 2026 the Bombay High Court, hearing a dispute over a neighbour's enclosed terraces in Panvel, said that unauthorised enclosures "cannot be countenanced" and directed the Maharashtra government to frame guidelines on which flat alterations need permission, to be filed by 15 January 2027 (LiveLaw, 18 July 2026).

We cannot say what your city allows. Read your society's bye-laws, ask the committee in writing, and ask an architect whether the local authority needs an application. If you go ahead, aluminium sliding windows on IndiaMART's category page ranged from about ₹330 to ₹600 per sq ft for the middle half of 27 listings.

Shade and privacy: blinds and a light pergola

West-facing balconies need shade first. Bamboo chick blinds, outdoor roller blinds or a retractable awning fix to the slab above and roll up in a storm; a light pergola of aluminium or timber slats should hang from the slab, not rest on the railing (our guidance). We found no published Indian rates for these we could cite, so get local quotes.

Balcony lighting

Use a warm wall light or a strip under the bench, not a bright overhead bulb. Where rain can reach, choose fittings rated IP44 or more for a covered balcony and IP65 for an exposed wall, on an earthed circuit with an RCCB (our guidance).

Utility balcony design: washing machine and drying

Many flats have a second balcony off the kitchen or a bathroom; the bye-laws even allow a 1.2 m wide balcony off a toilet for drying clothes (MBBL 2016, section 4.21(c)(iv)). If the washing machine goes there, follow the maker's placement rules. Samsung India asks for a hard, straight surface, space around the machine for ventilation, and no direct sunlight, which can make it overheat (Samsung India). Samsung's installation guide for the Caribbean adds a gap of 10 to 15 cm to the wall and says the machine should not be exposed to moisture such as rain (Samsung).

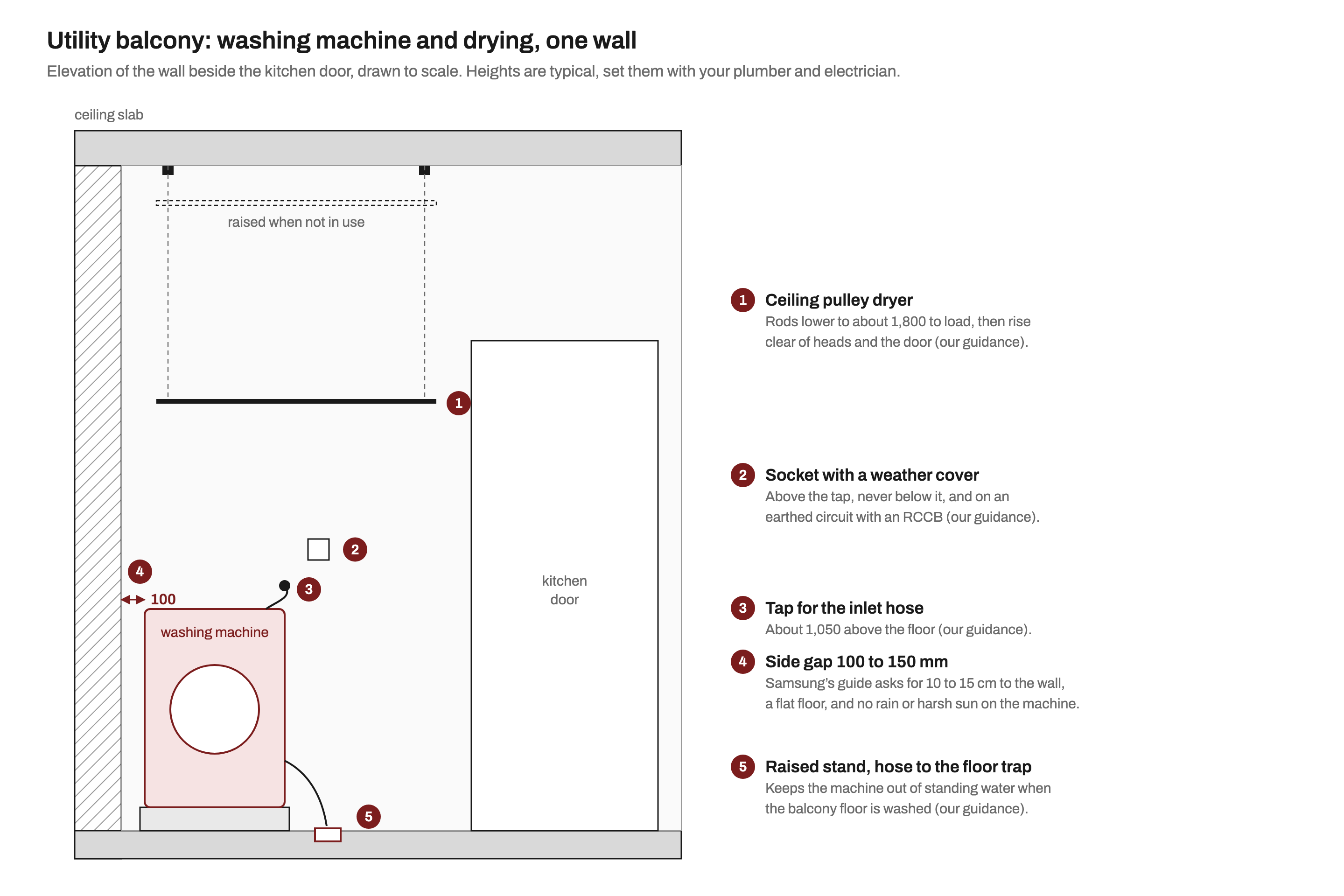

Scaled elevation of a utility balcony wall: a front-load washing machine on a 100 mm raised stand with a 100 mm gap to the side wall, a tap at about 1,050 mm and a covered socket above it, the drain hose running to a floor trap, a ceiling pulley drying rack lowered to about 1,800 mm, and the kitchen door to one side — A washing machine and a ceiling dryer on one wall of a utility balcony. The wall gap follows Samsung's installation guide; heights are our guidance. Diagram: MOA

So give the machine a covered corner, a raised stand, a tap with a covered socket above it and a floor trap. Put drying overhead on a ceiling pulley dryer, or on a wall-mounted folding rack.

Balcony design cost: a 4 x 10 ft example

Furnishing the plan above, at prices we could source. Retiling, waterproofing or a new railing is extra.

Item	Quantity	Cost	Source
Deck tiles (ALTAPPEN or RUNNEN acacia)	5 packs, 45 sq ft	₹6,250 to ₹14,750	IKEA India listed price
Foldable chairs (TÄRNÖ)	2	₹3,900	IKEA India listed price
Wall-mounted folding table (ASKHOLMEN)	1	₹2,990	IKEA India listed price
Storage box as a bench (NÄMMARÖ)	1	₹6,990	IKEA India listed price
Invisible grill above the railing	about 60 sq ft	₹6,000 to ₹12,600	Market range, ₹100 to ₹210 per sq ft
Total		about ₹26,000 to ₹41,000	before plants, lights and fixing

For a whole-flat budget, see what interior design costs room by room, or use MOA's free home cost calculator.

FAQ

Which grill is best for a balcony?

The railing does the safety work: 1.0 to 1.2 m high with vertical bars at 100 mm gaps or less. Above it, invisible grills keep the view (about ₹100 to ₹210 per sq ft on IndiaMART); MS grills are sturdier but block more light.

What is the balcony glass design price?

On IndiaMART, steel and glass railings mostly ran ₹800 to ₹1,700 per running foot, and aluminium sliding windows ₹330 to ₹600 per sq ft. Both are market ranges.

Can I close my balcony in a flat?

Do not assume so. Your society and local authority decide, and the Bombay High Court has asked Maharashtra to set out which alterations need permission. Ask first.

How do I design a small balcony?

Seat people against the house wall, keep the door zone clear, group plants by the outlet and keep anything climbable off the railing.

Is a swing safe on a balcony?

Only from the RCC slab with a load-rated hook and anchor, near the house wall. If in doubt, use a chair on its own stand.

Planning a balcony makeover? Find interior designers on MOA, or architects for railings and enclosures, and filter the directory by your city.

Sources

Ministry of Housing and Urban Affairs / TCPO: Model Building Bye-Laws 2016, mohua.gov.in (accessed 21 Oct 2026)
Local Self Government Department, Kerala: Kerala Municipality Building Rules, Chapter XVII, Safety provisions for high rise buildings, lsgkerala.gov.in (accessed 21 Oct 2026)
Bureau of Indian Standards: IS 875 (Part 2) : 1987, Imposed loads, law.resource.org (accessed 21 Oct 2026)
Bureau of Indian Standards: IS 875 (Part 1) : 1987, Dead loads, unit weights of building materials, law.resource.org (accessed 21 Oct 2026)
Bureau of Indian Standards: IS 1742 : 1983, Code of practice for building drainage, law.resource.org (accessed 21 Oct 2026)
LiveLaw: Bombay High Court Directs Maharashtra Govt To Frame Guidelines On Apartment Balcony Enclosures, Internal Flat Alterations, 18 July 2026, livelaw.in (accessed 21 Oct 2026)
IKEA India: Outdoor furniture, ikea.com/in (accessed 21 Oct 2026)
IKEA India: Outdoor flooring, ikea.com/in (accessed 21 Oct 2026)
MGS Architecture: Invisible but safe (Chirag Nettings invisible grills), mgsarchitecture.in (accessed 21 Oct 2026)
IndiaMART: Invisible grill, indiamart.com (accessed 21 Oct 2026)
IndiaMART: Iron window grill, indiamart.com (accessed 21 Oct 2026)
IndiaMART: Stainless steel glass railing, indiamart.com (accessed 21 Oct 2026)
IndiaMART: Aluminium sliding window, indiamart.com (accessed 21 Oct 2026)
Samsung India: Where do I install the washing machine?, samsung.com/in (accessed 21 Oct 2026)
Samsung Caribbean: Basic guide to install your washing machine, samsung.com (accessed 21 Oct 2026)
