Kitchen Tiles Design for Wall: Dado Height, Backsplash and Floor

For a kitchen wall, tile a dado band from the counter to the underside of the wall units, usually about 600 mm (2 ft), and take the tile up to the ceiling behind the hob, where tadka smoke and steam hit hardest. Use glazed ceramic or glazed vitrified (GVT) tiles on the wall, matt or anti-skid vitrified tiles on the floor, and epoxy grout behind the hob and sink. Orientbell's April 2026 price table puts kitchen wall tiles at ₹34 to ₹356 per sq ft, and CPWD's Delhi schedule prices a laid ceramic dado at ₹1,112.70 per sq m, about ₹103 per sq ft.

About the numbers below: tile prices are Orientbell list prices (tables "updated on 28th April 2026"), read on 21 Oct 2026; Kajaria and H&R Johnson showed no prices on the pages we opened. Laying costs come from the CPWD Delhi Schedule of Rates 2023 (April 2023 Delhi prices, 18% GST on works included), a government rate book, not a shop quote. "Our guidance" marks MOA's professional judgement, not a code.

This guide covers heights, tile types, sizes, grout and cost. For what is fashionable, our tile trends 2027 post covers formats and colours, and kitchen trends 2027 covers shutters, counters and the slab backsplash.

Kitchen tiles design for wall: what the dado is

In Indian site language, the dado is the tiled lower part of a wall, as against the painted upper part. CPWD's schedule uses the word the same way, pricing "tile work in skirting, risers of steps and dado". In a kitchen, the dado is the strip of wall between the counter and the wall units, the backsplash, plus whatever you add around the hob and sink.

We found no Indian code that fixes a kitchen dado height, so the heights below are common practice anchored to two maker guides. IKEA's METOD buying guide recommends "at least 50 cm between worktop and wall cabinet". Faber India's chimney guide says the space between stove and chimney "should be between 26 and 32 inches", about 660 to 810 mm.

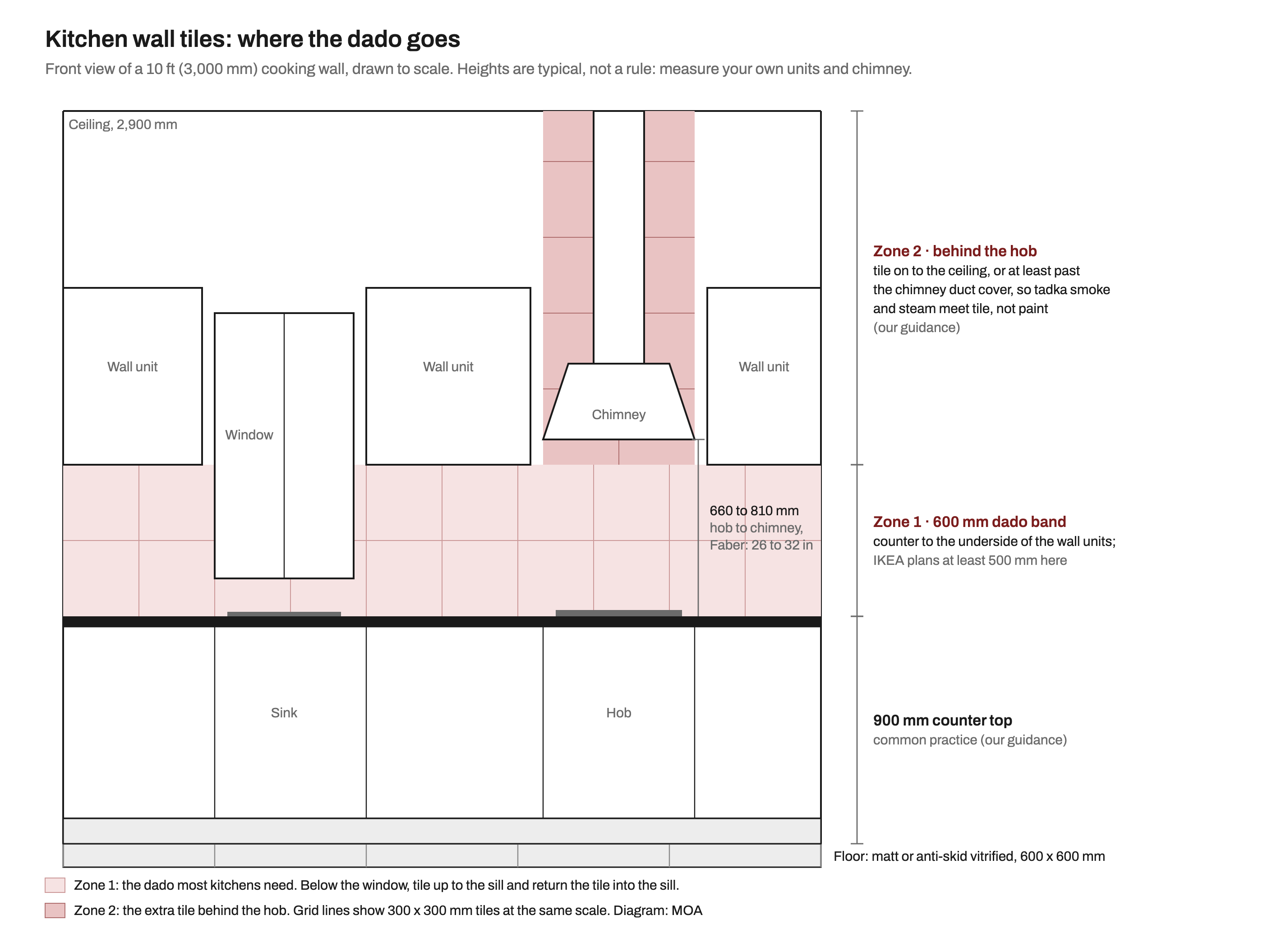

Front elevation drawn to scale of a 3,000 mm kitchen wall with a 2,900 mm ceiling. Base units with a counter top at 900 mm hold a sink below a window and a hob below a chimney. A pale red band of 300 mm tiles runs 600 mm from the counter to the underside of three wall units and stops at the window sill. A darker band of tiles continues behind the hob from the wall units up to the ceiling on both sides of the chimney duct. Labels give the chimney at 660 to 810 mm above the hob and IKEA's minimum 500 mm gap between counter and wall units. — Zone 1 is the dado band most kitchens need, counter to wall units; zone 2 is the extra tile behind the hob, up to the ceiling. Heights are typical, not a code requirement. Diagram: MOA

How high to tile: three common cases

Kitchen	Where the tile stops	Typical height above the counter
Wall units above the counter	Underside of the wall units, with the tile tucked a little behind them so no gap shows (our guidance)	About 600 mm; IKEA's minimum gap is 500 mm
Behind the hob	The ceiling, or at least the top of the chimney duct cover	Full height (our guidance)
Open shelves or no wall units	A clean line at about 1,200 mm, or full height on the cooking wall	1,200 mm or more (our guidance)

Around a window over the sink, tile up to the sill and return the tile into it, so splashes do not soak the plaster (our guidance).

Dado tiles for kitchen behind the hob

The wall behind the hob takes oil splatter, steam and heat every day. Our guidance is to tile it to the ceiling rather than stopping at the chimney hood, because steam and smoke rise past the hood, and painted wall behind a chimney duct is hard to clean or repaint. Buy it with the dado tile, from one batch, so the shades match.

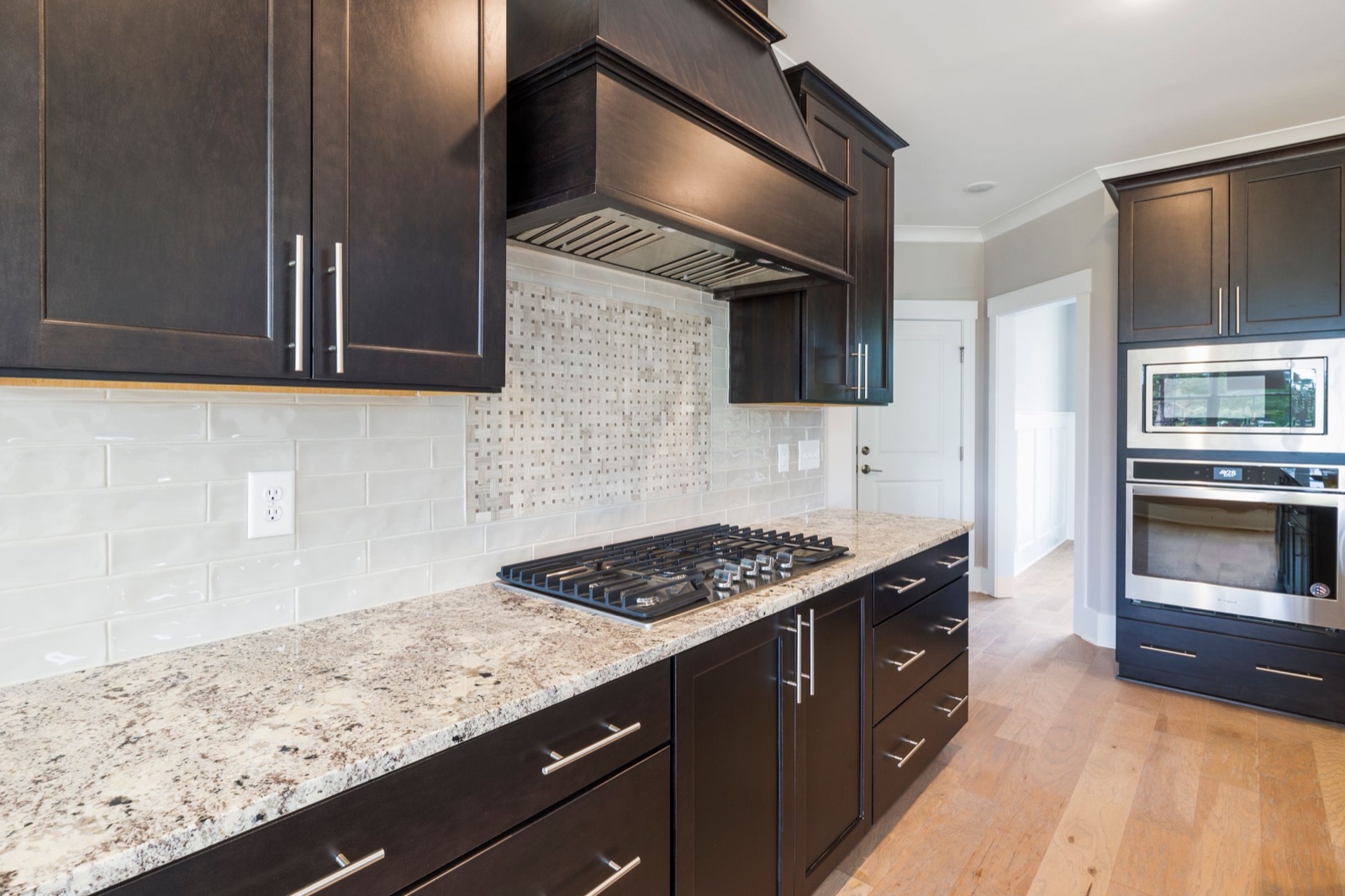

Kitchen with dark wood cabinets and a granite counter holding a five-burner gas hob. Pale glossy rectangular tiles cover the wall between counter and cabinets, and a framed panel of small basket-weave mosaic fills the wall behind the hob up to the wooden chimney hood. — Tile behind the hob runs up to the chimney hood here. The mosaic panel looks good but has the most grout to clean after tadka. Image: Curtis Adams on Pexels, Pexels License

Wall tiles vs floor tiles: ceramic, vitrified, GVT, subway and mosaic

All pressed tiles in India fall under IS 15622, which groups them by water absorption, the share of its own weight a tile soaks up. The difference between a wall tile and a floor tile is easiest to see in two makers' sheets from the same company:

Property	Ceramic wall tile (Orientbell Sparkle, 300 x 450 mm)	Glazed vitrified tile (Orientbell GVT)
IS 15622:2017 group	B III, water absorption over 10%	Sheet cites ISO 13006 B Ia and IS 15622:2017 B Ib
Water absorption, maker's norm	15 ± 2%	Average 0.5% or less
Breaking strength	Standard's minimum: 200 N (under 7.5 mm thick)	Maker's norm: 1,500 N minimum
Surface abrasion	Tested for floor tiles only	Class III to V, by design
Where it belongs	Kitchen walls only	Floors and walls

The porous ceramic body suits a wall but is too weak for a floor where a steel kadhai will be dropped. Vitrified and GVT tiles are dense enough for both.

"Vitrified" on a box does not fix the group. CPWD defines vitrified floor tiles as absorbing "less than 0.08%", the B Ia group our flooring materials guide uses, while Orientbell's GVT sheet declares 0.5% or less, Group B Ib under IS 15622:2017. Ask which group the box declares.

Ceramic wall tile: the usual dado tile, glossy or matt, in sizes such as 300 x 450 and 300 x 600 mm.
GVT and PGVT: glazed vitrified, printed with stone and marble looks; matt for floors, glossy or matt for walls. Large formats such as 600 x 1,200 mm reduce joints.
Subway: narrow brick-shaped tiles laid in brick bond. Orientbell lists 65 x 260 and 75 x 300 mm; H&R Johnson's Heritage range lists 10 x 30.2 cm.
Mosaic: small chips sold on sheets, which Orientbell says usually measure about 300 x 300 mm.

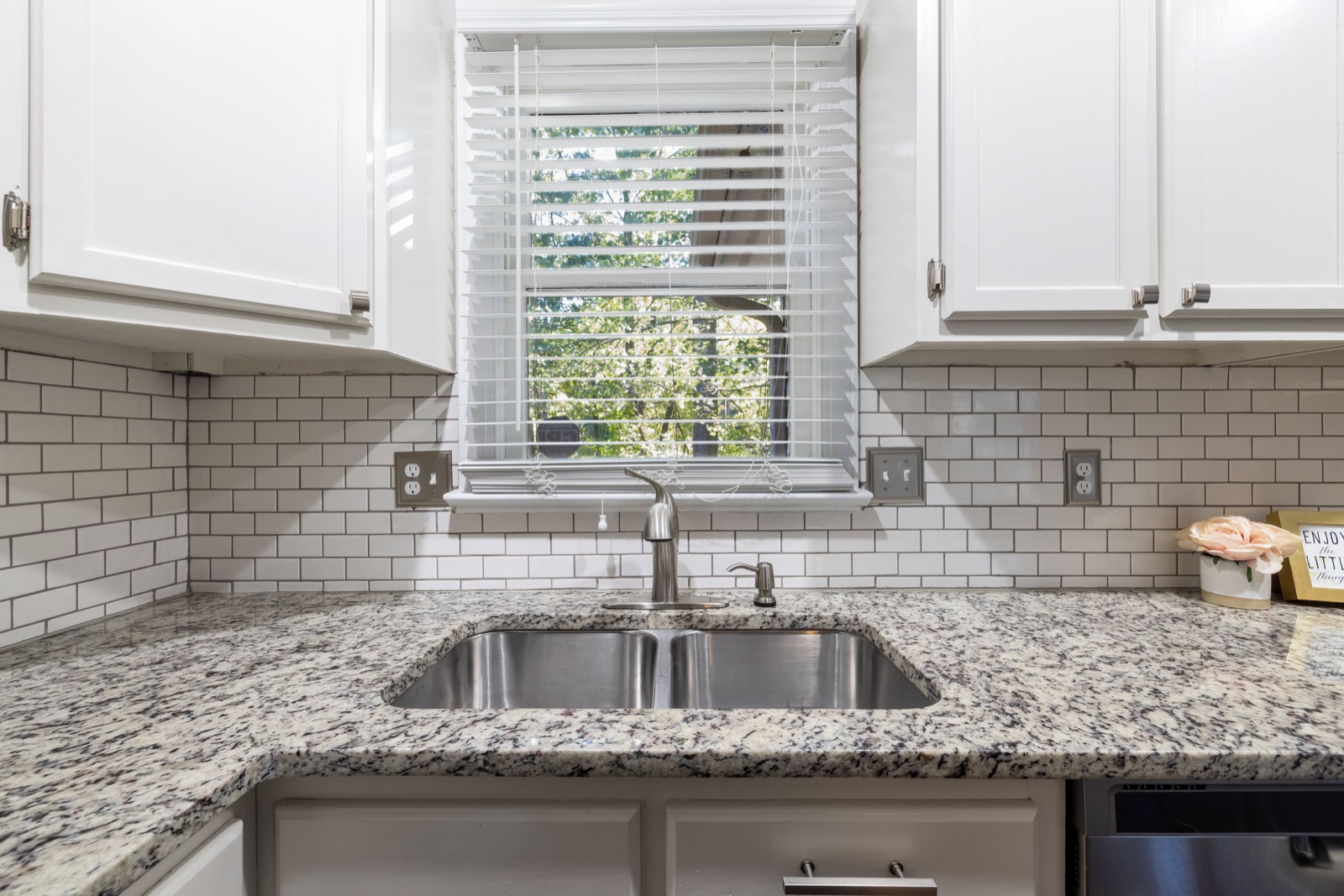

White glossy subway tiles with dark grey grout lines laid in brick bond from a speckled grey granite counter up to the underside of white wall cabinets, around a window with white blinds above a double steel sink. — A classic dado band: subway tiles from the counter to the wall cabinets. Dark grout hides stains but turns every joint into a line you will see. Image: Curtis Adams on Pexels, Pexels License

Tile sizes and grout lines for a small kitchen

IS 15622:2006 has makers size modular tiles to leave a nominal joint of 1.5 to 5 mm for wall tiles and 2 to 5 mm for the denser groups. The joint is where grease and haldi collect, so the number of joints matters more than the tile. On the same 1,200 x 600 mm patch of wall, a 25 mm mosaic leaves 80 m of grout per sq m, a 300 x 600 mm tile 5 m, and a 600 x 1,200 mm tile 2.5 m.

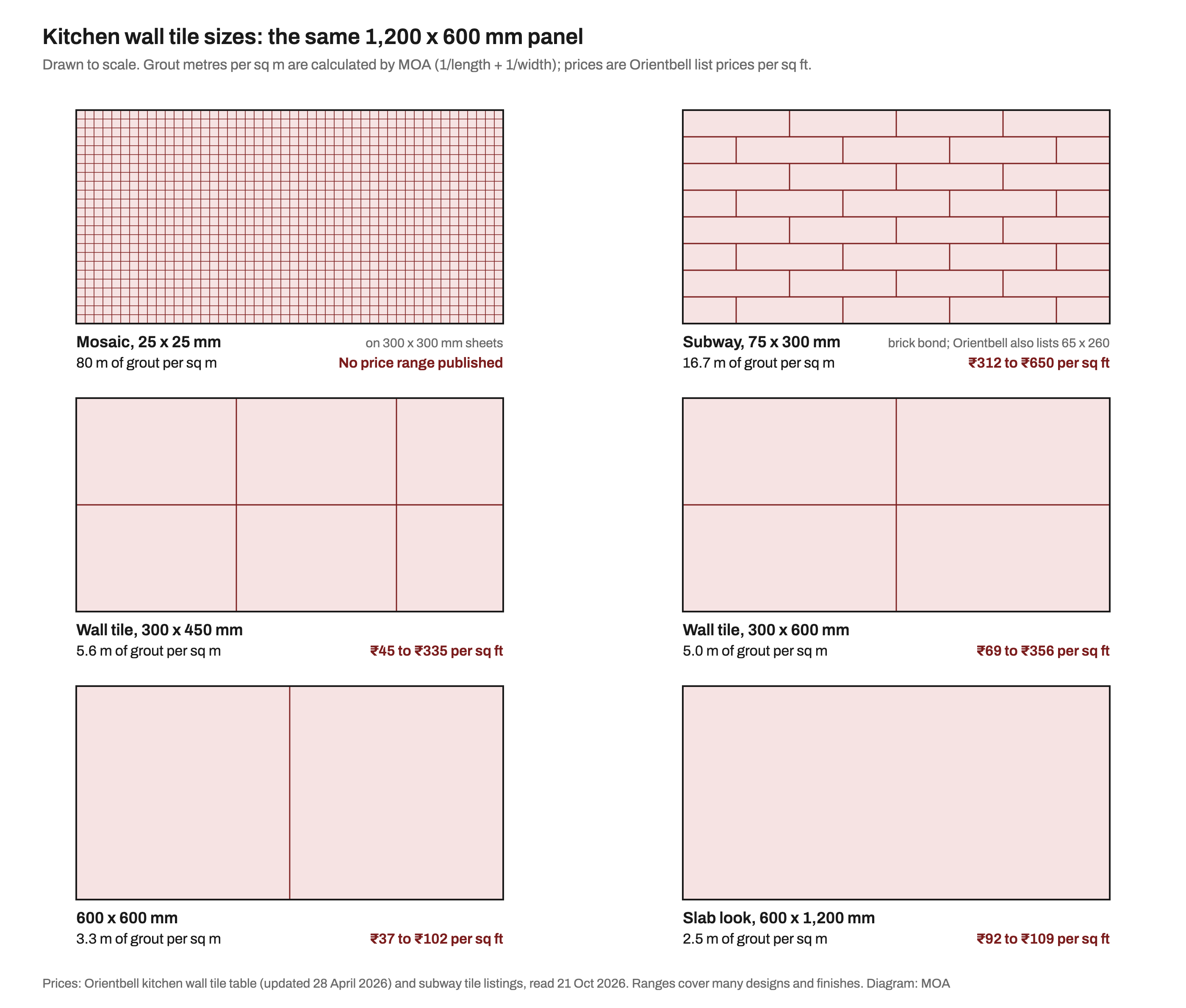

Six panels, each the same 1,200 by 600 mm patch of kitchen wall drawn to scale with red grout lines. Mosaic 25 by 25 mm forms a dense grid with 80 m of grout per sq m. Subway 75 by 300 mm in brick bond has 16.7 m and is priced 312 to 650 rupees per sq ft. A 300 by 450 mm wall tile has 5.6 m at 45 to 335 rupees; 300 by 600 mm has 5.0 m at 69 to 356 rupees; 600 by 600 mm has 3.3 m at 37 to 102 rupees; and a 600 by 1,200 mm slab-look tile covers the panel with 2.5 m at 92 to 109 rupees per sq ft. — Every step up in tile size cuts the grout you scrub after tadka. Prices are Orientbell list prices per sq ft read on 21 Oct 2026, across many designs and finishes. Diagram: MOA

Kitchen tiles design for small kitchen

Pick the size from the dado height. A 600 mm band takes one row of 300 x 600 mm tiles stood upright, two rows of 300 x 300 mm, or one 600 x 1,200 mm tile on its side, with no thin cut strip at the top (our guidance).
Light, plain tiles keep a small kitchen calm; keep pattern to one strip, if any (our guidance).
Grout close to the tile colour so the joints do not draw a grid across a short wall.
Order extra: Orientbell's kitchen wall tile page advises buying at least 10% more for waste and breakage.

Cabinet sizes and costs for small kitchens are in our coming posts on modular kitchen design and modular kitchen price per sq ft.

Oil, haldi and grout: epoxy vs cement

Glazed tile faces resist stains well; the joints are the weak point. BIS's product manual for IS 15622:2017 lists the stain tests: glazed tiles are stained with methylene blue and potassium permanganate, unglazed tiles with staining pastes, iodine and olive oil, and both face household chemicals, acids and alkalis. Orientbell's Sparkle wall tile sheet declares it conforms on staining and household chemicals.

Grout makers are blunt about cement grout. Asian Paints' sheet for its SmartCare cement-based grout, for joints up to 5 mm, says: do not use it "when high chemical, impact, stain resistance, is required", and to use its epoxy grout instead. Pidilite's Roff Starlike, a two-part epoxy grout for 1 to 15 mm joints, is described as stain-resistant against "grease, gunk, or oil stains"; Roff asks for 24 hours between laying and grouting, and 48 hours for a full cure.

Our guidance:

Epoxy grout behind the hob, around the sink and on the counter-to-tile joint; cement grout is fine on other walls.
Matt or textured wall tiles hide splashes; glossy tiles show them but wipe clean faster. Behind the hob, wipe-clean matters more.
Seal the joint between counter and tile with a flexible sealant, not grout, because the two move differently.

Backsplash tiles for kitchen: slab alternatives

The dado band need not be tile. Three alternatives have almost no joints:

Porcelain slabs: Orientbell lists Granalt slabs of 800 x 2,400 mm under kitchen countertops at ₹368 to ₹637 per sq ft. A 600 x 1,200 mm GVT laid on its side is the cheaper version of the same idea.
Stone upstand: run the counter granite up the wall. CPWD prices 18 mm granite for kitchen platforms at ₹3,848.70 per sq m (about ₹358 per sq ft) and ₹5,136.30 for black, cherry or ruby red, both for slabs over 0.5 sq m. Our kitchen trends post covers the silica question for quartz.
Toughened or back-painted glass: one joint-free sheet, good behind the hob. We found no maker rate card we could cite, so get a quote with the cut-outs for sockets included.

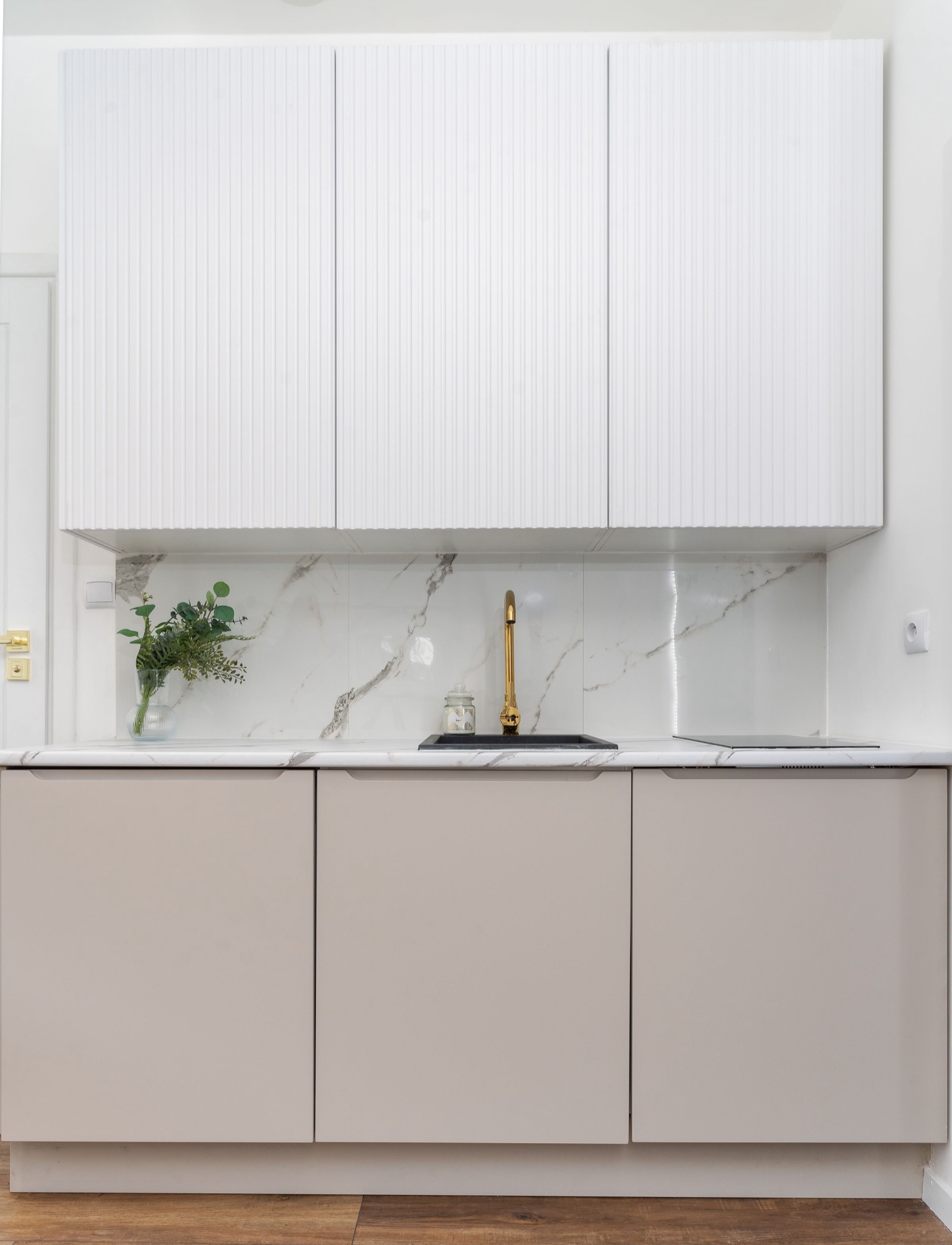

Straight kitchen with white fluted wall cabinets above taupe handle-less base units. Between the marble-look counter and the wall cabinets, three large glossy white panels with grey veining form the backsplash, with only two vertical joints, behind a black sink, a brass tap and a flush induction hob. — A slab-style backsplash: three large marble-look panels and two joints between counter and wall units, a low-grout option for the dado band. Image: Mateusz Pielech on Pexels, Pexels License

Kitchen floor tiles design for a wet Indian kitchen

An Indian kitchen floor is mopped daily and takes oil and water spills, so it needs a dense tile with grip:

Type: vitrified or GVT in a matt or anti-skid finish, never polished. Orientbell's anti-skid page says such tiles carry an R-value from a ramp test "between 9 and 13", and that for homes "any matte finish tile will suffice".
Slip rating: since Amendment No. 2 to IS 15622:2017, BIS requires floor-tile makers to test slip resistance to IS 18433 (Part 1) or (Part 2), with 28 June 2026 the last date for licensees. Ask the dealer for the declared value and which part it was tested to; the BIS circular does not set a number we could quote.
Size for a small kitchen: 600 x 600 mm suits most floors; 600 x 1,200 mm gives fewer joints in a galley kitchen (our guidance). Plan the cuts at the door, not the middle of the floor.
Skirting: where the floor is exposed, a 100 mm tile skirting keeps the mop off the paint (our guidance).

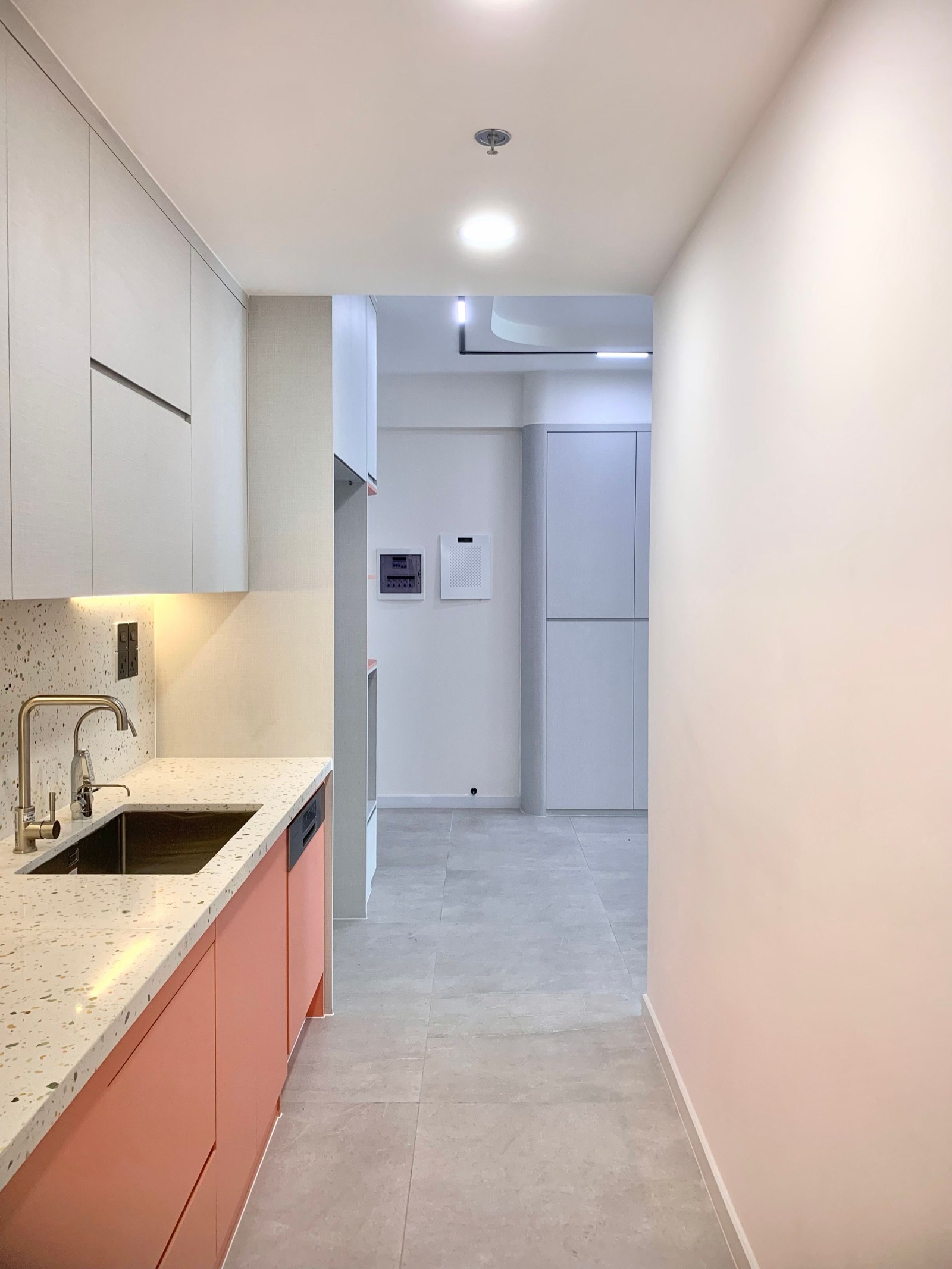

Narrow galley kitchen with coral base units, a white terrazzo-look counter and backsplash, and light grey wall cabinets. The floor is large-format grey stone-look tile with few joints, running from the kitchen into the passage beyond. — In a narrow kitchen, large floor tiles mean fewer joints to trap oil and a floor that reads as one surface. Image: Thới Nam Cao on Pexels, Pexels License

For stone, terrazzo and regional floors, see our flooring materials guide. If you are still deciding where the hob and sink go, see our vastu for kitchen post.

Kitchen tiles design price: per sq ft, and what laying adds

Tile (Orientbell list prices, per sq ft)	Range
Kitchen wall tile, 200 x 300 mm	₹34 to ₹49
Kitchen wall tile, 300 x 450 mm	₹45 to ₹335
Kitchen wall tile, 300 x 600 mm	₹69 to ₹356
Kitchen wall tile, 600 x 1,200 mm	₹92 to ₹109
Kitchen floor tile, 600 x 600 mm	₹55 to ₹89
Anti-skid tiles	₹50 to ₹100
Subway tiles (product listings)	₹312 to ₹650

Orientbell's own pages do not always agree: its kitchen floor page text says prices "start at Rs 34/sq ft and go up to Rs 495/sq ft", and its subway table starts at ₹344 while products are listed from ₹312. Read the price on the product you choose. A single product example: Orientbell's 300 x 450 mm ceramic wall tile GFT SPB Dyna Grey Lt is listed at ₹72 per sq ft, "incl. of all taxes", though it showed out of stock when we checked.

Laying is the part most quotes blur. CPWD's schedule separates it: the tile alone is a basic material rate, and the item rate adds mortar, labour, overheads and GST.

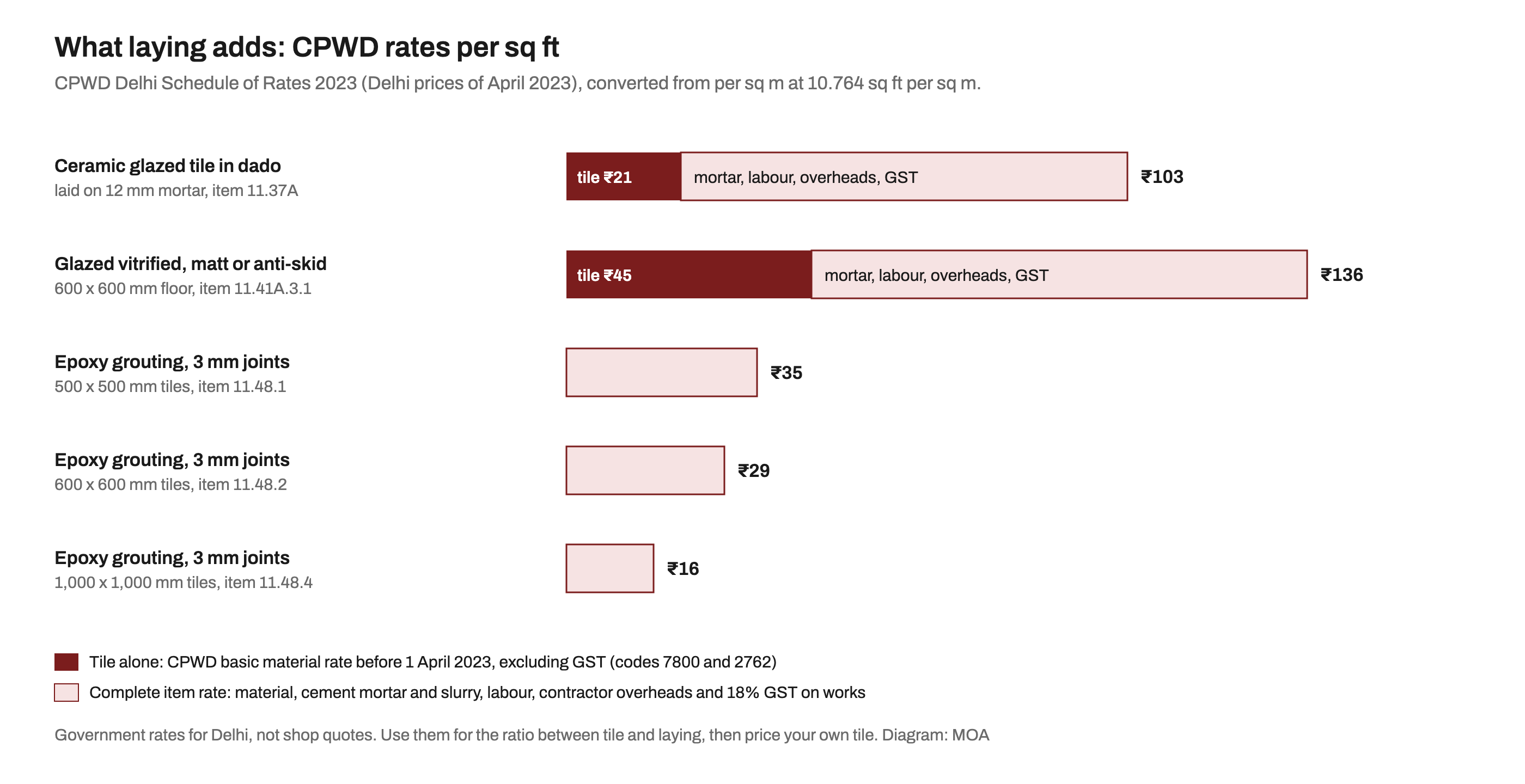

Horizontal bar chart of CPWD Delhi 2023 rates per sq ft. Ceramic glazed tile laid in a dado costs 103 rupees, of which the tile alone is 21 rupees and the rest is mortar, labour, overheads and GST. Matt or anti-skid glazed vitrified floor tile, 600 by 600 mm, costs 136 rupees laid, of which the tile is 45. Epoxy grouting of 3 mm joints costs 35 rupees for 500 mm tiles, 29 rupees for 600 mm tiles and 16 rupees for 1,000 mm tiles. — In CPWD's Delhi schedule the tile is a fifth to a third of a laid rate, and epoxy grouting gets cheaper as tiles get bigger. Government rates of April 2023, not shop quotes. Diagram: MOA

Per sq m, that is ₹1,112.70 laid against a ₹225 tile for the dado (item 11.37A), and ₹1,464.85 against ₹486 for the floor (11.41A.3.1). CPWD puts an average mason at ₹857 a day.

Worked example: a 10 ft cooking wall

Item	Area or rate	Cost
Dado band, 10 ft x 2 ft	20 sq ft
Behind the hob, 2 ft x 4.5 ft up to the ceiling	9 sq ft
Tile to buy, 29 sq ft plus 10% waste	32 sq ft at ₹45 to ₹335 (300 x 450 mm)	₹1,440 to ₹10,720
Laying and everything except the tile, CPWD basis	29 sq ft at about ₹82	About ₹2,380

The ₹82 is CPWD's ₹103 laid rate minus its ₹21 tile rate, on 2023 Delhi prices; city rates and small-job minimums will differ. For a whole-home budget, try MOA's free home cost calculator.

FAQ

What is the standard height of dado tiles in a kitchen?

There is no national standard. Common practice is about 600 mm (2 ft) from the counter to the wall units, and up to the ceiling behind the hob.

Which tiles are best for kitchen walls in India?

Glazed ceramic or GVT tiles, in the largest size your dado height allows, with epoxy grout behind the hob and sink.

Which tile is best for a kitchen floor?

Matt or anti-skid vitrified or GVT tile, usually 600 x 600 mm, with a declared slip-resistance value tested to IS 18433.

What is the price of kitchen wall tiles per sq ft?

Orientbell's April 2026 table lists kitchen wall tiles from ₹34 to ₹356 per sq ft, and subway tiles from ₹312 to ₹650. Laying adds roughly ₹82 per sq ft on CPWD's 2023 Delhi rates.

Planning a kitchen? Find an interior designer on MOA; the directory can be filtered by city.

Sources

Bureau of Indian Standards: IS 15622:2006, Pressed Ceramic Tiles: Specification, via Public.Resource.Org (accessed 21 Oct 2026)
Bureau of Indian Standards: Product Manual for Pressed Ceramic Tiles according to IS 15622:2017 (accessed 21 Oct 2026)
Bureau of Indian Standards: Guidelines for implementation of Amendment No. 2 to IS 15622:2017, 2 Apr 2026 (accessed 21 Oct 2026)
CPWD: Delhi Schedule of Rates 2023, Volume 1 (accessed 21 Oct 2026)
Orientbell Tiles: Kitchen wall tiles (accessed 21 Oct 2026)
Orientbell Tiles: Kitchen floor tiles (accessed 21 Oct 2026)
Orientbell Tiles: Kitchen tiles (accessed 21 Oct 2026)
Orientbell Tiles: Subway tiles (accessed 21 Oct 2026)
Orientbell Tiles: Anti-skid tiles (accessed 21 Oct 2026)
Orientbell Tiles: Mosaic tiles (accessed 21 Oct 2026)
Orientbell Tiles: GFT SPB Dyna Grey Lt (accessed 21 Oct 2026)
Orientbell Tiles: Technical specifications for wall tiles (accessed 21 Oct 2026)
Orientbell Tiles: Technical specifications of glazed vitrified tiles (accessed 21 Oct 2026)
H&R Johnson (India): Kitchen tiles (accessed 21 Oct 2026)
Kajaria Ceramics: Kitchen tiles (accessed 21 Oct 2026)
Asian Paints: SmartCare Tile Grout, cement based (accessed 21 Oct 2026)
Pidilite: Roff Starlike epoxy grout (accessed 21 Oct 2026)
IKEA: METOD kitchen cabinets buying guide (accessed 21 Oct 2026)
Faber India: Installing a kitchen chimney at home (accessed 21 Oct 2026)
Pexels: Pexels License (accessed 21 Oct 2026)
