Staircase Design for Home: Inside, Outside and Small Spaces

Good staircase design for a home starts with three numbers from India's Model Building Bye-Laws 2016: risers no higher than 190 mm, treads at least 250 mm deep, and 2.2 m of clear headroom. For a typical 10 ft floor height that works out to 17 risers of about 179 mm, and the type you choose (straight, dog-leg, spiral or floating) then decides how much floor the stair takes, from about 2.25 sq m for a spiral to 6.3 sq m for a dog-leg.

About the numbers below: the rules come from the Model Building Bye-Laws 2016, a template that each state adapts, and from Maharashtra's UDCPR, the one state code we quote. Check your own city's bye-laws. The national code SP 7:2026 replaced the NBC 2016 on 30 April 2026, but BIS sells its text and we have not quoted it. Prices are CPWD Delhi Schedule of Rates 2023 items for government works, which include GST; they are a reference point, not a market quote. Anything marked "our guidance" is common practice, not a rule.

This guide is about design: sizes, types, materials, safety and cost. For direction, turning and step-count traditions, see our vastu for staircase guide.

Staircase design with dimensions: the rules for homes

Section 4.17 of the Model Building Bye-Laws 2016 (MBBL, page 57) sets the residential minimums. Maharashtra's UDCPR 2020 (updated January 2025) shows how a state adapts them.

Item	MBBL 2016, homes	Maharashtra UDCPR
Clear width	1.0 m; 0.75 m for two-storey row housing (4.17.2)	0.75 m for individual houses up to G+2 and inside duplex flats; 1.0 m for apartment blocks up to 15 m (9.28.8)
Tread (going)	250 mm minimum, measured without the nosing (4.17.3)	250 mm (9.29.3)
Riser	190 mm maximum, 12 risers a flight (4.17.4.1); 15 a flight in the high-rise chapter (5.4.3)	190 mm, 15 a flight (9.29.3)
Headroom	2.2 m clear on the stair and under a landing (4.17.4.2)	2.2 m under a landing (9.29.3)
Handrail height	0.9 m from the centre of the tread (5.4.3, high-rise chapter)	1.0 m from the centre of the tread (9.29.3)
Spiral stair	At least 1.5 m diameter, low occupant load, buildings up to 9 m (11.8.1)	Same 1.5 m and 9 m limits (9.29.4)

Two details matter on site. The MBBL says treads must be "constructed and maintained in a manner to prevent slipping" (5.4.3, page 82). And the 12-risers-a-flight limit means a 10 ft stair cannot be one straight run of 17 steps: it needs a landing part-way.

How do you calculate a staircase? The 2R + T formula

Divide the floor-to-floor height by the riser you want, round up, then share the height out equally.

Risers: 3,048 mm (10 ft) ÷ 190 = 16.04, so 17 risers. 3,048 ÷ 17 = 179.3 mm each.
Treads: one fewer tread than risers in each flight. With 270 mm treads and a 9 + 8 split, that is 8 treads, a landing, then 7 treads.
Comfort: twice the riser plus the tread (2R + T) should fall between 550 and 700 mm. Here 2 × 179 + 270 = 628 mm.

We could not open an Indian code that states the comfort rule, so the 550 to 700 mm band is from the UK's Approved Document K (Table 1.1, page 5), which also caps a private stair's pitch at 42°. Ours is about 34°. In our guidance, treads of 270 to 300 mm and risers of 150 to 180 mm feel easy for older parents; the MBBL's own standard for stairs used by elderly and disabled people in public buildings is a 150 mm riser and a 300 mm tread (8.5, page 108).

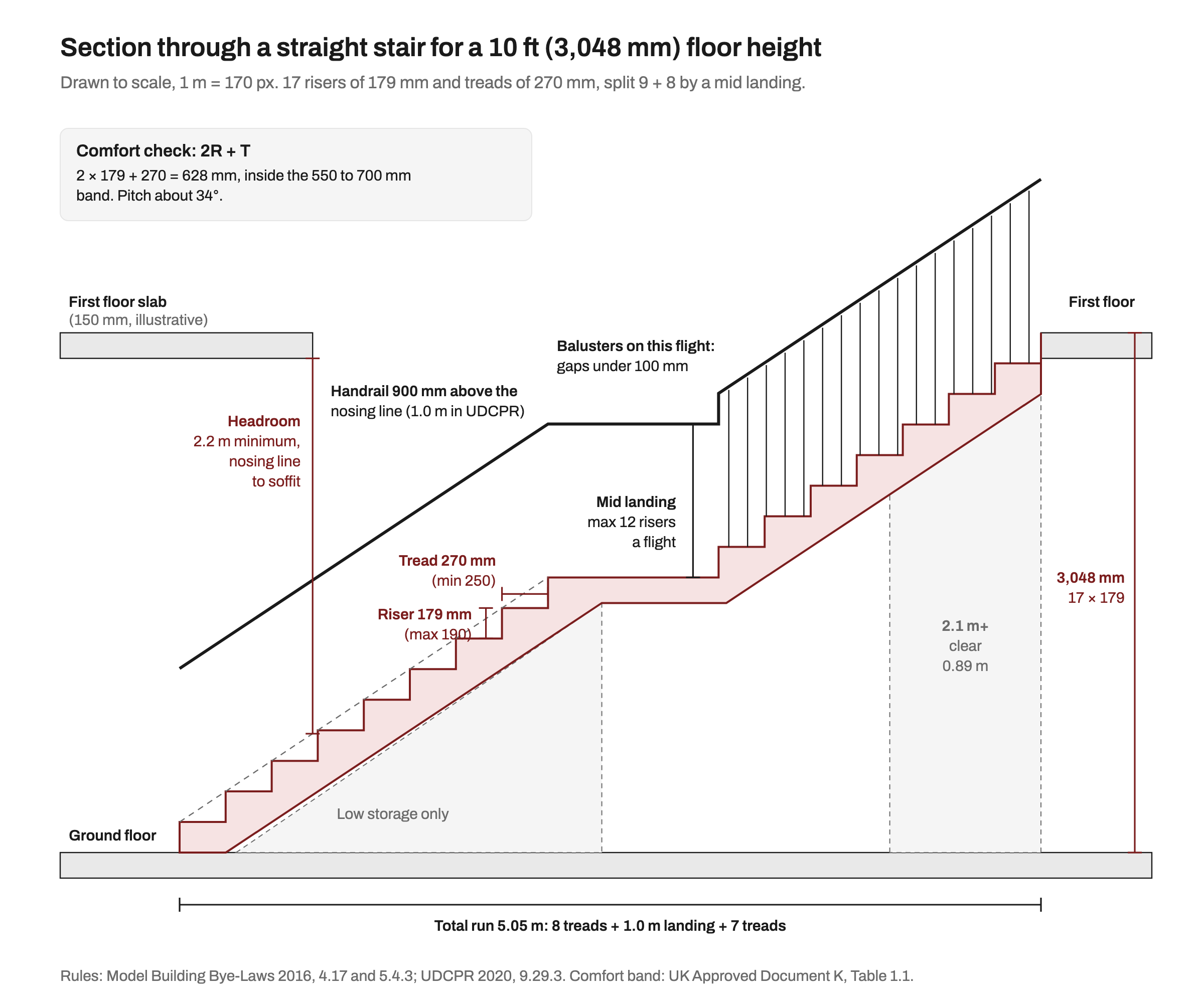

To-scale section of a straight residential stair for a 3,048 mm (10 ft) floor height: 17 risers of 179 mm and 270 mm treads split 9 and 8 by a 1.0 m mid landing, a handrail 900 mm above the nosing line, 2.2 m headroom measured from the nosing line to the first-floor slab edge, low storage under the first flight and only 0.89 m of run with 2.1 m clear under the second — Section of a 10 ft stair drawn to scale, checked against the bye-law riser, tread, flight and headroom limits and the 2R + T comfort rule. Diagram: MOA

The section also shows the headroom trap. The first-floor slab can only overhang the bottom of the stair as far as the point where 2.2 m remains above the nosing line, about 0.78 m in this example. Get this section drawn before the slab is cast.

Staircase design plan: straight, dog-leg, spiral and more

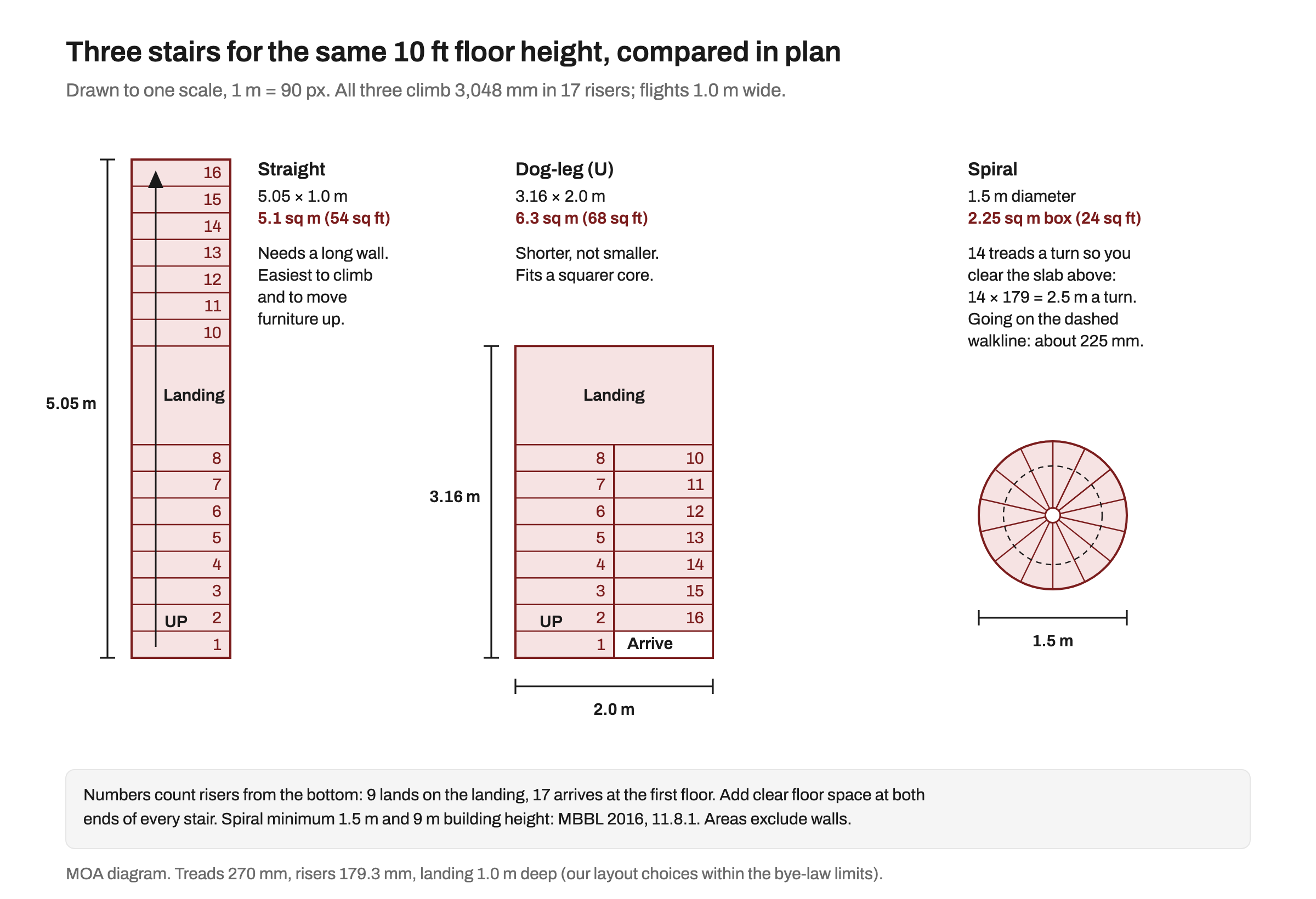

Plans at one scale of three stairs for a 10 ft floor height: a straight stair with a mid landing 5.05 m long and 1.0 m wide (5.1 sq m), a dog-leg stair 3.16 m by 2.0 m with a full-width landing (6.3 sq m), and a 1.5 m diameter spiral stair (2.25 sq m box) with a dashed walkline — Straight, dog-leg and spiral footprints for the same 10 ft climb: the dog-leg is shorter, the spiral is smallest but steepest. Diagram: MOA

Straight with a mid landing: about 5.05 m by 1.0 m. Easiest to climb and to carry a mattress up, but it needs a long wall.
L-shaped: the same treads turned 90° at the landing, to fit a corner.
Dog-leg (U-shaped): two flights side by side with a full-width landing, about 3.16 m by 2.0 m. It is shorter, not smaller, and suits the square stair core of most Indian houses.
Spiral: the bye-law minimum of 1.5 m diameter fits in a 2.25 sq m box. To clear the slab above, our layout needs 14 treads a turn, which leaves a going of about 225 mm on the walkline. That is steeper than a normal stair, so treat a spiral as the second stair to a terrace or study (our guidance), not the only stair for grandparents.
Floating (cantilevered): solid treads fixed into a wall or a hidden steel stringer, with no visible support below. The wall must be designed for it, usually RCC rather than brick (our guidance), so decide before construction.

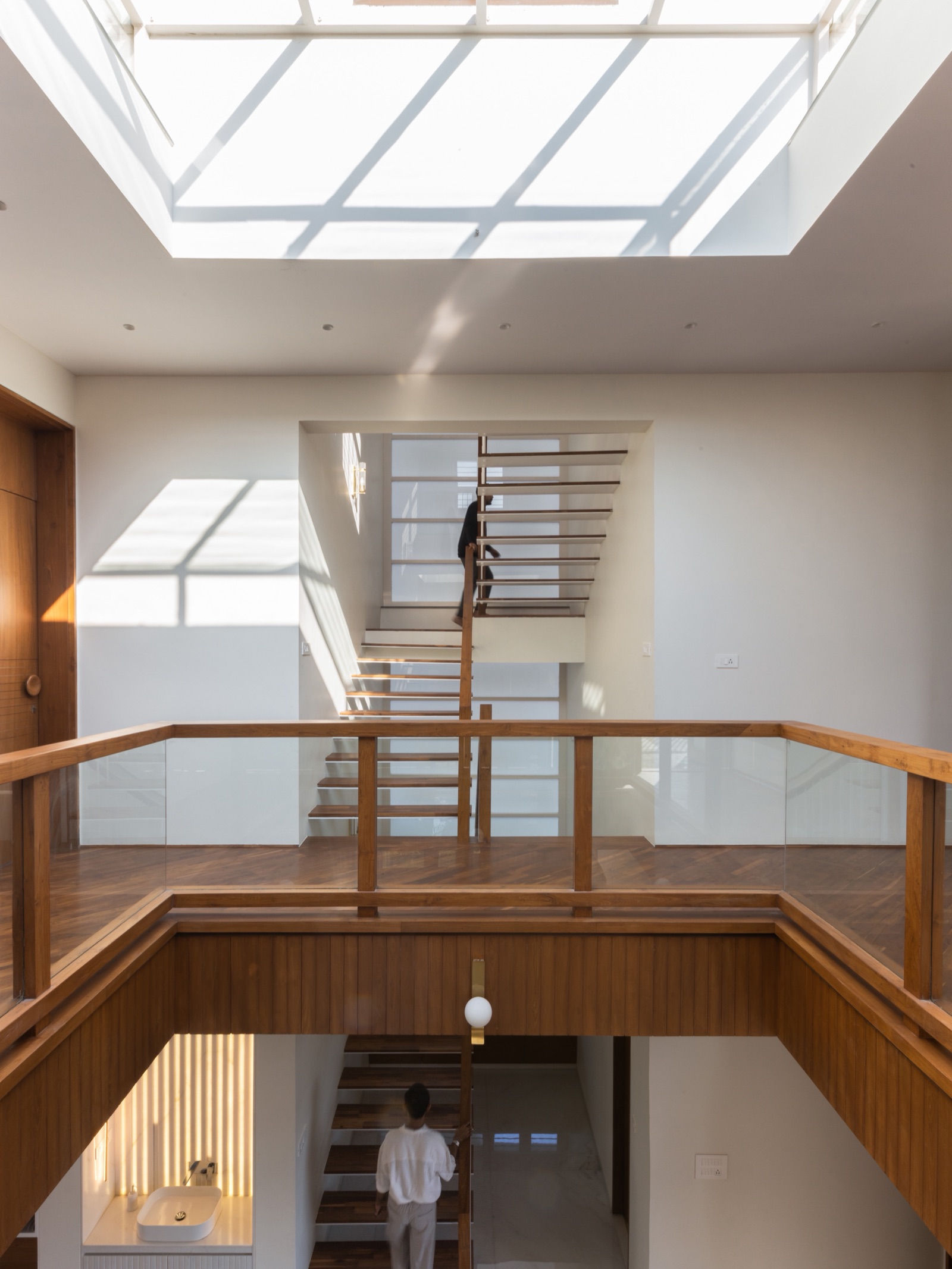

View across a double-height void with a timber and glass railing towards a dog-leg staircase of thin timber treads with open risers, lit by a large skylight, in an Ahmedabad bungalow — A dog-leg stair with open-riser timber treads under a skylight, with a glass and timber guard around the void, HVR, Ahmedabad. Image: 540X Partners on MOA

Staircase design for small spaces in India

Use the narrower width where it is allowed. The MBBL allows 0.75 m for two-storey row housing, and UDCPR allows 0.75 m inside duplex flats and individual houses up to G+2. A 0.75 m stair still meets the same riser, tread and headroom rules.
Turn the stair. A dog-leg or L-shape fits a 2 m by 3.2 m core where a straight stair would need 5 m of wall.
Keep it visually light. Open risers, a steel stringer and a glass or slim rod railing let light through. If you leave the risers open, the UK guidance says a 100 mm sphere should not pass between treads and the treads should overlap by at least 16 mm (Approved Document K, 1.9).
Plan it with the slab. Our small-plot guide shows how much a stair core takes out of a 30×40 plan.

Under-stair storage or a powder room?

Storage almost always works: shoe drawers, a pull-out pantry or a low cabinet under the first flight. A powder room is harder. The MBBL wants a water-closet to be at least 1.1 sq m with a 0.9 m minimum width, and 2.1 m high to the lowest point of its ceiling (4.5.1 and 4.5.2, page 52). Under our 10 ft straight stair, only the top 0.89 m of the second flight has 2.1 m clear, which is about 0.89 sq m on a 1.0 m wide stair, short of the 1.1 sq m minimum. A toilet under the stairs usually needs a taller floor height or a room that extends beyond the stair footprint.

Steel staircase design, and steel with wooden treads

Steel suits small homes: the stringers are slim and made off-site. The common modern version is a painted mild steel (MS) stringer carrying wooden or stone treads.

MS: cheaper and easy to weld; needs primer and paint, and regular touch-ups outdoors.
SS (stainless steel): mostly for railings and handrails; Grade 304 is the grade CPWD's schedule prices for railings.

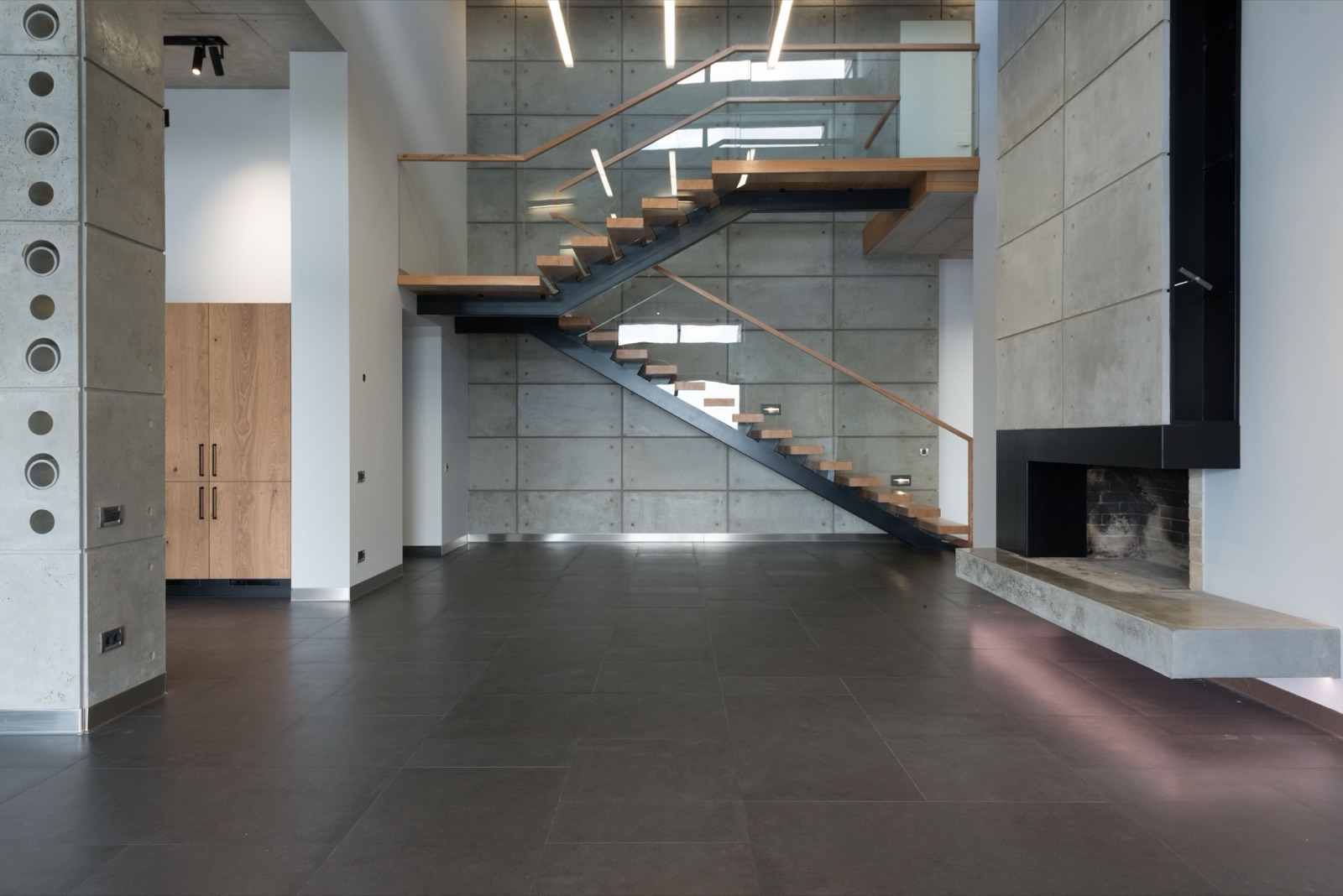

Open-plan double-height space with a concrete-panel wall and a staircase of black steel stringers carrying light oak treads, with a mid landing and a glass balustrade topped by a wooden handrail — Black steel stringers with oak treads and a glass guard: the steel-and-wood stair most Indian fabricators can build. Image: Max Vakhtbovych on Pexels, Pexels License

Materials: granite, marble, kota, wood

Our guide to natural stone for houses compares the stones in detail. For stairs, the questions are grip and wear.

Material	Grip	Maintenance
Granite	Polished granite is slippery when wet; flamed or leather finish grips better	Very hard wearing; does not stain easily
Marble	Polished marble is slippery, especially with socks or water	Softer; edges chip and it stains, so it needs periodic polishing
Kota stone	Good grip in its natural or honed finish	Low cost and durable; dull finish shows less wear
Wood	Good if matt finished; add anti-slip strips if polished	Scratches; refinish every few years; keep dry
Steel tread	Use chequered or perforated plate outdoors	Paint MS against rust

The table is our guidance. On any material, a contrasting nosing strip shows where each step ends.

Staircase railing design and child safety

Gaps: we found no baluster-gap figure for homes in the MBBL. UDCPR caps gaps at 150 mm on external stairs (9.29.4, page 167). The UK rule for homes used by children under five is stricter: a 100 mm sphere must not pass through any opening in the guarding, and children should not be able to climb it easily (Approved Document K, 1.39, page 16). We suggest designing to 100 mm.
No ladders: horizontal rails and wide decorative patterns can be climbed. Use vertical rods, glass or perforated panels.
Height: 0.9 to 1.0 m above the nosing line on the flight. At a terrace edge or the top of a void, the MBBL requires parapets and handrails of 1.0 to 1.2 m (4.12, page 55).
Two rails when wide: the UK guidance asks for a handrail on both sides when a stair is 1.0 m or wider (1.34).

Staircase design with light

UDCPR treats a staircase as adequately lit and ventilated when it has openings of at least 1.0 sq m per landing on an external wall (9.20.1, page 160). A window at the landing or a skylight over the stairwell is the simplest way to meet that and save power by day. After dark, our guidance:

Two-way switches at the top and the bottom.
Light the treads, not people's eyes: step lights in the wall at about knee height, or an LED strip under the handrail.

For fittings and colour temperature, see our lighting trends 2027 guide.

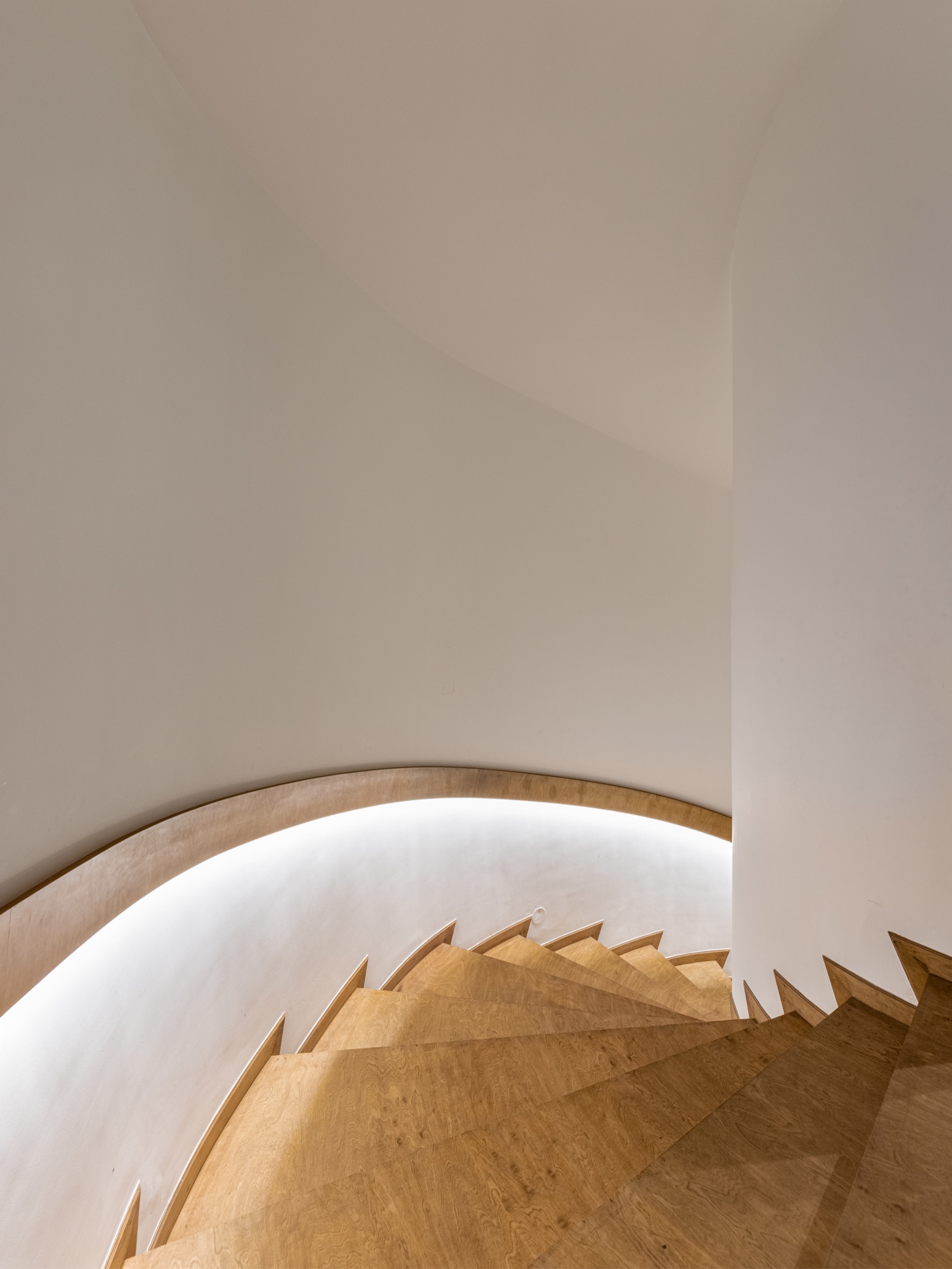

Looking down a curved staircase with light wood treads between smooth white curved walls, with a timber handrail set into a recessed groove in the wall and an LED strip lighting the steps from inside the groove — A handrail recessed into the wall with a hidden LED strip lights every tread without a single fitting in view, Snail House, Panchkula. Image: Varun Garg Architects on MOA

Staircase design for home outside

An external stair to the terrace or a rental upper floor is usually RCC with a waist slab, or a steel frame. For an outdoor stair, our guidance:

Finish treads in flamed granite, Kota or another rough stone, not polished stone or glossy tiles.
Give each tread a slight fall towards the nosing so rain runs off.
Galvanise or paint steel and recheck it after every monsoon.
Put a light at the top and the bottom.

Whether an external stair can sit in a setback depends on your city; our setbacks, FAR and height guide explains those rules.

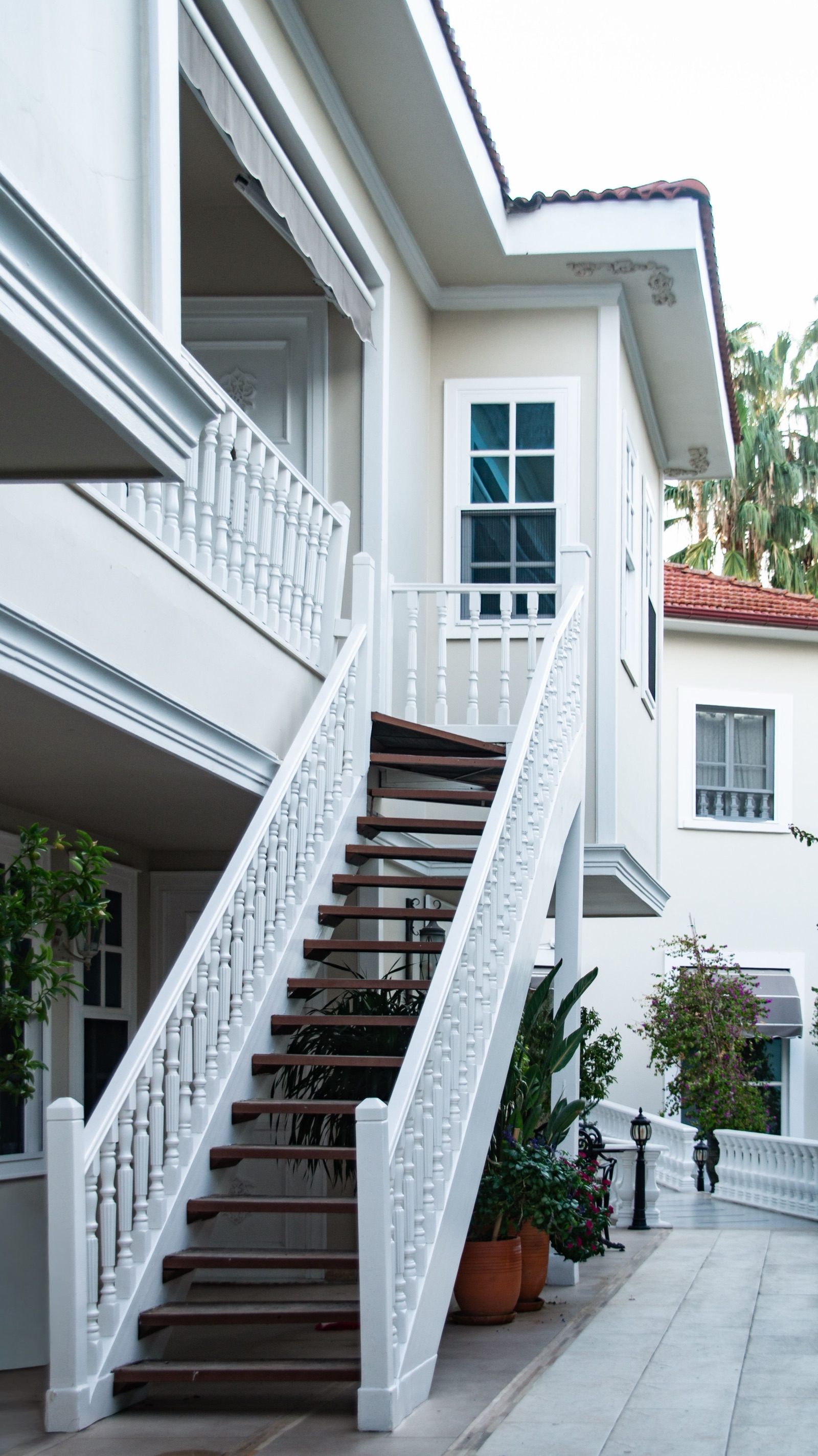

A straight external staircase with dark timber treads and open risers rising along a white two-storey villa to an upper verandah, with white turned balusters on both sides and potted plants beneath the flight — An external stair to the upper floor with balustrades on both sides; outdoors, the treads need a grippy finish and a slight fall to shed rain. Image: Ayşegül Aytören on Pexels, Pexels License

Staircase design cost

CPWD's Delhi Schedule of Rates 2023, Volume 1 prices the parts of a stair as supply-and-fix items for government works. Its preface says GST at 18% is included in all items.

DSR 2023 item	Rate
Polished granite flooring, 18 mm, colours other than black and cherry red (11.56.2)	₹3,071 per sq m
Flamed finish granite flooring, 18 mm (11.55.1)	₹3,187 per sq m
Makrana white marble flooring, second quality, 18 mm (11.23.1)	₹3,737 per sq m
Extra for prefinished nosing on marble treads (11.24)	₹720 per metre
Kota stone flooring, 25 mm (11.26.1)	₹1,948 per sq m
Kota stone in risers, 20 mm (11.27)	₹2,355 per sq m
Structural steel in stair stringers, treads and landings (10.25.1)	₹124 per kg
MS tube handrail (10.26.1)	₹197 per kg
Stainless steel (Grade 304) railing (10.28)	₹772 per kg
25 mm second-class teak planking (11.33.1)	₹4,509 per sq m

As a rough illustration (our arithmetic): the 10 ft stair in our section has about 8 sq m of treads, risers and landing to clad. At the DSR polished granite rate that is about ₹25,000, before nosing, edge polishing and the railing. Steel stairs and railings are priced by weight, so ask your fabricator for the kg in their quote, not just a lump sum. We could not find a published market rate for a complete staircase we could cite. For the whole house budget, try MOA's free home cost calculator.

FAQ

What is the standard size of a staircase in a house in India?

Under the Model Building Bye-Laws 2016: at least 1.0 m wide (0.75 m in two-storey row housing), treads of at least 250 mm without the nosing, risers of no more than 190 mm, at most 12 risers a flight and 2.2 m of headroom. Your state's bye-laws may differ slightly.

What is the formula for staircase design?

Count risers as floor-to-floor height ÷ maximum riser, rounded up, then check that twice the riser plus the tread (2R + T) falls between 550 and 700 mm. For 10 ft, 17 risers of 179 mm with 270 mm treads gives 628 mm.

Which material is best for stairs in an Indian home?

Granite with a flamed or leather finish is the hardest wearing and grips well; Kota is the budget option. Wood on a steel frame looks lighter in a small home. Avoid polished stone on outdoor or wet steps.

Is a spiral staircase allowed in a house?

Yes, for low occupant loads in buildings up to 9 m high, with a diameter of at least 1.5 m, under the MBBL fire chapter (11.8.1). It is steep, so it works best as a secondary stair.

A stair is fixed in the structure, so get it right in the drawings. Find architects on MOA for the plan and section, or interior designers on MOA for railings, cladding and lighting; you can filter both by city.

Sources

Ministry of Housing and Urban Affairs, TCPO: Model Building Bye-Laws 2016 (sections 4.5, 4.12, 4.17, 5.4.3, 8.5 and 11.8.1; pages 52, 55, 57, 82, 107 to 108 and 123) (accessed 21 Oct 2026)
Directorate of Town Planning, Maharashtra: UDCPR 2020, updated 30 January 2025 (regulations 9.20.1, 9.28.8, 9.29.3 and 9.29.4; pages 160 and 165 to 167) (accessed 21 Oct 2026)
UK Government: Approved Document K, Protection from falling, collision and impact, 2013 edition (Table 1.1 and paragraphs 1.9, 1.34 and 1.39) (accessed 21 Oct 2026)
Gazette of India, Bureau of Indian Standards: notification of 30 April 2026 on SP 7:2026 and SP 7:2016 (accessed 21 Oct 2026)
Central Public Works Department: Delhi Schedule of Rates 2023, Volume 1 (preface; sub-heads 10.0 Steel Work and 11.0 Flooring) (accessed 21 Oct 2026)
