Crockery Unit Design for Living and Dining Rooms

A good crockery unit design for an Indian home is about 450 mm deep at the base, with drawers that take steel thalis flat, and about 350 mm deep behind the glass, with shelf gaps of roughly 300 mm for plates and bowls, 250 mm for stemware and 230 mm for tumblers and cups. Choose toughened glass for the shutters, light it with low-wattage LED, and fix any tall unit to the wall.

About the numbers below: item sizes, rack sizes, shelf loads and glass properties come from makers' and sellers' pages we opened on 29 October 2026, linked where used. Unit sizes no maker publishes are marked "our guidance". Prices were read the same day and change often; the cost lines at the end are a market range, not a quote.

For where it goes, our Vastu guide for the dining area notes that crockery units and sideboards usually sit on the south or west walls.

What goes in an Indian crockery unit

List what you own before you draw anything. Four groups, each wanting a different place:

The dinner set and serving bowls. Dinner plates at IKEA India are 24 to 26 cm across (IKEA 365+, 24 cm; GODMIDDAG, 26 cm), and serving bowls run from 20 cm (BLANDA) to 30 cm (GLADELIG).
Steel thalis, parats and katoris. Bigger and heavier than the dinner set: one seller lists round steel thalis from 28 to 37.5 cm across, 2.5 to 3 cm deep (TF Cash & Carry).
Glassware and the tea set. A stemmed wine glass such as IKEA's STORSINT is 22 cm tall (IKEA India); a plain VARDAGEN tumbler is 13 cm (IKEA India).
Festival silver and brass. Diya stands, puja thalis, the Diwali silver. Heavy, used a few times a year, best kept closed against tarnish and dust.

Our guidance: daily things between knee and eye height, show pieces behind glass, heavy steel and brass low or in the loft, never on glass shelves.

Crockery unit dimensions: depths and shelf spacing

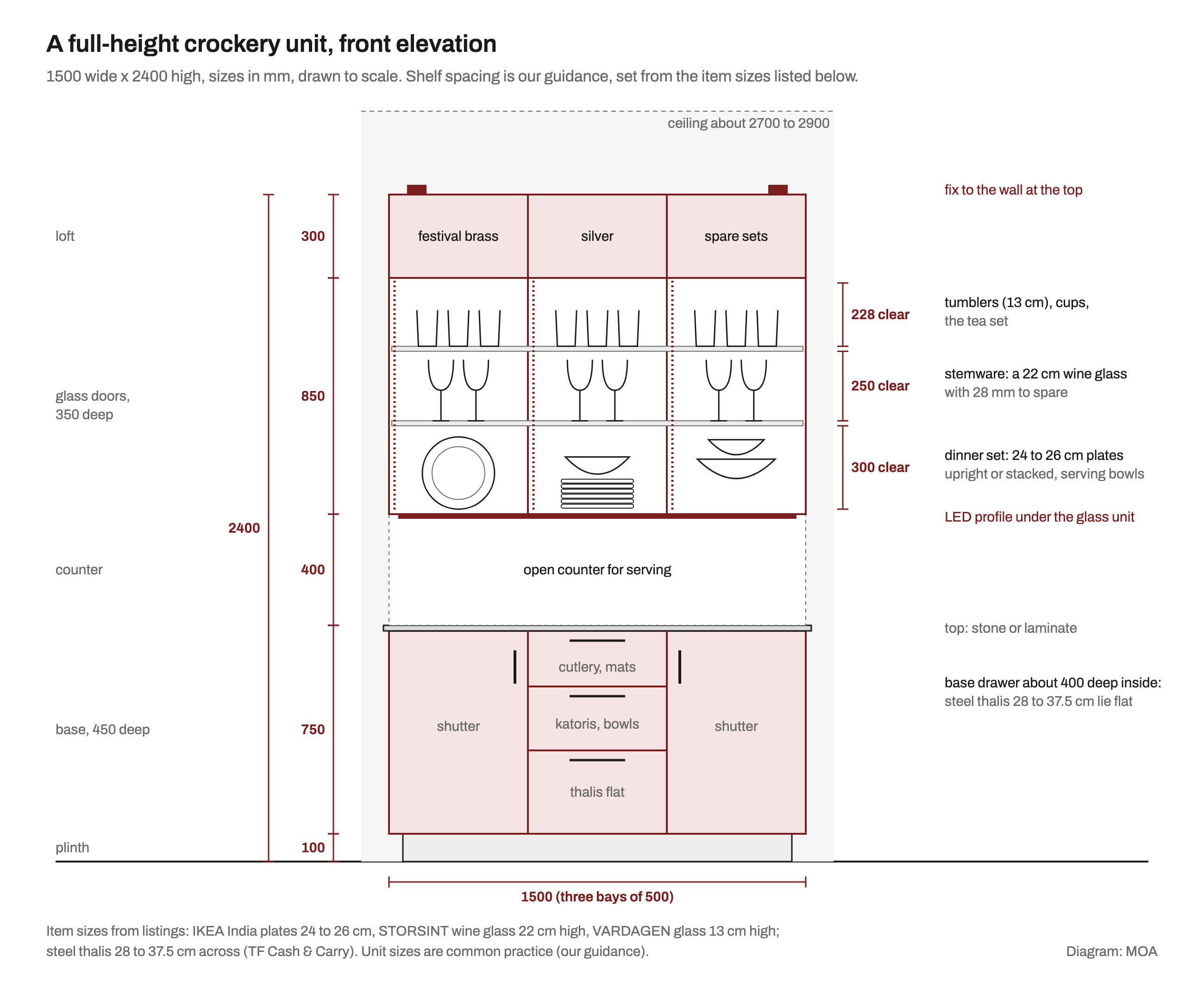

The elevation below is one full-height unit, 1500 mm wide and 2400 mm high, in three bays of 500 mm. It has the same 850 mm base, serving counter and 350 mm deep glass zone as the crockery unit in our coming post on Indian-style living rooms, with a 300 mm loft added on top.

One way to plan a full-height crockery unit: heavy thalis low in drawers, a serving counter at 850 mm, and shelf gaps set by what goes on them. Sizes are our guidance. Diagram: MOA

Shelf spacing for plates and glasses

300 mm clear: a 24 to 26 cm plate standing on edge in a plate groove, or a stack of the dinner set with serving bowls beside it.
250 mm clear: a 22 cm wine glass, with room to lift it out without tipping.
About 230 mm clear: tumblers, cups and the teapot.

Ask for adjustable shelves so the gaps can change with your crockery. IKEA's HEMNES glass-door cabinet, for example, comes with 3 adjustable shelves, each rated for 30 kg (IKEA India).

Depths

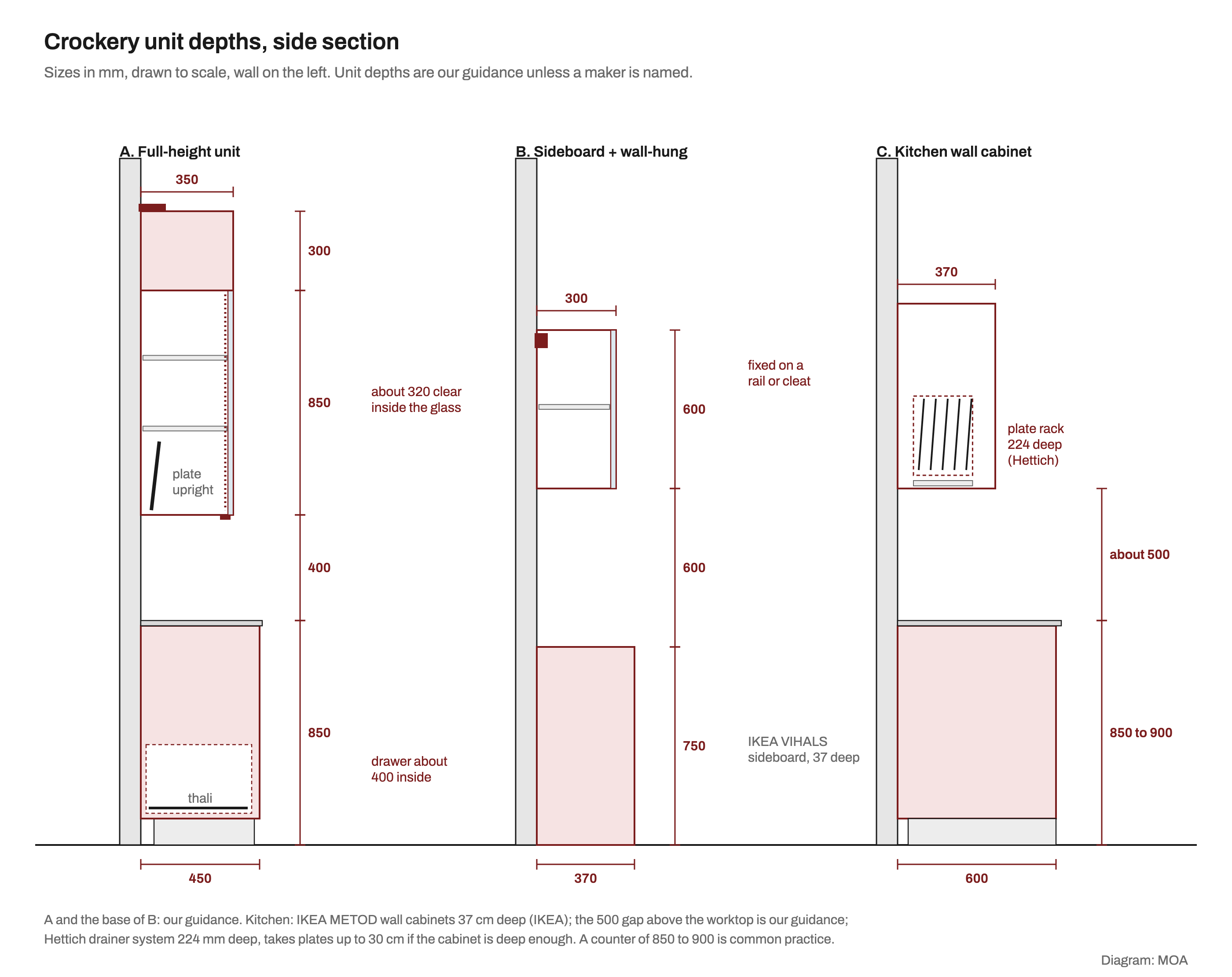

Side sections drawn to scale of three ways to store crockery against a wall. A, a full-height unit: a base 450 mm deep and 850 high with a drawer about 400 deep inside holding a thali flat, a 400 mm counter gap, a glass-door cabinet 350 deep and 850 high with about 320 mm clear inside and a plate standing upright, and a 300 mm loft fixed to the wall. B, an IKEA VIHALS sideboard 370 deep and 750 high with a 300 mm deep wall-hung glass cabinet 600 high, its underside 600 mm above the sideboard, fixed on a rail or cleat. C, a kitchen: base 600 deep, counter 850 to 900 high, and a wall cabinet 370 deep about 500 mm above the worktop holding a Hettich plate rack 224 mm deep. — Depths that hold Indian crockery: 450 mm below, 350 mm behind glass, 300 mm for a wall-hung unit and 37 cm for a kitchen wall cabinet with a plate rack. Diagram: MOA

Three depths do most of the work (our guidance):

Base, about 450 mm. A drawer box about 400 mm deep inside takes even a 37.5 cm thali flat. Keep thalis, parats and katoris here, where weight sits low.
Glass cabinet, about 350 mm. That leaves roughly 320 mm inside the door, enough for a plate upright, and keeps the counter below usable.
Open counter at 850 mm, about 400 mm high. For serving dishes on a festival day, with a socket for a hot case.

Ready-made units are shallower. IKEA India's BLÅLIDEN glass cabinet is 32 cm deep, its MOSSJÖN 34 cm and its RUDSTA and VIHALS 37 cm. These suit a dinner set, but not steel thalis of 30 cm and over.

Crockery unit near the dining table

IKEA's dining planning guide asks for a minimum of 80 cm between the table and whatever is behind it (IKEA). With a crockery unit behind the chairs, allow 90 cm to its front so a drawer opens while someone sits (our guidance). Our coming post on dining table design for 4 and 6 seaters has room sizes.

Crockery unit with glass doors

Glass decides how the unit looks, and how often you dust it.

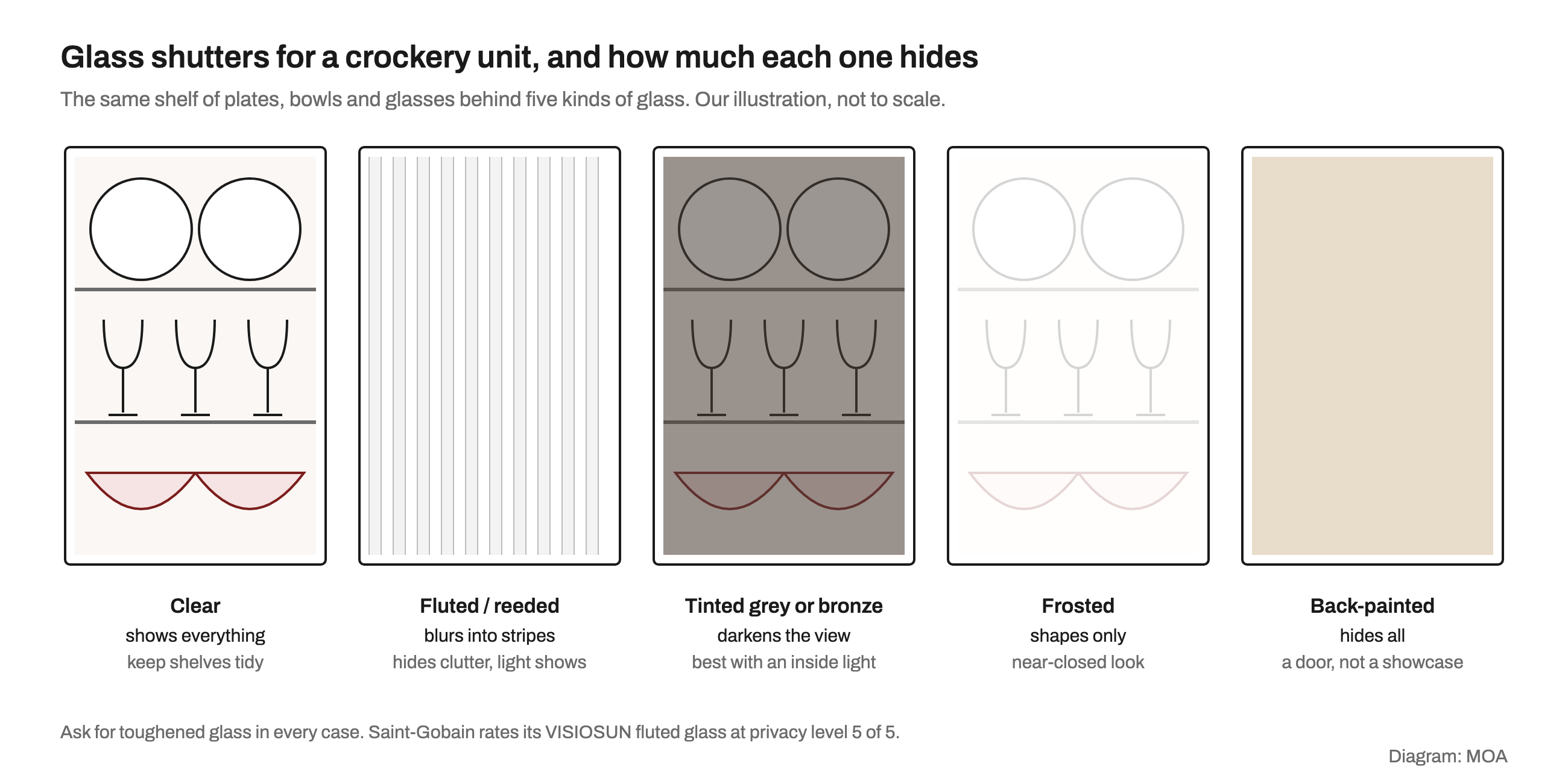

Five identical shelves of plates, wine glasses and bowls seen through different shutter glass: clear glass shows everything, fluted or reeded glass blurs them into vertical stripes, grey or bronze tinted glass darkens the view, frosted glass leaves faint shapes and back-painted glass hides everything. — Clear, fluted or reeded, tinted, frosted and back-painted glass over the same shelf of crockery. Whatever the look, ask for toughened glass. Diagram: MOA

Clear glass shows everything, so it works only if the shelves stay tidy.
Fluted and reeded glass are both ribbed; sellers use the two names loosely. Saint-Gobain describes its VISIOSUN as "fluted glass" with a reeded effect and gives it privacy level 5 on its 1 to 5 scale (Saint-Gobain UK). Shapes and light show through, clutter does not.
Tinted grey or bronze glass darkens the view and looks best with a light inside the unit.
Frosted and back-painted glass hide most or all of it: a cupboard with a glass finish.

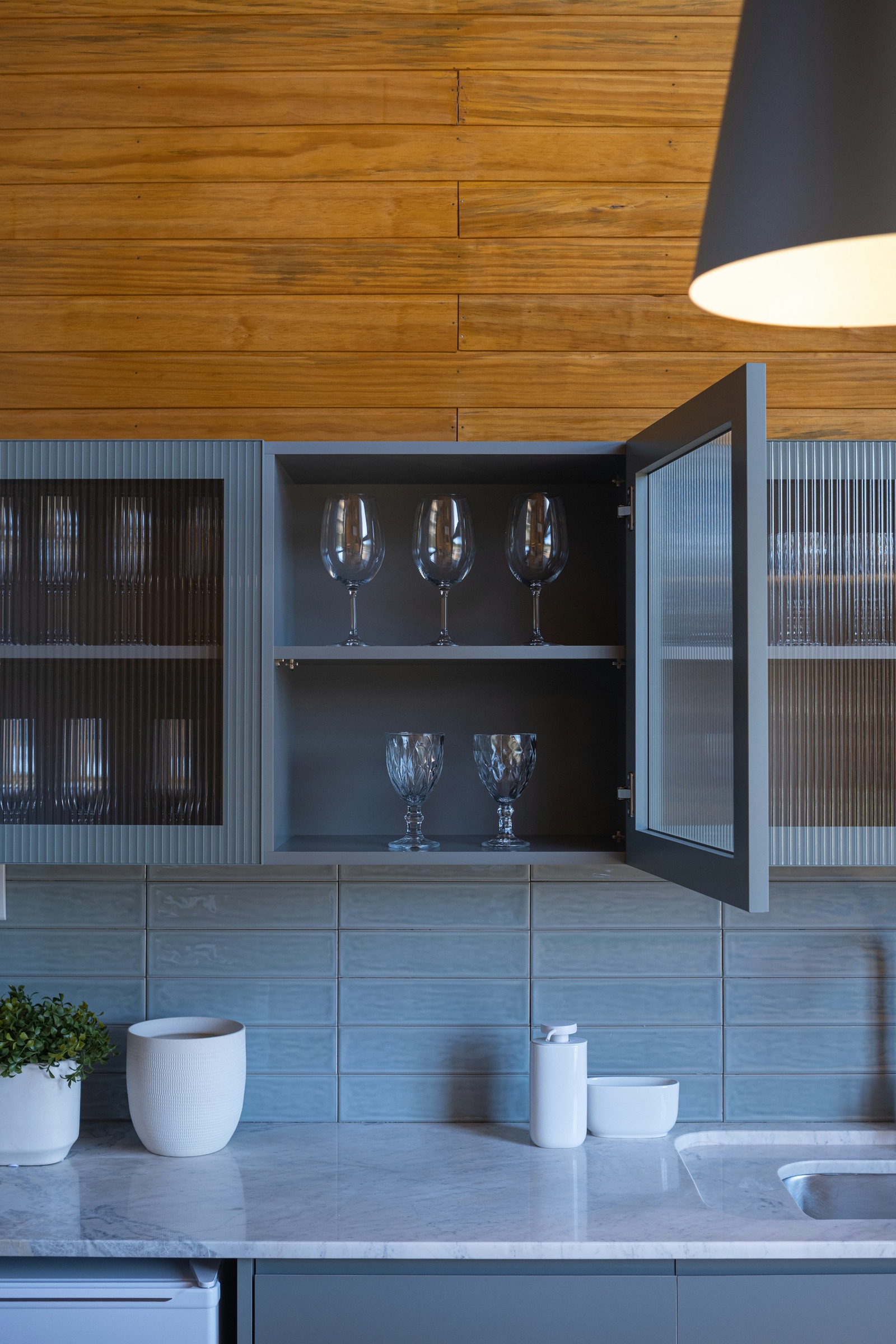

Grey kitchen wall cabinets with ribbed reeded glass doors above a marble counter and a blue tiled backsplash. One door stands open to show stemmed wine glasses on two shelves, while the closed reeded doors on either side blur the glassware behind them into vertical stripes. — Reeded glass in use: the closed doors blur the glassware, the open one shows it. Image: Caroline Badran on Unsplash, Unsplash License

Toughened glass, and child-safe choices

Whatever the pattern, ask for toughened glass. IKEA, which uses tempered (toughened) glass in its cabinet doors, says it is "4-5 times stronger" than regular glass and, if it breaks, "shatters into many granular pieces to reduce the risk of injury" (IKEA India, RUDSTA). For a carpenter-made unit, Saint-Gobain's 6 mm clear toughened glass is listed to IS 2553 and described as nearly four to five times stronger than annealed glass (L&T SuFin). Order the glass cut and drilled to size, since toughened glass cannot be cut afterwards.

Where small children play near a low glass door, laminated glass goes one step further: Pilkington says its fragments "adhere to the interlayer", typically PVB, when it breaks (Pilkington). Our guidance: in a home with toddlers, keep glass above about 850 mm and use solid shutters below.

Crockery unit with light, and heat

Light each bay from its front edge or under each shelf, not from one bright spot at the top. LED makes this easy: IKEA's STRIMSÄV spot for its BLÅLIDEN cabinet draws 1 W for 115 lumens, which IKEA compares to a 15-watt incandescent bulb (IKEA India). Our guidance: use LED profiles or spots of a few watts, keep the driver outside the closed glass box where it can breathe, and do not put halogen or old incandescent bulbs inside a closed cabinet.

Sideboard, full-height or wall-mounted crockery unit

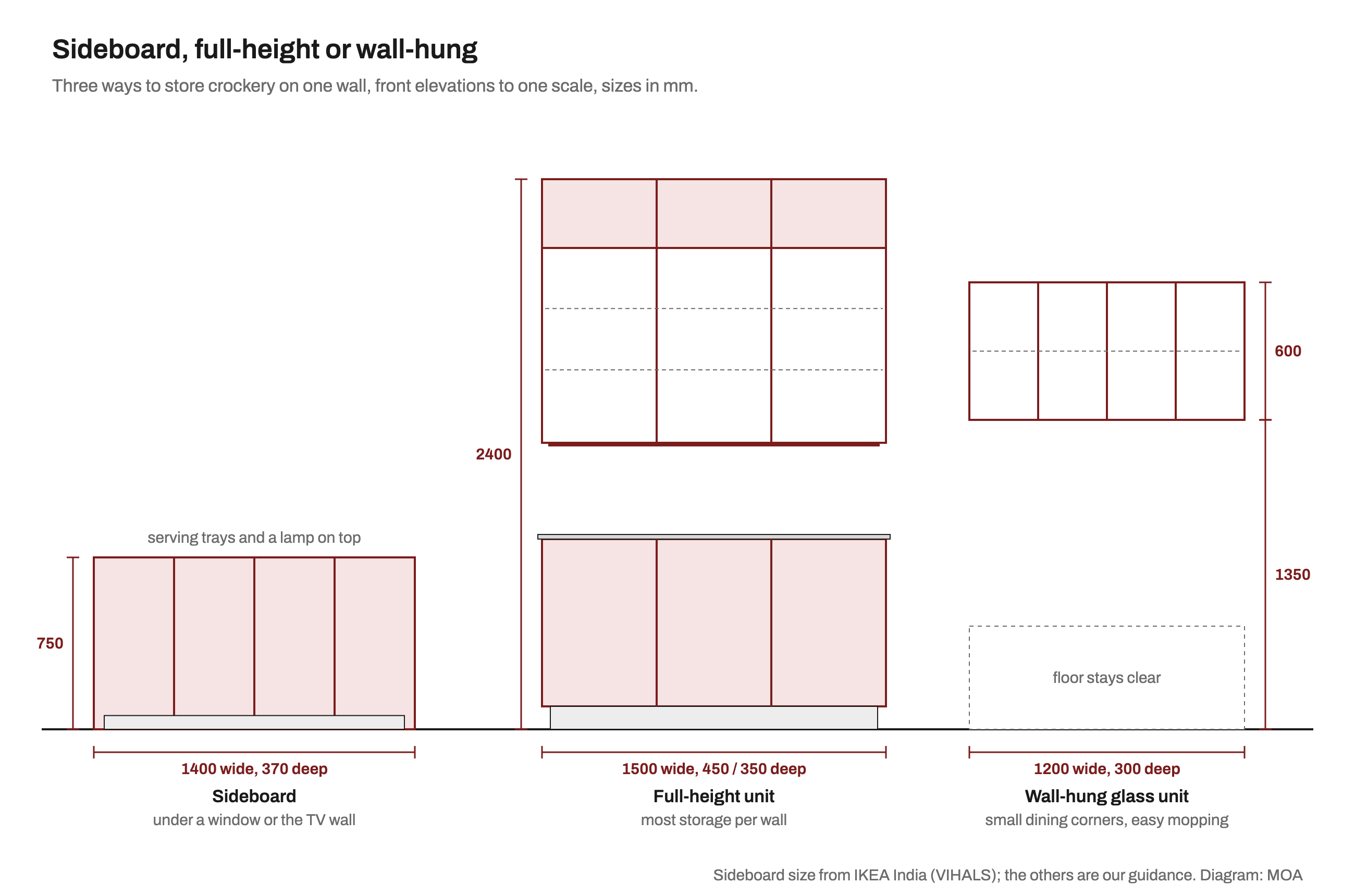

Front elevations to one scale of three crockery storage options: an IKEA VIHALS sideboard 1400 wide, 370 deep and 750 high with trays and a lamp on top; a full-height unit 1500 wide and 2400 high with a base, an open counter, glass doors and a loft; and a wall-hung glass unit 1200 wide, 300 deep and 600 high with its underside 1350 mm above a clear floor. — A sideboard, a full-height unit and a wall-hung glass unit for the same wall. Only the sideboard size is a maker's; the rest is our guidance. Diagram: MOA

Sideboard. Low and long, it sits under a window or beside the TV wall and gives a serving top. IKEA India's VIHALS sideboard is 140 cm wide, 37 cm deep and 75 cm high (IKEA India).
Full-height. The most storage for one wall, plus a loft for festival sets. It needs a clear wall of at least 1.5 m.
Wall-mounted. A glass cabinet about 300 mm deep, hung from a rail or cleat, leaves the floor clear for mopping and suits a small dining corner. Fix it into a solid wall, not a gypsum partition, and keep heavy steel out of it.

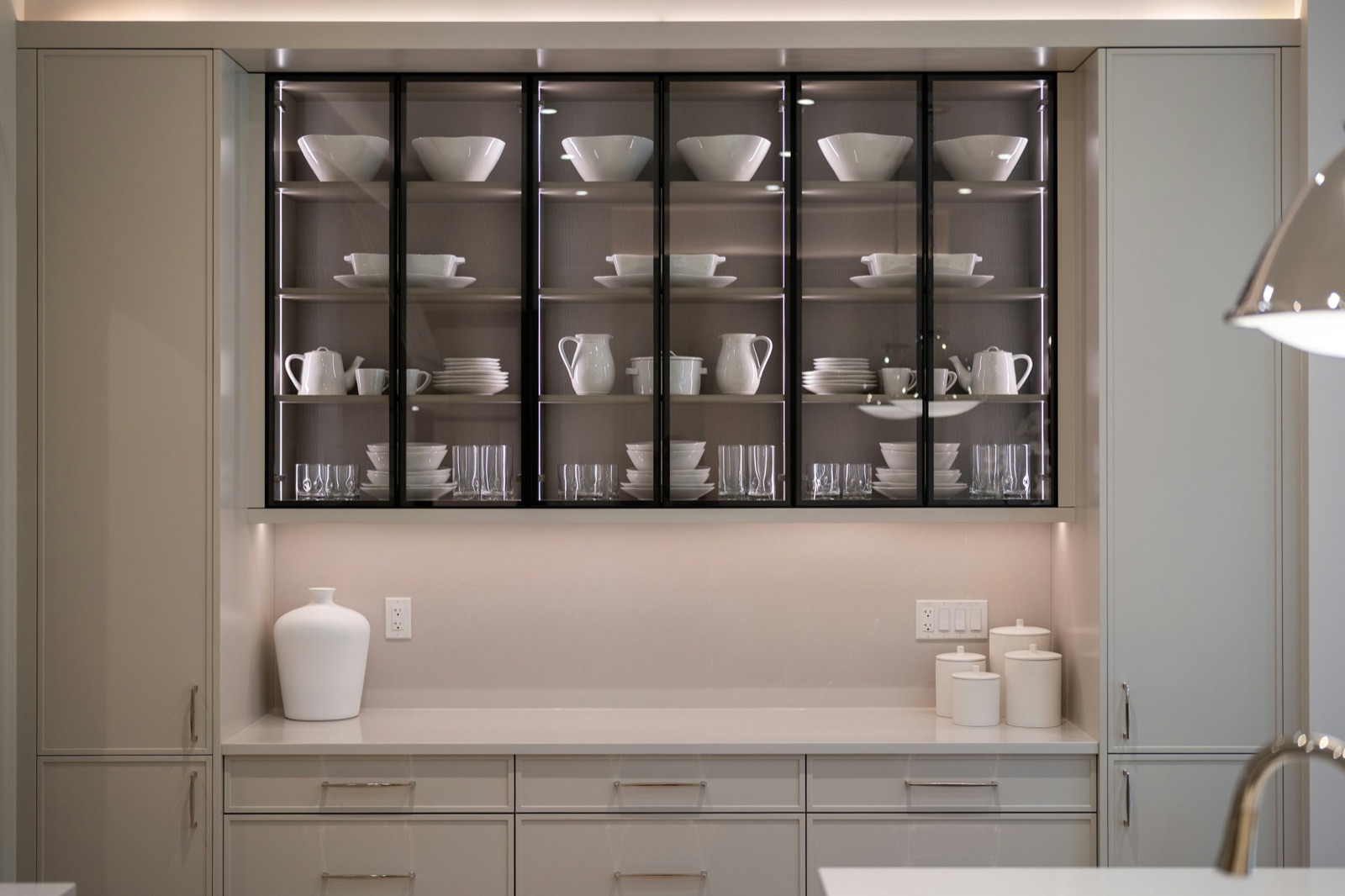

A built-in crockery unit along a wall: a row of six black-framed clear glass doors with lit glass shelves holding white bowls, serving dishes, jugs, teapots, stacked plates and tumblers, set above a pale stone counter with white canisters and a vase, with pale grey drawers below and tall grey cabinets on both sides. — A wall-hung glass unit over a counter and drawers, lit from the door edges: the full-height plan built as one run. Image: Franco Debartolo on Unsplash, Unsplash License

Crockery unit design for small spaces

In a 1BHK or compact 2BHK, the dining corner is often a strip beside the kitchen door. What works there (our guidance):

A wall-hung glass cabinet over a 37 cm deep sideboard instead of a full-depth unit.
A narrow tall unit in a leftover corner, like IKEA India's RUDSTA (42 × 37 × 155 cm) or BLÅLIDEN (35 × 32 × 151 cm).
Sliding glass doors where a hinged door would hit a chair. IKEA India's VIHALS cabinet with sliding glass doors is 95 × 37 × 90 cm (IKEA India).

Crockery unit with bar or mandir

With a bar. Stemware on its own 250 mm shelf or a hanging rack, bottles in a lockable base cupboard (our guidance).

With a mandir. Our guidance: give the mandir its own bay with its own doors, a solid shelf and no glassware above it, and keep a lamp's flame well clear of wood and glass. Our pooja room design guide for apartments has sizes for a mandir niche.

Crockery unit in kitchen

In a modular kitchen, crockery usually splits three ways: a drainer over the sink, glass wall cabinets for cups, and a tall unit for the dinner set and thalis.

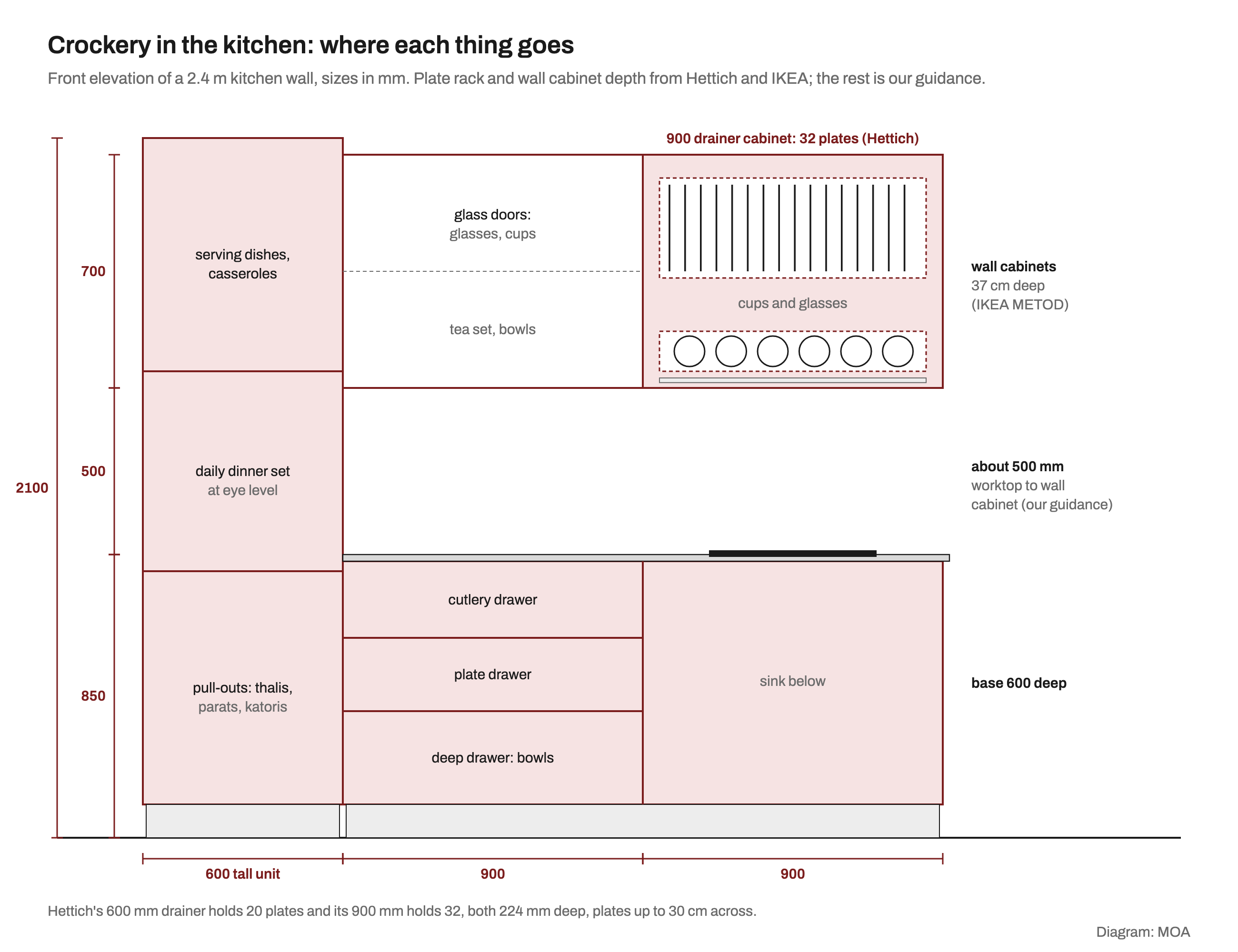

Front elevation of a 2.4 m kitchen wall: a 600 mm tall unit 2100 high with serving dishes at the top, the daily dinner set at eye level and thalis, parats and katoris in pull-outs; a 900 mm base with cutlery, plate and deep bowl drawers; a 900 mm base with the sink; and wall cabinets 700 high, about 500 mm above the 850 mm counter, one with glass doors for glasses, cups, the tea set and bowls, and one over the sink with a Hettich drainer for 32 plates and a rack for cups and glasses. — Crockery in the kitchen: a drainer cabinet over the sink, glass-door wall cabinets for cups, and a tall unit for the dinner set and heavy thalis. Diagram: MOA

Plate rack. Hettich's drainer system holds 20 plates in a 600 mm wall cabinet (Hettich) and 32 in a 900 mm one, is 224 mm deep, includes a cup and glass rack, and takes plates up to 30 cm across if the cabinet is deep enough (Hettich). IKEA India sells a 60 cm METOD wall cabinet with dish drainer at ₹15,450, and the UTRUSTA drainer alone at ₹4,000 (IKEA India).
Glass wall cabinets. IKEA's METOD wall cabinets are 37 cm deep (38.8 cm with doors) and hang on a suspension rail sold separately; its 80 × 80 cm cabinet with two anthracite reeded-glass doors is listed at ₹26,700 (IKEA India).
Tall unit. Thalis and parats in pull-outs at waist height, the daily set at eye level, serving dishes at the top.

For where these sit in the room, see our modular kitchen layouts guide.

Dust, safety and anchoring

Dust. Our guidance: glass doors rather than open shelves, soft-close hinges so doors shut fully, a loft to the ceiling so nothing collects on top, and a plinth instead of legs so you can mop up to it.
Anchor it. IKEA warns of a tipping hazard on its tall and low cabinets alike and says each "must be securely anchored", using screws and plugs that suit your wall (IKEA India). For MOSSJÖN it recommends the enclosed wall fixing to stop the cabinet tipping over "if a child climbs or hangs on it" (IKEA India). Fix a tall unit at the top into masonry, and leave enough space below the ceiling to do it, as IKEA notes for HEMNES.
Load. Glass shelves carry far less than wood: IKEA rates BLÅLIDEN's tempered glass shelves at 3 kg each and RUDSTA's at 5 kg, against 30 kg for HEMNES's wooden shelves. Keep brass and steel on wood.

Crockery unit price in India

Ready-made glass-door cabinets on IKEA India, read on 29 October 2026; IKEA states its prices include all taxes. Delivery and fixing are extra.

Cabinet	Size (W × D × H)	Listed price
BAGGEBO glass-door cabinet	34 × 30 × 116 cm	₹3,990
BLÅLIDEN glass-door cabinet	35 × 32 × 151 cm	₹9,990
BLÅLIDEN with STRIMSÄV light	35 × 32 × 151 cm	₹11,340
RUDSTA glass-door cabinet	42 × 37 × 155 cm	₹11,990
VIHALS cabinet, sliding glass doors	95 × 37 × 90 cm	₹13,990
VIHALS sideboard (solid doors)	140 × 37 × 75 cm	₹14,990
MOSSJÖN glass-door cabinet, 2 doors	60 × 34 × 146 cm	₹14,990
HEMNES glass-door cabinet, 3 drawers	90 × 37 × 198 cm	₹37,990
TONSTAD storage with sliding glass doors	121 × 47 × 201 cm	₹62,980 (regular price ₹77,980)

From IKEA India's product pages (BAGGEBO, BLÅLIDEN, TONSTAD, others linked above).

Wooden Street's crockery unit listings ran from ₹22,989 to ₹69,999 on the same day; the page does not mention GST (Wooden Street).

For built-in units, DesignCafe puts kitchen crockery cabinets at Rs 17,000 to over Rs 90,000, depending on design and materials (DesignCafe, January 2026). HomeLane gives Rs 1 lakh for a Hyderabad dining-hall crockery unit with open shelves, drawers, lift-up cabinets and tall glass units (HomeLane).

Market range, 29 October 2026: about ₹4,000 to ₹63,000 for a ready-made glass-door cabinet (IKEA India, taxes included) and ₹23,000 to ₹70,000 for a ready-made solid wood unit (Wooden Street, GST not stated). Built-in units: ₹17,000 to ₹90,000 or more (DesignCafe), with one published example at ₹1 lakh (HomeLane). We found no published per sq ft rate for crockery units, so get a written quote naming the board, shutter finish, glass type and thickness, hardware and lighting, and whether GST and installation are included.

For the whole dining and living budget, see our room-by-room interior design cost guide or MOA's free home cost calculator.

FAQ

What is the standard size of a crockery unit?

There is no Indian standard. A common built-in unit is 1200 to 1800 mm wide and 2100 to 2400 mm high, with a base about 450 mm deep and a glass upper about 350 mm deep (our guidance). IKEA India's glass cabinets are 30 to 47 cm deep.

Which glass is best for a crockery unit?

Toughened glass, in whatever look you like: clear to show crockery, fluted or reeded to blur it, tinted for a darker look. Consider laminated glass on low doors if you have toddlers.

Can a crockery unit be wall mounted?

Yes. A glass cabinet about 300 mm deep, hung from a rail or cleat in a solid wall, suits a small dining corner. Keep heavy steel and brass in a base unit.

What is the price of a crockery unit in India?

About ₹4,000 to ₹70,000 ready-made (IKEA India and Wooden Street, 29 October 2026), and ₹17,000 to ₹1 lakh and more built in.

Planning a crockery unit or a whole dining room? Find an interior designer on MOA, filtered by your city, and see their work before you call.
