TV Unit Design for Bedroom and Small Halls

The best TV unit design for a bedroom is usually the simplest: mount the TV on the wall facing the bed, centre it between your eye height lying back on pillows and sitting up against the headboard (about 1,100 mm off the floor in a typical Indian bedroom, our guidance), and put no more than a 250 to 300 mm ledge under it. If the wall facing the bed is also the wardrobe wall, build the TV into the wardrobe run instead.

Small halls follow the same logic: a wall-mounted TV, a shallow floating console and cables inside the wall give back the floor a deep cabinet takes.

About the numbers below: heights, tilt and clearances are from Samsung and SANUS, mount specifications from Vogel's, viewing distances from RTINGS.com and unit sizes and prices from IKEA India, all read on 29 Oct 2026. Eye heights from the bed and sizes marked "our guidance" are common practice, not a standard: no TV or mount maker we read gives a bedroom figure.

This is the small-room companion to our planned guide on TV unit design for the living room, which covers the main types of TV unit, set-top box ventilation and wiring a full console. Our planned guide to wall panels (PVC, fluted, wood and WPC) covers the panel behind the screen.

TV unit design for bedroom: three places the TV can go

1. On the wall facing the bed (simple and wall mounted)

The default for a reason: the TV hangs on a plain or panelled wall, a floating ledge sits under it, and the floor stays clear at the foot of the bed. In a 10 x 11 ft room the screen ends up about 2.9 m from your eyes (plan A below).

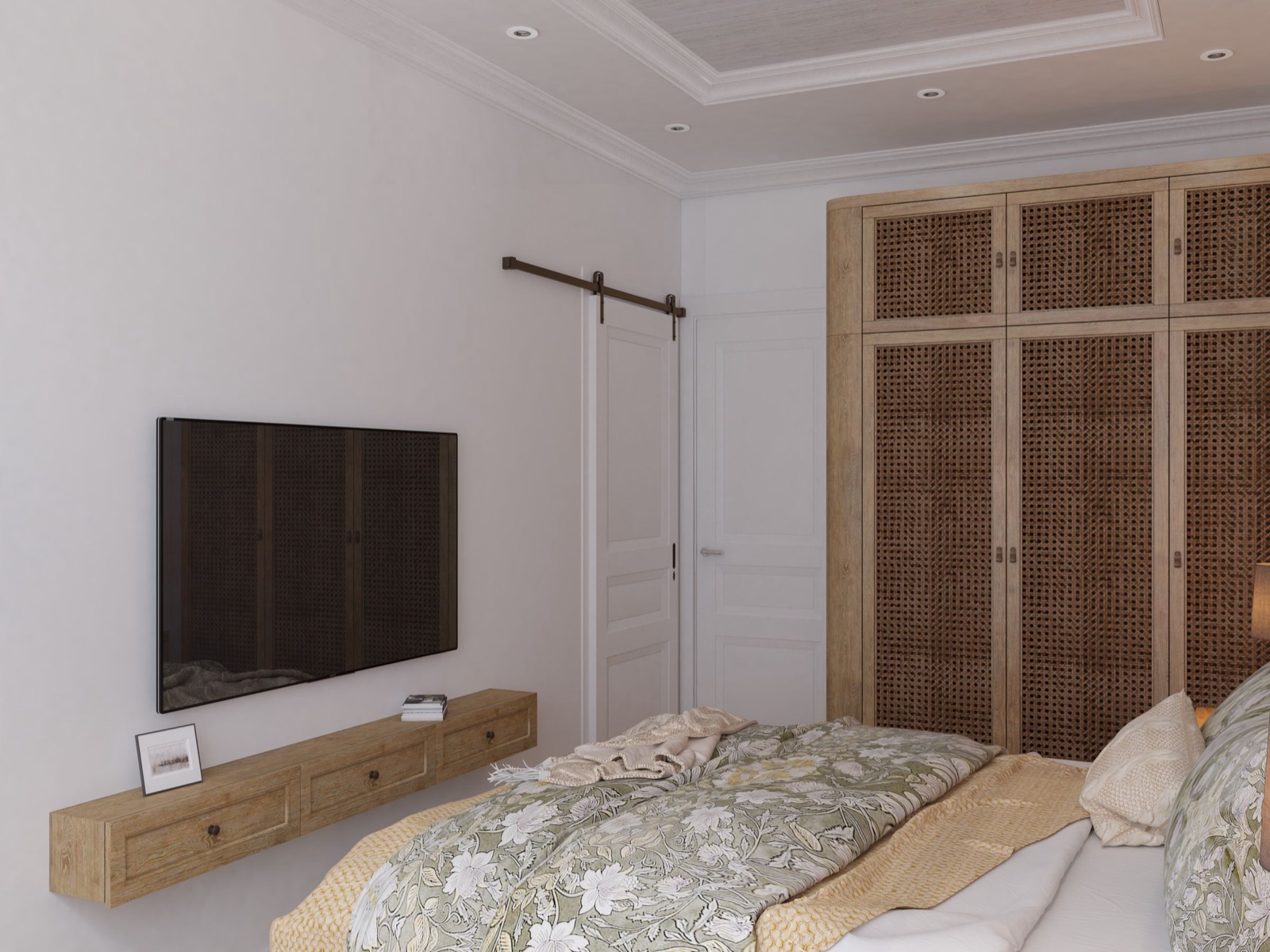

Bedroom design render with a wall-mounted TV on a plain white wall above a slim floating oak shelf with three small drawers, a tall cane-panelled wardrobe in the corner and a bed with a floral cover in the foreground — Design render: a floating shelf only as deep as its small drawers sits under the TV, and a cane-fronted wardrobe takes the next wall. Image: Đức Đào on Pexels, Pexels License

Keep the ledge shallow. It only has to hold a router or a set-top box lying flat; anything deeper eats the walkway.

2. TV unit with wardrobe (sliding wardrobe with TV unit)

If the wall facing the bed is the only long wall, it has to carry the wardrobe too. Split the run into wardrobe, open TV bay and wardrobe, so the screen is centred on the bed.

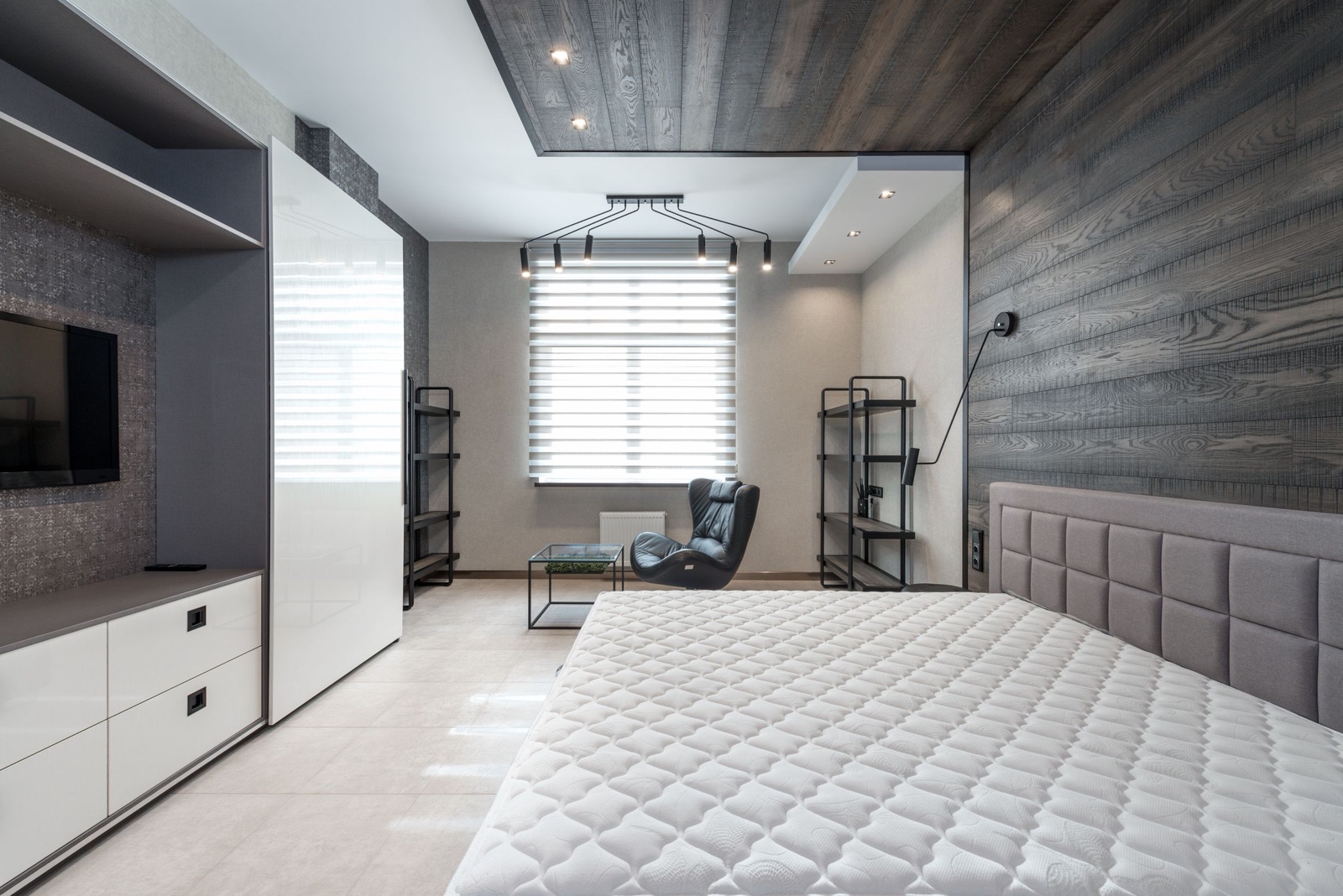

Grey and white bedroom with a TV mounted in an open bay of a built-in unit, white drawers below the bay, a tall white gloss sliding wardrobe next to it, a dark wood-panelled wall behind the bed and a reading chair by the window — TV in the wardrobe run: an open bay with drawers below sits beside a full-height sliding wardrobe, so the wall facing the bed holds storage and the screen. Image: Max Vakhtbovych on Pexels, Pexels License

Width of the bay. A 55-inch TV is about 1,220 mm wide (16:9 screen arithmetic), and Samsung asks for at least 10 cm clear above, below and on both sides of the set, per its wall-mounting page (in Spanish). That makes a bay of about 1,450 to 1,500 mm for a 55-inch, and about 1,150 to 1,200 mm for a 43-inch.
Mount into the wall, not the carcass. Leave the back of the bay open to the masonry, so the bracket goes into brick or concrete (our guidance).
Depth. The wardrobe carcass stays at about 58 to 60 cm; our sliding vs hinged wardrobe guide explains why, and what sliding tracks add. The bay itself needs only a 300 mm shelf for the set-top box.
Do not hang the TV on a sliding shutter. A "wardrobe design with TV panel" works when the panel is fixed and the doors slide past it, not when the TV moves with a door (our guidance).

3. TV unit with a desk or dressing table

In a bedroom that doubles as a study, one wall can carry the TV and a cantilevered desk or dressing top side by side. Put them next to each other, not one above the other: at a desk you sit about 0.7 m from the wall (our estimate), and RTINGS.com's table puts even the "immersive" distance for a 55-inch at 1.00 m, so a big screen right over a desk is too close to work under (our reading of RTINGS.com's distances). Our planned study table guide covers desk sizes.

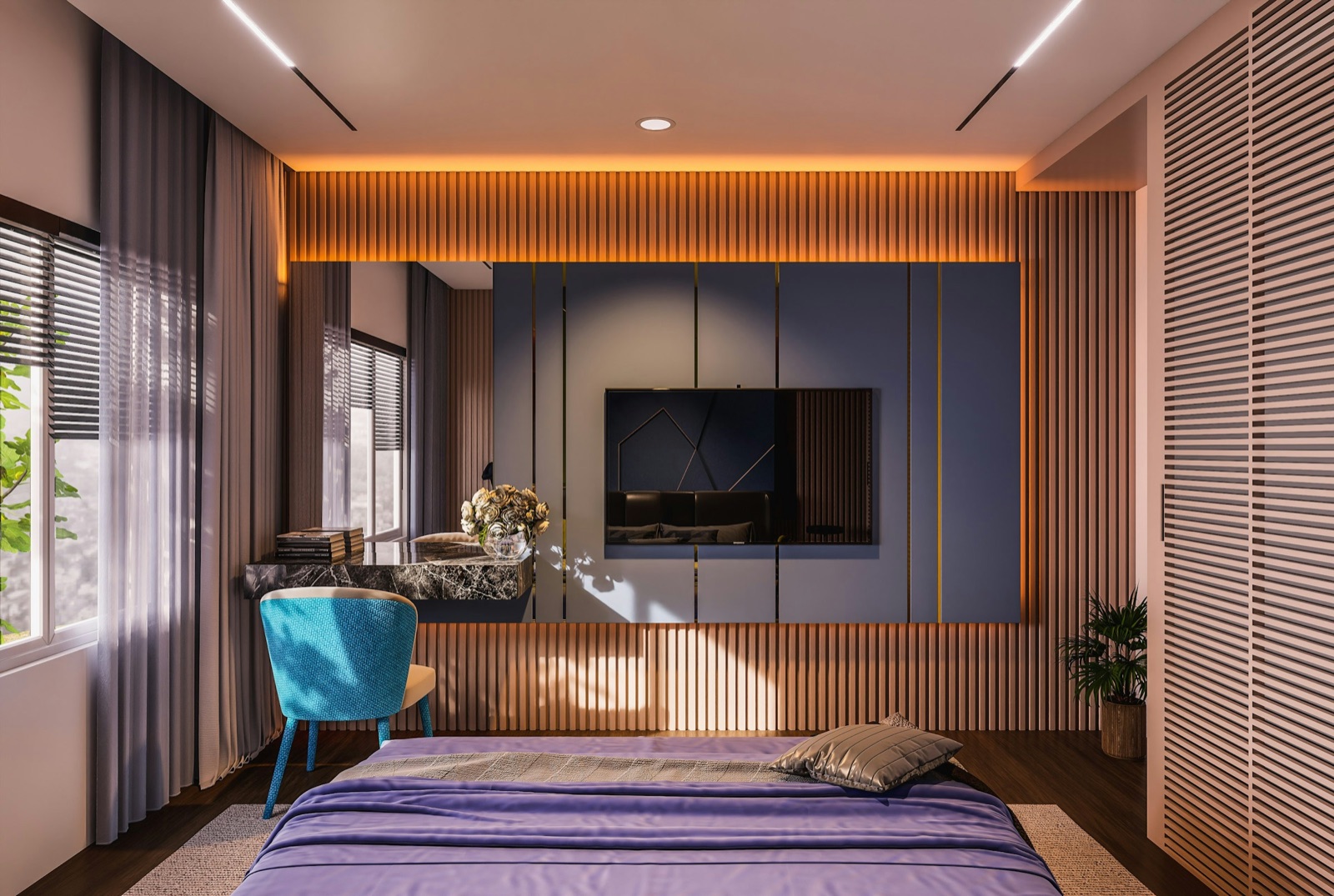

Bedroom design render seen from the foot of a bed with a violet cover: a wall-mounted TV on a dark blue panel with thin brass strips, a marble-topped desk cantilevered from the same panel with a turquoise chair, vertical wood battens with a warm cove light above, and a slatted wardrobe on the right — Design render: the TV and a floating marble desk share one panel on the wall facing the bed, so one wall does two jobs in a small bedroom. Image: Poojan Thanekar on Unsplash, Unsplash License

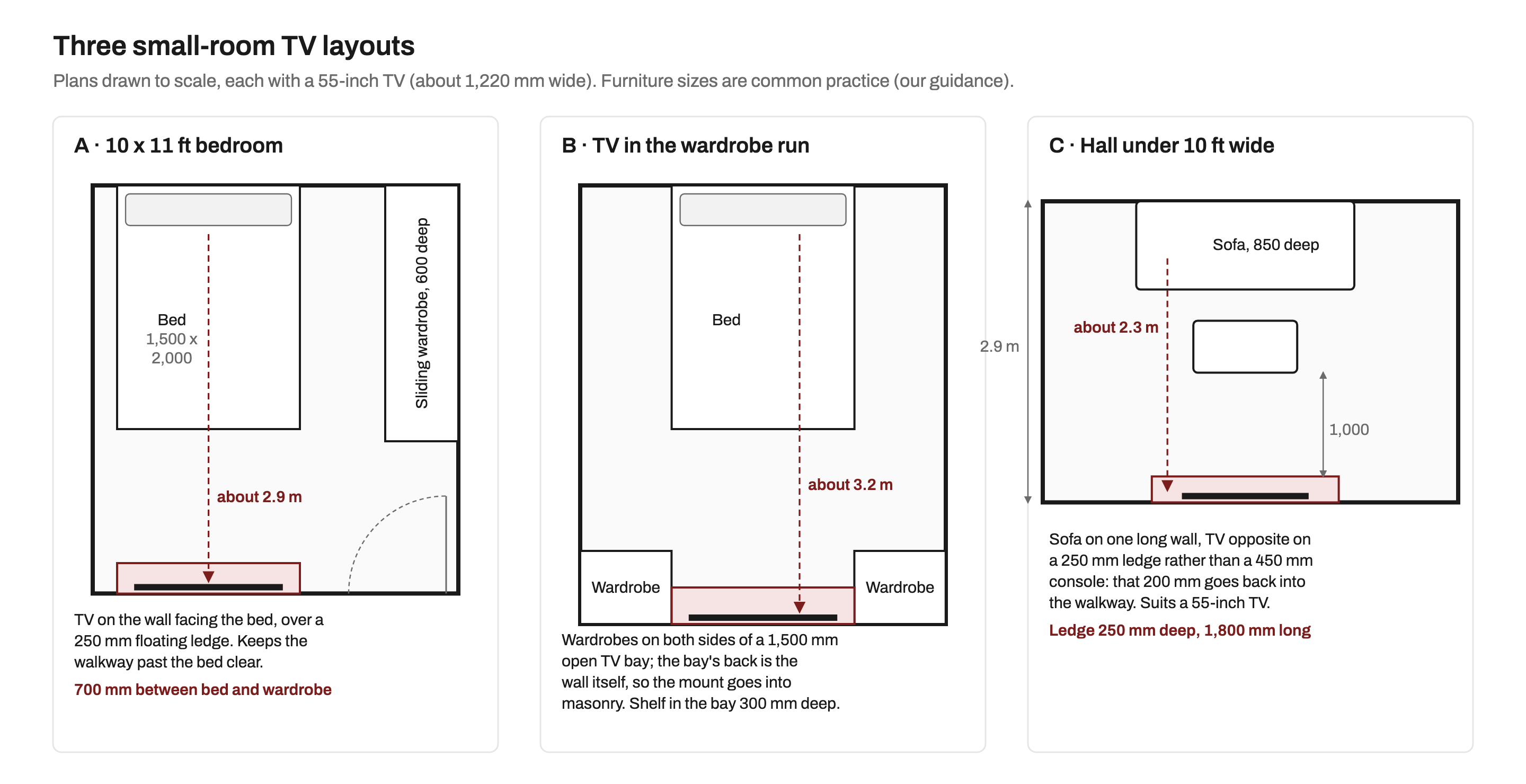

Three plans, each with a 55-inch TV: a 10 by 11 ft bedroom with the TV on the wall facing the bed over a 250 mm ledge and a 600 mm deep sliding wardrobe on the side wall; a bedroom with wardrobes on both sides of a 1,500 mm open TV bay facing the bed; and a 2.9 m wide hall with a sofa on one long wall and the TV on a 250 mm ledge opposite, with a 1,000 mm walkway — Three ways to fit a TV into a small bedroom or a hall under 10 ft wide, with the eye-to-screen distance each one gives. Diagram: MOA

How high should a TV be in a bedroom?

For a sofa, Samsung puts the centre of the TV at about 42 inches (1,065 mm) from the floor, the eye level of a 5 ft 6 in adult on a standard couch, in its mounting guide. SANUS, a mount maker, gives the same 42-inch figure and notes that a dresser or wardrobe in a bedroom may push the TV higher on the wall, which is when a tilting mount helps.

Neither gives a number for watching from bed, so here is ours. Your eyes are lower lying back on pillows and higher sitting up against the headboard. With a mattress top at about 500 mm, that is roughly 1,000 mm and 1,200 mm off the floor. Centre the TV between the two, at about 1,100 mm (our guidance).

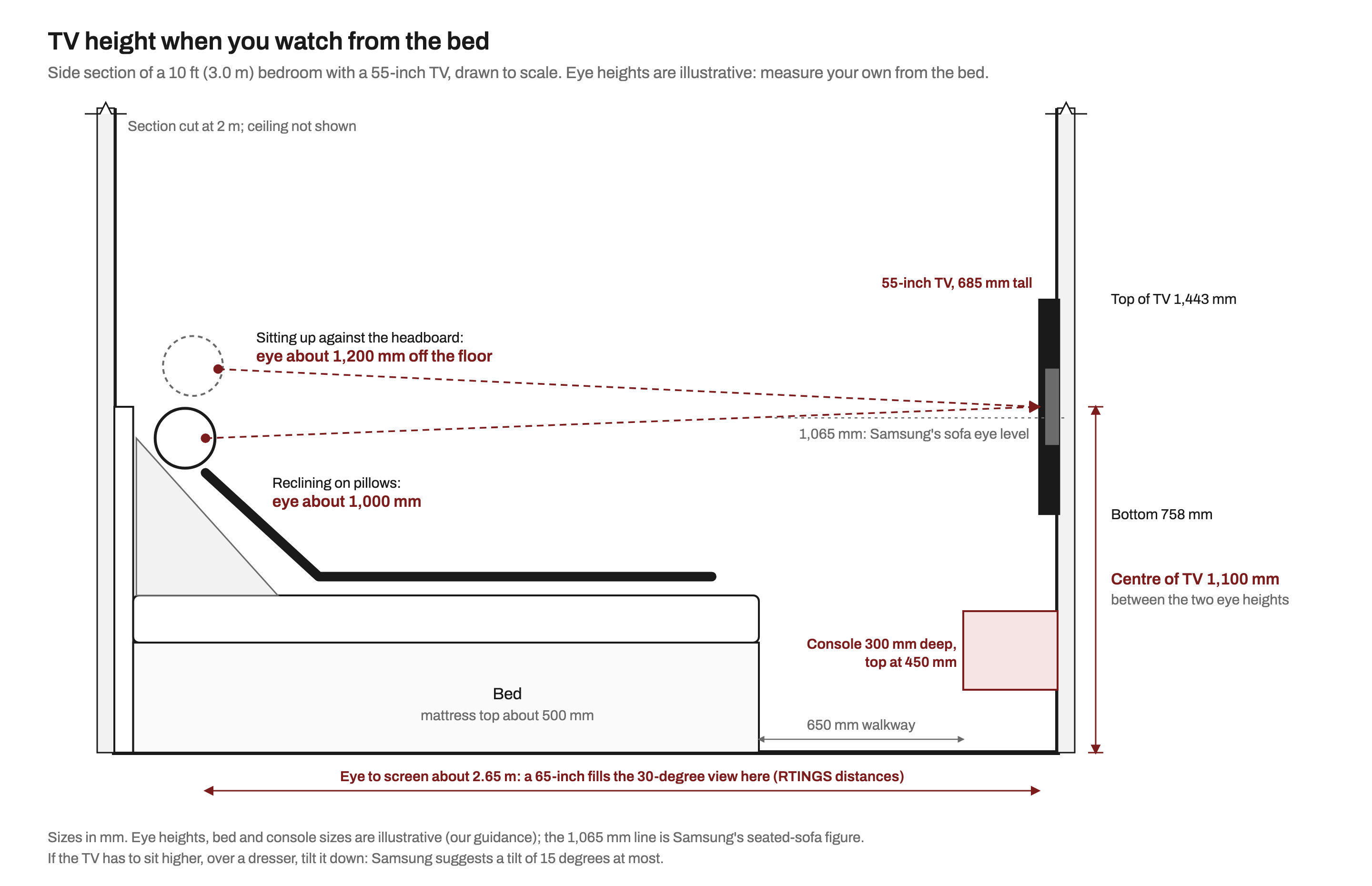

Side section of a 3 m deep bedroom: a viewer reclining on pillows with eyes about 1,000 mm above the floor and a ghost outline sitting up with eyes about 1,200 mm, both looking at a 55-inch wall-mounted TV whose centre is 1,100 mm high, above a 300 mm deep floating console with its top at 450 mm, and a 650 mm walkway between bed and console — Watching from the bed: centre the TV between your reclining and sitting-up eye heights, which in this illustrative 10 ft room puts it at about 1,100 mm, a little higher than the living room's 1,065 mm. Diagram: MOA

For your own bed, lie and sit the way you watch and have someone tape both eye heights on the TV wall. The screen's centre goes between the marks.

If the TV must sit higher, over a dresser or a wardrobe drawer unit, tilt it down. Samsung recommends a maximum tilt of 15 degrees. A screen centred at 1,400 mm, seen from a reclining eye height of 1,000 mm at 2.65 m, needs about 9 degrees (our arithmetic), well inside that.

If you follow Vastu, our Vastu for bedroom guide covers placement; this post sticks to sizes.

Wall mounted TV: fixed, tilting or swivel mounts and VESA sizes

Every wall mount bolts to a square or rectangular hole pattern on the back of the TV, the VESA pattern. Samsung says its TVs are VESA compliant, with patterns from 100 x 100 mm up to 600 x 400 mm depending on size. Match the mount to the pattern and the weight in your TV's manual.

Vogel's sells one family of mounts in all three types, which makes the trade-off easy to see:

Mount type	Vogel's example	TV size and weight	VESA patterns	Distance from wall	Movement
Fixed	TVM 3405	32 to 77 inch, up to 50 kg	100 x 100 to 400 x 400 mm	22 mm	None
Tilting	TVM 3415	32 to 65 inch, up to 25 kg	100 x 100 to 400 x 400 mm	34 mm	Tilt up to 20°
Full motion (swivel)	TVM 3445	32 to 65 inch, up to 25 kg	100 x 100 to 400 x 400 mm	59 to 580 mm (58 cm arms)	Turn up to 180°, tilt up to 20°

Figures are from Vogel's product pages. Even where a mount tilts 20 degrees, keep a Samsung TV within Samsung's 15.

Fixed: the wall facing the bed, when the centre can sit at the right height. Slimmest and cheapest.
Tilting: a TV that has to go higher, over a dresser or a drawer unit.
Swivel: a TV watched from two places, such as the bed and a desk. It folds back to about 6 cm.

Samsung's guide says the wall must carry the TV's weight. In Indian flats that means anchors into brick or RCC; on a gypsum partition, plan a backer inside it before it is closed (our guidance).

Corner TV unit for a small bedroom

When the wall facing the bed holds the door or the window, use a corner. A triangular corner console costs floor; a swivel arm fixed to one wall, 300 to 400 mm from the corner, does not (our guidance). It swings the TV across the corner to face the bed, then folds flat.

TV unit design for small space: consoles 250 to 300 mm deep

Ready-made TV benches are deep. IKEA India's TV benches are listed between 32 and 42 cm deep. In a small room you can go much shallower, because a wall-mounted TV does not stand on anything:

A shelf. IKEA India lists the LACK wall shelf at 110 x 26 cm with hidden brackets and a 10 kg maximum load, at ₹1,690 including taxes.
A wall cabinet. The BESTÅ wall-mounted cabinet is 60 x 22 x 38 cm, at ₹7,000; IKEA notes that its maximum load depends on the wall.
A built-in ledge or drawer row by a carpenter at 250 to 300 mm deep, which holds a router and most set-top boxes lying flat (our guidance). Measure your box before you fix the depth.

Every 100 mm off the console goes back into the walkway.

TV unit design for small hall: walls under 10 ft

In a hall about 2.9 m (9.5 ft) wide, put the sofa on one long wall and the TV on the other. With an 850 mm deep sofa, a coffee table and a 1,000 mm walkway, your eyes end up about 2.3 m from the screen (plan C above). That is right at RTINGS.com's 30-degree distance for a 55-inch (2.27 m); a 65-inch fills more of the view.

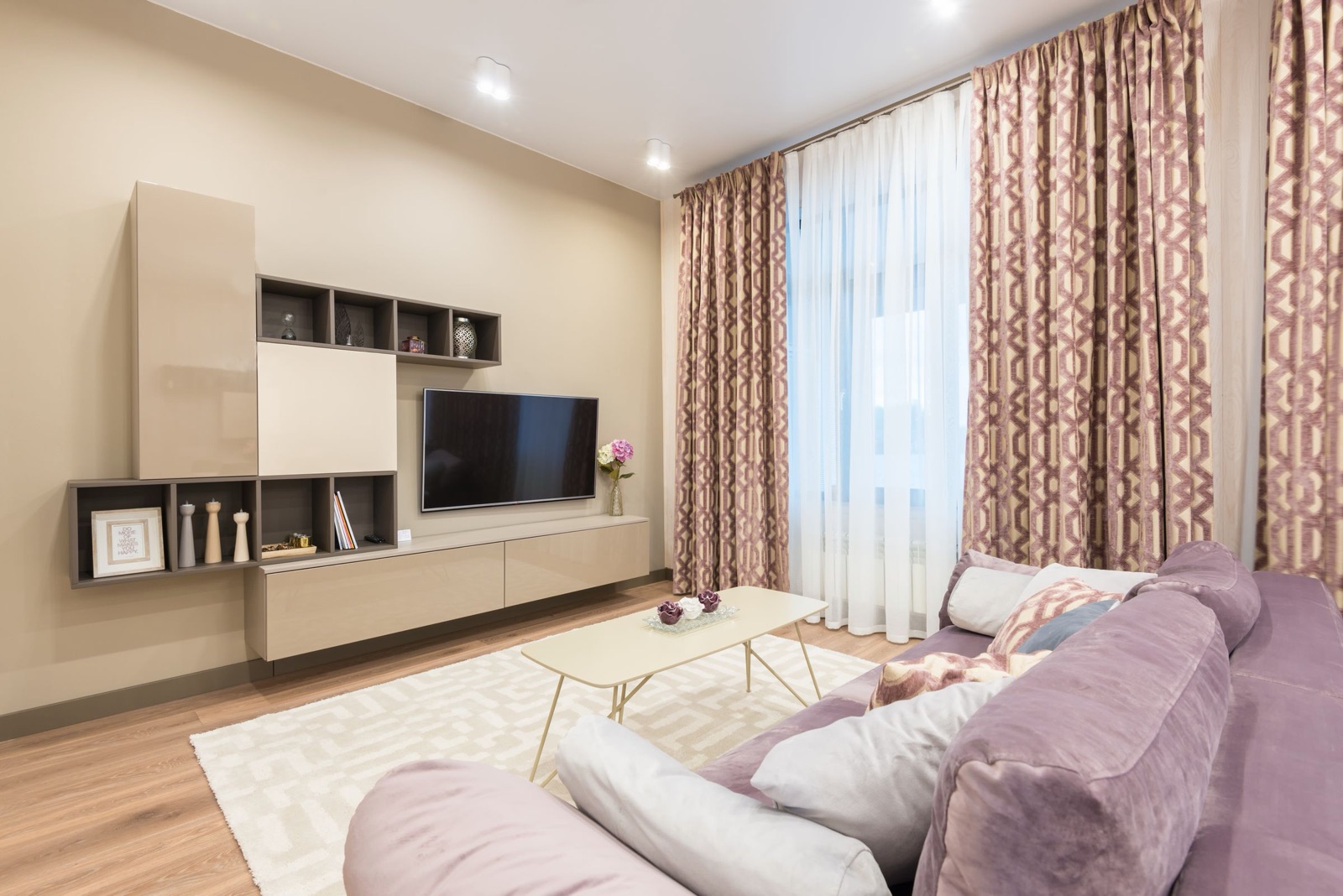

Small living room with a wall-mounted TV beside a floating beige gloss storage unit made of a low drawer console, open cubbies and a tall cabinet, all lifted off the floor, with a lilac sofa and light coffee table in front — A small hall where everything floats: the console, cubbies and cabinet hang on the wall, so the floor reads as one surface. Image: Max Vakhtbovych on Pexels, Pexels License

Height. In a hall you watch from a sofa, so use the living-room height: centre at about 1,065 mm (Samsung).
TV showcase design for small hall. Float the display too: a few open boxes and one tall cabinet on the wall, rather than a full-height showcase that stands on the floor.
TV panel design for small wall. On a wall under 10 ft, panel only a band behind the TV, about 300 mm wider than the set on each side, and leave the rest painted (our guidance). Wallpaper behind the TV works the same way.

For more on making 1BHK and 2BHK rooms work harder, see our small apartment design trends for 2027.

Cable management without a console

With no console, plan the wires before the wall is finished:

Socket and HDMI behind the screen, at the height of the TV's centre, so the plug and the leads hide behind the set (our guidance).
A conduit inside the wall from that box down to the ledge or the wardrobe bay. Samsung suggests in-wall rated cables if you run them through the wall. Never bury an ordinary extension cord in plaster (our guidance).
A recess in the plaster, as in the photo below, lets the screen sit nearly flush.
A painted surface raceway in a rented flat, where you cannot chase the wall, run straight down from the TV to the socket (our guidance).
Cable clips on the mount. Vogel's TVM 3445 ships with them, which matters on a swivel arm, where the cables move with the TV.

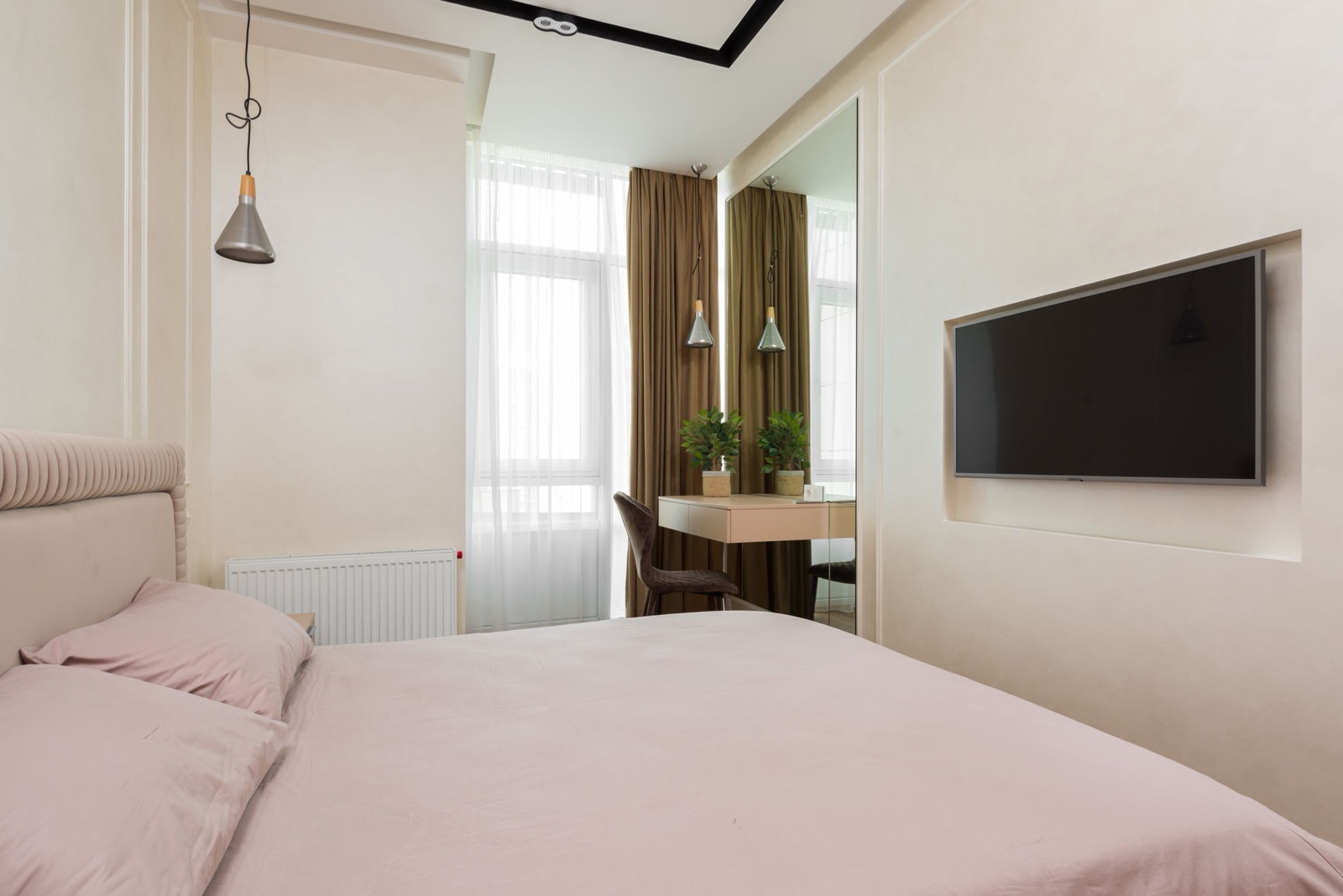

Bedroom with a pink bed in the foreground and a wall-mounted TV set into a shallow recess in a cream plastered wall, with no console below it; a slim dressing desk and a full-height mirror stand by the window beyond — No console at all: the TV sits in a shallow recess in the plaster and the floor below stays clear. Plan the cables inside the wall before the plaster goes on. Image: Max Vakhtbovych on Pexels, Pexels License

Give the set-top box a shelf of its own, lying flat with air around it; our planned living-room TV guide has the details.

What size TV for a small bedroom or hall?

RTINGS.com, citing the Society of Motion Picture and Television Engineers, recommends a screen that fills at least 30 degrees of your view for mixed use, and 40 degrees for a cinema feel. Read from its distance table, small-room distances work out like this:

Eyes to screen	Sizes that fill 30 to 40 degrees	Typical room
1.5 m (5 ft)	40 to 48-inch	Bed close to the TV wall, or a desk chair
2.0 m (6 ft 6 in)	50 to 65-inch	Small hall with a deep sofa
2.3 m (7 ft 6 in)	55-inch (at its limit) to 75-inch	Plan C, a hall under 10 ft
2.9 m (9 ft 6 in)	70 to 85-inch	Plan A, a 10 x 11 ft bedroom

Sizes from RTINGS.com's 30-degree and 40-degree columns; the matching is our reading. A 43-inch, for example, fills 30 degrees at 1.78 m and 40 degrees at 1.31 m.

The bedroom row surprises people: a 43-inch seen from the bed fills well under 30 degrees. In practice wall width and budget decide, and a 43 or 55-inch is fine; the picture just feels smaller. RTINGS suggests marking different sizes on the wall with painter's tape before you buy.

What does a small TV unit cost?

A ready-made shelf or wall cabinet costs from ₹1,690 to ₹7,000 at IKEA India's listed prices above. For a carpenter-made ledge, bay or panel we could not find a published rate we could source, so we are not quoting one. Our interior design cost guide, room by room explains how bedroom and living room quotes are built, and MOA's free home cost calculator helps with the wider budget.

FAQ

Which TV unit design is best for a small bedroom?

A wall-mounted TV facing the bed over a ledge 250 to 300 mm deep, or an open bay about 1,500 mm wide in the wardrobe run for a 55-inch.

How high should a TV be mounted in a bedroom?

Centre it between your reclining and sitting-up eye heights, about 1,100 mm for a mattress top near 500 mm (our guidance). Higher than that, tilt it down, within Samsung's 15 degrees.

Can I put a TV in the wardrobe?

Yes, in an open bay between wardrobe sections, mounted into the wall behind, with at least 10 cm clear around the set (Samsung). Do not mount it on a sliding shutter.

What size TV is right for a 10 x 10 ft room?

From the bed you are likely to be 2.5 to 3 m from the screen, which by RTINGS.com's table suits 65 inches or more for a 30-degree view. A 43 or 55-inch works but looks smaller.

Is a corner TV unit good for a small room?

Use a swivel mount on one wall near the corner rather than a triangular console. It folds flat and takes no floor.

Planning a bedroom or a small hall? Find interior designers on MOA and filter the directory by your city.
