Bed Design with Storage: Box vs Hydraulic vs Drawers, With Prices

The best bed design with storage depends on how often you open it and how much floor is around the bed. A full hydraulic bed lifts the mattress on gas springs and suits razais and suitcases you reach a few times a year, but needs about 3 ft clear at the foot. Drawers suit weekly things but need about 1 m beside the bed, and a box bed with lift-off lids is cheapest but means taking the mattress off. On Wakefit, the same queen bed cost ₹13,469 with box storage and ₹21,330 with hydraulic storage when we checked on 29 October 2026.

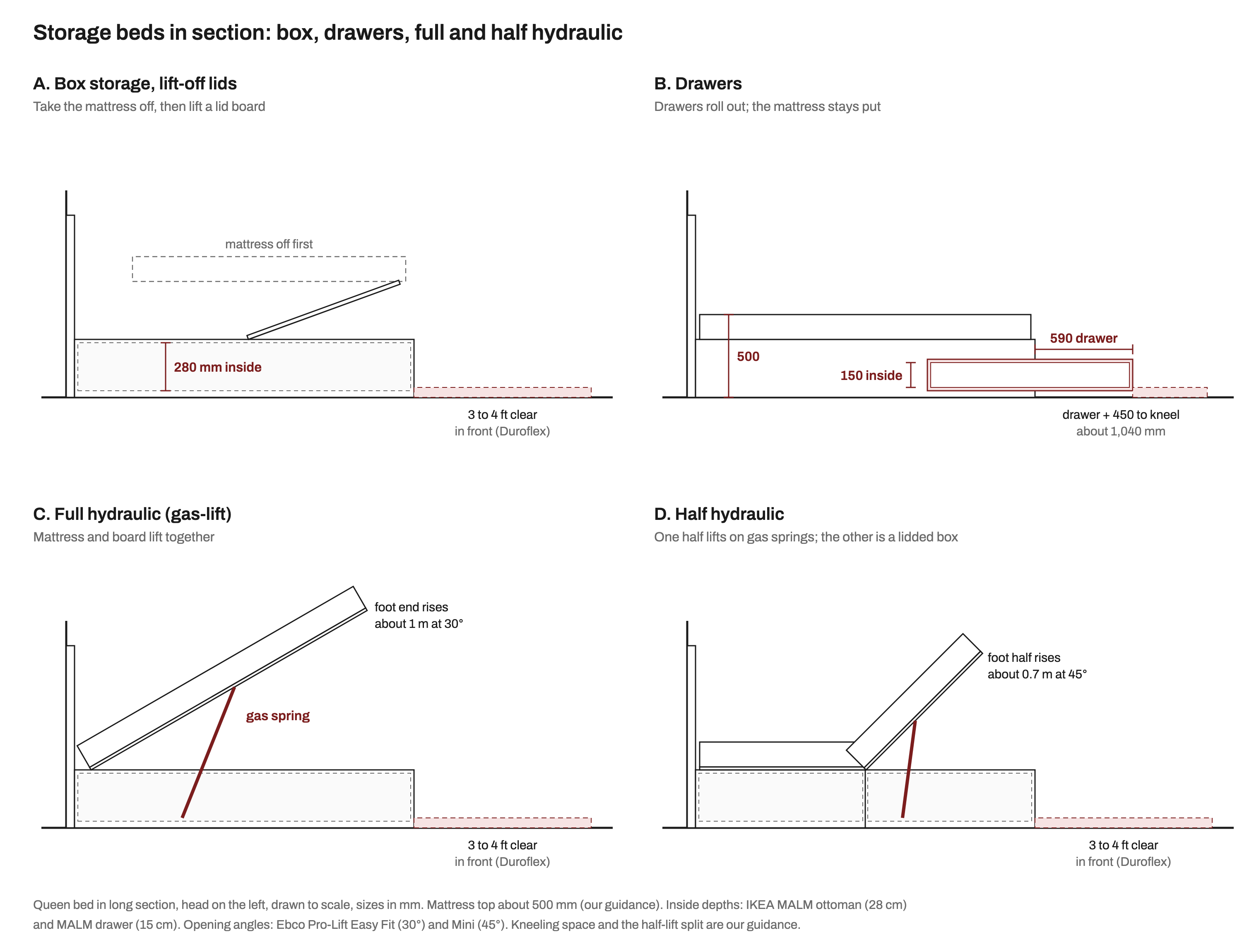

Bed design with storage: the four types compared

Almost every storage bed sold in India is one of four types.

Type	How you get in	Best for	Floor it needs
Box with lift-off lids	Take the mattress off, lift a board	Things you reach once or twice a year	Room to stand and to put the mattress
Drawers	Roll a drawer out	Bedsheets, towels, weekly things	Drawer depth plus kneeling room
Full hydraulic	Lift the foot; gas springs take the weight	Razais, blankets, suitcases, festive things	3 to 4 ft in front (Duroflex)
Half hydraulic	One half lifts; the other half is a lidded box	A smaller lift with a cheaper fitting	As full hydraulic

Duroflex's bed size guide says to "factor in 3-4 feet of clearance in front for easy lifting" for hydraulic lifts and box storage alike (Duroflex). Our coming post on master bedrooms for couples uses the same figure.

Bed design with box vs hydraulic: which to choose

A box bed and a hydraulic bed hold the same amount, because both use the whole space under the mattress. The difference is the lid. In a box bed you strip the bed, lift the mattress and then lift a loose board: fine for winter razais opened in November and closed in March, not for anything you need monthly.

A hydraulic bed puts the mattress on a hinged platform held up by gas springs. Godrej Interio describes box storage as "a simple, enclosed space beneath the mattress platform" and says people who open it often prefer hydraulic (Godrej Interio).

How much space is that? IKEA India gives the inside of its MALM ottoman bed, a lift-up bed for a 160 x 200 cm mattress, as 161 x 202 cm and 28 cm deep (IKEA India). By our arithmetic that is about 910 litres. The same bed with two storage boxes has drawers 97 x 59 x 15 cm inside, about 86 litres each, or roughly 170 litres for the pair (IKEA India). A lift-up base holds about five times what two drawers do.

Half hydraulic splits the difference. Godrej Interio's Arcadia V2 has a half hydraulic lift on one part and a "half box compartment" on the other. Ebco's Pro-Lift Mini fitting is sold for this kind of "partial storage under beds": it opens to 45°, for a lifting section of 2.5 to 3 ft, with a dead load of 10 to 15 kg (Ebco).

Bed design with drawer: when drawers win

Drawers are the only type you open without touching the bed, so they suit weekly things: bedsheets, towels, children's clothes. They hold far less, and each drawer needs its full depth in front of it plus room to kneel. The MALM drawer above is 59 cm deep; add about 45 cm to kneel or crouch (our guidance) and you need roughly 1,040 mm beside the bed.

As our small apartment trends post puts it: drawers for weekly things, a lift-up base for seasonal bedding. A lift-up base needs no floor beside the bed, but it does need room to stand where it lifts, usually the foot.

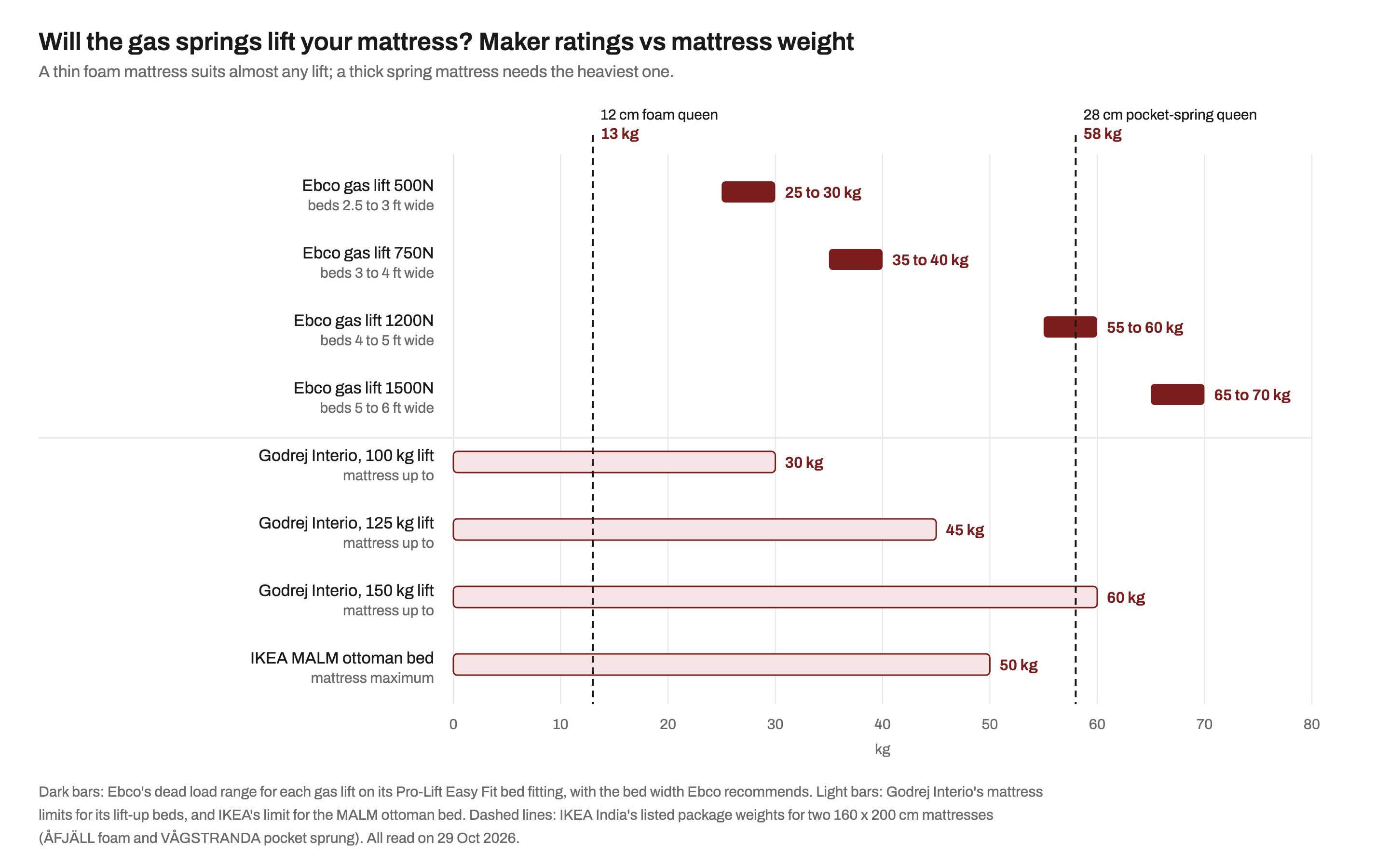

Hydraulic bed: gas springs and mattress weight

A hydraulic bed only feels light if its gas springs match the mattress: too weak and the platform drops, too strong and it is hard to close. Makers publish the numbers:

• Ebco Pro-Lift Easy Fit (30° opening) comes with four gas lifts: 500N for a dead load of 25 to 30 kg on beds 2.5 to 3 ft wide, 750N for 35 to 40 kg on 3 to 4 ft beds, 1200N for 55 to 60 kg on 4 to 5 ft beds and 1500N for 65 to 70 kg on 5 to 6 ft beds (Ebco). A queen is 5 ft wide, so it falls between the last two.
• Godrej Interio fits three gas lifts to its lift-up and hydraulic beds: a 100 kg lift supports a mattress up to 30 kg, a 125 kg lift up to 45 kg and a 150 kg lift up to 60 kg (Godrej Interio).
• IKEA's MALM ottoman bed needs "a mattress with a maximum weight of 50 kg" and warns that a heavier one can make the base fall suddenly (IKEA India).

Mattress weights vary widely. IKEA India lists its 12 cm ÅFJÄLL foam mattress in 160 x 200 cm at a package weight of 13 kg, and its 28 cm VÅGSTRANDA pocket-sprung mattress in the same size at 58 kg (IKEA ÅFJÄLL, IKEA VÅGSTRANDA). The heavy one is past IKEA's own 50 kg limit.

So tell the seller or carpenter which mattress goes on the bed before the springs are chosen. Two safety rules from the makers: Godrej Interio says its beds must not be opened without the mattress, because the base "would spring up rapidly", and that the lock must be engaged every time; Ebco says its gas springs are "highly pressured" and must not be dismantled or painted. Godrej also recommends a mattress at least 5 inches (12.7 cm) thick on its queen hydraulic beds.

What fits under the bed: razais, blankets and suitcases

Depth decides what fits, not just volume. Our guidance, using the IKEA inside sizes above:

• A 15 cm drawer takes folded bedsheets, pillow covers, towels, a thin dohar or two. It will not take a folded winter razai or a suitcase.
• A 25 to 30 cm box (the MALM ottoman is 28 cm) takes folded razais and quilts in cotton bags, spare pillows, woollens and festive things in boxes. A soft duffel or a cabin trolley lying flat may fit; measure the suitcase's depth with its wheels before you count on it.
• Keep documents and electronics elsewhere: a bed box is not damp-proof.

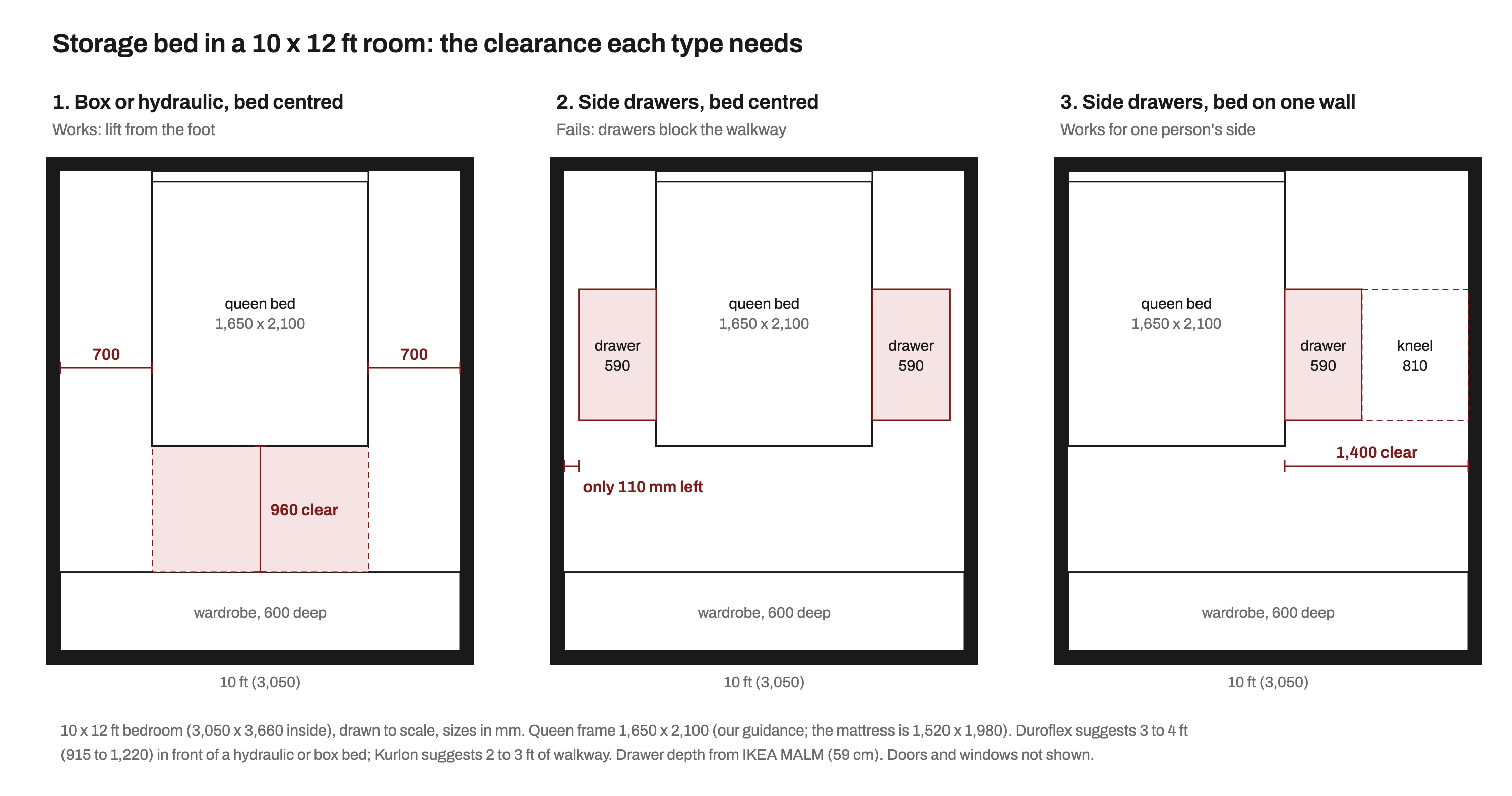

Storage bed for a small room: clearance in a 10 x 12 ft room

Our coming post on wardrobes for small bedrooms puts the wardrobe at the foot of the bed in a 10 x 12 ft room, leaving 108 cm in front of it and 76 cm each side of a queen mattress. Measured to a queen frame of about 1,650 x 2,100 mm (our guidance, as in the master bedroom post), that is 960 mm and 700 mm.

• Box or hydraulic, bed centred: 960 mm at the foot just meets the low end of Duroflex's 3 to 4 ft (915 to 1,220 mm), and 700 mm each side is within Kurlon's advice to leave at least 2 to 3 ft of walking space around the bed (Kurlon). Keep the wardrobe sliding, or its shutters and the lifted bed will fight for the same 960 mm.
• Side drawers, bed centred: a 590 mm drawer in a 700 mm gap leaves 110 mm. It does not work.
• Drawers at the foot: 960 minus 590 leaves 370 mm, too little to kneel.
• Side drawers, bed on one wall: 1,400 mm on the open side takes the drawer and 810 mm to kneel. But one person now climbs in over the other.

So in a small room, a hydraulic or box bed is the better storage bed. For wardrobe depths and sliding versus hinged shutters, see our wardrobe design guide.

Ventilation, damp and cleaning

A storage bed closes off the air under the mattress, which matters in a humid city or against an outside wall that gets damp in the monsoon.

• Look at the board under the mattress. Wakefit's Taurus bed uses a top board of 9.8 mm MDF on an 18 mm particle board body, and its warranty notes that "MDF boards are not covered under warranty" (Wakefit). IKEA's ottoman uses a slatted base of glued wood veneer instead. If your carpenter is building one, ask for slats or a board with rows of ventilation holes (our guidance).
• Keep moisture out. Duroflex advises a mattress protector, good air circulation and repairing leaks, and notes that mould grows in moist, humid rooms, bedrooms included (Duroflex). Wakefit says not to let moisture settle on the bed.
• Air the box on a dry day each season, wipe it out, and store razais in cotton bags, not sealed plastic (our guidance).
• Dust: a base closed to the floor leaves no gap for dust; a frame on legs needs sweeping under.

For the wider look of bedrooms now, see Bedroom Trends 2027.

Bed height for elderly parents

Storage beds tend to be high. Our coming post on bed back walls takes the mattress top of a typical box bed as about 500 mm (our guidance), and for a parent with stiff knees, height matters more than storage.

In a care home in Dublin, staff set each resident's bed so that, sitting on its edge, their feet were flat on the floor with the hip or knee "just above 90 degrees", and recorded half as many falls from bed in the six months after as in the six months before (British Geriatrics Society). It is one small study, but easy to copy: sit your parent on a firm chair, find the height at which their feet are flat and knees just above a right angle, and measure from the floor to the top of the seat. Aim the mattress top, pressed down, close to that height (our guidance).

For parents, our guidance: no lift-off box lids, which mean lifting the mattress; a hydraulic bed with springs matched to the mattress so the pull is light; no low drawers they must kneel to reach. A thinner mattress lowers the top and lightens the lift.

Double bed design: wooden, engineered wood or metal

Most "wooden" storage beds sold online are engineered wood: particle board or MDF with a laminate or foil finish. Solid sheesham costs more and weighs much more. On Godrej Interio, a queen half hydraulic bed in particle board on a 1.2 mm metal understructure weighs 101 kg, a queen full hydraulic bed in metal and particle board 154 kg, and a queen full hydraulic bed in sheesham 198 kg (Godrej Interio). All three arrive knocked down.

• Engineered wood: cheapest and easiest to move. Keep it dry: particle board edges swell if water sits on them (our guidance).
• Solid sheesham: the classic Indian wooden bed, repairable and long-lived, but heavy to shift when you move house.
• Metal frames: a steel understructure under engineered wood panels, as on the Godrej beds above, or a steel base as on IKEA's ottoman, carries the hinge loads well.

For the wall behind the headboard, see our coming post on bed back wall design. Bed direction is a vastu question rather than a design one; if it matters to you, read Vastu for Bedrooms.

Bed design with storage price

Queen-size prices on the makers' own sites on 29 October 2026, for the bed frame only, without a mattress:

Bed	Storage	Listed price
Wakefit Taurus, engineered wood	None	₹12,489
Wakefit Taurus, engineered wood	Box, lift-off lids	₹13,469
Wakefit Taurus, engineered wood	Hydraulic	₹21,330
Godrej Interio Arcadia V2, particle board	Half hydraulic	₹35,690
IKEA MALM high, 160 x 200 cm	Two drawers	₹36,990
IKEA MALM ottoman, 160 x 200 cm	Full lift-up	₹49,990
Godrej Interio Upmods Eudora, metal and particle board	Full hydraulic	₹68,290
Godrej Interio Utopia, sheesham	Full hydraulic	₹1,20,390

Within one design, Wakefit charged ₹980 more for box storage than for none, and ₹7,861 more again for hydraulic. Wakefit's prices include taxes and free carpenter installation; IKEA's include taxes, with delivery and assembly extra. We found no published rate for a carpenter-built hydraulic bed, so get two or three quotes and ask which gas springs they will fit. For a whole bedroom budget, see our interior design cost guide, room by room, or try MOA's free home cost calculator.

FAQ

Which is better, a box bed or a hydraulic bed?

Hydraulic, if you open the storage more than a few times a year. A box bed holds the same for less money but means taking the mattress off. On Wakefit's Taurus the difference was ₹7,861.

How much space does a hydraulic bed need?

Duroflex suggests 3 to 4 ft clear in front of a hydraulic or box storage bed. In a 10 x 12 ft room with the wardrobe at the foot, a centred queen leaves about 960 mm, just enough.

Can I put a heavy spring mattress on a hydraulic bed?

Only if the gas springs are rated for it. Godrej Interio's largest lift takes a mattress up to 60 kg; IKEA's MALM ottoman up to 50 kg.

What is the best bed height for elderly parents?

One where they sit on the edge with feet flat and knees just above a right angle. Measure that on a firm chair.

Is a hydraulic bed safe?

Yes, used as the makers say: never open it without the mattress, always engage the lock and never take the gas springs apart.

Planning a bedroom around a storage bed? Find an interior designer on MOA and filter the directory by your city.

Sources

• Ebco: Pro-Lift Bed Fitting, Easy Fit, specifications and caution (accessed 29 Oct 2026)
• Ebco: Pro-Lift Bed Fitting, Mini (accessed 29 Oct 2026)
• Godrej Interio: Upmods Eudora Queen Size Wooden Bed with Hydraulic Storage (accessed 29 Oct 2026)
• Godrej Interio: Arcadia V2 Queen Size Wooden Bed with Half Hydraulic Storage (accessed 29 Oct 2026)
• Godrej Interio: Utopia Queen Size Solid Wood Bed with Full Hydraulic Storage (accessed 29 Oct 2026)
• Wakefit: Taurus Engineered Wood Bed with Storage, queen (accessed 29 Oct 2026)
• IKEA India: MALM Ottoman bed, 160x200 cm (accessed 29 Oct 2026)
• IKEA India: MALM Bed frame, high, with 2 storage boxes, 160x200 cm (accessed 29 Oct 2026)
• IKEA India: ÅFJÄLL foam mattress (accessed 29 Oct 2026)
• IKEA India: VÅGSTRANDA pocket sprung mattress (accessed 29 Oct 2026)
• Duroflex: Queen Size Bed Dimensions Cm, Full Guide, 8 Sep 2025 (accessed 29 Oct 2026)
• Kurlon: Mattress Dimensions in India: A Simple Guide, 7 Jan 2025 (accessed 29 Oct 2026)
• Duroflex: How to Refresh Your Bedroom After Monsoons, 23 Nov 2021 (accessed 29 Oct 2026)
• British Geriatrics Society: Optimizing Bed Height to Reduce Long-Term Residents Fall From Bed, Suresh Swaminathan, poster abstract, 2023 (accessed 29 Oct 2026)
• Pexels: photographs by Hakim Santoso, Alex Tyson and Doan Thanh Binh, Pexels License (accessed 29 Oct 2026)
