Mud and Earth Houses in India: Rammed Earth, CSEB and Cob, and When They Make Sense
Rammed earth, compressed stabilised earth blocks, adobe, cob and wattle and daub: soil tests, strength, rain and earthquake detailing, approvals and an official rate, from the BIS standards.
Published on 10/21/202611 min read
A mud house that lasts in India today is usually a stabilised one: walls of compressed stabilised earth blocks (CSEB) made to IS 1725:2023, or rammed earth with a little cement under IS 2110, standing on a stone or brick plinth under a roof with deep overhangs. Unstabilised adobe, cob and wattle and daub still suit single-storey buildings in dry, low-risk places, but the BIS guideline for earthen buildings says plainly that they are weak against water and earthquakes and are best avoided in flood-prone and high-rainfall areas and in seismic zones IV and V.
About the numbers below: material requirements come from the BIS standards named next to them, which we opened and read. The only price is a Maharashtra PWD Schedule of Rates item from 2022-23; it is indicative, not a quote. Figures from the Auroville Earth Institute are the institute's own published results, labelled as such.

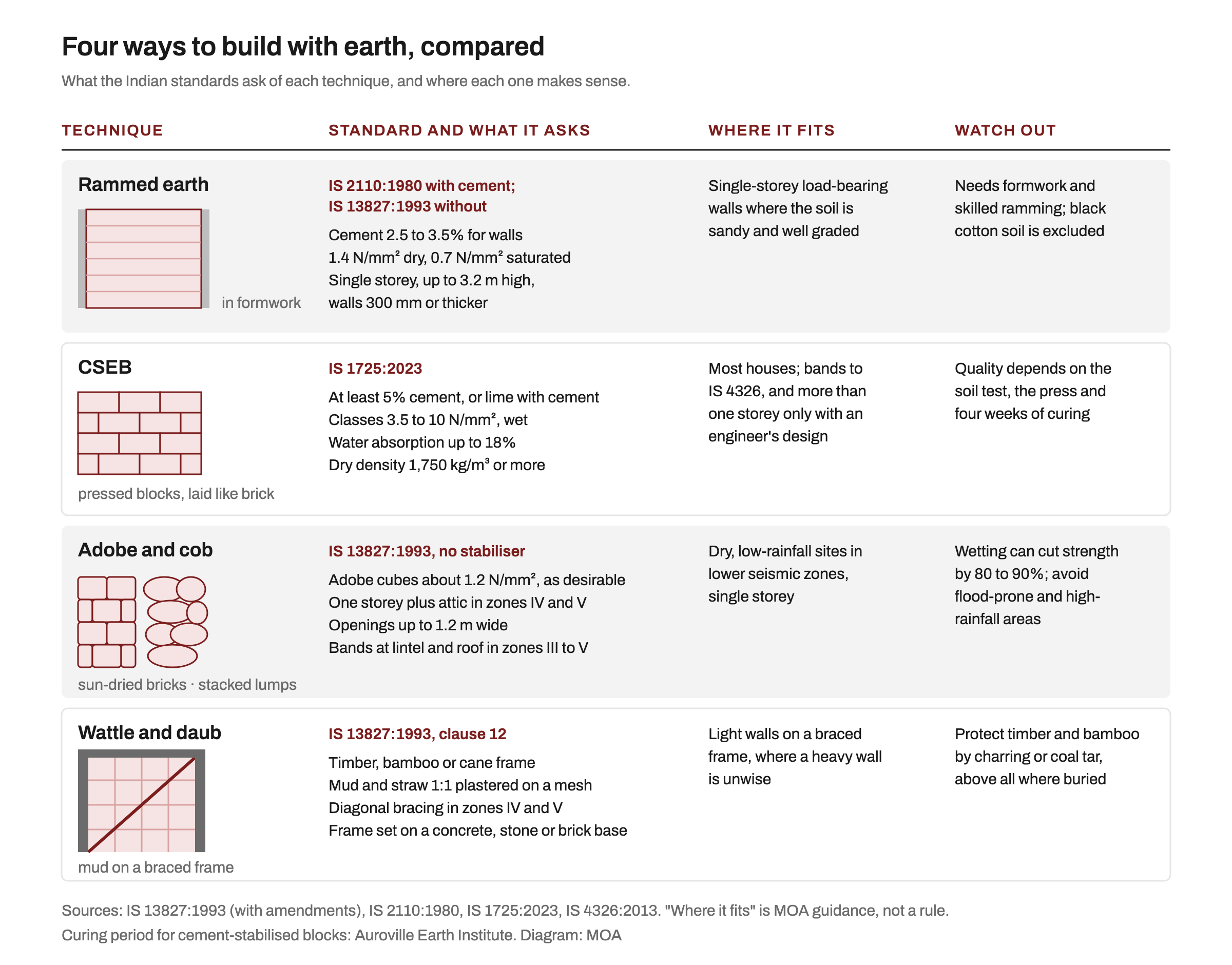

The four ways to build with earth
- Rammed earth. Moist soil is compacted in layers between formwork. IS 13827:1993 covers the unstabilised kind; IS 2110:1980 covers it with cement added.
- Compressed stabilised earth blocks. Soil, sand and a little cement or lime are machine-pressed into precise blocks, cured and laid like bricks, to IS 1725:2023.
- Adobe and cob. Adobe is sun-dried mud brick; cob (which IS 13827 calls hand-formed or layered construction) is stacked lumps of wet mud. Both are traditionally unstabilised.
- Wattle and daub. A timber or bamboo frame is filled with woven cane or reed and plastered with mud on both faces; IS 13827 treats it as a frame, not a load-bearing wall.
Is your soil suitable? Test before you design
Never use topsoil or organic soil; cement suits sandy soils and lime suits clayey ones (Auroville Earth Institute, CSEB).
Field tests. IS 13827:1993 gives simple checks for unstabilised work: dry five or six 2 cm soil balls for 48 hours and crush them between finger and thumb; if none break, there is enough clay for adobe.
Laboratory limits for stabilised walls:
- IS 2110:1980 (rammed soil-cement) asks for at least 35 per cent sand, a plasticity index of 8.5 to 10.5, a liquid limit of 27 or less and total soluble salts of 1 per cent or less, and excludes black cotton soils as uneconomical to stabilise.
- IS 1725:2023 (blocks) recommends a liquid limit under 30 per cent and a pH of 6.5 to 8.5, a stabiliser-to-clay ratio of at least 0.40 for non-expansive clays and 0.75 for expansive ones, and lime for expansive clays such as montmorillonite.
Our guidance: lab-test soil from the pit you will actually dig, and let the results decide the technique.
Stabilisation and strength: what the standards ask
| Wall | Stabiliser | Strength required | Other limits |
|---|---|---|---|
| CSEB (IS 1725:2023) | Cement, or lime with cement; at least 5% by mass | Classes 3.5, 5.0, 7.5 and 10.0 N/mm², wet; no single block more than 15% below its class | Dry density at least 1,750 kg/m³; water absorption up to 18%; expansion on soaking up to 0.10%; weathering loss up to 3% after 12 cycles |
| Rammed soil-cement (IS 2110:1980) | Cement 2.5 to 3.5% for walls; 5 to 7.5% below plinth and for copings | At least 1.4 N/mm² dry and 0.7 N/mm² saturated | Dry density at least 1.8 g/cm³; single storey, wall height up to 3.2 m, load-bearing walls at least 300 mm thick |
| Unstabilised adobe, cob, rammed earth (IS 13827:1993) | None | About 1.2 N/mm² on dried 100 mm cubes, as desirable | Wetting can cut strength by 80 to 90%, so water must be kept out |
In practice, the Auroville Earth Institute uses 5 per cent cement and reports average block strengths of about 5 MPa dry and 2.5 MPa wet (Earth in Auroville). For its rammed earth it adds 25 to 30 per cent sand to cut shrinkage and uses 5 per cent cement by weight (Stabilised rammed earth walls).
Buying blocks. IS 1725 says each block must carry the maker's identification, the BIS Standard Mark is optional, and the maker must supply a certificate of conformity if you ask. Our guidance: ask for a test report on your batch showing wet strength, absorption and the weathering test, with its date. For a wider comparison of wall units, see our guide to red brick, AAC, fly ash and concrete block.

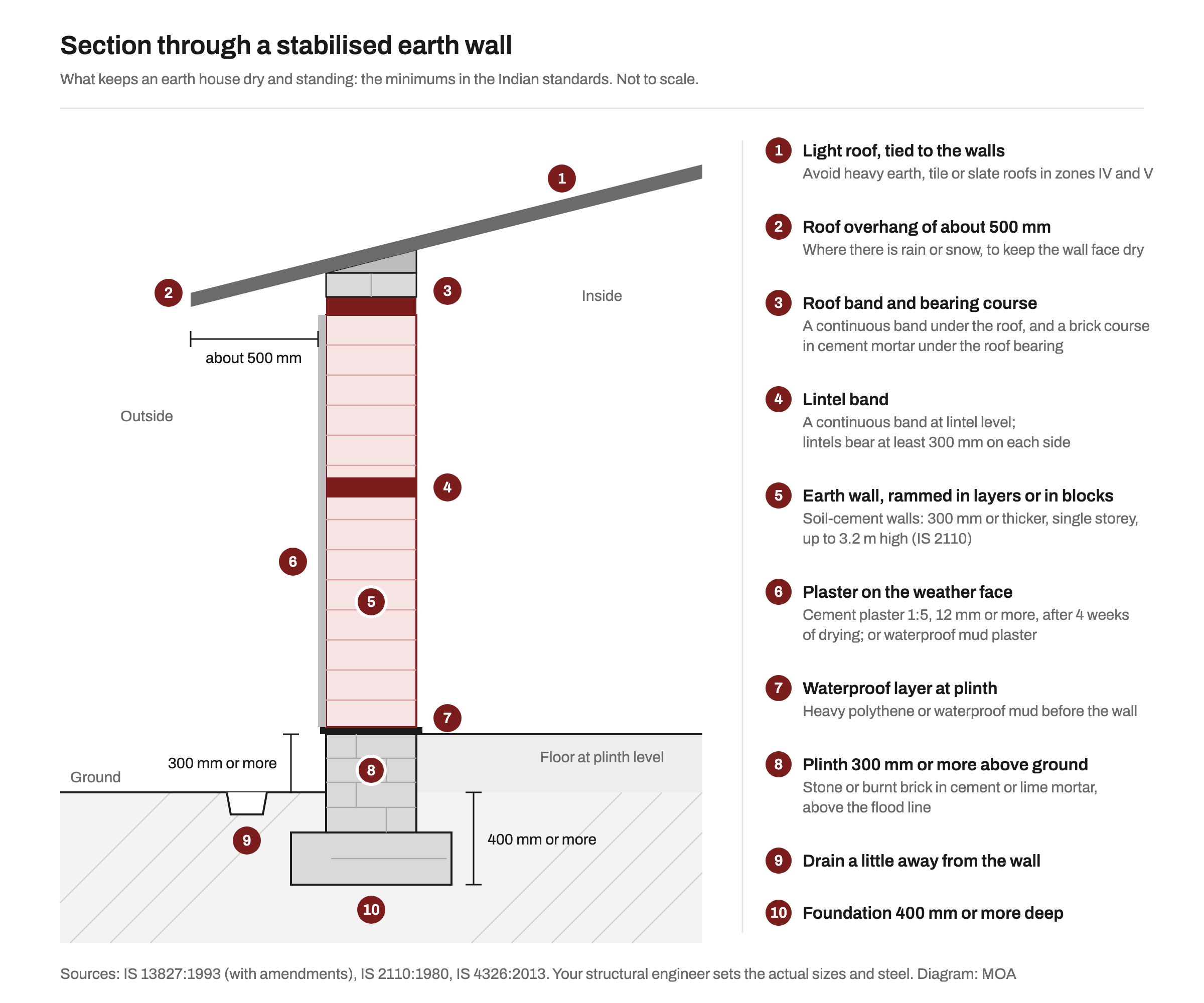

Keeping the rain off: plinth, overhang and plaster
Water, not load, is what usually ruins an earth wall. IS 13827 sets out the minimum protection, and IS 2110 adds detail for stabilised walls:
- Plinth. Build up to plinth in stone or burnt brick in cement or lime mortar, at least 300 mm above ground or above the flood line, with a waterproof layer such as heavy polythene before the earth wall starts, and a drain a little away from the wall. Foundations go at least 400 mm deep.
- Overhang. Where there is rain or snow, project the roof about 500 mm beyond the walls.
- Top of the wall. IS 2110 puts a course of brickwork in cement mortar under the roof bearing, and builds parapets in brick with a drip course so water runs onto the roof, not down the wall.
- Plaster. IS 2110 calls for cement plaster of 1:5 or richer, at least 12 mm thick, once the wall has dried for four weeks. For unstabilised walls in wet areas IS 13827 gives a waterproof mud plaster made with bitumen cut back with kerosene.
Be wary of claims that a natural plaster alone waterproofs for good. The Auroville Earth Institute's lime, alum and tannin plaster kept its vaults dry through 402 mm of rain in five days, but let water through after about five years (Stabilised earth waterproofing). See also our guide to waterproofing a house by climate.
Earthquakes: what IS 13827 and IS 4326 ask
Check your seismic zone before choosing a technique. IS 1893 (Part 1):2016 puts Delhi, Shimla, Dehra Dun and Chandigarh in zone IV, Mandi in zone V, and Kochi and Thiruvananthapuram in zone III (IS 1893 (Part 1):2016, Annex E). BIS released a 2025 edition in November 2025 and withdrew it in March 2026, so the 2016 code applies (ETV Bharat).
Unstabilised earth (IS 13827). Since its 1995 amendment the guideline applies in all zones. It limits adobe buildings to one storey plus attic in zones IV and V and two storeys elsewhere, and says important buildings should not have earthen walls in zones IV and V. Other rules:
- walls no longer between cross walls than 10 times their thickness, and no taller than 8 times it
- openings no wider than 1.2 m, at least 1.2 m from an outside corner, and together no more than 33⅓ per cent of the wall length in zone V and 40 per cent in zones III and IV
- a timber or reinforced band at lintel level and another under the roof in zones III to V, and a cane or bamboo mesh through the walls in zone V
- a light roof, well tied to the walls; heavy timber-and-earth roofs, tiles and slate are to be avoided in zones IV and V
It adds that such houses will not count as engineered construction, though these features greatly reduce the chance of collapse.
Blocks and stabilised walls. IS 4326:2013 covers masonry of rectangular units and leaves earthen buildings to separate standards. Our reading is that CSEB walls, being rectangular units in mortar, should be detailed to IS 4326: its Table 5 asks for lintel and roof bands in every category, and vertical steel at corners and junctions in categories D and E, which for an ordinary house means zones IV and V. Your structural engineer should confirm this. Gujarat accepted the Auroville Earth Institute's reinforced hollow interlocking blocks for rebuilding up to two floors after the 2001 Kutch earthquake (Disaster resistance).
Approvals: how bye-laws treat earth walls
The rules we read do not ban earth walls; they expect them to be engineered. Uttar Pradesh's 2025 model bye-laws require structural design by a registered or licensed engineer to the codes they list, which include IS 4326 and IS 13827, and count compressed earth blocks among the environment-friendly materials for large projects (UP Model Building Byelaws 2025). The Haryana Building Code 2017, as amended to August 2026, lists compressed earth blocks and rammed earth walls and vaults among sustainable materials that may be used (Haryana Building Code, clause 8.5).
We have not read every state's rules, so confirm with your authority before you submit. See our explainer on setbacks, FAR and height limits for the rest of the plan.
What it costs: the one official rate we found
Indicative rates, not quotes: Maharashtra Public Works Department, State Schedule of Rates 2022-23, effective 25 July 2022, completed rates excluding GST. The per square metre figures are our arithmetic for comparison only.
| Item (Maharashtra SSR 2022-23) | Unit | Rate (₹, excl. GST) |
|---|---|---|
| 52.05 Rammed earth wall, soil and sand with 5 to 8% cement or lime, about 35 cm thick, formwork and finishing included | m³ | 11,300 (labour 6,540) |
| 27.05 Second class burnt brick masonry, CM 1:6, superstructure | m³ | 7,994 |
| 27.13 Fly ash brick masonry, CM 1:6, superstructure | m³ | 7,106 |
By volume, rammed earth costs more in this schedule. Per square metre of wall, a 350 mm rammed earth wall works out at about ₹3,955 against about ₹1,839 for a 230 mm brick wall before plaster, though the rammed earth item includes finishing. We found no CSEB masonry item in this schedule or in the Tamil Nadu Schedule of Rates 2025-26, so get a rate per square metre of finished wall from the block yard and builder.
The Auroville Earth Institute reports CSEB masonry 15 to 20 per cent cheaper than country fired brick in Auroville in April 2009: one institute's local, dated figure. MOA's home cost calculator gives a whole-house estimate.
Who builds with earth in India
- Auroville Earth Institute, near Puducherry, founded in 1989. Its CSEB Visitors' Centre won the Hassan Fathy Award in 1992, one Vikas Community building has four floors, and it designs the Auram block press.
- Indian Institute of Science, Bengaluru. IISc's B. V. Venkatarama Reddy chaired the BIS committee that wrote IS 1725:2023, with the Auroville Earth Institute among its members. The institute credits IISc and architects such as Chitra Vishwanath with driving much of this work in Bangalore (Earth techniques of the world).
- COSTFORD, Thrissur, founded in 1985 by C. Achutha Menon, K. N. Raj, Laurie Baker and T. R. Chandra Dutt (COSTFORD). It lists mud stabilisers among its technical innovations, and advises that a mud house need not be made entirely of mud (COSTFORD, Material and Technology).
Our guidance: visit a builder's five-year-old earth building after a monsoon. For how earth compares with other regional materials, see building materials by climate and region.
The honest limits
- Height and span. IS 2110 is written for single-storey buildings, and the Auroville Earth Institute lists wide spans and tall, long buildings as hard to do.
- Workmanship. The institute names untrained teams, poor presses and wrong stabiliser doses as causes of bad blocks.
- Fire data. It knows of no scientific fire resistance tests on CSEB.
Frequently asked questions
Is a mud house strong enough to live in?
A well-made stabilised wall is: IS 1725:2023 blocks start at 3.5 N/mm² wet strength. Unstabilised earth is far weaker when wet.
Can I build a two-storey mud house?
IS 13827 limits unstabilised adobe to one storey plus attic in zones IV and V and two elsewhere. Stabilised block masonry can go higher with an engineer's design.
How much does a mud house cost in India?
The Maharashtra PWD Schedule of Rates 2022-23 lists rammed earth walls at ₹11,300 per cubic metre excluding GST, against ₹7,994 for brick masonry.
Do I need special approval for a mud house?
The UP and Haryana rules we read allow earth walls, with structural design by a registered engineer. Confirm with your local authority.
An architect who has built with earth can tell you whether your soil, climate and zone suit it: find an architect on MOA.
Sources
- Bureau of Indian Standards: IS 13827:1993, Improving earthquake resistance of earthen buildings, with Amendments 1 (1995) and 2 (2002) (accessed 18 Oct 2026)
- Bureau of Indian Standards: IS 2110:1980, In situ construction of walls in buildings with soil-cement (accessed 18 Oct 2026)
- Bureau of Indian Standards: IS 1725:2023, Stabilized soil blocks used in general building construction (accessed 18 Oct 2026)
- Bureau of Indian Standards: IS 4326:2013, Earthquake resistant design and construction of buildings (accessed 18 Oct 2026)
- Bureau of Indian Standards: IS 1893 (Part 1):2016, Criteria for earthquake resistant design of structures (accessed 18 Oct 2026)
- ETV Bharat: A bold policy reversed, the withdrawal of India's 2025 seismic code (accessed 18 Oct 2026)
- Auroville Earth Institute: Compressed stabilised earth block (accessed 18 Oct 2026)
- Auroville Earth Institute: Earth in Auroville (accessed 18 Oct 2026)
- Auroville Earth Institute: Stabilised rammed earth walls (accessed 18 Oct 2026)
- Auroville Earth Institute: Stabilised earth waterproofing (accessed 18 Oct 2026)
- Auroville Earth Institute: Introduction to disaster resistance (accessed 18 Oct 2026)
- Auroville Earth Institute: Earth techniques of the world, introduction (accessed 18 Oct 2026)
- COSTFORD: About COSTFORD (home page) (accessed 18 Oct 2026)
- COSTFORD: Material and Technology (accessed 18 Oct 2026)
- Maharashtra Public Works Department: State Schedule of Rates 2022-23 (accessed 18 Oct 2026)
- Government of Tamil Nadu: Schedule of Rates 2025-26, Volume I (accessed 18 Oct 2026)
- Housing and Urban Planning Department, Uttar Pradesh: Model Building Construction and Development Byelaws 2025 (accessed 18 Oct 2026)
- Town and Country Planning Department, Haryana: Haryana Building Code 2017, with amendments up to 13.08.2026 (accessed 18 Oct 2026)
