Building on Black Cotton Soil: Foundations That Do Not Crack

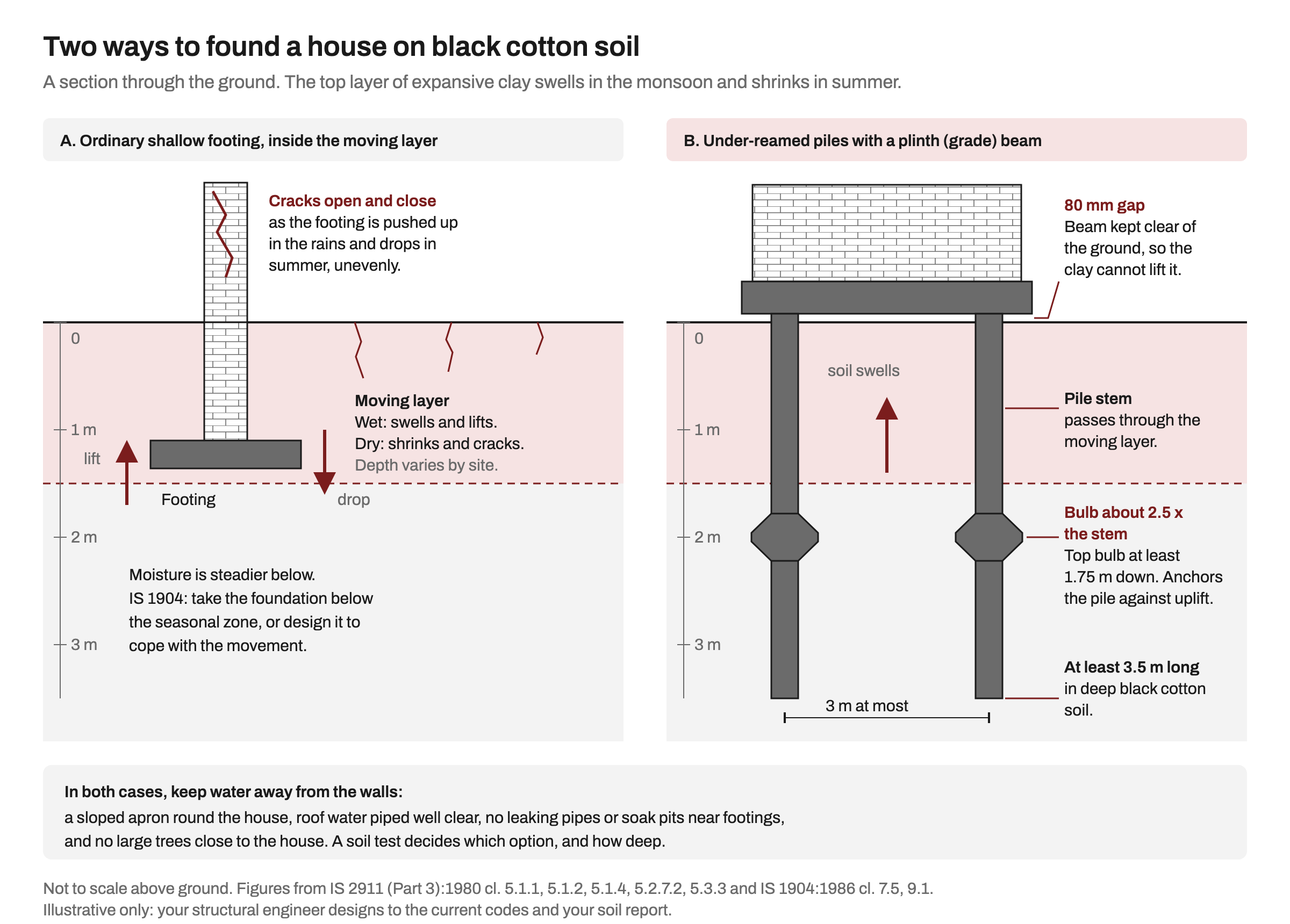

On black cotton soil, do not put an ordinary shallow footing in the top few metres of clay and hope. That layer swells when the monsoon wets it and shrinks and cracks when summer dries it, and it carries your walls up and down with it. The answer in the Indian codes is to take the foundation below the moving layer, for example with under-reamed piles and a plinth beam held clear of the ground, and to keep water away from the walls for the life of the house.

Which option suits your plot, and how deep it goes, comes from a soil test, not from the neighbour's house.

What black cotton soil is, and where you will meet it

Black cotton soil is the builder's name for the dark clay soil scientists call Vertisols. An Indian Agricultural Research Institute (IARI) overview, Conservation and Management of Soil and Water Resources, puts black soils at about 74 million hectares, mainly in the central, western and southern states, formed mostly from Deccan Trap basalt. They run from under a metre to several metres deep, often over weathered rock called murrum, and crack 0.5 to 1 cm wide in summer, sometimes up to 6 cm.

Central Ground Water Board (CGWB) district reports show the spread:

• Malwa: the Indore district aquifer report (2017-18) describes mostly montmorillonite clay soil, with black cotton soil from weathered basalt 1 to 6 m thick.
• North Karnataka: the Gulbarga (Kalaburagi) booklet (2013) has deep and medium black soil over practically the whole district, 0.5 to 3.6 m thick; the Chikkodi taluk report (Belagavi) traces its black cotton soil to weathered basalt.
• Gujarat: the Vadodara brochure maps deep, medium and shallow black soil.
• Telangana and Tamil Nadu: the Ranga Reddy brochure (2013) around Hyderabad lists medium black soils, 20 to 60 cm thick on low plains; the Coimbatore brochure (2008) finds black soils in the Coimbatore, Palladam and Avinashi taluks.

The same reports list red, mixed and alluvial soils too, so a district map only tells you to look. A test on your plot tells you what you have.

For how this soil shapes the rest of the house in two of the cities where it is common, see building materials for a house in Hyderabad and building materials for a house in Pune.

Why houses on it crack

IS 9451:1994, the code for canals in expansive soils, blames the clay mineral montmorillonite, and says such soils swell when wet with a pressure of 50 to 300 kN/m² or more: roughly 5 to 30 tonnes on every square metre.

IS 1904:1986, the general code for foundations, says black cotton soils shrink and crack in hot weather and swell in the wet, to a depth that depends on the clay and climate. Its two ways out: found below the depth where seasonal change matters, or make the foundation cope with the movement, through flexible construction, a rigid foundation or enough load to counter the swelling.

The movement is rarely even. A corner wetted by a leaking pipe lifts more than one kept dry under paving, and the result is the familiar diagonal crack from a window corner or a door that sticks after the rains.

Test the soil before anyone designs the footings

If you are still choosing a plot, start with our checks before buying land. Once you own it, the codes say what the investigation covers.

How many pits or boreholes, and how deep

IS 1892:1979 says one borehole or trial pit in the centre may do for a small building; a compact site of about 0.4 hectare needs one at each corner and one in the centre. Exploration normally goes 1.5 times the footing width below foundation level, and for piles 1.5 times the structure's width below the pile tip. On clay, the depth that seasonal changes reach is the minimum. (BIS has since issued IS 1892:2021; the 1979 edition is the public one.)

The free swell index

The quick laboratory test is the free swell index, in IS 2720 (Part 40):1977: 10 g of dry soil settles in water and another 10 g in kerosene, which does not make clay swell, and after at least 24 hours the extra volume in water, as a percentage, is the index.

Appendix A of IS 2911 (Part 3):1980 grades the result as differential free swell:

The same appendix warns that on high or very high values, conventional shallow strip footings may not be adequate. The code also asks for the groundwater level and sulphate and chloride tests, since sulphate-rich ground needs a sulphate-resisting mix. Ask for a swelling pressure test (IS 2720 Part 41) too: IS 9451 uses it to size a CNS layer.

Foundation options on black cotton soil

Under-reamed piles

The CSIR-Central Building Research Institute, Roorkee, developed under-reamed piles and says they proved economical and safer in black cotton soil. Each is a bored, cast-in-place concrete shaft with one or more bulbs cut out near the bottom; IS 2911 (Part 3) says the bulb anchors it against uplift from swelling, besides adding bearing.

The 1980 code sets these rules for expansive soil:

• In deep deposits, piles are at least 3.5 m long. Where the clay is shallow over good strata or rock, shorter piles are allowed.
• The bulb is 2 to 3 times the stem diameter, normally 2.5 times.
• The top bulb is at least twice the bulb diameter below ground, and not less than 1.75 m.
• Piles go under wall junctions and, under grade beams, generally no more than 3 m apart.
• The stem carries at least 0.4% steel over its full length, at least three 10 mm mild steel or three 8 mm high strength bars.

BIS has since revised the code as IS 2911 (Part 3):2021, a paid edition we have not read; your engineer should design to it.

Plinth beams that do not touch the clay

The walls stand on a reinforced plinth beam (the code's grade beam) carried by the piles. IS 2911 (Part 3):1980 asks for a beam at least 150 mm deep, kept at least 80 mm clear of expansive ground so the clay cannot push it up, with a ledge 75 mm thick and 80 mm into the ground on the outer side of exterior beams. Guidance: the gap is easy to lose if someone backfills against the beam, so ask for it on the drawings and check it on site.

A cohesive non-swelling (CNS) layer

A CNS layer is a compacted cushion of clayey soil that does not swell, placed between expansive clay and what must not move. IS 9451 codifies it for canal linings: a liquid limit of no more than 50% and a swelling pressure of no more than 10 kN/m². It notes most laterite murrums qualify but some swell, so test the fill. Guidance for a house: a CNS or murrum cushion under the ground floor, plinth fill and apron, sized by your engineer to the measured swelling pressure.

Raft, deeper footings or removing the clay

Where the black soil is thin over murrum or rock, digging through it to the firm layer may be simplest. On deep clay, a stiff raft is the “rigid foundation” route IS 1904 allows. Guidance: ask your engineer to cost at least two options.

Water, drains and trees: the part that lasts for decades

IS 1904 warns that leaks from water mains and sewers can cause large volume changes in clay, and that trees which grow large should not be planted within 8 m of foundations, since they dry the soil; felling one can make it swell. IS 1892 names banyan, pipal and neem as water-seeking trees.

Guidance for the house:

• A continuous sloped apron on a non-swelling base, sealed at the wall.
• Rainwater pipes into closed drains led well away, not onto the plinth.
• Accessible, flexible-jointed pipes, and no soak pit, septic tank or garden bed against the walls.
• Plinth protection and damp-proofing as one system: see our guide to waterproofing a house by climate.

Indicative cost of under-reamed piles

The pile count follows the plan, with piles at wall junctions and no more than 3 m apart, so a compact plan needs fewer. Our home cost calculator gives a total budget to set this against.

What to ask your structural engineer

1. What do the free swell, swelling pressure and water table results mean here, and how deep is the seasonal zone?
2. Why this foundation, and what did the alternatives cost?
3. Pile length, stem and bulb sizes, and the safe load per pile: from the code's table or a load test?
4. Is the plinth beam shown 80 mm clear of the ground, and how is the gap kept during backfilling?
5. What goes under the ground floor slab?
6. Do sulphates call for a different cement or more cover?
7. Where do the apron, drains and soak pit go?

The answers belong in the structural set: see the drawings you should receive.

Mistakes to avoid

• Pouring footings at a “usual” depth without a soil test.
• Backfilling clay against the plinth beam and closing the gap.
• Laying the ground floor slab straight on black clay.
• Letting roof water spill at the plinth, or putting a soak pit beside the house.
• Planting a large tree near the walls, or felling an old one without asking the engineer.

FAQ

Which foundation is best for black cotton soil?

On deep black cotton soil, IS 2911 (Part 3) covers exactly this case: under-reamed piles carrying a plinth beam kept clear of the ground. Where the clay is thin, founding on the murrum or rock below may be simpler. A soil test decides.

How deep should a foundation be in black cotton soil?

Below the zone that swells and shrinks with the seasons, which varies by site. For under-reamed piles in deep deposits, IS 2911 (Part 3):1980 sets a minimum length of 3.5 m and a top bulb at least 1.75 m down.

How do I know if my plot has black cotton soil?

Dark clay that is sticky when wet and cracks in summer is the usual sign; IS 9451 notes non-swelling soils show neither. Only a free swell test tells you how expansive it is.

What is the cost of under-reamed piles?

CPWD's DSR 2023 lists a 300 mm single under-reamed pile at ₹3,065.60 per metre, excluding steel, at Delhi 2023 rates. Check your state PWD Schedule of Rates.

Building on black soil? An architect working with a structural engineer can choose the foundation, plinth and drainage for your plot. Find an architect on MOA.
