False Ceiling Design for Hall, Including Halls with Two Fans

For a false ceiling design for a hall with two fans, divide the hall into two equal zones and hang one fan from the slab at the centre of each. In a 12 x 18 ft hall that puts the fans 9 ft apart and 4 ft 6 in from each end wall, with the false ceiling kept to a band around the edge or a tray around each fan, so the blades stay at least 300 mm below the ceiling and at least 2.4 m above the floor, as V-Guard's fan guidance asks.

This guide works through that one hall to scale: five design types, fan spacing, how much drop a 9 ft or 10 ft slab can take, where the lights go, and which material to use. The same rules apply to any living room or drawing room.

About the numbers below: fan clearances come from fan makers' published guidance (V-Guard and Atomberg), and room heights from Delhi's building bye-laws, each linked where used. Band widths, drop depths and light positions are common practice, labelled as our guidance. Check your own fan's manual, since makers differ.

The rules for fans under a false ceiling

Before choosing a design, fix the fans. Indian fan makers publish slightly different minimums, so design to the stricter one:

Blades to ceiling: at least 0.3 m (about 1 ft) between the blades and the ceiling or a projecting beam (V-Guard). The edge of a dropped band acts like a beam, so keep blades clear of it.
Fan to floor: at least 2.4 m, about 8 ft (V-Guard). Atomberg's installation guide gives 7 ft, and its fan size chart recommends blades 8 to 9 ft above the floor.
Blade tip to wall: at least half the sweep, so 600 mm for a 1200 mm fan (V-Guard). Atomberg's installation guide says 18 in, and its size chart suggests 2 to 3 ft from the nearest wall, beam or ceiling fixture.
Between two fans: at least 4 ft from blade tip to blade tip, per Atomberg's size chart.
Fixing: the hook goes into the main slab, not just the false ceiling layer (Atomberg). Fix the hook positions before the ceiling frame goes up.

Atomberg's chart also says to measure fan height from the false ceiling surface, not the original concrete ceiling, when the fan hangs below a false ceiling.

How many fans for a 12 x 18 ft hall, and what size

A 12 x 18 ft hall is 216 sq ft. On Atomberg's size chart, that area falls in the 1400 mm band (150 to 225 sq ft). The same chart warns that in a long rectangular room a single centre fan leaves the ends still, and suggests two 1200 mm fans instead. Split the hall into two 9 x 12 ft zones of 108 sq ft each, which sits in the chart's 1200 mm band (100 to 150 sq ft), and centre one fan in each zone.

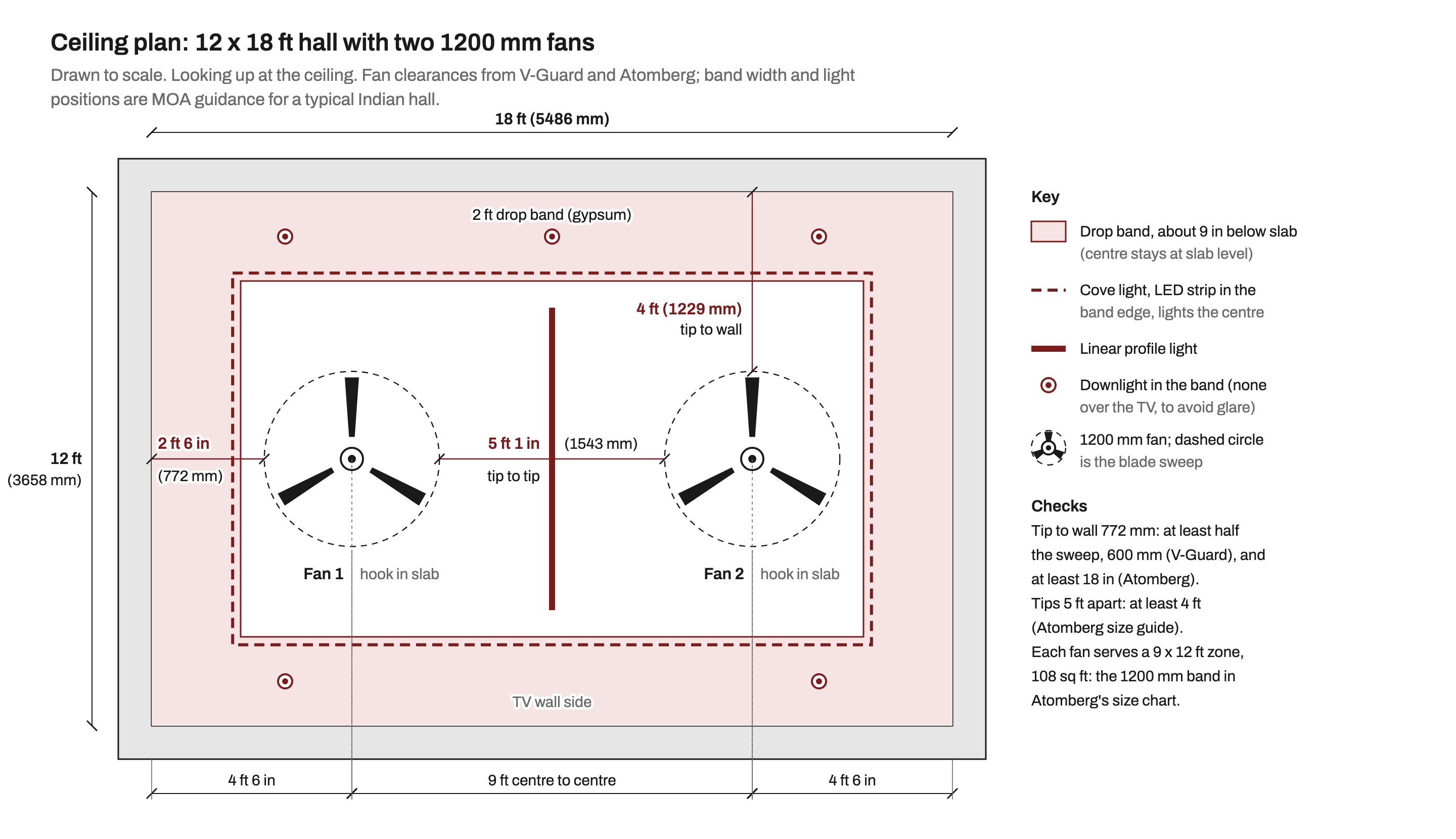

A 12 x 18 ft hall split into two 9 x 12 ft fan zones. Fan clearances follow V-Guard and Atomberg guidance; band width and light positions are our guidance. Diagram: MOA

The plan above checks out against every rule: 772 mm from each blade tip to the end wall, about 4 ft to the long walls and 5 ft 1 in between the blade tips. If your hall has seating at one end and dining at the other, the two fan zones match how the room is used.

Five false ceiling designs for a hall with two fans

All five below work with the same fan positions. The difference is how much ceiling you build and where the light comes from.

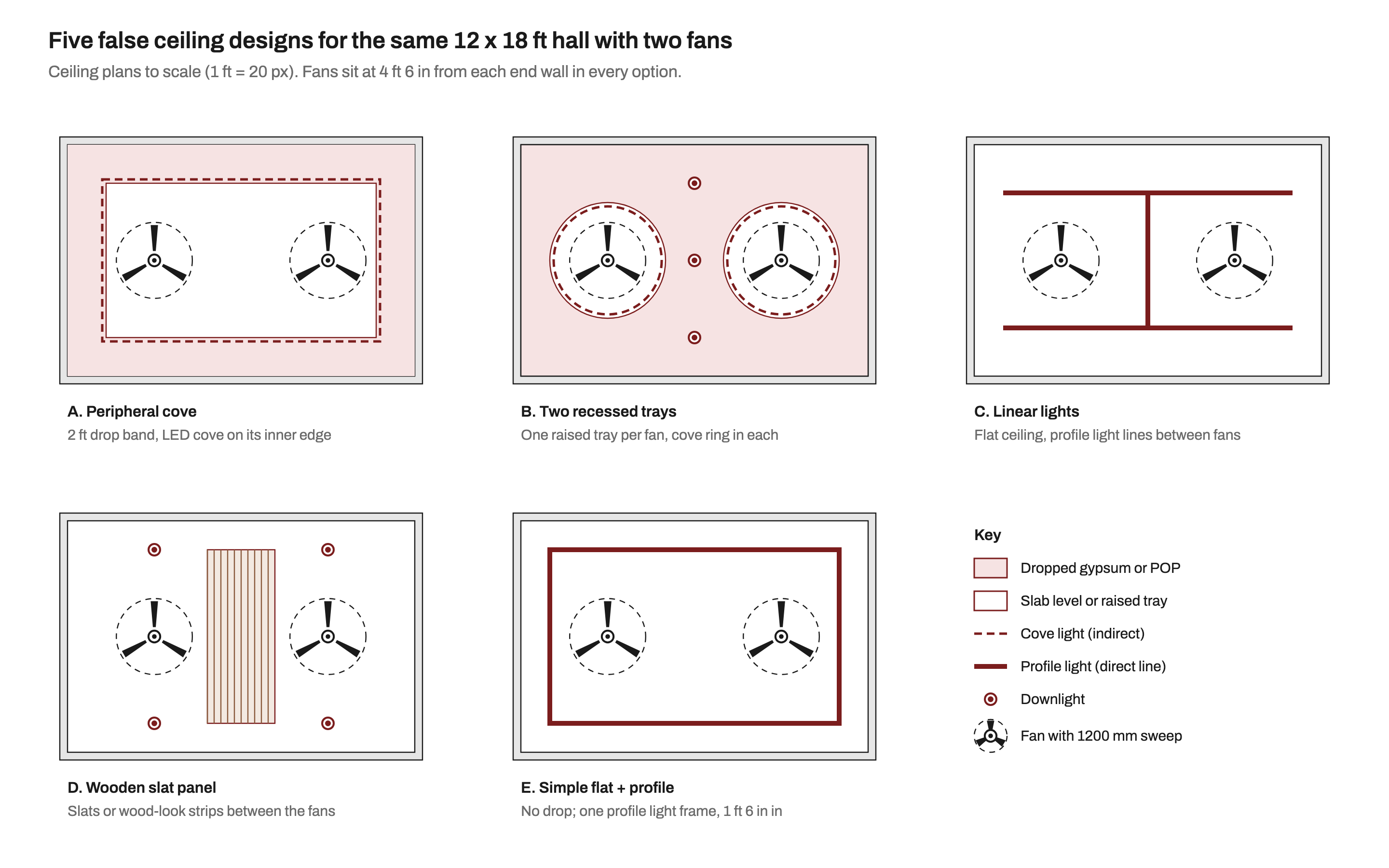

Five common hall ceiling designs drawn on one 12 x 18 ft room, so you can compare them at the same scale. Diagram: MOA

1. Peripheral cove (the most common hall design)

A band about 2 ft wide drops around the walls, and the centre stays at slab level. An LED strip in the band's inner edge washes the centre with soft light. Both fans hang from the slab in the open centre, so you lose no fan height. This is the safest choice for a 9 ft slab.

2. Two recessed trays, one per fan

The whole ceiling drops, except two raised circles or rectangles, one around each fan, each with its own cove ring. It marks the living and dining zones clearly. It needs more depth, so it suits a 10 ft slab better, and each tray must be wide enough that the blade tips stay inside it.

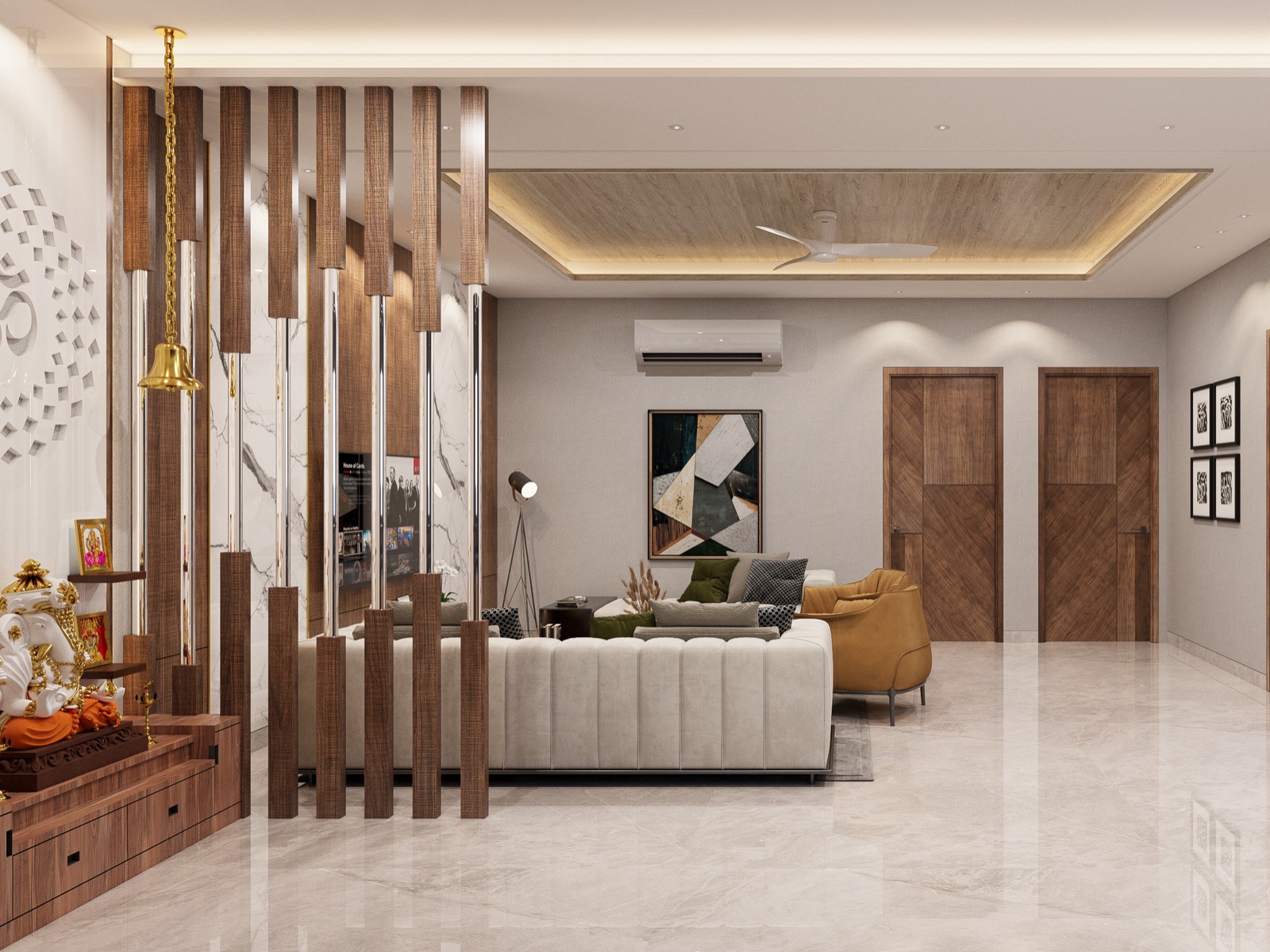

Design render of a long living room with a raised rectangular tray in a light wood finish over the seating, edged with warm cove lighting, a white ceiling fan centred in the tray and plain white ceiling with small downlights around it. — Design render: a wood-finish tray marks the seating zone and holds the fan at its centre, with cove light round the edge. 6N6 Architects, Jalandhar. Image: 6N6 Architects on MOA

3. Linear profile lights

A flat or nearly flat ceiling with aluminium profile light lines cut into it, running the length of the hall or crossing between the fans. It looks current, needs very little drop and keeps fixtures out of the fan sweep. Keep the lines straight and aligned to the walls, or they make an uneven room look crooked.

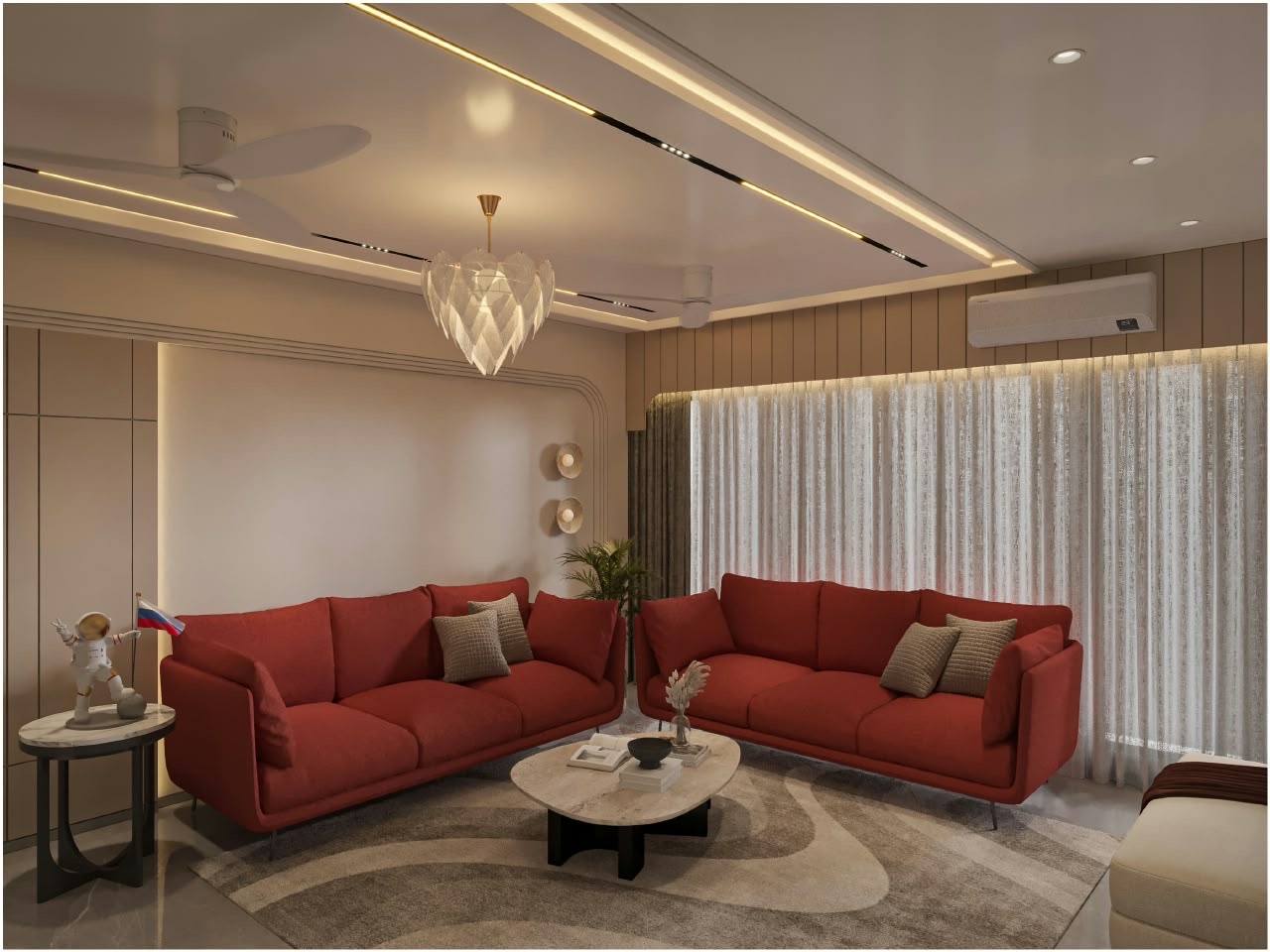

Design render: two fans share one central panel, and linear profile lights run between them instead of more downlights. Shilpkaar Interiors, Surat. Image: Shilpkaar Interiors on MOA

4. Wooden slat panel

A strip of slats or wood-look planks between the fans, or over the sofa, adds warmth without boxing in the ceiling. Keep slats outside the blade sweep with 2 to 3 ft of clear space around each fan, in line with Atomberg's chart.

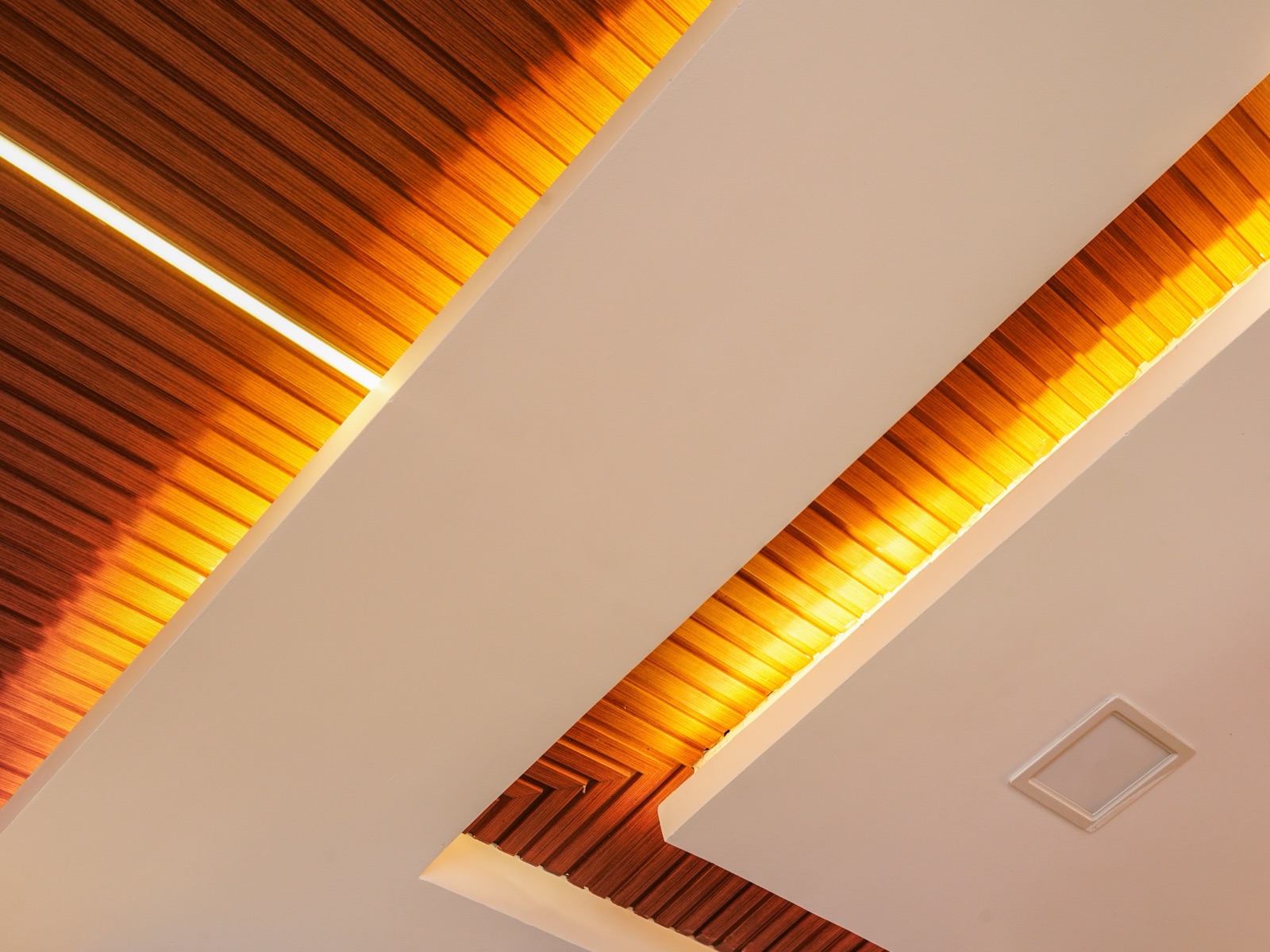

Close view looking up at a living room false ceiling where a band of narrow wooden slats meets a plain light-coloured gypsum panel, with a warm LED cove glowing along the joint and a small square ceiling grille. — Wooden slats and a warm cove line along the edge of a plain gypsum panel in a Chennai living room by Latha Architects. Image: Latha Architects on MOA

5. Simple flat ceiling with a profile light

No drop at all, just one profile light frame about 1 ft 6 in from the walls, plus wall lights. This answers the search for a living room design without a false ceiling: you keep every inch of height, and the light frame does what a cove would.

Drop height on a 9 ft or 10 ft slab

Delhi's Unified Building Bye-Laws 2016 set 2.75 m, about 9 ft, as the minimum height of a habitable room. They allow a false ceiling without a fresh permit if it stays at the permissible clear height and cannot be used as a loft. Rules vary by city, so ask your society or local body if you are unsure.

Measure your slab before you choose a design. With the fan rules above, the arithmetic is simple:

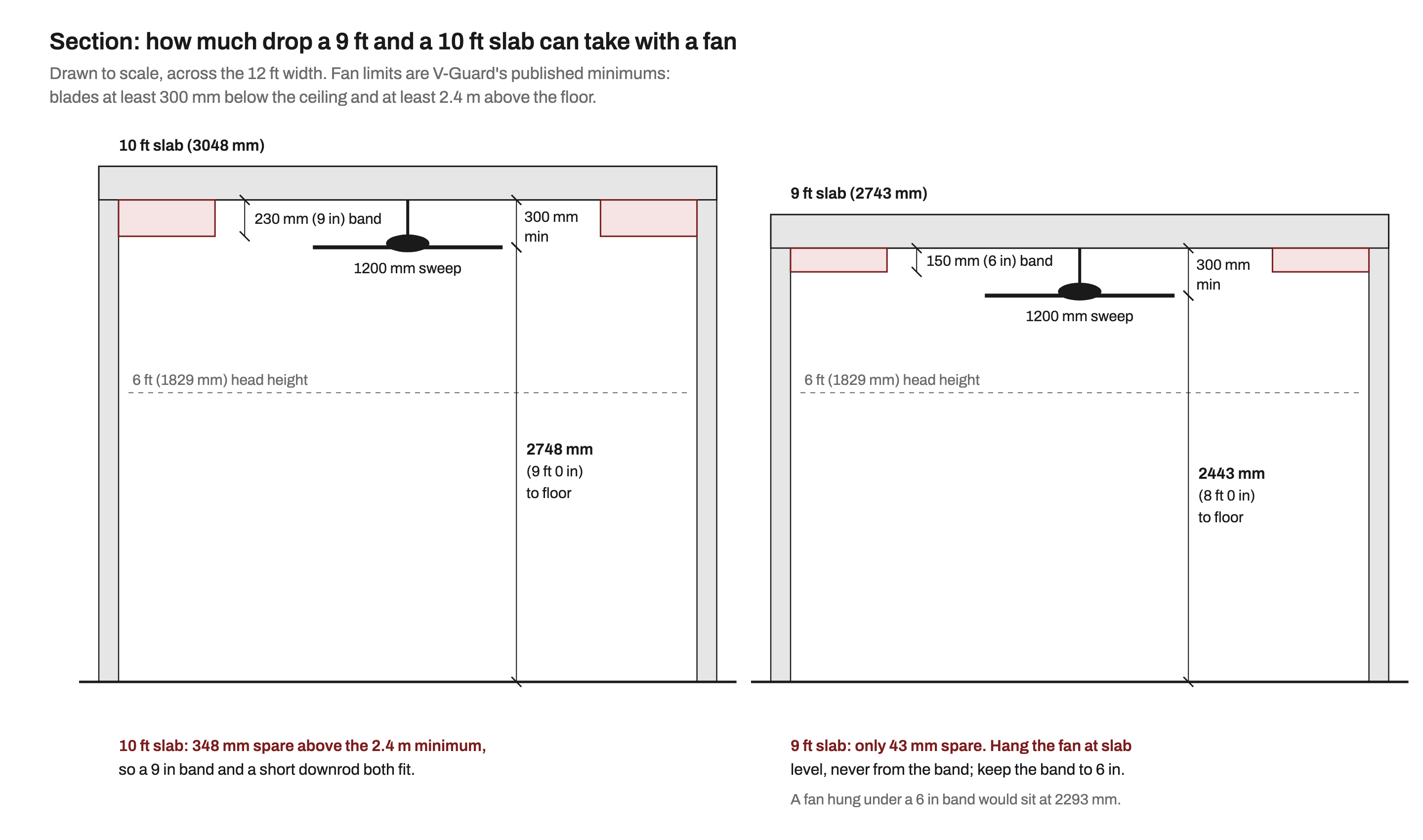

To-scale sections of a 12 ft wide hall with a 10 ft slab and a 9 ft slab. In each, a 1200 mm fan hangs from the slab with its blades 300 mm below the ceiling. With the 10 ft slab the blades sit 2748 mm above the floor and a 230 mm (9 in) drop band runs along the walls. With the 9 ft slab the blades sit 2443 mm above the floor, just 43 mm above the 2.4 m minimum, and the band is kept to 150 mm (6 in). A dashed line marks 6 ft head height. — Why a 9 ft flat leaves almost no room to drop the ceiling where a fan hangs. Limits from V-Guard's published fan guidance; band depths are our guidance. Diagram: MOA

10 ft slab (3048 mm): blades 300 mm below the slab sit at 2748 mm, 348 mm above the 2.4 m minimum. A band dropped 8 to 9 in leaves about 9 ft 3 in under it (our guidance). Either a peripheral band or two trays work.
9 ft slab (2743 mm): blades 300 mm below the slab sit at 2443 mm, only 43 mm above 2.4 m. A fan hung under even a 6 in drop would sit at about 2293 mm, below V-Guard's minimum. Hang fans from the slab, keep the band to about 6 in, and use a flush-mount fan with no downrod, as Atomberg's chart suggests for 8 to 9 ft ceilings.

Lighting layout for a hall with two fans

Saint-Gobain Gyproc's ceiling lighting guide describes cove light as light directed upwards that bounces off the ceiling for a soft glow, and recessed lights as usually laid out in a grid. In a hall, plan three layers (our guidance):

Ambient: the cove, or the profile frame in a flat ceiling, on a dimmer.
Task and accent: downlights in the band, about 1 ft from the wall, plus a profile line between the fans. Keep every fitting outside the blade sweep. A light directly above or behind turning blades flickers.
Wall lights: sconces or a washer on the TV wall. Avoid a downlight right over the TV, because it reflects on the screen.

Put each layer on its own switch before the ceiling is closed. Our lighting trends post explains why that matters.

False ceiling design with two fans and a chandelier

A jhumar or chandelier between two fans is a common request, and the numbers are tight. In the 12 x 18 ft plan the blade tips are about 5 ft 1 in apart. Keeping 2 ft from each tip, as Atomberg's chart suggests for fixtures, leaves only about 1 ft for the chandelier. Hang it over the dining table in one fan zone, and move that zone's fan towards the seating if the room allows. Gyproc also advises hanging heavy chandeliers from the beams or slab, not from the gypsum board.

Design render: the chandelier goes over the dining table and the fan over the seating, so each has its own zone. Hakimi Interior Design, Thane. Image: Hakimi Interior Design on MOA

False ceiling design for a small hall or living room

A hall under about 150 sq ft, such as 10 x 12 ft, needs one 1200 mm fan at the centre (Atomberg's 100 to 150 sq ft band). Keep the design light: a 1 ft 6 in peripheral band with a cove, or the flat ceiling with a profile frame. Deep trays and dark wood make a small hall feel lower. Our coming post on simple false ceiling designs for small rooms and 2BHK flats will cover this in more detail, and small apartment trends for 2027 has more ideas for compact homes.

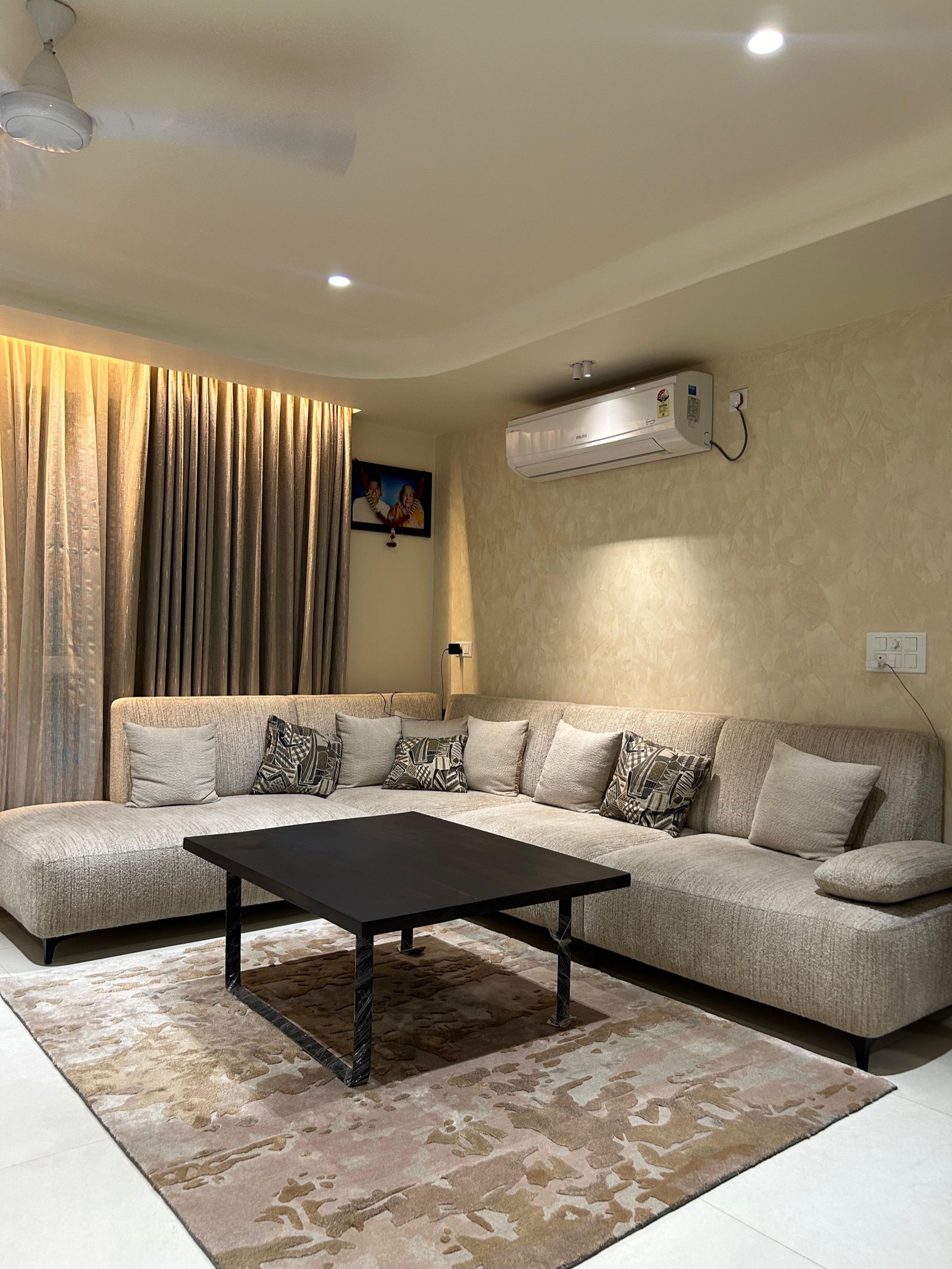

Living room in a Raipur apartment with a simple false ceiling: a shallow curved drop along the wall edge, two recessed downlights, a white ceiling fan in the plain centre, warm light washing the curtains, and a beige L-shaped sofa with a black coffee table on a patterned rug. — A low-cost, low-drop design: a shallow curved edge, a few downlights and a curtain cove, with the fan in the plain centre. Byoura Design Studio, Raipur. Image: Byoura Design Studio on MOA

Gypsum, POP or PVC: materials in short

Gypsum board: factory-made boards screwed to a galvanised steel frame hung from the slab. Gyproc, which makes them, says gypsum is lighter than POP. It is the usual choice for straight bands and trays.
POP (plaster of Paris): applied wet on site over a frame, so it suits curves and mouldings, and it needs drying time before paint.
PVC panels: pre-finished strips that resist moisture, which is why they show up in balconies. They offer fewer shapes and look plainer in a main hall.

Our coming post, POP vs gypsum vs PVC false ceiling: cost per sq ft, will compare the three with sourced rates.

False ceiling design cost for a hall

Before comparing quotes, ask whether the rate is per sq ft of ceiling actually built, and whether cove lights, profile lights and electrical points are included or extra. Design choice moves the built area a lot. In the 12 x 18 ft hall, a 2 ft peripheral band covers 104 sq ft, less than half the 216 sq ft of a full drop with trays. For a whole-home budget, try MOA's free home cost calculator, and see interior design cost room by room for what per-sq-ft rates include.

For where to place seating and the TV wall under these zones, our vastu for the living room post covers the traditional view.

FAQ

How far apart should two ceiling fans be in a hall?

Atomberg's size chart asks for at least 4 ft between blade tips. With two 1200 mm fans, that means at least about 8 ft centre to centre. In a 12 x 18 ft hall, 9 ft centre to centre at the middle of each half works well.

What is the minimum height for a false ceiling with a fan?

Work backwards from the fan. V-Guard asks for at least 2.4 m from fan to floor and 0.3 m from the blades to the ceiling. If the fan hangs below the false ceiling, that ceiling must be at least about 2.7 m (8 ft 10 in) high. In a 9 ft room, hang the fans from the slab and drop only the edges.

Can a ceiling fan be fixed on a gypsum false ceiling?

Not to the board itself. Atomberg says the hook should be anchored to the main ceiling, not just the false ceiling layer. The gypsum only gets a neat cut-out around the downrod.

Which fan size is right for a 12 x 18 ft hall?

One 1400 mm fan fits the area on Atomberg's chart, but for a long hall the same chart prefers two 1200 mm fans, one per half. Two fans also let you run only one when the family sits at one end.

Can I have a chandelier and two fans in the same hall?

Yes, but keep the chandelier out of the space between the blade tips unless it is small. Put it over the dining table and hang it from the slab, as Gyproc advises for heavy fixtures.

A measured ceiling plan like the one above, drawn before work starts, avoids costly changes once the ceiling is closed. Find interior designers on MOA and filter the directory by your city.
