Simple False Ceiling Designs for Small Rooms and 2BHK Flats

A simple false ceiling design for a small room or a 2BHK flat is usually not a full ceiling at all: it is a band about 150 mm (6 in) deep on one to three walls, with the rest of the slab left bare. On a 9 to 9.5 ft slab that keeps the fans and most of the room at full height, hides the curtain track, AC pipes or a beam, and in a typical 2BHK builds about 180 sq ft of ceiling instead of about 840.

Our separate guides to false ceiling design for a hall with two fans, false ceiling design for the bedroom, and POP vs gypsum vs PVC false ceiling cost cover fan spacing, the full range of designs and the materials, so we only touch on them here.

About the numbers below: room heights come from the Model Building Bye-Laws 2016 and fan clearances from V-Guard and Atomberg, each linked where used. Rates per sq ft are market ranges from Design Cafe and NoBroker guides published in 2026, not one firm's price. The 2BHK plan, band widths, depths and light positions are illustrative and labelled as our guidance.

Why simple works best in a 9 ft flat

Start with a tape measure. The Model Building Bye-Laws 2016 (clause 4.3.1.1) set 2.75 m, about 9 ft, as the minimum height of a habitable room, measured to the bottom of the slab, with at least 2.4 m of clear headway under any beam. In an air-conditioned room they allow 2.4 m to the lowest point of a false ceiling. If your slab measures about 9 ft, your flat is built close to that minimum, and every inch you drop is felt.

The fan sets a tighter limit than the bye-laws. V-Guard asks for at least 2.4 m from fan to floor and 0.3 m between the blades and the ceiling. Hung from a 2743 mm slab, the blades sit at 2443 mm, just 43 mm above that minimum. So the rule for a 9 ft flat is simple: drop the ceiling only where no fan hangs, which means along the walls, and use a flush-mount fan. Atomberg's size chart also says to skip the downrod for 8 to 9 ft ceilings.

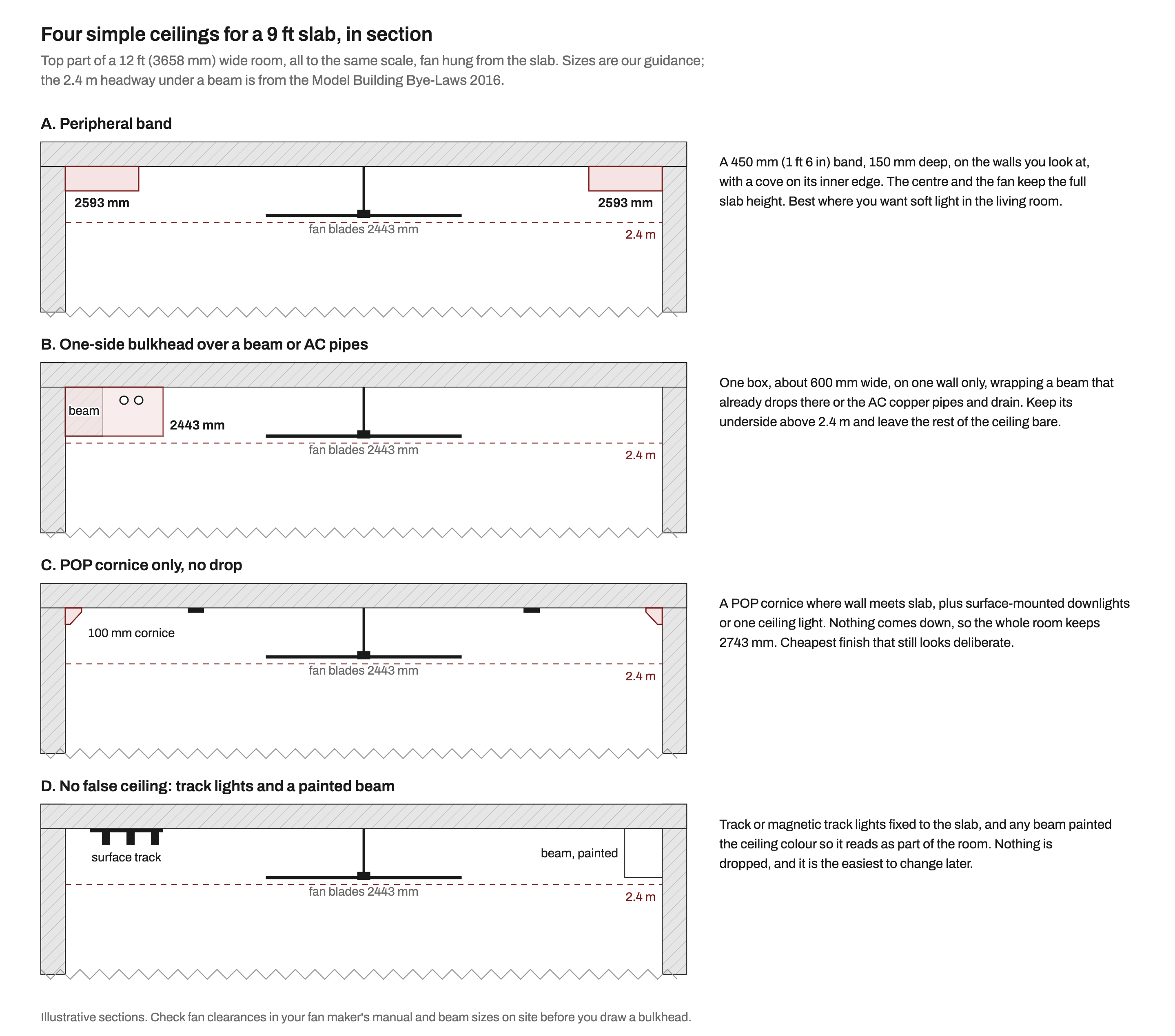

Four sections of the top of a 12 ft wide room with a 9 ft slab and a fan hung from the slab. A: a 450 mm wide, 150 mm deep band on both walls, underside at 2593 mm. B: one 600 mm wide box on one wall wrapping a beam and AC pipes, underside at 2443 mm. C: a 100 mm POP cornice where wall meets slab, with surface downlights and no drop. D: no false ceiling, with a surface track light on the slab kept clear of the fan and a beam painted the ceiling colour. A dashed 2.4 m line runs below each ceiling. — Four ways to keep a low ceiling simple, from a band to no false ceiling at all. Our guidance; the 2.4 m headway under a beam is from the Model Building Bye-Laws 2016. Diagram: MOA

Simple false ceiling designs for a small room

1. A peripheral band only

A band 1 ft to 1 ft 6 in wide and 150 mm deep runs along the walls you look at, with a cove on its inner edge. The centre stays at slab level, so the fan keeps its full height and the room reads as tall. On a 9 ft 6 in slab (2896 mm) you can take the band to 200 or 230 mm, which leaves more room for the cove and slim downlights (our guidance).

The band does not have to go on all four walls. Two or three sides are usually enough: the TV wall, the window wall and the wall you face from the sofa or bed.

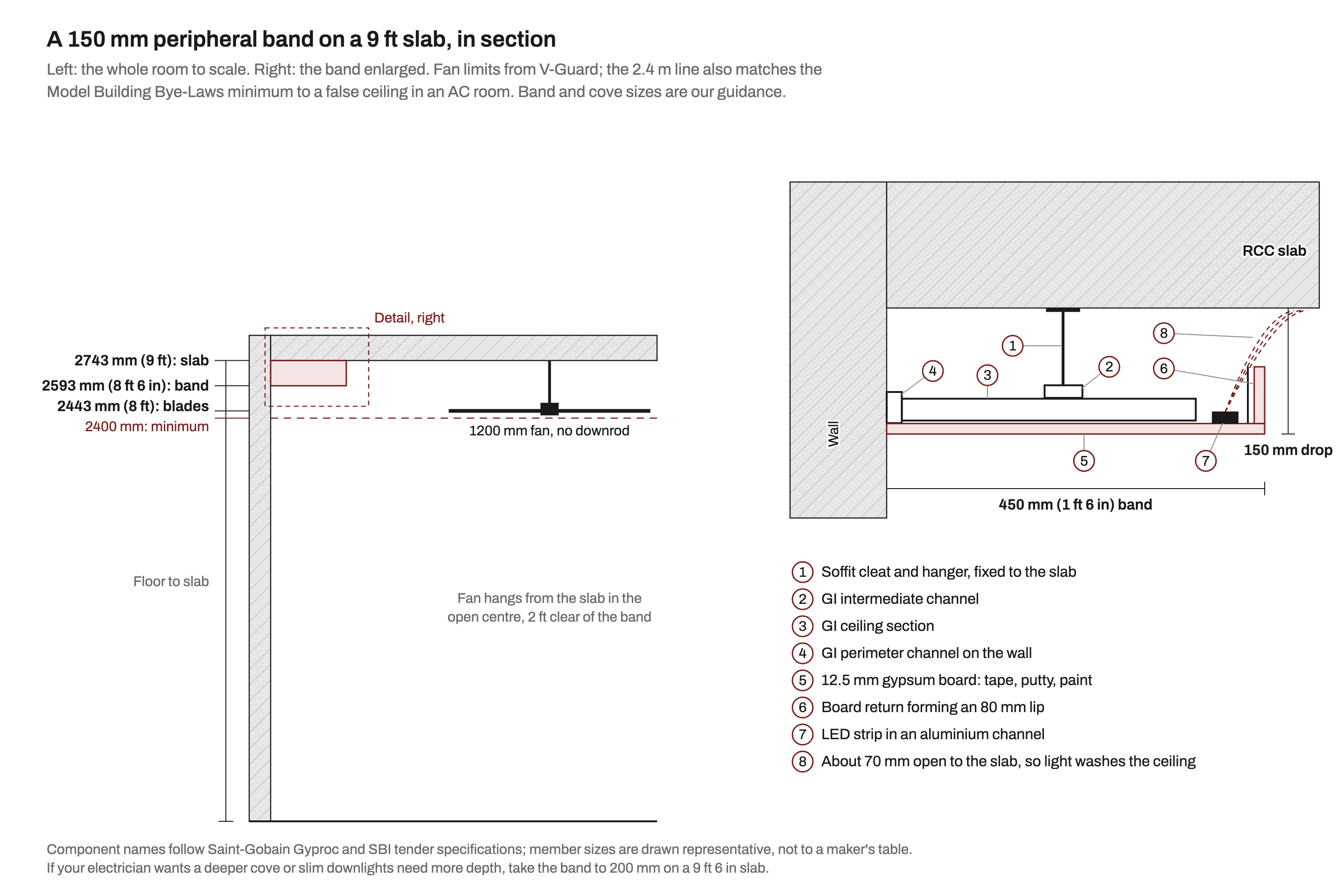

Section through a 9 ft room with a 150 mm peripheral band. The slab is at 2743 mm, the underside of the band at 2593 mm, the fan blades at 2443 mm and a dashed 2.4 m line below them. An enlarged detail shows the 450 mm wide band: a soffit cleat and hanger fixed to the slab, a GI intermediate channel, a GI ceiling section, a GI perimeter channel on the wall, 12.5 mm gypsum board, a board return forming an 80 mm lip, and an LED strip behind the lip with about 70 mm open to the slab so the light washes the ceiling. — How a 150 mm band fits under a 9 ft slab without touching the fan. Fan limits from V-Guard; component names from Gyproc and SBI specifications; band and cove sizes are our guidance. Diagram: MOA

Inside 150 mm there is room for the GI frame, 12.5 mm board and a shallow cove, but not much else. Keep the cove opening at least about 70 mm, and if your electrician wants deeper downlights, put them in the band only where it is wider, or switch to surface fittings.

2. A single-side bulkhead over a beam or AC pipes

Many flats have one beam running along a wall, or a split AC on an inner wall whose copper pipes and drain must cross the room to reach the outside. Instead of dropping the whole ceiling to hide them, box just that strip: one bulkhead about 2 ft wide, as deep as the beam or the pipe bundle needs, and nothing elsewhere (our guidance). Keep its underside above 2.4 m, the same headway the bye-laws ask for under a beam.

Two rules from AC makers shape the box. Daikin's installation manual for its wall-mounted split says the indoor drain pipe must run in a downward gradient, and that more bends add resistance and lower cooling capacity. So run the pipes in a straight line to the nearest outside wall, let the drain fall all the way, and leave an access panel at any joint.

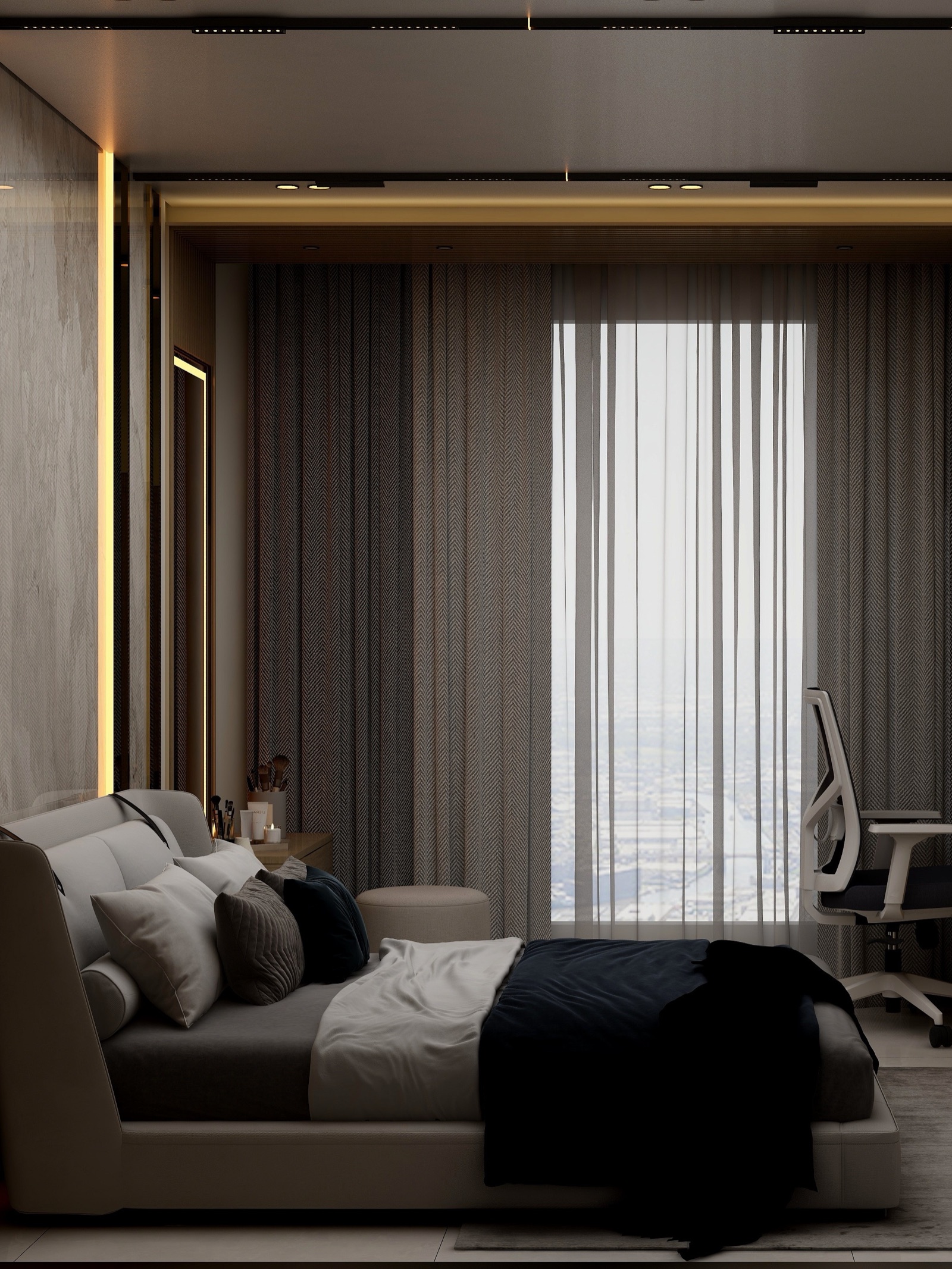

Design render of a bedroom with a flat ceiling: a single dropped band runs along the window wall with a warm cove line and small downlights, slim black track lights run across the rest of the ceiling, and full-height grey curtains hang from the band behind a low upholstered bed and a study chair. — Design render: one band along the window wall carries the curtains, cove and downlights, and track lights cover the rest, so the ceiling over the bed stays at full height. Infinity Architects and Space Designers, Ahmedabad. Image: Infinity Architects & Space Designers on MOA

The window wall is the most useful place for a single band. It hides the curtain track in a pocket, so curtains run from the ceiling line, and it can carry a cove that washes the curtains. Infinity Architects and Space Designers' Ahmedabad apartment on MOA shows the idea in a design render, and the photo below shows it built.

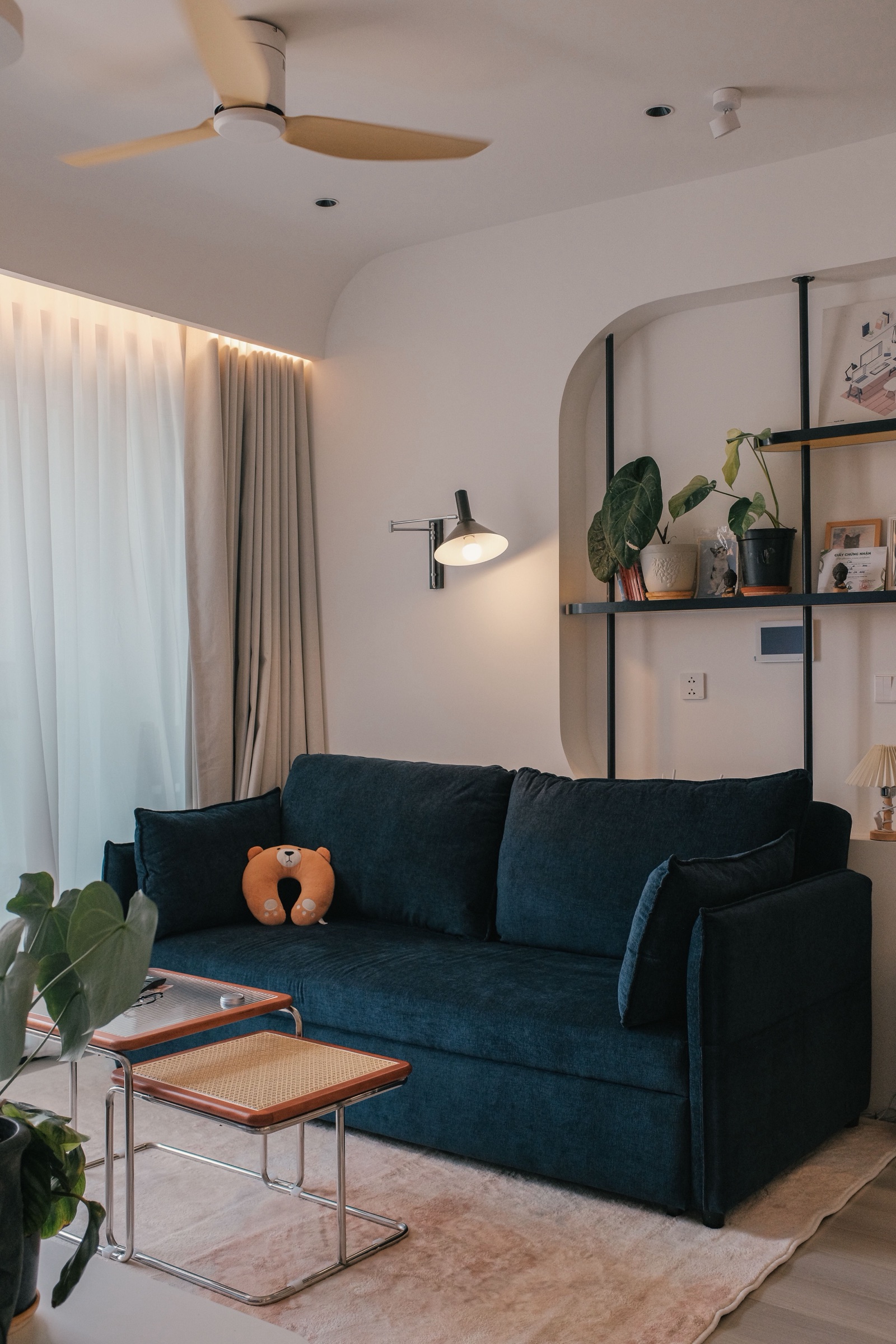

Living room with a flat white ceiling, a three-blade ceiling fan, small recessed downlights and a surface spotlight, and a dropped band with rounded ends along the window wall that hides the curtain track and washes the sheer and linen curtains with warm cove light, above a navy sofa and nesting side tables. — A band on the window wall only: it hides the curtain track and a cove, while the fan hangs from the flat ceiling at full height. Image: Huy Phan on Pexels, Pexels License

3. Profile lights in a straight line

A single aluminium profile light, recessed into a band or fixed to the slab, can replace a grid of downlights. In a small room, keep it to one or two straight lines parallel to the walls; diagonal or crossing lines make a small, slightly out-of-square room look crooked (our guidance). Keep every fitting 2 to 3 ft from the fan's blade tips, as Atomberg's chart asks for walls, beams and fixtures, or the turning blades will flicker in front of it. Our lighting trends for 2027 post covers colour temperature and switching.

4. A POP cornice and no drop

A cornice is a moulding where the wall meets the slab, usually about 75 to 150 mm each way (our guidance). It takes nothing off the room height and gives a plain ceiling a finished edge. POP suits it: JK Cement describes POP as easy to mould into shapes and lists decorative moulding among its uses, and warns that it can crack over time if it is not mixed and cured properly.

False ceiling alternatives: no false ceiling at all

If you want light where you need it without any drop, there are three good options:

Surface or magnetic track lights. Wipro Lighting says surface-mounted tracks are fixed to the surface without any reconstruction, while recessed tracks are concealed in a false ceiling. Philips sells a micro track for its magnetic range in 1 m and 2 m lengths for surface or suspended mounting. Spots can be moved later, which suits a rented flat.
Painted beams. Paint an exposed beam the ceiling colour so it reads as part of the room, rather than boxing it in. Run a track or profile light beside it if you want to mark the line between living and dining (our guidance).
Curtains on a ceiling-fixed track and wall lights or lamps for warm light, with one surface-mounted fitting at the centre.

Plan the electrical points before you choose: a surface light still needs a point on the slab where it sits.

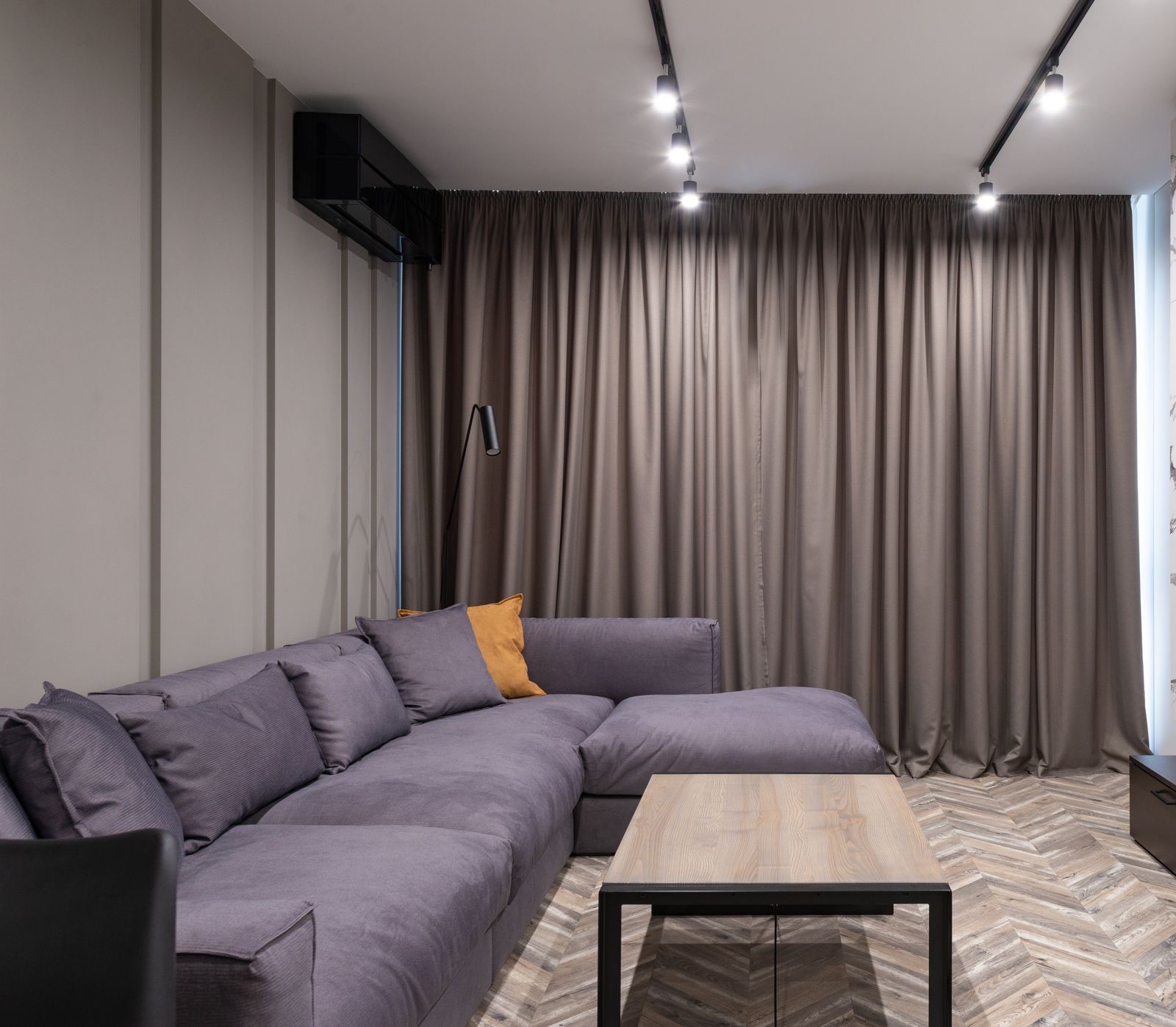

Living room with no false ceiling: two black surface-mounted track lights with adjustable spots run across a flat white ceiling, a black split AC sits high on the side wall, and floor-length taupe curtains hang from the ceiling line behind a grey corner sofa and a wooden coffee table on a herringbone floor. — No false ceiling at all: track lights fixed to the flat slab, and curtains hung straight from the ceiling line. Image: Max Vakhtbovych on Pexels, Pexels License

False ceiling design for a 2BHK flat, room by room

The plan below is a typical 2BHK of about 875 sq ft carpet area (inside the walls, counting internal walls but not the balcony), drawn to scale on a 9 ft slab. It shows where a simple ceiling earns its cost and where none is needed.

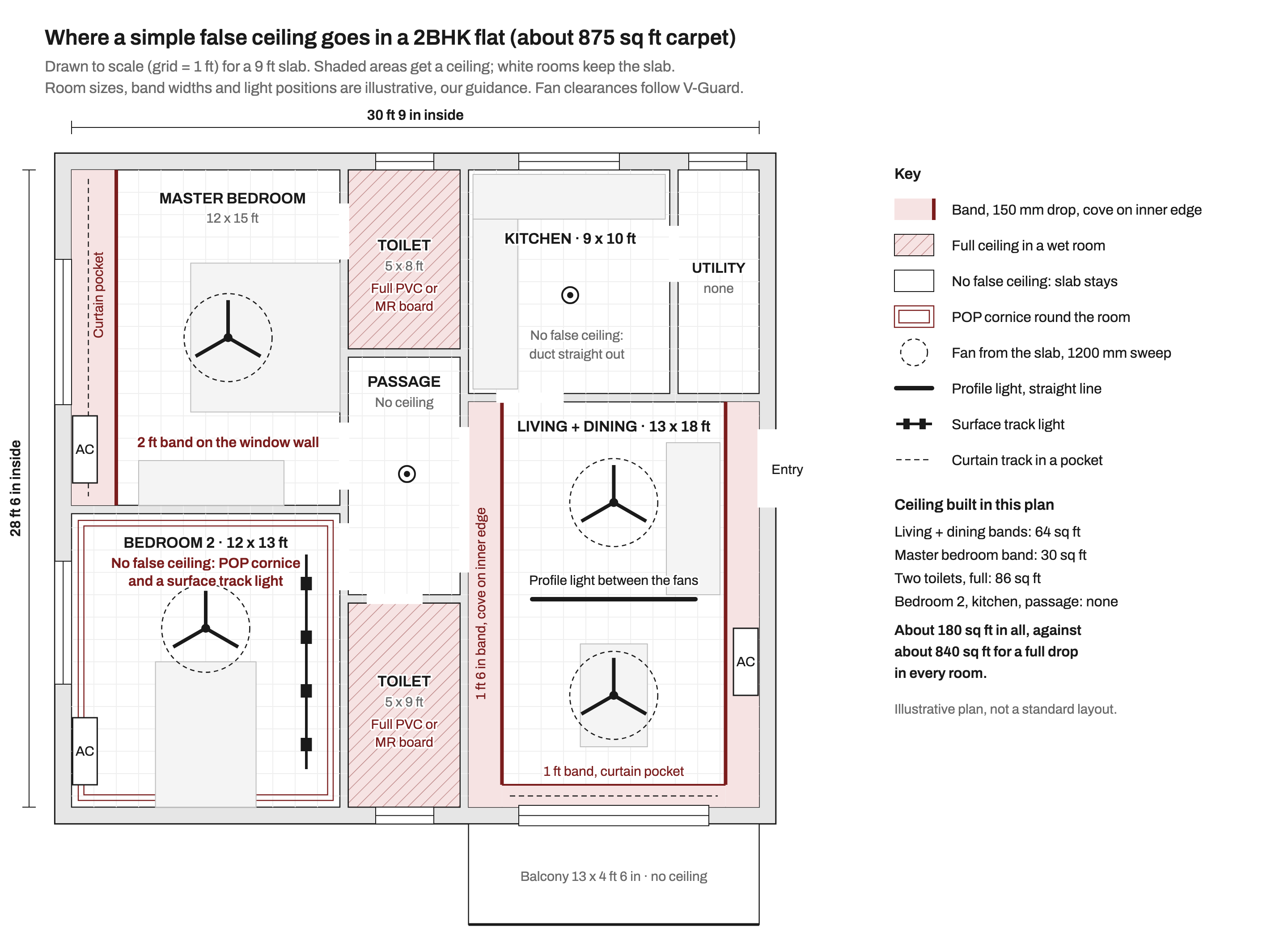

A 2BHK where only about 180 sq ft of ceiling is built: bands in the living room and master bedroom, full ceilings only in the toilets. Illustrative layout; fan clearances follow V-Guard, the rest is our guidance. Diagram: MOA

Living and dining (13 x 18 ft): 1 ft 6 in bands with a cove along both long walls and a 1 ft band with a curtain pocket at the balcony. Two fans hang from the slab, one over the sofa and one over the table, with a straight profile light between them. Built: about 64 sq ft. Atomberg's chart puts each 13 x 9 ft half (117 sq ft) in its 1200 mm band.
Master bedroom (12 x 15 ft): one 2 ft band on the window wall for the curtain pocket, with the split AC on the same wall so its pipes go straight out. Fan over the foot of the bed. Built: 30 sq ft.
Bedroom 2 (12 x 13 ft): no false ceiling. A POP cornice, a surface track light kept clear of the fan, and a reading light.
Kitchen (9 x 10 ft): no false ceiling. Take the chimney duct straight out through the nearest outside wall: Faber says the duct should be no longer than 12 ft without too many bends. In high-rise buildings, the Model Building Bye-Laws (clause 5.5.6) also ask that LPG distribution pipes always run below the false ceiling, so do not box gas lines in.
Toilets (5 x 8 ft and 5 x 9 ft): the one place a full ceiling makes sense, to cover the plumbing and geyser lines. The bye-laws set only 2.1 m as the minimum bathroom height, so a drop costs little. Use PVC or moisture-resistant board, with an access panel under every valve. Built: about 86 sq ft.
Passage, utility and balcony: no false ceiling. One surface light in the passage is enough.

For more ideas on making a small flat feel larger, see our small apartment design trends for 1BHK and 2BHK flats. If you follow vastu for the living room, our vastu for the living room post covers seating and the TV wall.

Low budget false ceiling for a 2BHK: quantity and cost

Market range: ₹60 to ₹180 per sq ft for POP, ₹75 to ₹150 for gypsum board and ₹70 to ₹230 for PVC, per sq ft of ceiling built, drawn from Design Cafe's national guide (10 Sep 2026), its Pune guide (28 Jul 2026) and NoBroker's Hyderabad guide (19 May 2026), the same ranges as our POP vs gypsum vs PVC cost guide. Design Cafe's Pune guide says most quotes cover material and framework only, prices cove lighting at ₹150 to ₹300 per running foot and painting at ₹15 to ₹30 per sq ft when not included, and notes that 18% GST is often extra. NoBroker also adds 18% GST. We found no published rate for a POP cornice.

Item (plan above)	Quantity	At the market range
Living and dining bands, gypsum	64 sq ft	₹4,800 to ₹9,600
Master bedroom band, gypsum	30 sq ft	₹2,250 to ₹4,500
Two toilets, PVC	86 sq ft	₹6,020 to ₹19,780
Cove light on the living room bands	about 36 running ft	₹5,400 to ₹10,800
Painting the gypsum bands, if extra	94 sq ft	₹1,410 to ₹2,820
POP cornice in bedroom 2	about 50 running ft	Get it quoted
Total, before GST, fittings and wiring	about 180 sq ft built	₹19,880 to ₹47,500

For comparison, a full drop in every room of the same flat is about 840 sq ft. At ₹75 to ₹150 for gypsum in the dry rooms and the PVC range in the toilets, the board alone comes to about ₹62,400 to ₹1.33 lakh, before any cove, paint or GST. Doing the bands in POP instead of gypsum moves the 94 sq ft from ₹7,050 to ₹14,100 to ₹5,640 to ₹16,920, so get both quoted in your city.

For the rest of the budget, try MOA's free home cost calculator. Our guides to interior design cost room by room and 2BHK interior design cost in Pune show where the ceiling sits in a full fit-out.

Simple false ceiling for a small bedroom or small hall: four rules

Measure the slab first. At about 9 ft, keep any drop to 150 mm and only at the edges. At 9 ft 6 in, 200 to 230 mm is possible.
Use one material and one colour. A white band on a white slab makes a small room look larger than a two-tone tray (our guidance).
Straight lines only, parallel to the walls, for bands and profile lights.
Box only what needs hiding: a beam, AC pipes, a curtain track or toilet plumbing.

FAQ

Which false ceiling design is best for a small room?

A band 1 ft to 1 ft 6 in wide and about 150 mm deep on two or three walls, with a cove and the fan in the open centre. If you want no drop at all, a POP cornice with surface or track lights works.

Is a false ceiling necessary in a 2BHK flat?

No. In the plan above, only the toilets truly need one, to hide plumbing. The living room and master bedroom bands are for light and curtains; bedroom 2, the kitchen and the passage do well with none.

How much does a false ceiling cost for a 2BHK flat?

For the simple plan above, about ₹19,900 to ₹47,500 for roughly 180 sq ft of bands and toilet ceilings with a cove, at published 2026 market rates, before GST, light fittings and wiring. A full drop in every room costs four to five times as much for the board alone.

Can I have a false ceiling with a 9 ft ceiling height?

Yes, but only at the edges. With a fan hung from a 9 ft slab, the blades sit at 2443 mm, just above V-Guard's 2.4 m minimum, so a fan cannot hang below a dropped area. A 150 mm band along the walls leaves 2593 mm under it.

What can I do instead of a false ceiling?

Surface or magnetic track lights fixed to the slab, a POP cornice, beams painted the ceiling colour, curtains on a ceiling-fixed track, and wall lights for warm light.

A designer can draw this kind of ceiling plan for your own flat before work starts. Find interior designers on MOA and filter the directory by your city.
